2002 SUBARU OUTBACK trunk

8-4
If at any time you suspect that exhaust fumes are entering the
vehicle, have the problem checked and corrected as soon as pos-
sible. If you must drive under these conditions, drive only with allwindows fully open. Keep the trunk lid or rear gate closed while driving to prevent
exhaust gas from entering the vehicle.
NOTE Due to the expansion and contraction of the metals used in the
manufacture of the exhaust system, you may hear a crackling soundcoming from the exhaust system for a short time after the enginehas been shut off. This sound is normal.
Catalytic converter
WARNING
Avoid fire hazards. Do not drive or park the vehicle anywhere
near flammable materials (e.g. grass, paper, rags or leaves), be-
cause the catalytic converter operates at very high temperatures. Keep everyone and flammable materials away from the ex-
haust pipe while the engine is running. The exhaust gas is veryhot.
HB8029BA
HB3003BA

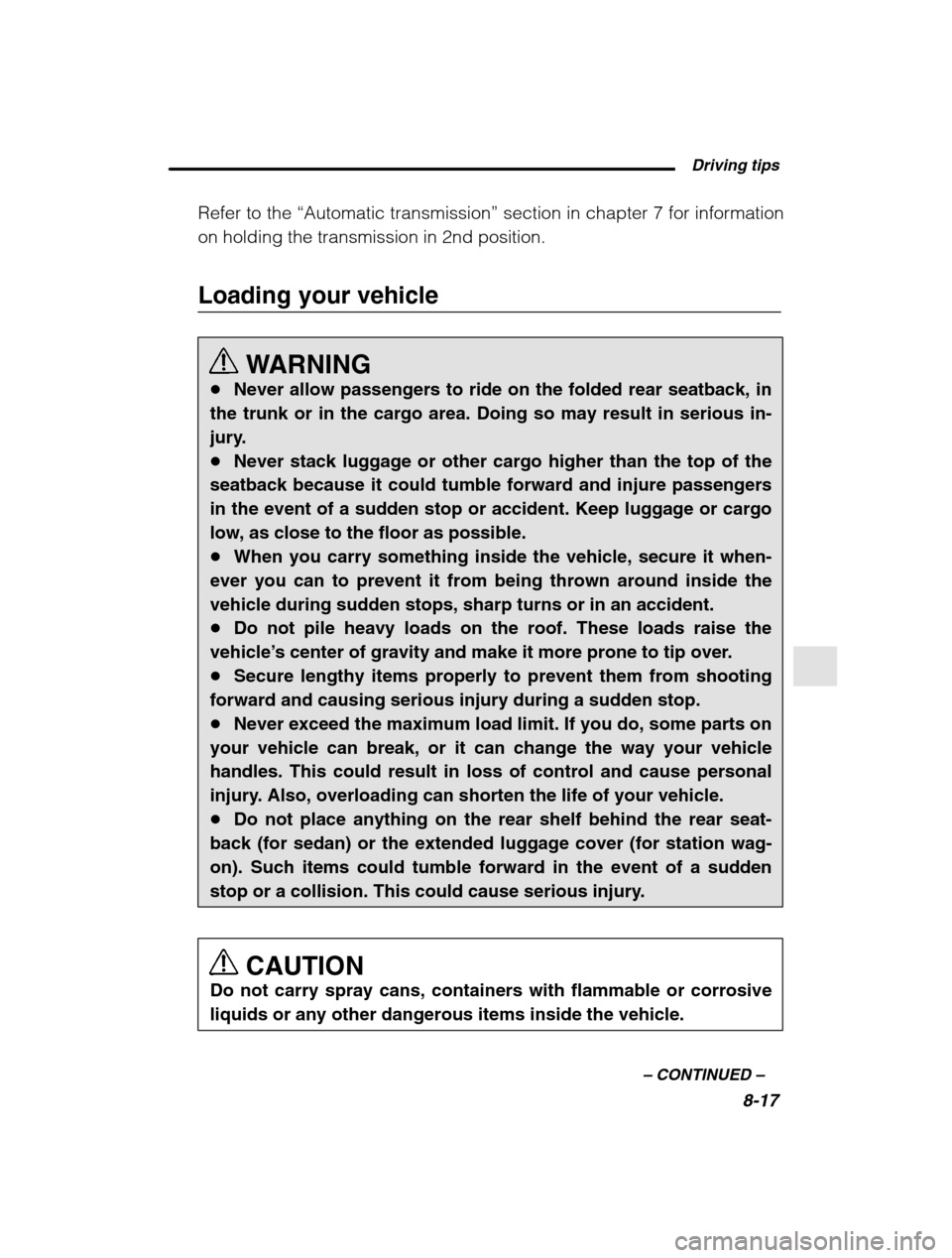

Driving tips8-17
–
CONTINUED –
Refer to the “Automatic transmission ” section in chapter 7 for information
on holding the transmission in 2nd position.
Loading your vehicle
WARNING
Never allow passengers to ride on the folded rear seatback, in
the trunk or in the cargo area. Doing so may result in serious in-
jury. Never stack luggage or other cargo higher than the top of the
seatback because it could tumble forward and injure passengersin the event of a sudden stop or accident. Keep luggage or cargo
low, as close to the floor as possible. When you carry something inside the vehicle, secure it when-
ever you can to prevent it from being thrown around inside the
vehicle during sudden stops, sharp turns or in an accident. Do not pile heavy loads on the roof. These loads raise the
vehicle’ s center of gravity and make it more prone to tip over.
Secure lengthy items properly to prevent them from shooting
forward and causing serious injury during a sudden stop. Never exceed the maximum load limit. If you do, some parts on
your vehicle can break, or it can change the way your vehicle
handles. This could result in loss of control and cause personal
injury. Also, overloading can shorten the life of your vehicle. Do not place anything on the rear shelf behind the rear seat-
back (for sedan) or the extended luggage cover (for station wag-on). Such items could tumble forward in the event of a sudden
stop or a collision. This could cause serious injury.
CAUTION
Do not carry spray cans, containers with flammable or corrosiveliquids or any other dangerous items inside the vehicle.

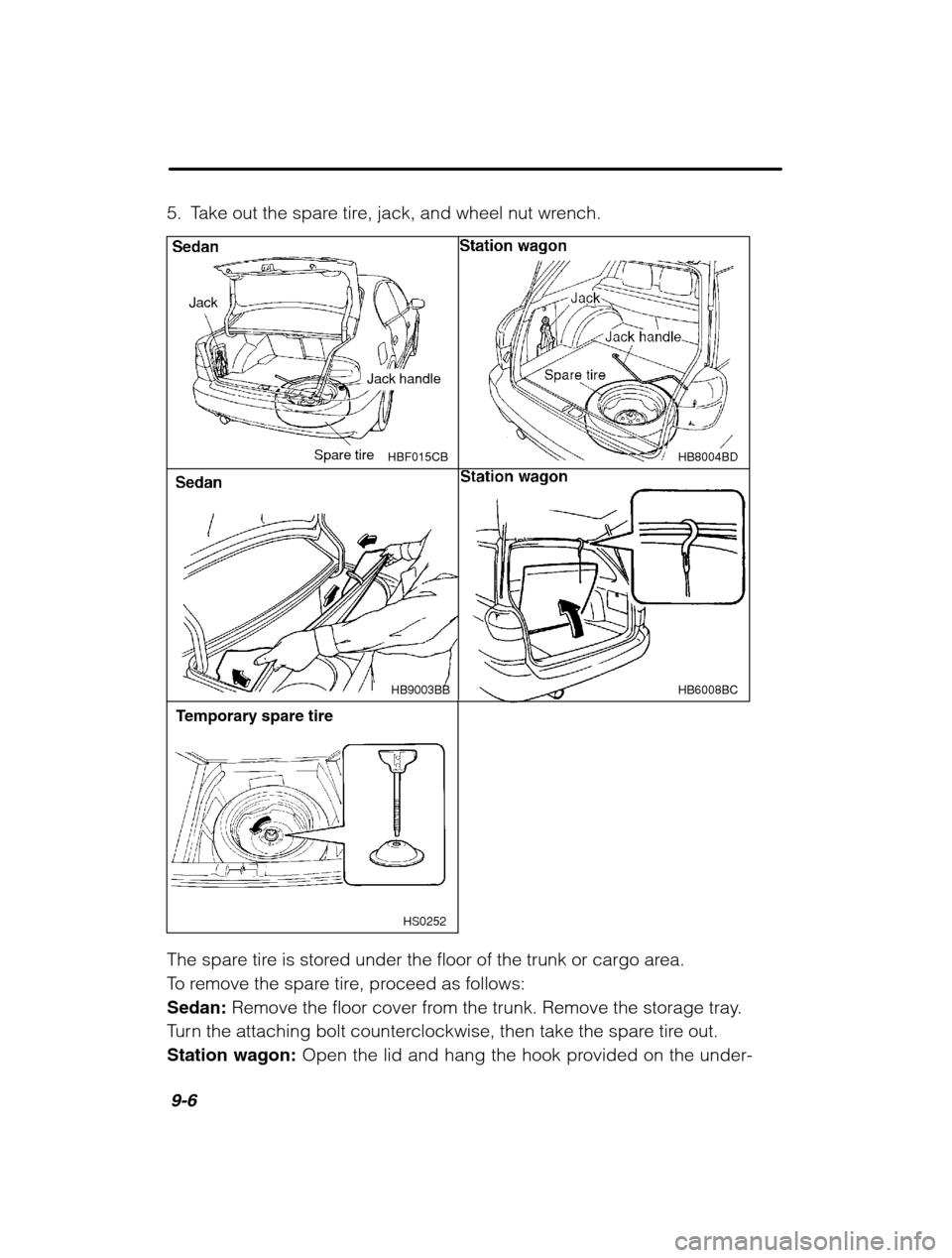

9-6
5. Take out the spare tire, jack, and wheel nut wrench.
HB6008BCHB9003BB
HS0252
Temporary spare tire
HBF015CB
Jack handle
Jack
Spare tireHB8004BD
The spare tire is stored under the floor of the trunk or cargo area.
To remove the spare tire, proceed as follows:Sedan: Remove the floor cover from the trunk. Remove the storage tray.
Turn the attaching bolt counterclockwise, then take the spare tire out.Station wagon: Open the lid and hang the hook provided on the under-

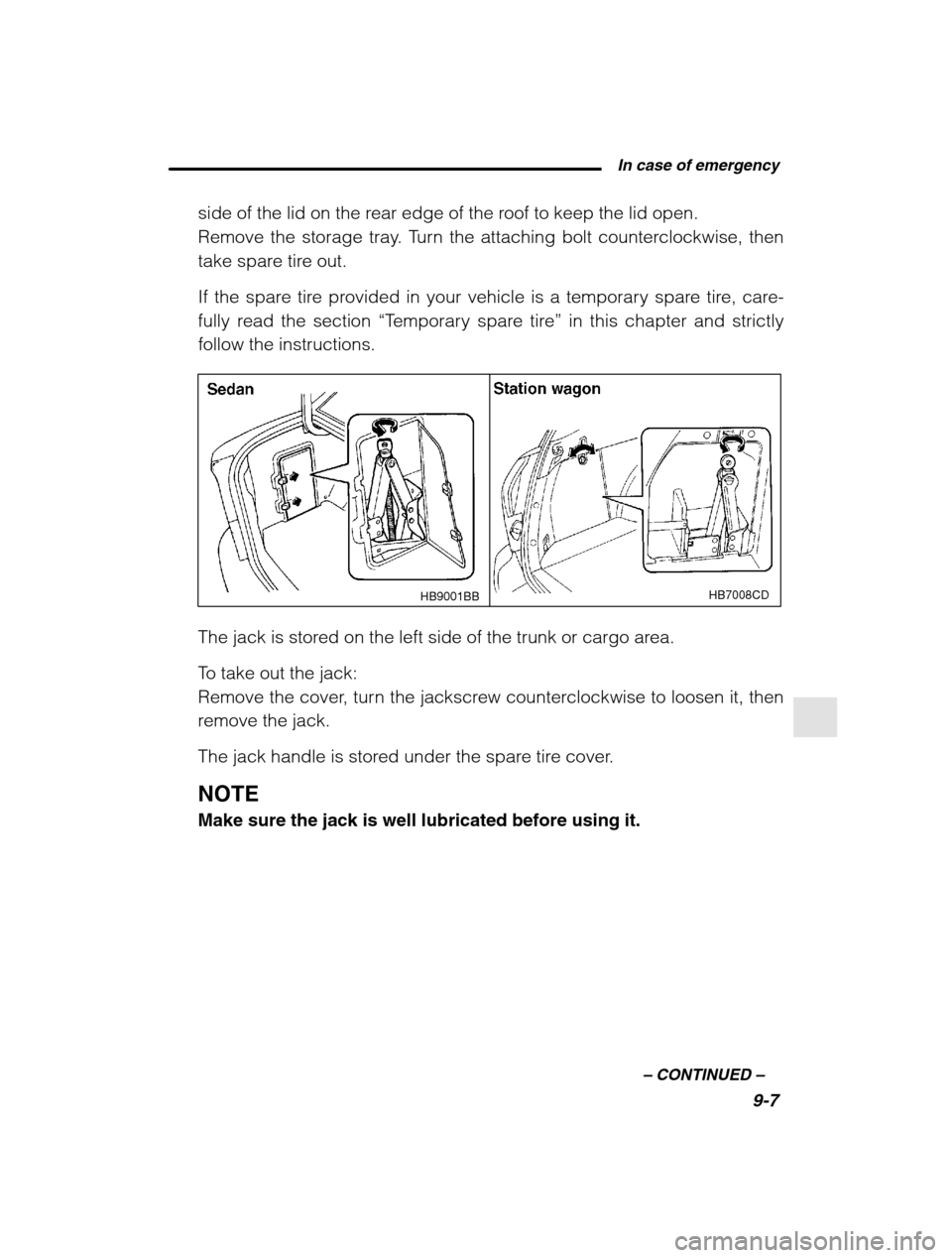

In case of emergency9-7
–
CONTINUED –
side of the lid on the rear edge of the roof to keep the lid open.
Remove the storage tray. Turn the attaching bolt counterclockwise, then
take spare tire out.
If the spare tire provided in your vehicle is a temporary spare tire, care-
fully read the section “Temporary spare tire ” in this chapter and strictly
follow the instructions.
HB7008CD
HB9001BB
The jack is stored on the left side of the trunk or cargo area.
To take out the jack:
Remove the cover, turn the jackscrew counterclockwise to loosen it, then
remove the jack.
The jack handle is stored under the spare tire cover. NOTE Make sure the jack is well lubricated before using it.

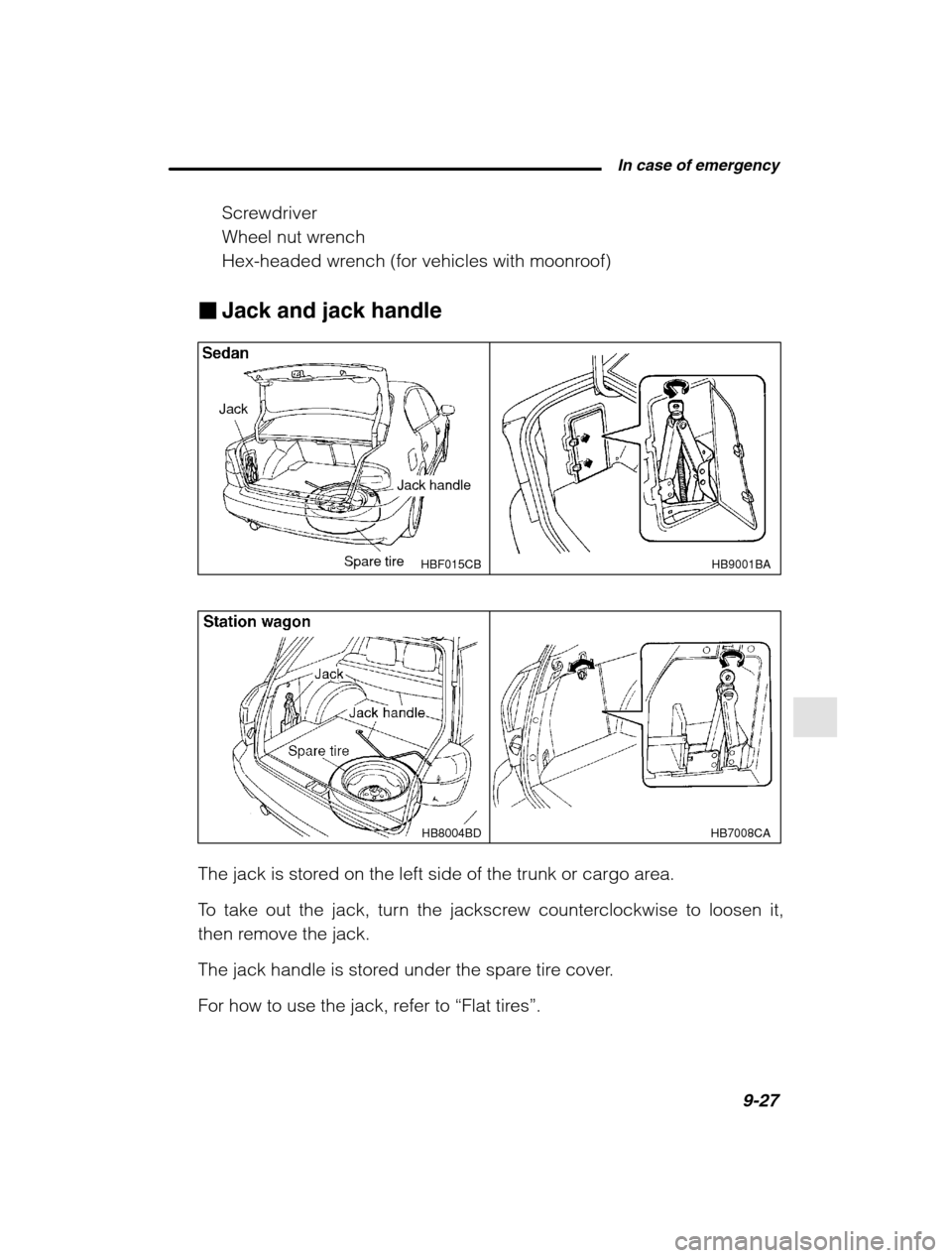

In case of emergency9-27
–
CONTINUED –
Screwdriver
Wheel nut wrench
Hex-headed wrench (for vehicles with moonroof)
Jack and jack handle
HB9001BA
HBF015CB
Jack handle
Jack
Spare tire
HB7008CA
HB8004BD
The jack is stored on the left side of the trunk or cargo area.
To take out the jack, turn the jackscrew counterclockwise to loosen it,
then remove the jack.
The jack handle is stored under the spare tire cover.
For how to use the jack, refer to “Flat tires ”.

10-6
Before the beginning of winter, check the condition of underbody
components, such as the exhaust system, fuel and brake lines, brake
cables, suspension, steering system, floor pan, and fenders. If any of
them are found to be rusted, they should be given an appropriate rust
prevention treatment or should be replaced. Contact your SUBARU
dealer to perform this kind of maintenance and treatment if you needassistance. Repair chips and scratches in the paint as soon as you find them.
Check the interior of the vehicle for water and dirt accumulation under
the floor mats because that could cause corrosion. Occasionally
check under the mats to make sure the area is dry.
Keep your garage dry. Do not park your vehicle in a damp, poorly
ventilated garage. In such a garage, corrosion can be caused by
dampness. If you wash the vehicle in the garage or put the vehicle
into the garage when wet or covered with snow, that can causedampness.
If your vehicle is operated in cold weather and/or in areas where road
salts and other corrosive materials are used, the door hinges and
locks, trunk lid lock, and hood latch should be inspected and lubri-
cated periodically.
Cleaning the interior
Use a vacuum cleaner to get rid of the dust and dirt. Wipe the vinyl areas with a clean, damp cloth. Seat fabric
Remove loose dirt, dust or debris with a vacuum cleaner. If the dirt is
caked on the fabric or hard to remove with a vacuum cleaner, use asoft blush then vacuum it.
Wipe the fabric surface with a tightly wrung cloth and dry the seat
fabric thoroughly. If the fabric is still dirty, wipe using a solution of mild
soap and lukewarm water then dry thoroughly.
If the stain does not come out, try a commercially-available fabric

11-2Battery
11-51
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuses 11-52
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Main fuse 11-54
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation of accessories 11-54 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Replacing bulbs 11-55
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Headlight 11-57
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front fog light (if equipped) 11-59
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front turn signal light, parking light and marker light 11-59 . . . . . . . . . . . .
Rear combination lights 11-61
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
License plate light 11-64
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Spot light, dome light, luggage compartment light
and door step light 11-65
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Trunk light 11-66
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
High mount stop light 11-67
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

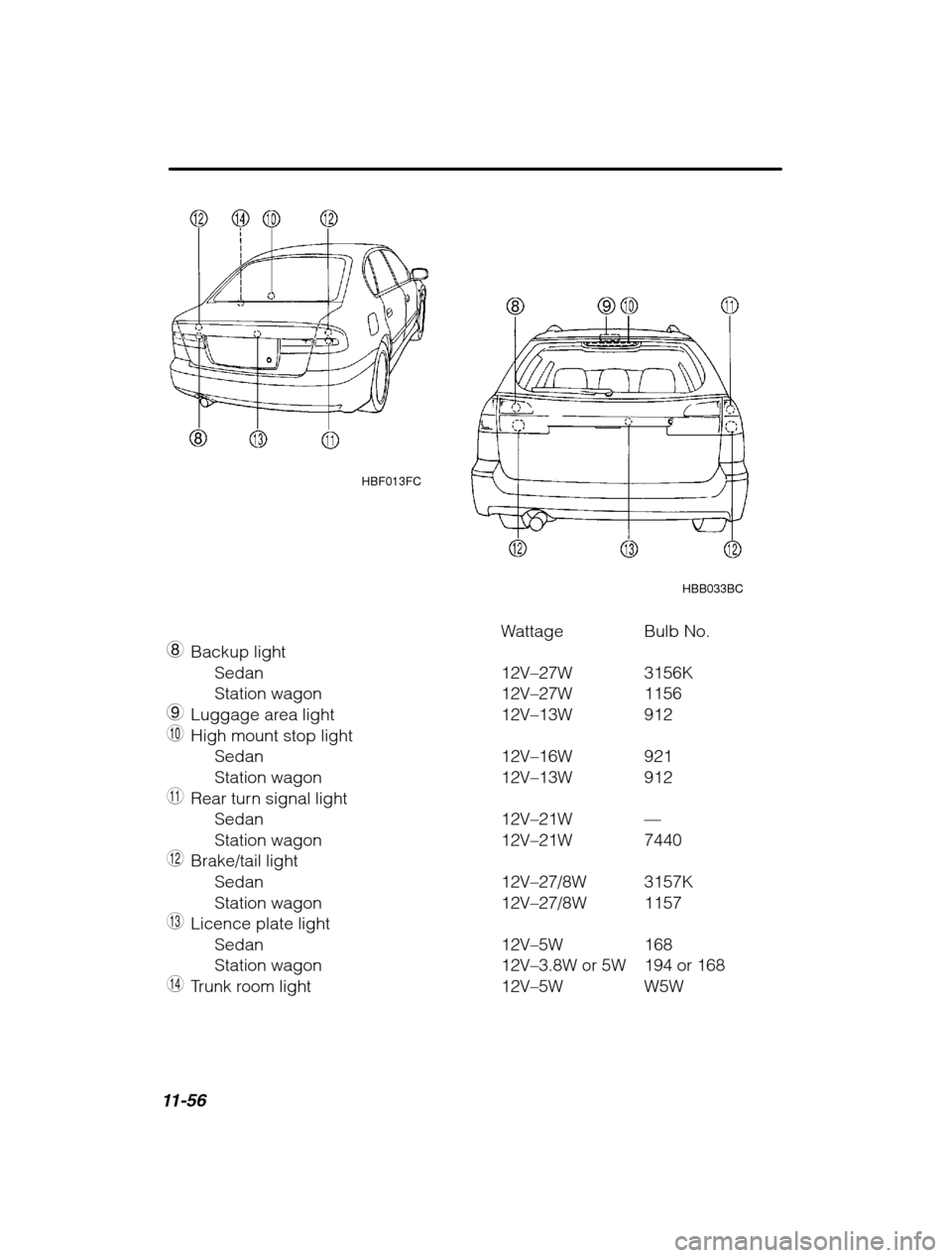

11-56
Wattage Bulb No.
8 Backup light
Sedan 12V–27W 3156K
Station wagon 12V –27W 1156
9 Luggage area light 12V –13W 912
Q High mount stop light
Sedan 12V–16W 921
Station wagon 12V –13W 912
W Rear turn signal light
Sedan 12V–21W —
Station wagon 12V –21W 7440
E Brake/tail light
Sedan 12V–27/8W 3157K
Station wagon 12V –27/8W 1157
R Licence plate light
Sedan 12V–5W 168
Station wagon 12V –3.8W or 5W 194 or 168
T Trunk room light 12V –5W W5W
HBF013FC
HBB033BC
