2002 SUBARU FORESTER window

6-4
HB6006BB
To turn on the spotlight, push the switch. To turn it off, push the switch again.
When leaving the vehicle, make sure the light is turned off to avoid bat-
tery discharge.
Sun visors
HB7001BA
To block out glare, swing down the visors. To use the sun visor at a side
window, swing it down and move it sideways.

7-8
more accurate measurement of tailpipe emitted pollution than the basic emission test.
The U.S. Environmental Protection Agency (EPA) and states using two-
wheel dynamometers in their emission testing programs haveEXEMPTED Subaru AWD vehicles from the portion of the testing pro-
gram that involves a two-wheel dynamometer.
There are some states that use four-wheel dynamometers in their testing
programs. When properly used, that equipment will not damage an AWD Subaru vehicle.
Under no circumstances should the rear wheels be jacked off the
ground, nor should the driveshaft be disconnected for state emission testing.
Preparing to drive
You should perform the following checks and adjustments every day be-
fore you start driving.
1. Check that all windows, mirrors, and lights are clean and unob- structed.
2. Check the appearance and condition of the tires. Also check tires for
proper inflation.
3. Look under the vehicle for any sign of leaks.
4. Check that the hood, trunk and rear gate are fully closed.
5. Check the adjustment of the seat.
6. Check the adjustment of the inside and outside mirrors.
7. Fasten your seatbelt. Check that your passengers have fastened theirseatbelts.
8. Check the operation of the warning and indicator lights when the igni-
tion switch is turned to the “ON” position.
9. Check the gauges, indicator and warning lights after starting the en-gine. NOTE Engine oil, engine coolant, brake fluid, washer fluid and other fluid
levels should be checked daily, weekly or at fuel stops.

8-4
If at any time you suspect that exhaust fumes are entering the
vehicle, have the problem checked and corrected as soon as pos-
sible. If you must drive under these conditions, drive only with allwindows fully open. Keep the trunk lid or rear gate closed while driving to prevent
exhaust gas from entering the vehicle.
NOTE Due to the expansion and contraction of the metals used in the
manufacture of the exhaust system, you may hear a crackling soundcoming from the exhaust system for a short time after the enginehas been shut off. This sound is normal.
Catalytic converter
WARNING
Avoid fire hazards. Do not drive or park the vehicle anywhere
near flammable materials (e.g. grass, paper, rags or leaves), be-
cause the catalytic converter operates at very high temperatures. Keep everyone and flammable materials away from the ex-
haust pipe while the engine is running. The exhaust gas is veryhot.
HB8029BA
HB3003BA

8-10
traction by starting the vehicle with the transmission in 2nd than 1st
(both for MT and AT).Never equip your vehicle with tires larger than those specified in
this manual. Frequent driving of an AWD vehicle under hard-driving conditions
such as rough roads or off roads will necessitate more frequent re-
placement of engine oil, brake fluid and transmission oil than that spe-
cified in the maintenance schedule described in the “Warranty and
Maintenance Booklet ”.
Remember that damage done to your Subaru while operating it off-
road and not using common sense precautions such as those listedabove is not eligible for warranty coverage.
Winter driving
HB3010AA
Operation during cold weather
Carry some emergency equipment, such as tire chains, a window
scraper, a bag of sand, flares, a small shovel, and jumper cables.
Check the battery and cables. Cold temperatures reduce battery ca-
pacity. The battery must be in good condition to provide enough pow-
er for cold winter starts.
Use an engine oil of proper grade and viscosity for cold weather.
Heavy summer oil will cause harder starting.

Driving tips8-13
–
CONTINUED –

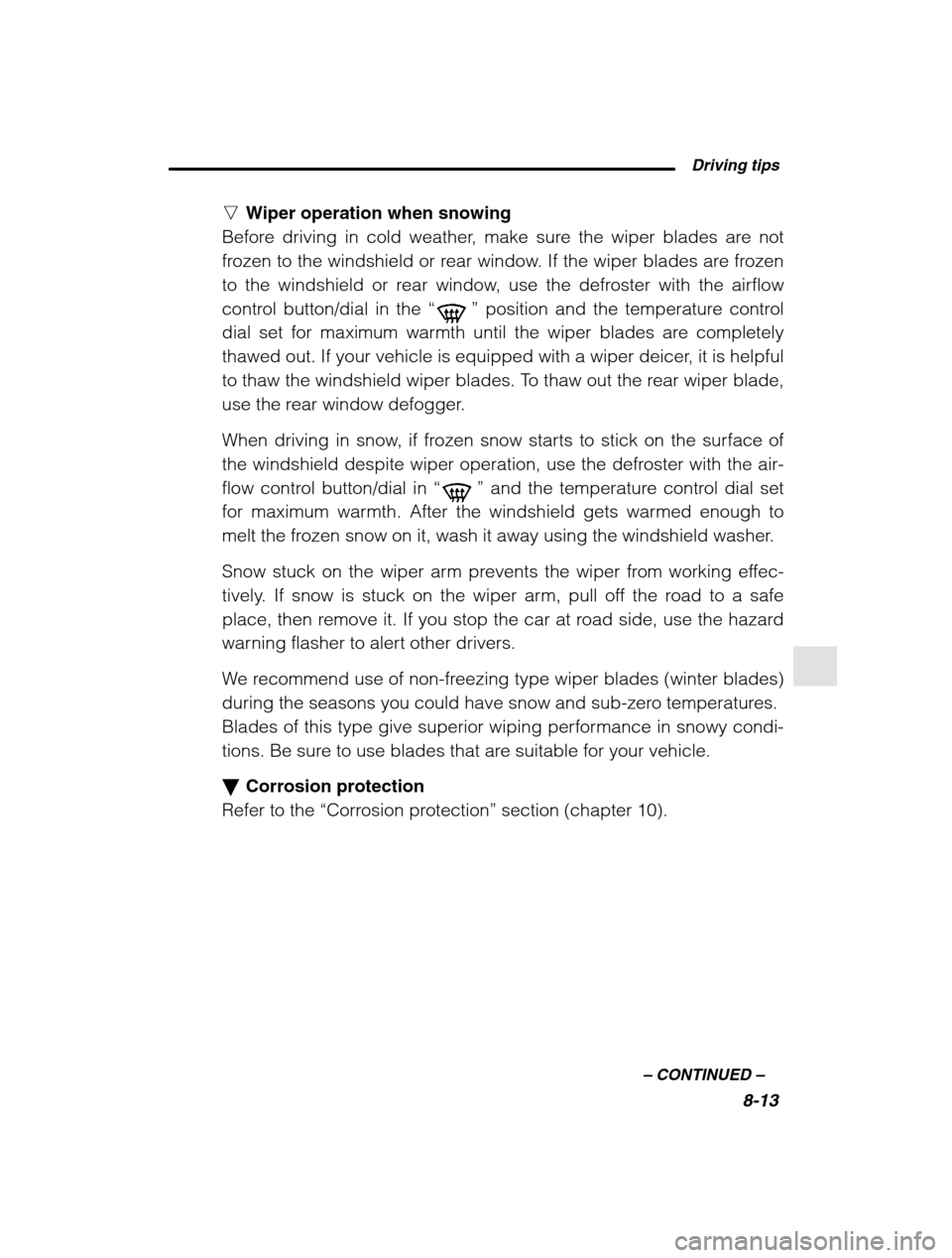

nWiper operation when snowing
Before driving in cold weather, make sure the wiper blades are not
frozen to the windshield or rear window. If the wiper blades are frozen
to the windshield or rear window, use the defroster with the airflow
control button/dial in the “
” position and the temperature control
dial set for maximum warmth until the wiper blades are completely
thawed out. If your vehicle is equipped with a wiper deicer, it is helpful
to thaw the windshield wiper blades. To thaw out the rear wiper blade,
use the rear window defogger.
When driving in snow, if frozen snow starts to stick on the surface of
the windshield despite wiper operation, use the defroster with the air-
flow control button/dial in “
” and the temperature control dial set
for maximum warmth. After the windshield gets warmed enough to
melt the frozen snow on it, wash it away using the windshield washer.
Snow stuck on the wiper arm prevents the wiper from working effec-
tively. If snow is stuck on the wiper arm, pull off the road to a safe
place, then remove it. If you stop the car at road side, use the hazard
warning flasher to alert other drivers.
We recommend use of non-freezing type wiper blades (winter blades)
during the seasons you could have snow and sub-zero temperatures.
Blades of this type give superior wiping performance in snowy condi-
tions. Be sure to use blades that are suitable for your vehicle. Corrosion protection
Refer to the “Corrosion protection ” section (chapter 10).

Appearance care10-7
–
CONTINUED –
cleaner. Use the cleaner on a hidden place and make sure it does not
affect the fabric adversely. Use the cleaner according to its instruc-tions. Leather seat materials
The leather used by SUBARU is a high quality natural product which
will retain its distinctive appearance and feel for many years with
proper care.
Allowing dust or road dirt to build up on the surface can cause the
material to become brittle and to wear prematurely. Regular cleaning
with a soft, moist, natural fiber cloth should be performed monthly,
taking care not to soak the leather or allow water to penetrate thestitched seams.A mild detergent suitable for cleaning woolen fabrics may be used to
remove difficult dirt spots, rubbing with a soft, dry cloth afterwards to
restore the luster. If your SUBARU is to be parked for a long time in
bright sunlight, it is recommended that the seats and headrests be
covered, or the windows shaded, to prevent fading or shrinkage.
Minor surface blemishes or bald patches may be treated with a com-
mercial leather spray lacquer. You will discover that each leather seatsection will develop soft folds or wrinkles, which is characteristic of
genuine leather. Synthetic leather upholstery
The synthetic leather material used on the SUBARU may be cleaned
using mild soap or detergent and water, after first vacuuming or
brushing away loose dirt. Allow the soap to soak in for a few minutes
and wipe off with a clean, damp cloth. Commercial foam-type clean-ers suitable for synthetic leather materials may be used when neces-
sary. NOTE Strong cleaning agents such as solvents, paint thinners, window
cleaner or gasoline must never be used on leather or syntheticinterior materials.

11-48
Washer Fluid ConcentrationFreezing Temperature
30% 50%
100%10.4 °F ( –12 °C)
–4 °F ( –20 °C)
–49 °F ( –45 °C)
HBB004IA
Replacement of windshield wiper blades
Grease, wax, insects, or other materials on the windshield or the wiper
blade results in jerky wiper operation and streaking on the glass. If you
cannot remove the streaks after operating the windshield washer or if the
wiper operation is jerky, clean the outer surface of the windshield (or rear
window) and the wiper blades using a sponge or soft cloth with a neutral
detergent or mild-abrasive cleaner. After cleaning, rinse the windshield
and wiper blades with clean water. The windshield is clean if beads do
not form when you rinse the windshield with water.
CAUTION
Do not clean the wiper blades with gasoline or a solvent, such as
paint thinner or benzene. This will cause deterioration of thewiper blades.
If you cannot eliminate the streaking even after following this method,
replace the wiper blades using the following procedures:

Specifications12-7
–
CONTINUED –
Fuse panel Circuit Fuse rating
615ASRS airbag
715AFront fog light
830AABS solenoid
915ARadio
Clock
1015ATrailer
1115AEngine ignition system
SRS airbag
1210AIllumination brightness control
1315AFuel pump
1410ARear window wiper and washer
1530AWindshield wiper and washer
1620ABrake light
1715AAir conditioner
1815ABackup light
Cruise control
ABS control
1920AMirror heater
Wiper deicer
2020AAccessory power socket
Seat heater
