2002 SUBARU FORESTER automatic transmission

Starting and operating7-17
–
CONTINUED –
taking place when the accelerator is released. This minimizes the
chance of subsequent downshifting to a lower gear when accelerat-
ing again. This prevents repeated upshifting and downshifting result-ing in a smoother operation of the vehicle. NOTE
The transmission may downshift to 2nd or 1st gear, depending on the way the accelerator pedal is pressed to accelerate the vehicleagain. nWhile going down a hill
When descending a steep hill, depressing the brake pedal will cause
the transmission to downshift to 3rd gear, thus applying engine brak-
ing. Reacceleration for a short time will cause the transmission to up-
shift normally. NOTE In some cases, depressing the brake pedal on a downhill grade
does not result in an automatic downshift to 3rd gear. This canhappen when the automatic transmission fluid temperature is
very low, for example, during driving shortly after the vehicle has
been parked for an extended period of time. When the ATF tem-perature has risen to a certain level, automatic downshift normal-ly takes place. In the meantime, downshift manually for enginebraking as required.Also, downshifting when braking downhill will not occur at
speeds above approximately 50 mph (80 km/h). 3 (Third)
This position is for using engine braking when going down a hill or for
climbing a grade.
The transmission automatically shifts into a suitable gear from 1st to
3rd according to the vehicle speed and the acceleration you require.
When more acceleration is required in this position, press the acceler- ator pedal fully to the floor and hold that position. The transmission
will automatically downshift to 2nd or 1st gear. When you release the
pedal, the transmission will return to the original gear position.

Starting and operating7-33
–
CONTINUED –

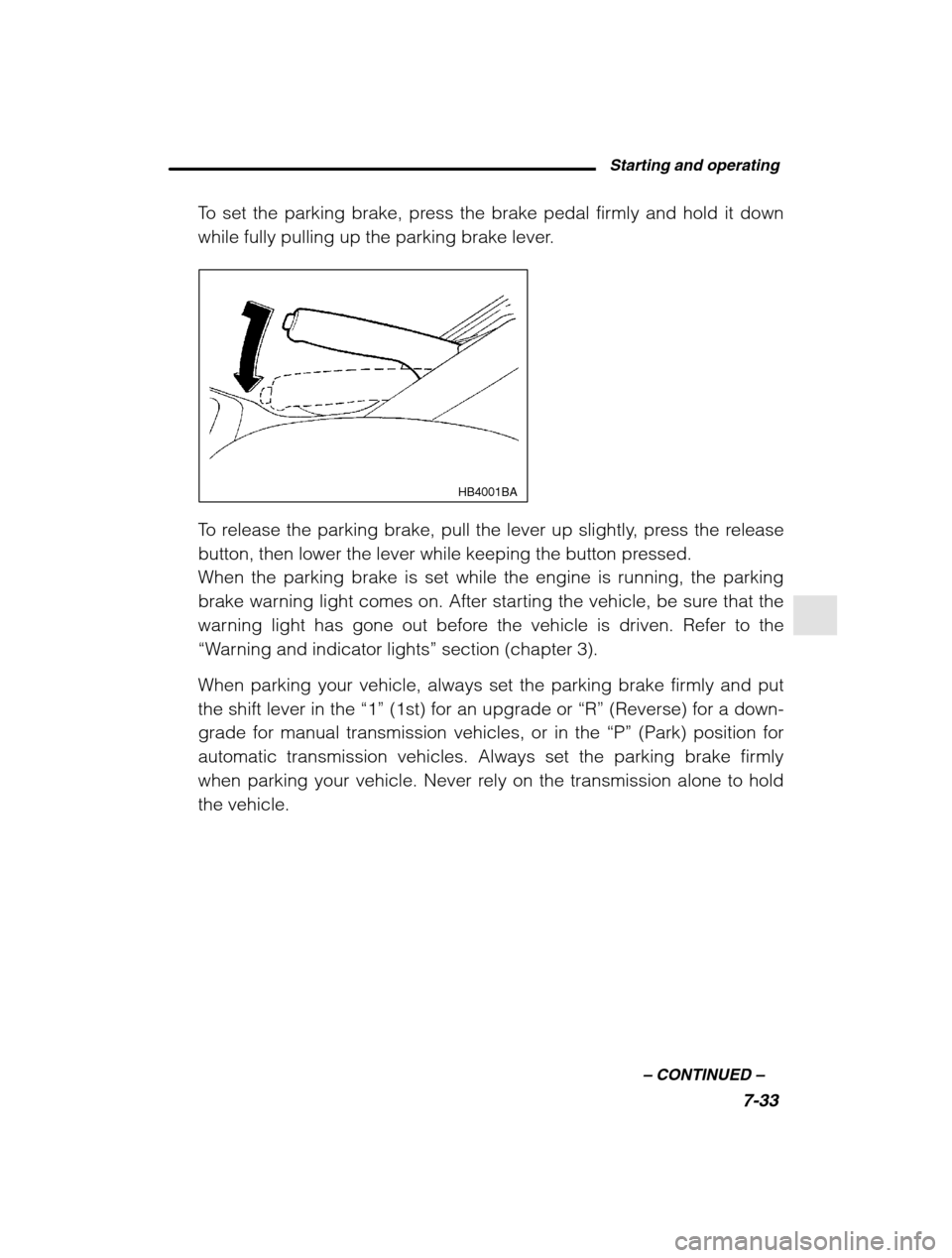

To set the parking brake, press the brake pedal firmly and hold it down
while fully pulling up the parking brake lever.
HB4001BA
To release the parking brake, pull the lever up slightly, press the release
button, then lower the lever while keeping the button pressed.
When the parking brake is set while the engine is running, the parking
brake warning light comes on. After starting the vehicle, be sure that the
warning light has gone out before the vehicle is driven. Refer to the“Warning and indicator lights ” section (chapter 3).
When parking your vehicle, always set the parking brake firmly and putthe shift lever in the “1” (1st) for an upgrade or “R” (Reverse) for a down-
grade for manual transmission vehicles, or in the “P” (Park) position for
automatic transmission vehicles. Always set the parking brake firmly
when parking your vehicle. Never rely on the transmission alone to holdthe vehicle.

Starting and operating7-35
–
CONTINUED –

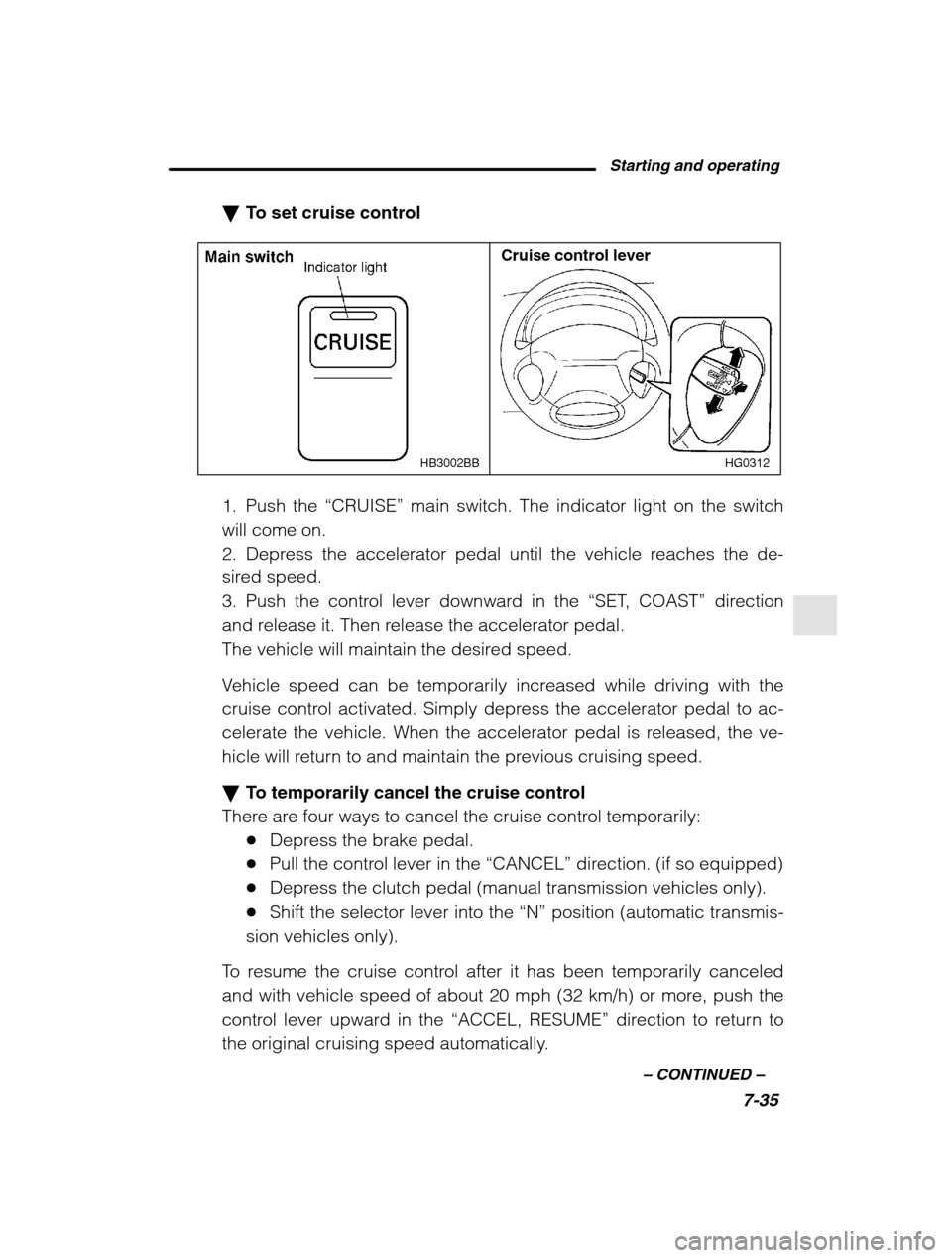

To set cruise control
HG0312
HB3002BB
Cruise control lever
1. Push the “CRUISE” main switch. The indicator light on the switch
will come on.
2. Depress the accelerator pedal until the vehicle reaches the de-
sired speed.
3. Push the control lever downward in the “SET, COAST ” direction
and release it. Then release the accelerator pedal.
The vehicle will maintain the desired speed.
Vehicle speed can be temporarily increased while driving with the
cruise control activated. Simply depress the accelerator pedal to ac-
celerate the vehicle. When the accelerator pedal is released, the ve-
hicle will return to and maintain the previous cruising speed. To temporarily cancel the cruise control
There are four ways to cancel the cruise control temporarily:
Depress the brake pedal.
Pull the control lever in the “CANCEL” direction. (if so equipped)
Depress the clutch pedal (manual transmission vehicles only).
Shift the selector lever into the “N” position (automatic transmis-
sion vehicles only).
To resume the cruise control after it has been temporarily canceled
and with vehicle speed of about 20 mph (32 km/h) or more, push the
control lever upward in the “ACCEL, RESUME ” direction to return to
the original cruising speed automatically.

8-2
New vehicle break-in driving –
the first 1,000 miles (1,600 km)
The performance and long life of your vehicle are dependent on how you
handle and care for your vehicle while it is new. Follow these instructionsduring the first 1,000 miles (1,600 km): Do not race the engine. Break-in engine speed limit
Vehicle with tachometer
Never exceed 4,000 rpm engine speed except for brief acceleration
in an emergency. Vehicle without tachometer (for manual transmission)
Do not exceed the speed limits below for each gear position except
for brief acceleration in an emergency.
mph (km/h)
1st
2nd3rd4th
22 (35)37 (60)50 (80)65 (105)
Vehicles without tachometer (for automatic transmission)
Try to drive at moderate speeds while accelerating and braking
smoothly. Proper gears are selected automatically according to thedriving conditions.
Do not drive at one constant engine or vehicle speed for a long time,
either fast or slow. Avoid starting suddenly and rapid acceleration, except in an emer-
gency. Avoid hard braking, except in an emergency.
The same break-in procedures should be applied to a newly installed or
overhauled engine or when brake pads or brake linings are replacedwith new ones.

Driving tips8-11
–
CONTINUED –
Keep the door locks from freezing by squirting them with deicer or glycerin.
Forcing a frozen door open may damage or separate the rubber
weather strips around the door. If the door is frozen, use hot water to
melt the ice, and afterwards thoroughly wipe the water away.
Use a windshield washer fluid that contains an antifreeze solution. Do
not use engine antifreeze or other substitutes because they may dam-age the paint of the vehicle. nBefore driving your vehicle
Before entering the vehicle, remove any snow or ice from your shoes
because that could make the pedals slippery and dangerous.
While warming up the vehicle before driving, check that the accelera-
tor pedal, brake pedal, and all other controls operate smoothly.
Clear away ice and snow that has accumulated under the fenders to
avoid making steering difficult. During severe winter driving, stop
when and where it is safe to do so and check under the fenders peri-
odically. n Parking in cold weather
WARNING
Snow can trap dangerous exhaust gases under your vehicle. Keep snow clear of the exhaust pipe and from around your
vehicle if you park the vehicle in snow with the engine running.
Do not use the parking brake when parking for long periods in cold
weather since it could freeze in that position. Instead, observe the fol-lowing:
1. Place the shift lever in “1” or “R” for manual transmission vehicles,
and in “P” for automatic transmission vehicles.
2. Use tire stops under the tires to prevent the vehicle from moving.
When the vehicle is parked in snow or when it snows, raise the wiper
blades off the glass to prevent damage to them.

Driving tips8-17
–
CONTINUED –
Refer to the “Automatic transmission ” section in chapter 7 for information
on holding the transmission in 2nd position.
Loading your vehicle
WARNING
Never allow passengers to ride on the folded rear seatback, in
the trunk or in the cargo area. Doing so may result in serious in-
jury. Never stack luggage or other cargo higher than the top of the
seatback because it could tumble forward and injure passengersin the event of a sudden stop or accident. Keep luggage or cargo
low, as close to the floor as possible. When you carry something inside the vehicle, secure it when-
ever you can to prevent it from being thrown around inside the
vehicle during sudden stops, sharp turns or in an accident. Do not pile heavy loads on the roof. These loads raise the
vehicle’ s center of gravity and make it more prone to tip over.
Secure lengthy items properly to prevent them from shooting
forward and causing serious injury during a sudden stop. Never exceed the maximum load limit. If you do, some parts on
your vehicle can break, or it can change the way your vehicle
handles. This could result in loss of control and cause personal
injury. Also, overloading can shorten the life of your vehicle. Do not place anything on the rear shelf behind the rear seat-
back (for sedan) or the extended luggage cover (for station wag-on). Such items could tumble forward in the event of a sudden
stop or a collision. This could cause serious injury.
CAUTION
Do not carry spray cans, containers with flammable or corrosiveliquids or any other dangerous items inside the vehicle.

Driving tips8-39
–
CONTINUED –
nearest SUBARU dealer. nDriving on grades
Before going down a steep hill, slow down and shift into lower gear
(if necessary, use 1st gear) in order to utilize the engine braking effect
and prevent overheating of your vehicle ’s brakes. Do not make sud-
den downshifts. When driving uphill in hot weather, the air conditioner may turn off
automatically to protect the engine from overheating. When driving uphill in hot weather, pay attention to the water tem-
perature gauge pointer (for all vehicles) and AT OIL TEMP warning
light (for AT vehicles) since the engine and transmission are relatively
prone to overheating under these conditions. If the water temperature
gauge pointer approaches the OVERHEAT zone or the AT OIL TEMP
warning light illuminates, immediately switch off the air conditioner
and stop the vehicle at the nearest safe place. Refer to the “Engine
overheat” section in chapter 9, and “Warning and indicator lights ”
section in chapter 3. If your vehicle has a automatic transmission, avoid using the accel-
erator pedal to stay stationary on an uphill slope instead of using theparking brake or foot brake. That may cause the transmission fluid to
overheat. Also, if your vehicle is equipped with an automatic transmis-sion, avoid driving with the gear selector lever in “D” when towing a
heavy trailer to prevent fluid overheating. n Parking on a grade
Always block the wheels under both vehicle and trailer when parking.
Apply the parking brake firmly. You should not park on a hill or slope.But if parking on a hill or slope cannot be avoided, you should takethe following steps:
1. Apply the brakes and hold the pedal down.
2. Have someone place wheel blocks under both the vehicle and
trailer wheels.
3. When the wheel blocks are in place, release the regular brakes
slowly until the blocks absorb the load.
4. Apply the regular brakes and then apply the parking brake; slowly
release the regular brakes.

9-4
HB8003BB
HG0106
Indicator location mark
Tread wear indicator bar
NOTE
[Automatic transmission vehicle not equipped with VDC (Vehicle Dy-
namics Control)] Before driving your vehicle with the temporaryspare tire, put a spare fuse inside the FWD connector located in theengine compartment and confirm that the Front-wheel drive warninglight comes on. The all wheel drive capability of the vehicle has now
been deactivated. After re-installing the conventional tire, removethe spare fuse from the FWD connector in order to reactivate allwheel drive.
Flat tires
WARNING
Do not jack up the vehicle on an incline or a loose road sur-
face. The jack can come out of the jacking point or sink into the ground and this can result in a severe accident. Use only the jack provided with your vehicle. The jack sup-
plied with the vehicle is designed only for changing a tire. Neverget under the vehicle while supporting the vehicle with this jack. Always turn the engine off before raising the flat tire off the
ground using the jack. Never swing or push the vehicle sup-ported with the jack. The jack can come out of the jacking pointdue to a jolt and this can result in a severe accident.
