2002 SAAB 9-5 fuse box

6Engine compartment,
4-cyl engine
IB1737
Engine: description ___________ 192
Engine oil level: checking ______ 193
Engine oil: changing __________ 194
Engine oil specification ________ 251
Brakes and braking ___________ 165
ABS brakes _________________ 165
Brake system ________________ 197
Brake fluid __________________ 255
Brake pads __________________ 255
Fuse panels ___________ 216
Changing a fuse ________ 216
Table of fuses __________ 218
Relays _______________ 219Temperature gauge ______ 57
Driving in hot weather ____ 173
Driving in winter_________ 171
Coolant _______________ 196
Cooling-system capacity _ 250
Power steering __________ 198
Steering fluid: grade _____ 198
Wiper/washer control stalk _ 70
Washer fluid: topping up __ 203
Washer jets ___________ 203
Jump starting ________________ 182
Battery _____________________ 199
Battery charge _______________ 199
Manual transmission __________ 156
Automatic transmission ________ 157
Manual transmission oil ________ 254
Automatic transmission fluid ____ 254
Important considerations
for driving ___________________ 149
Turbo unit ___________________ 189
Engine: technical data __________ 250Ignition system _________ 146
Drive belts _____________ 201
Spark plugs ____________ 253
Catalytic converter ______ 150Warning labels ___________ 8
V.I.N. number __________ 257
Engine number _________ 257
Gearbox number ________ 257
Color code _____________ 257
ProCarManuals.com

7
Engine compartment,
3.0t V6
IB1738
Warning labels ___________ 8
V.I.N. number __________ 257
Engine number _________ 257
Gearbox number ________ 257
Color code _____________ 257Ignition system _________ 146
Drive belts _____________ 201
Spark plugs ____________ 253
Catalytic converter ______ 150Important considerations
for driving ___________________ 149
Turbo unit ___________________ 189
Engine: technical data __________ 250
Automatic transmission ________ 157
Automatic transmission fluid ____ 254
Brakes and braking ___________ 165
ABS brakes _________________ 165
Brake system ________________ 197
Brake fluid __________________ 255
Brake pads __________________ 255Jump starting ________________ 182
Battery _____________________ 199
Battery charge _______________ 199
Fuse panels ___________ 216
Changing a fuse ________ 216
Table of fuses __________ 218
Relays _______________ 219Engine temperature gauge _ 57
Driving in hot weather ____ 173
Driving in cold climate ____ 171
Coolant _______________ 196
Cooling-system capacity _ 250
Power steering _________ 198
Steering fluid: grade _____ 198
Wiper/washer control stalk _ 70
Washer fluid: topping up __ 203
Washer jets ___________ 203
Engine: description ___________ 192
Engine oil level: checking ______ 193
Engine oil: changing __________ 194
Engine oil specification ________ 251
ProCarManuals.com

189 Car care and technical information
Engine compartment, 4-cyl. engine
10
9
6
7
8
1
2
4
3
5
IB1773
Engine compartment, 4-cyl. engine 1 Engine-oil dipstick/filler cap
2 Reservoir, brake/clutch fluid
3 Fuse box
4 Expansion tank, coolant
5 Washer-fluid filler cap
6Battery
7 Dipstick, automatic transmission fluid
8 Turbo unit
9 Ignition discharge module
10 Reservoir, power-steering fluid
ProCarManuals.com

190 Car care and technical informationEngine compartment, 6-cyl. (3.0t V6)
99
2
1
4
57
6
10
83
IB1774
Engine compartment, 6-cyl. (3.0t V6) 1 Engine-oil dipstick
2 Engine-oil filler cap
3 Reservoir, brake/clutch fluid
4 Fuse box
5 Expansion tank, coolant
6 Washer-fluid filler cap
7Battery
8 Dipstick, automatic transmission fluid
9 Ignition discharge module
10 Reservoir, power-steering fluid
ProCarManuals.com

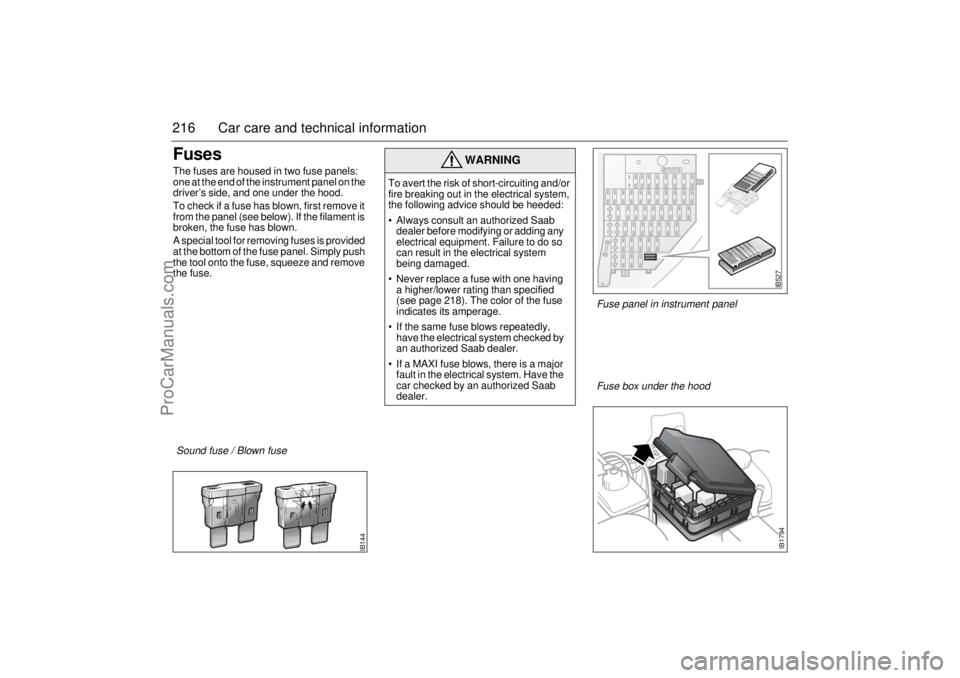

216 Car care and technical informationFusesThe fuses are housed in two fuse panels:
one at the end of the instrument panel on the
driver’s side, and one under the hood.
To check if a fuse has blown, first remove it
from the panel (see below). If the filament is
broken, the fuse has blown.
A special tool for removing fuses is provided
at the bottom of the fuse panel. Simply push
the tool onto the fuse, squeeze and remove
the fuse.
WARNING
To avert the risk of short-circuiting and/or
fire breaking out in the electrical system,
the following advice should be heeded:
 Always consult an authorized Saab
dealer before modifying or adding any
electrical equipment. Failure to do so
can result in the electrical system
being damaged.
 Never replace a fuse with one having
a higher/lower rating than specified
(see page 218). The color of the fuse
indicates its amperage.
 If the same fuse blows repeatedly,
have the electrical system checked by
an authorized Saab dealer.
 If a MAXI fuse blows, there is a major
fault in the electrical system. Have the
car checked by an authorized Saab
dealer.
IB527
Fuse panel in instrument panel
IB1794
Fuse box under the hood
IB144
Sound fuse / Blown fuse
ProCarManuals.com

217 Car care and technical information
Maxi fusesThe Maxi fuses are housed in the fuse box
under the hood. These fuses can be
checked in the same way as the other fuses.
The Maxi fuses are designed to protect the
car’s electrical system from being dam-
aged. Each Maxi fuse protects a number of
electrical circuits and functions and there-
fore has a higher rating (amperage) than the
standard fuses. No spare Maxi fuses are
supplied with the car.
DICE / TWICEDICE = Dashboard Integrated Central Elec-
tronics
TWICE = Theft-Warning Central Electronics
DICE and TWICE are electronic control
modules that monitor and control a variety
of functions, including:
DICE controls (among other things):
 Front lights and interior lighting.
 Instrument illumination.
 Intermittent wiper operation.
 Electric heating of rear window and door
mirrors.
 Cooling fans.
TWICE controls (among other things):
 Central locking.
 Car alarm (Anti-theft system).
 Engine immobilizer.
 Autochecking of lights.
 Electric heating of rear seat.
 Safety belt reminder.
 Electrically adjustable passenger seat.The DICE and TWICE control modules are
linked to a data bus, which is basically an
information carrier that allows information to
be exchanged between all the control mod-
ules and components connected to the bus.
If a fault occurs in any of these components,
diagnostic faults codes are set in the rele-
vant control module, which facilitates fault
diagnosis at the Saab dealer.
The scan tool connector for fault diagnosis
is located under the instrument panel on the
drivers side.
NOTEIf a Maxi fuse blows, it means that there
is a major fault in the electrical system.
Have the car checked without delay by
an authorized Saab dealer.
IB1795
Maxi fuses under the hood
ProCarManuals.com

220 Car care and technical informationFuse box under hood
Fuses
Relays
# Amp Function
1 40 Radiator fan, high speed
2 60 ABS/TCS/ESP
3– –
4 7,5 Load angle sensor (cars with xenon headlights)
5 15 Heater
6 10 A/C; car alarm siren
7 15 Bulb test
8––
9––
10 15 High beam headlight, left
11 15 Low beam headlight left
12 15 High beam headlight, right
13 15 Low beam headlight, right
14 30 Radiator fan, high speed
15 15 Fog lights (front spoiler)
16 30 Wiper, rear ; headlight washers
17 15 Horn
18 – –
# Function
1 Bulb test; head light; high beam flasher
2 Headlight washer
3 Front fog lights
4 Wiper, rear (9-5 Wagon)
5–
6–
7 Rain sensor
8 Radiator fan, low speed
9 Radiator fan, high speed
10 A/C-compressor
11 Radiator fan, high speed, right fan
43
2
IB1797
2 1
14 1312 7 6
5 1
15 168
11
10 9
178 5
17 14 11 7 4
16 13 69
10 3
15 12
ProCarManuals.com

237 Car care and technical information
4Inspect the undercoating and touch
up if necessary.
Pay particular atten-
tion to the fenders and wheel housings,
which are exposed to abrasion by flying
gravel, etc. If the composition has worn
or flaked off, the steel must be thor-
oughly cleaned and dried before a fresh
coat is applied. The cleaning is best
done with a scraper and a steel wire
brush, followed by washing with solvent.
Apply the new coating thinly, as other-
wise it may run off or fall off when dry.
For long tripsBefore setting off on a long journey, it is
advisable to have your car checked over by
your Saab dealer.
Obtain a few important items to take along
on your journey such as spare bulbs, wiper
blades, fuses, a Poly-V-belt and the like.
You can check some points yourself before-
hand:
 Make sure that the engine is in good con-
dition.
 Check that no oil or gasoline leaks out of
the engine or gearbox/transmission.
 Check the coolant and power steering
fluid levels. Check also for leaks.
 Inspect the Poly-V-belt and replace it if it
shows any signs of hard wear.
 Check the battery charge.
 Check the tires for tread pattern and air
pressure, including the compact spare
wheel.
 Check the brakes.
 Check all bulbs.
 Check for the presence of the tool kit and
the jack in the car.
Recovery and/or
recycling of automotive
materialsA typical car consists of metals (65–75%),
plastics (10–14%), rubber (5%) and small
quantities of glass, wood, paper and tex-
tiles.
Some of these materials can be recycled,
while others can be recovered in chemical
processes for reuse in new products or as a
source of energy.
While the Saab 9-5 was still at the draw-
ing-board stage, Saab engineers were
giving serious consideration to how the
maximum quantity of materials could be
reclaimed from the car on its eventual
scrapping. To facilitate sorting, plastic parts,
for instance, have been marked to identify
the precise nature of the plastic.
Approximately 90% of the materials in the
car can be recycled or recovered, where
facilities exist.
Before the car is scrapped, all the oils and
other fluids that could pollute the environ-
ment should be recovered from the car. It
may be of interest in this context to learn that
the refrigerant used in the Saab 9-5’s ACC
systems (R134a) contains neither CFCs nor
any other chlorine compounds.
