17-06-2002
YOUR 206 IN DETAIL
54
Direction arrows: These enable you to move around the screen and thus select a function.
On the welcome screen only, the up and down arrows enable the brightness of the screen to beadjusted. The right and left arrows enable the complete
name of the road to be displayed temporarily,during guidance, if the name exceeds the capacityof the screen.
menu : this button allows access to the main menu. It can
be used at any time.
esc : escape button
"Short press": cancels the current operation andreturns to the previous screen. "Press for more than 2 seconds": returns to the welcome screen. This button can be used in any menu. It is inactive during guidance.
mod : mode button
"Short press": changes between date, navigationand radio.
val : Validation button
Confirms the function selected.
Reference of the 2 batteries: 1.5 volts type LR03.
THE SATELLITE NAVIGATION SYSTEM Introduction The satellite navigation system guides you to the destination of yourchoice by means of vocal and visualinstructions. The heart of the system lies in the use of a map database and a GPS
system. The latter enables yourposition to be located by means ofseveral satellites. The satellite navigation system consists of the following compo-nents:
Ð the remote control,
Ð the display,
Ð the control unit,
Ð the last voice message recall control,
Ð the CD ROM,
Ð the multifunction aerial. The remote controlPointing this at the screen enables the information contained in the various menus to be selected.
A special compartment in the glove box permits storage of the remote control.
Some functions or services descri- bed may vary depending on theCD ROM version or the countrywhere the vehicle is sold.
Page 85 of 155
17-06-2002
YOUR 206 IN DETAIL83
Changing the battery of the remote control
Warning that the battery is flat is given by an audible signal accompa-nied by the message ''Remote
control battery low'' on the multi-
function display.
To replace the battery, remove the screw then unclip the casing using acoin at the ring (CR 2016/3 volt bat-tery). If the remote control does not work after the battery has been changed,reprogramme the remote control.
THE KEYS The keys allow you to switch on the ignition and operate the passengerair bag disarming switch and the fuelfiller cap, as well as independentlyoperate the locks on the front doors. Central locking The keys allow you to lock or unlock the doors and tailgate from the frontdoors. If one of the doors, the tailgate (206 SW) or the rear screen (206 SW) isopen, the central locking does notwork. The remote control This performs the same functions as
the key, at a distance. LockingPress button
Ato lock the vehicle.
This is confirmed by fixed lighting ofthe direction indicators for approxi-mately two seconds. Unlocking Press button Bto unlock the vehicle.
This is confirmed by the rapid flashing of the direction indicators.
206 SW: Press and hold button Bto
unlock the vehicle and open the rear screen. Note: If the vehicle is locked and
unlocking is activated inadvertently, unless the doors are opened within30 seconds, the vehicle will lockautomatically (206 SW).
Avoid pressing the buttons of your remote control out of range of your
vehicle. You risk causing it not towork and the remote control wouldthen have to be reprogrammed. Locating your car
To locate your car in a car park, if you have locked it:
press button A, the courtesy
lights come on and the direction indicators flash for a fewseconds.
Key in ignition
A buzzer sounds on opening the dri-
ver's door, if the key has been left inthe ignition.
Programming the remote control Switch off the ignition.
Switch the ignition on again.
Press button A.
Switch off the ignition and remo- ve the remote control key from
the ignition lock. The remotecontrol is now working again.
Page 86 of 155
17-06-2002
YOUR 206 IN DETAIL
84
Make a careful note of the
number on each key. Thekey number is coded onthe label attached to the
key. If the keys are lost,
your PEUGEOT dealer can rapidlysupply you with new keys.The high frequency remote control isa high-performance system whichhas a powerful beam.Do not operate it while it is in yourpocket as there is a possibility that itmay unlock your vehicle, without youbeing aware of it.The remote control does not operatewhen the key is in the ignition, evenwhen the ignition is switched off,except for reprogramming.As a safety precaution (with childrenon board), remove the ignition keywhen you leave the vehicle, even fora short time.Do not repeatedly press the buttonof your remote control out of range of
your vehicle. You risk causing it notto work and the remote control wouldhave to be reprogrammed. When purchasing a second-hand vehicle:
- ensure that you are given the confidential card;
- have the key codes memorised by a PEUGEOT dealer, to ensure thatthe keys in your possession arethe only ones which can start thevehicle.
Do not make any modifications tothe electronic engine immobilisersystem.
CONFIDENTIAL CARD The confidential card contains the identification code necessary for anywork carried out by a PEUGEOT
dealer on the system. This code ishidden by a film which should be
removed only if necessary. Keep your card in a safe place, never inside the vehicle.
ELECTRONIC ENGINE IMMOBILISER This locks the engine maoagement system as soon as the ignition has
been switched off and therefore pre-vents starting of the vehicle by anyo-
ne who does not have the key. The ignition key has an electronic chip which has a special code.When the ignition is switched on, thecode is recognised and starting ispossible. If the system does not function correctly , you are warned by an
audible signal and a message on the
multi-function display. In this case, the vehicle will not start.
Contact a PEUGEOT dealer as soon as possible.
Page 87 of 155
17-06-2002
YOUR 206 IN DETAIL
84
Make a careful note of the
number on each key. Thekey number is coded onthe label attached to the
key. If the keys are lost,
your PEUGEOT dealer can rapidlysupply you with new keys.The high frequency remote control isa high-performance system whichhas a powerful beam.Do not operate it while it is in yourpocket as there is a possibility that itmay unlock your vehicle, without youbeing aware of it.The remote control does not operatewhen the key is in the ignition, evenwhen the ignition is switched off,except for reprogramming.As a safety precaution (with childrenon board), remove the ignition keywhen you leave the vehicle, even fora short time.Do not repeatedly press the buttonof your remote control out of range of
your vehicle. You risk causing it notto work and the remote control wouldhave to be reprogrammed. When purchasing a second-hand vehicle:
- ensure that you are given the confidential card;
- have the key codes memorised by a PEUGEOT dealer, to ensure thatthe keys in your possession arethe only ones which can start thevehicle.
Do not make any modifications tothe electronic engine immobilisersystem.
CONFIDENTIAL CARD The confidential card contains the identification code necessary for anywork carried out by a PEUGEOT
dealer on the system. This code ishidden by a film which should be
removed only if necessary. Keep your card in a safe place, never inside the vehicle.
ELECTRONIC ENGINE IMMOBILISER This locks the engine maoagement system as soon as the ignition has
been switched off and therefore pre-vents starting of the vehicle by anyo-
ne who does not have the key. The ignition key has an electronic chip which has a special code.When the ignition is switched on, thecode is recognised and starting ispossible. If the system does not function correctly , you are warned by an
audible signal and a message on the
multi-function display. In this case, the vehicle will not start.
Contact a PEUGEOT dealer as soon as possible.
Page 90 of 155
17-06-2002
YOUR 206 IN DETAIL87
TAILGATE RELEASE (saloon) This enables the tailgate to be unlocked in the event of a centrallocking fault.
Ð Fold back the rear seats to gain access to the boot from inside the vehicle,
Ð Pull the tailgate trim to release it,
Ð Pull the opening catch 1upwards.
SUNROOF (saloon)
To open Press part Bof the switch. The sun-
roof will open in the intermediate
(comfort) position. To open comple-
tely, press part Bagain.
To close Press part Aof the switch. The sun-
roof will close in the intermediate
(comfort) position. To close comple-
tely, press part Aagain.
Panoramic sunroof screen
To move it to your chosen position, press part Aor Bof the switch.
The lighting is activated on ope- ning the tailgate or the rearscreen. Notes: the tailgate and the rear
screen lock automatically while dri- ving (from 10 km/h) and unlockwhen one of the doors is opened. When the rear windscreen wiper is in a wiping position, the rear screencan only be opned at the end of thecycle. Close the rear screen using the windscreen wiper arm or by pres-sing the centre of the glass.
"Tailgate/rear screen open" warning
With the engine running , if the tail-
gate or the rear screen is not pro- perly closed, you are warned by anaudible signal and a message
"Tailgate open" or a diagram on the
multi-function display. In addition, while driving , if the
courtesy light button is in the "ligh- ting on opening the tailgate or rearscreen" position, the courtesy lightflashes.
Page 91 of 155
17-06-2002
YOUR 206 IN DETAIL87
TAILGATE RELEASE (saloon) This enables the tailgate to be unlocked in the event of a centrallocking fault.
Ð Fold back the rear seats to gain access to the boot from inside the vehicle,
Ð Pull the tailgate trim to release it,
Ð Pull the opening catch 1upwards.
SUNROOF (saloon)
To open Press part Bof the switch. The sun-
roof will open in the intermediate
(comfort) position. To open comple-
tely, press part Bagain.
To close Press part Aof the switch. The sun-
roof will close in the intermediate
(comfort) position. To close comple-
tely, press part Aagain.
Panoramic sunroof screen
To move it to your chosen position, press part Aor Bof the switch.
The lighting is activated on ope- ning the tailgate or the rearscreen. Notes: the tailgate and the rear
screen lock automatically while dri- ving (from 10 km/h) and unlockwhen one of the doors is opened. When the rear windscreen wiper is in a wiping position, the rear screencan only be opned at the end of thecycle. Close the rear screen using the windscreen wiper arm or by pres-sing the centre of the glass.
"Tailgate/rear screen open" warning
With the engine running , if the tail-
gate or the rear screen is not pro- perly closed, you are warned by anaudible signal and a message
"Tailgate open" or a diagram on the
multi-function display. In addition, while driving , if the
courtesy light button is in the "ligh- ting on opening the tailgate or rearscreen" position, the courtesy lightflashes.
Page 94 of 155
17-06-2002
YOUR 206 IN DETAIL
90
AUTOMATIC SWITCHING ON OF LIGHTS Side lights and dipped beam head- lamps switch on automatically if the
light is poor.
They switch off when the light becomes bright enough. Note: In foggy weather or in snow
the brightness sensor can detect
sufficient light. As a result, the lights
will not come on automatically. This function is active when the
vehicle is supplied to the customer.
To disarm or activate the function:
- Start with the key in the accesso-
ries position (1st notch),
- Press the end of the lights stalk for more than four seconds.
Note: after the ignition is switched
off and depending on the brightness, the lights remain on for about 45seconds or until the vehicle is loc-ked.
Note: the brightness sensor, cou-
pled with the rain sensor, is loca-ted in the centre of the wind-
screen, behind the interior mirror.It is used for automatic switchingon of the lights. Operating check Activation Acivation of this function is accom- panied by an audible signal and themessage
"Automatic lighting acti-
ve" on the multi-function display.
Disarming Disarming of the function is accom- panied by an audible signal. Note: the function is temporarily
disarmed when the driver uses the manual lighting controls. If the brightness sensor does not function correctly , the system acti-
vates the function (the lights come
on). The driver is alerted by anaudible signal, accompanied by themessage "Automatic switching on
of lights faulty" on the multi-func-
tion display.
Contact a PEUGEOT dealer to have the system checked.
Page 96 of 155
17-06-2002
YOUR 206 IN DETAIL
92
Automatic timed windscreen wipers In the AUTOposition, the wind-
screen wipers operate automatically and adapt their speed to the inten-
sity of the rainfall. Operating checkActivation When the function is activated, the message "Automatic windscreen
wiping active" appears on the mul-
tifunction display. In the event of malfunction, the
driver is informed by an audible signal and the message "Auto
windscreen wiper faulty" on the
multifunction display. In the event of malfunction in the
AUTO position, the windscreen
wiper will operate in intermittent mode.
Contact a PEUGEOT dealer to have the system checked.
When using an automa- tic car wash, switch offthe ignition or check thatthe wiper stalk is not in
the automatic position.
In winter, it is advisable to waitfor the windscreen to completelyclear of ice before operating theautomatic wipe.Rear screen wiper

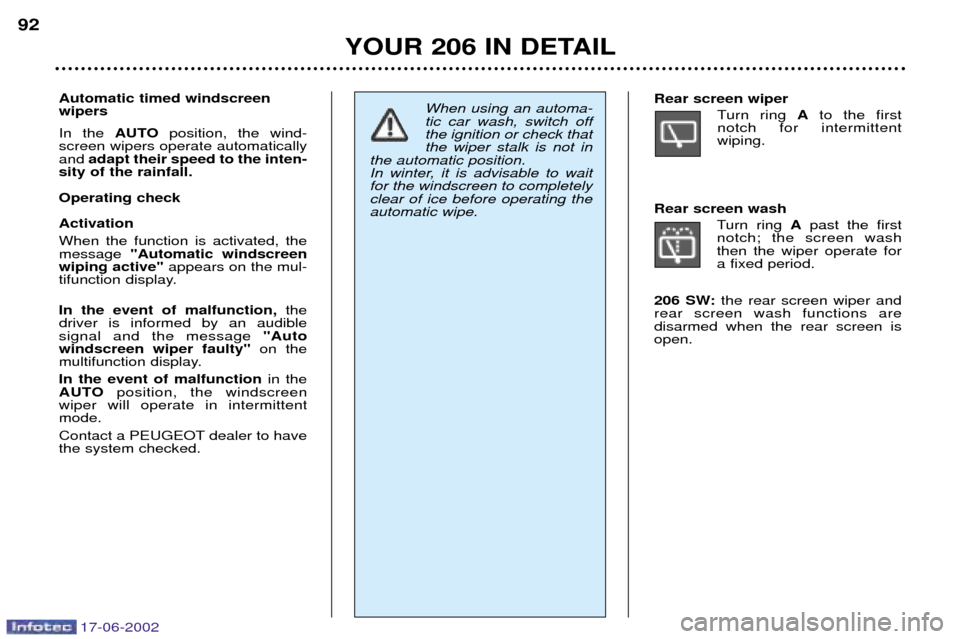

Turn ring Ato the first
notch for intermittent wiping.
Rear screen wash Turn ring Apast the first
notch; the screen washthen the wiper operate fora fixed period.
206 SW: the rear screen wiper and
rear screen wash functions aredisarmed when the rear screen isopen.
