YOUR 206 IN DETAIL
36
Setting the parameters Press and hold button 1for two seconds to access the settings. The data
flashes, indicating it is ready to be modified. Then, individual presses on button 1allow you to scroll through the various data
in the following sequence:
- language in which the information is displayed,
- unit of distance (kms or miles),
- unit of temperature (degrees Celsius or Fahrenheit),
- time format (12 then 24 hour mode),
- hour,
- minutes,
- year,
- month,
- day.Pressing button 2allows you to change the data selected. Maintain the pressu-
re for rapid scrolling.After 7 seconds without moving, the main display returns; the modified data are now recorded.
DISPLAY B This enables the following informa- tion to be displayed:
- the time,
- the date,
- the outside temperature (this flashes when there is a risk of ice),
- the radio displays,
- a door check. The display shows you, by means of a graphic, whe- ther a door is open.
- warning messages (e.g. ''battery charge low'') or information mes-sages (e.g. " fuel level low''), dis-
played temporarily. These can becleared by pressing button 1or 2,
- the trip computer.

17-06-2002
YOUR 206 IN DETAIL37
DISPLAY C This enables the following informa- tion to be displayed:
- the time,
- the date,
- the outside temperature (this flashes when there is a risk of ice),
- the radio displays,
- a door check. The display shows you, by means of a graphic, whe- ther a door is open, - the warning messages (e.g. "fuel level low''), displayed temporarily. These
can be cleared using the remote control,
- the trip computer (see corresponding section),
- the satellite navigation system (see corresponding section). Setting the parameters
The remote control allows you to access the settings. Accessing the different menus is described in the section ''Satellite Navigation System''.

17-06-2002
AUDIO RB3
YOUR 206 IN DETAIL
40

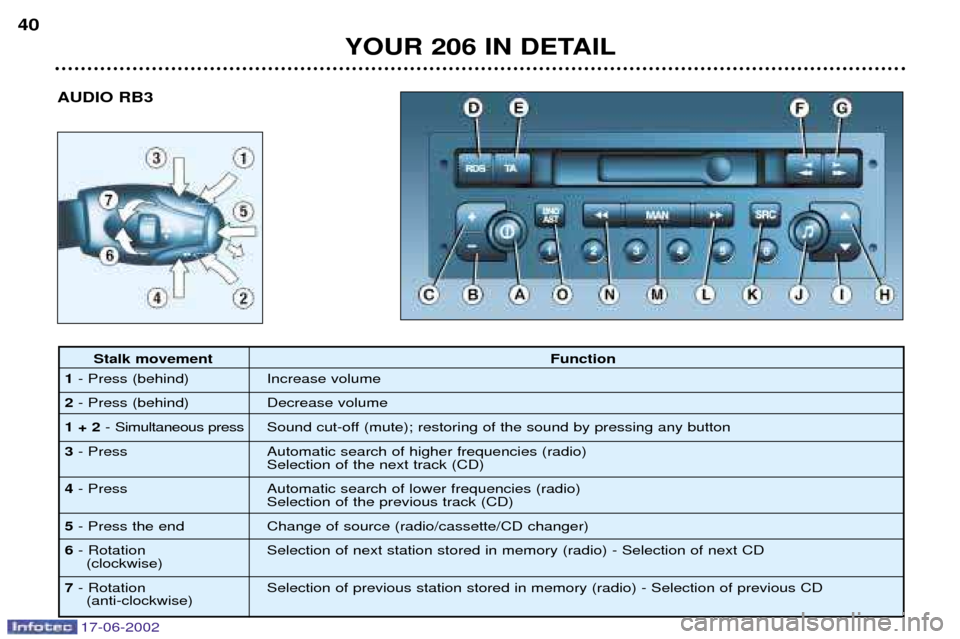

Stalk movement
Function
1 - Press (behind) Increase volume
2 - Press (behind) Decrease volume
1 + 2 - Simultaneous press Sound cut-off (mute); restoring of the sound by pressing any button
3 - Press Automatic search of higher frequencies (radio)
Selection of the next track (CD)
4 - Press Automatic search of lower frequencies (radio)
Selection of the previous track (CD)
5 - Press the end Change of source (radio/cassette/CD changer)
6 - Rotation Selection of next station stored in memory (radio) - Selection of next CD
(clockwise)
7 - Rotation Selection of previous station stored in memory (radio) - Selection of previous CD
(anti-clockwise)

17-06-2002
YOUR 206 IN DETAIL41
Button
Function
A Radio on/off.
B-Decrease volume.
C+Increase volume.
D RDS RDS function on / off.
Press for more than 2 seconds: regional following mode on/off.
ETATraffic information priority on/off.
F Press fully: cassette rewind.
G Press fully: cassette fast forward.
F+G jk Press half way: reversal of direction of play of the cassette.
jj kk Press fully: ejection of the cassette.
H Increase audio setting.
I Decrease audio setting.
J Adjustment of bass, treble, loudness, sound distribution and automatic
volume correction.
K SRC Selection of source: radio, cassette or CD changer.
Press for more than 2 seconds: CD shuffle.
L kk Automatic search of higher frequency.
Selection of next CD track.
M MAN
Manual/automatic operation of buttons Land Nin radio mode.
N jj Automatic search of lower frequency.
Selection of previous CD track.
O BND Selectioo of FM1, FM2, FMast and AM wavebands.
ASTPress for more than 2 seconds : automatic storing of stations in the memory (autostore).
1 to 6 Selection of station stored in the memory.
Press for more than 2 seconds: storing of a station in the memory.Selection of a CD changer disc.

17-06-2002
GENERAL FUNCTIONSOn/off With the ignition key in the accessories or ignition on position, press button Ato switch the set on or off.
The set can operate for 30 minutes without the vehicle ignition being switched on.
Anti-theft systemThe audio system is coded in such a way that it can operate only on your vehicle. It would not function if fitted to another vehicle. The anti-theft system is automatic and requires no action on your part. ADJUSTING THE VOLUME Press button Cto increase the volume, or button Bto decrease it.
Continuous pressure on buttons Band Callows a gradual adjustment of the volume.
AUDIO SETTINGS Press button Jseveral times in succession to access the bass (BASS), treble (TREB), loudness (LOUD),
fader (FAD) , balance (BAL)and automatic volume correction.
Exit from audio mode is automatic after a few seconds without pressing any button, or by pressing button J
after configuration of the automatic volume correction. Note: bass and treble settings are specific to each source. It is possible to set them differently for radio, cas-
sette (RB3) , CD (RD3) and CD changer.
YOUR 206 IN DETAIL
44

17-06-2002
RADIO Notes on radio reception
Your radio is subject to phenomena which do not affect domestic radio sets. Both AM (MW/LW) and FM reception are sub-
ject to various forms of interference. This is no reflection on the quality of the equipment, but is due to the nature of thesignals and the way in which they are transmitted.
On MW/LW, interference may be noticed when passing under high voltage power lines or bridges, or in tunnels.
On FM, interference may be the result of increasing distance from the transmitter, deflection of the signals by obstacles

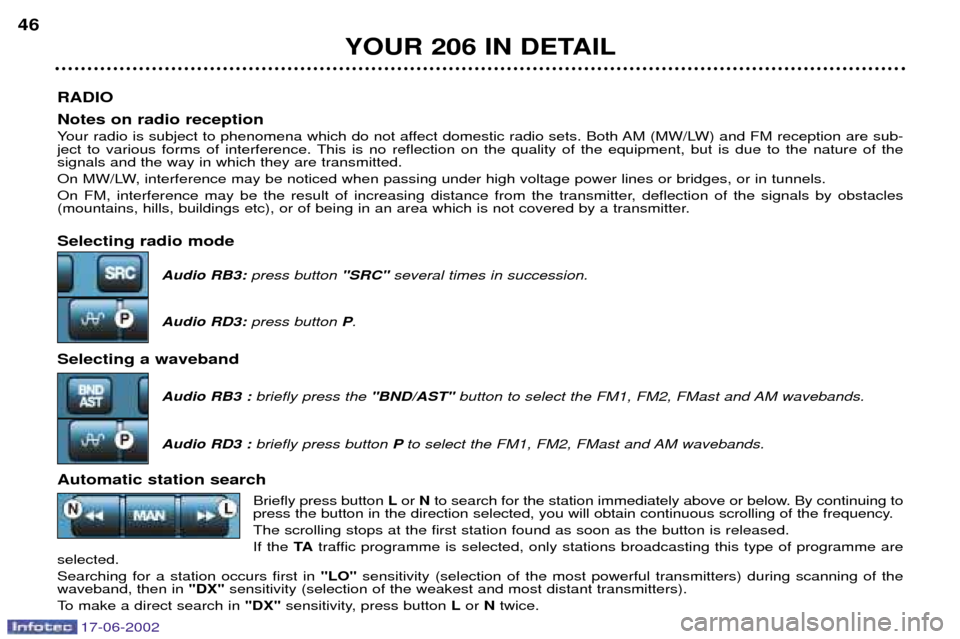

(mountains, hills, buildings etc), or of being in an area which is not covered by a transmitter. Selecting radio modeAudio RB3:press button "SRC"several times in succession.
Audio RD3: press button P.
Selecting a waveband Audio RB3 : briefly press the "BND/AST" button to select the FM1, FM2, FMast and AM wavebands.
Audio RD3 : briefly press button Pto select the FM1, FM2, FMast and AM wavebands.
Automatic station search Briefly press button Lor Nto search for the station immediately above or below. By continuing to
press the button in the direction selected, you will obtain continuous scrolling of the frequency. The scrolling stops at the first station found as soon as the button is released.If the TAtraffic programme is selected, only stations broadcasting this type of programme are
selected.Searching for a station occurs first in "LO"sensitivity (selection of the most powerful transmitters) during scanning of the
waveband, then in "DX"sensitivity (selection of the weakest and most distant transmitters).
To make a direct search in "DX"sensitivity, press button Lor Ntwice.
YOUR 206 IN DETAIL
46

17-06-2002
Manual station search Press the "MAN"button.
Briefly press button Lor Nto increase or decrease the frequency displayed.
By continuing to press the button in the direction selected, you will obtain continuous scrolling of the frequency. The scrolling stops at the first station found as soon as the button is released.Pressing the "MAN"button again returns you to automatic station search.
Manual storing of stations in the memory Select the station required. Press and hold one of the buttons "1"to "6" for more than two seconds.
The sound stops then becomes audible again, confirming that the station has been stored in the memory. Automatic storing of FM stations in the memory (autostore)

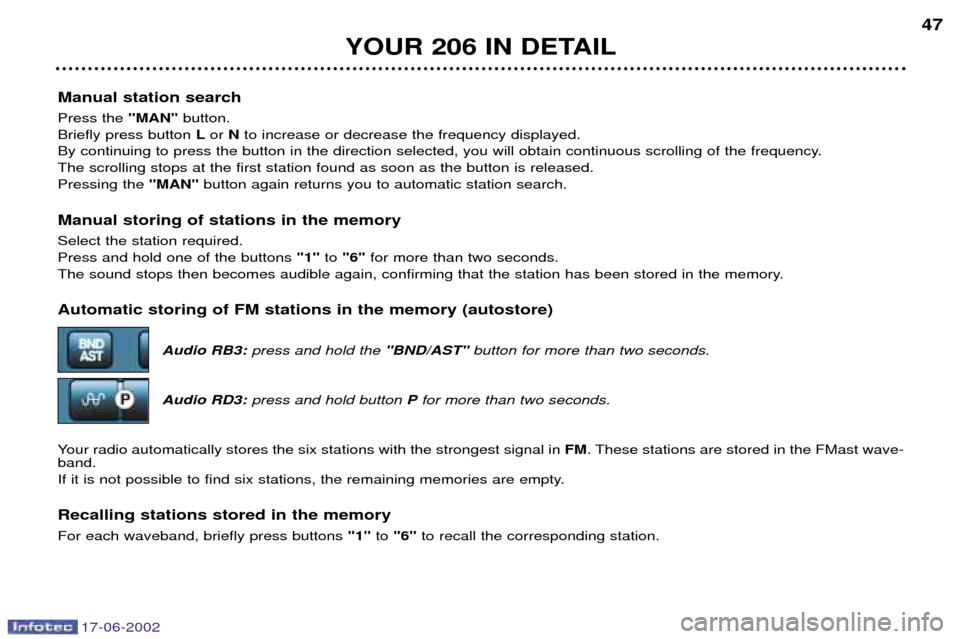

Audio RB3:press and hold the "BND/AST" button for more than two seconds.
Audio RD3: press and hold button Pfor more than two seconds.
Your radio automatically stores the six stations with the strongest signal in FM. These stations are stored in the FMast wave-
band.
If it is not possible to find six stations, the remaining memories are empty. Recalling stations stored in the memory For each waveband, briefly press buttons "1"to "6" to recall the corresponding station.
YOUR 206 IN DETAIL 47

17-06-2002

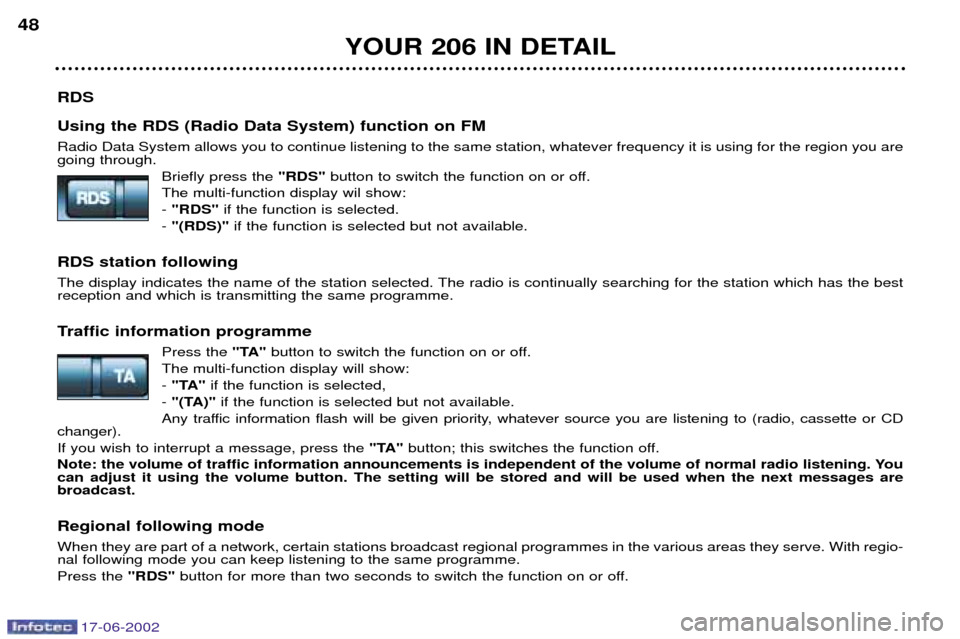

RDS Using the RDS (Radio Data System) function on FM Radio Data System allows you to continue listening to the same station, whatever frequency it is using for the region you are going through.Briefly press the "RDS"button to switch the function on or off.
The multi-function display wil show: - "RDS" if the function is selected.
- "(RDS)" if the function is selected but not available.
RDS station following
The display indicates the name of the station selected. The radio is continually searching for the station which has the best reception and which is transmitting the same programme.
Traffic information programme Press the "TA"button to switch the function on or off.
The multi-function display will show: - "TA" if the function is selected,
- "(TA)" if the function is selected but not available.
Any traffic information flash will be given priority, whatever source you are listening to (radio, cassette or CD
changer).If you wish to interrupt a message, press the "TA"button; this switches the function off.
Note: the volume of traffic information announcements is independent of the volume of normal radio listening. You can adjust it using the volume button. The setting will be stored and will be used when the next messages arebroadcast.
Regional following mode When they are part of a network, certain stations broadcast regional programmes in the various areas they serve. With regio- nal following mode you can keep listening to the same programme. Press the "RDS"button for more than two seconds to switch the function on or off.
