2002 Oldsmobile Bravada key

Table of Contents
Windows
Keys and Door Locks
Remote Keyless Entry System
Liftgate/Liftglass
Automatic Transmission
All-Wheel Drive (If Equipped)
Parking Brake
Tilt Wheel
Turn Signal/Multifunction Lever
Windshield WipersCruise Control
Exterior and Interior Lamps
Mirrors
Storage Compartments
Luggage Carrier
Accessory Power Outlets
OnStar® System (If Equipped)
Sunroof (Option)
HomeLink® Transmitter
Instrument Panel, Warning Lights and Gages Seats and Seat Controls
Safety BeltsAir Bag Systems
Restraint Systems for Children
Section
1
Section
2
Seats and Restraint Systems
Features and Controls
ii

1-3 Memory Seat (If Equipped)
If your vehicle has this
feature the controls are
located on the driver's door
armrest, and are used to
program and recall memory
settings for the driver's
seating and outside
mirror positions.
Adjust the driver's seat (including the seatback recliner
and lumbar) and both of the outside mirrors to the desired
position. Then press and hold button 1 (for driver 1) for
three seconds. A chime will sound to let you know that
the position has been stored.A second mirror and seating position can be programmed
by repeating the procedure with a second driver and
pressing button 2 for three seconds. Each time button
1 or 2 is pressed and released while the vehicle is in
PARK (P), the memory position will be recalled, if
programmed to do so through the Driver Information
Center (DIC). Each time a memory button is pressed,
a single chime will sound.
If you use the unlock button on the remote keyless entry
transmitter to enter your vehicle, the preset driver's seat
and mirror positions will be recalled. The numbers on
the back of the transmitters, 1 or 2, correspond to the
numbers on the memory controls.
The seat and mirror positions can also be recalled by
placing the key in the ignition, if programmed to do
so through the Driver Information Center (DIC).
To stop recall movement of the memory feature at
any time, press one of the power seat controls or
memory buttons.

1-4
Two personalized exit positions can be set by first
recalling the driver's position (by pressing 1 or 2), then
positioning the seat in the desired exit position for that
driver. Then press and hold the button with the exit
symbol for three seconds. A chime will sound to let you
know that the position has been stored. With the vehicle
in PARK (P), the exit position for that driver can be
recalled by pressing the exit button. The mirrors,
power lumbar and recline positions will not be stored
or recalled for the exit positions.
Programming for automatic seat and mirror movement
can be done through the Driver Information Center
(DIC). You can choose to either select or not select
automatic seat and mirror movement by using the
remote keyless entry transmitter, by placing your
key in the ignition, or when exiting the vehicle.
For programming information, see ªVehicle
Programming and Personalization Featuresº in
the Index.Heated Front Seats (Option)
Your vehicle may have
heated front seats.
The buttons used to
control this feature are
located on the front door
armrests. The engine must
be running for the heated
seat feature to work.
The horizontal button with the heated seat symbol is used
to control the temperature settings high, medium and low.
Press the button to cycle through the temperature settings
and to turn the heated seat off. An indicator light will glow
beside the temperature selected. The low setting warms the
seatback and cushion until the seat temperature is near
body temperature. The medium and high settings heat the
seatback and seat cushion to a slightly higher temperature.
You will be able to feel heat in about two minutes.
To heat only the seatback, press the vertical button with
the heated seatback symbol. Press the vertical button to
heat the whole seat.
The feature will shut off automatically when the ignition
is turned off.

1-21
The best way to protect the fetus is to protect the
mother. When a safety belt is worn properly, it's
more likely that the fetus won't be hurt in a crash.
For pregnant women, as for anyone, the key to
making safety belts effective is wearing them properly.
Right Front Passenger Position
To learn how to wear the right front passenger's safety
belt properly, see ªDriver Positionº earlier in this section.
The right front passenger's safety belt works the same
way as the driver's safety belt
-- except for one thing.
If you ever pull the shoulder portion of the belt out
all the way, you will engage the child restraint locking
feature. If this happens, just let the belt go back all the
way and start again.
Air Bag Systems
This part explains the frontal and side impact air
bag systems.
Your vehicle has four air bags
-- a frontal air bag
for the driver, another frontal air bag for the right front
passenger, a side impact air bag for the driver, and
another side impact air bag for the right front passenger.
Frontal air bags are designed to help reduce the risk
of injury from the force of an inflating frontal air bag.
But these air bags must inflate very quickly to do their
job and comply with federal regulations.

1-30 Servicing Your Air Bag-Equipped Vehicle
Air bags affect how your vehicle should be serviced.
There are parts of the air bag systems in several places
around your vehicle. Your dealer and the service manual
have information about servicing your vehicle and the
air bag systems. To purchase a service manual, see
ªService and Owner Publicationsº in the Index.
CAUTION:
For up to 10 seconds after the ignition key is
turned off and the battery is disconnected,
an air bag can still inflate during improper
service. You can be injured if you are close to an
air bag when it inflates. Avoid yellow connectors.
They are probably part of the air bag systems.
Be sure to follow proper service procedures, and
make sure the person performing work for you is
qualified to do so.
The air bag systems do not need regular maintenance.
Rear Seat Passengers
It's very important for rear seat passengers to buckle up!
Accident statistics show that unbelted people in the rear
seat are hurt more often in crashes than those who are
wearing safety belts.
Rear passengers who aren't safety belted can be thrown
out of the vehicle in a crash. And they can strike others
in the vehicle who are wearing safety belts.
Rear Seat Passenger Positions

2-
2-1
Section 2 Features and Controls
Here you can learn about the many standard and optional features on your vehicle, and information on starting,
shifting and braking. Also explained are the instrument panel and the warning systems that tell you if everything is
working properly
-- and what to do if you have a problem.
2
-2 Windows
2
-4 Keys
2
-6 Door Locks
2
-10 Remote Keyless Entry System
2
-13 Liftgate/Liftglass
2
-14 Theft
2
-15 Content Theft-Deterrent (If Equipped)
2
-17 Passlock

2-18 New Vehicle ªBreak-Inº
2
-18 Ignition Positions
2
-19 Starting Your Engine
2
-21 Engine Coolant Heater (If Equipped)
2
-22 Automatic Transmission Operation
2
-25 Parking Brake
2
-26 Shifting Into PARK (P)
2
-28 Shifting Out of PARK (P)
2
-28 Parking Over Things That Burn
2
-29 Engine Exhaust
2
-29 Running Your Engine While You're Parked2
-30 Locking Rear Axle
2
-30 All-Wheel Drive (Option)
2
-30 Horn
2
-31 Tilt Wheel
2
-31 Turn Signal/Multifunction Lever
2
-39 Exterior Lamps
2
-42 Interior Lamps
2
-44 Mirrors
2
-48 Storage Compartments
2
-53 Ashtrays and Cigarette Lighter
2
-55 Accessory Power Outlets
2
-56 OnStar
System (If Equipped)
2
-60 Sunroof (Option)
2
-60 HomeLink
Transmitter
2
-64 Instrument Panel -- Your Information System
2
-66 Instrument Panel Cluster
2
-68 Warning Lights, Gages and Indicators
2
-82 Driver Information Center (DIC)

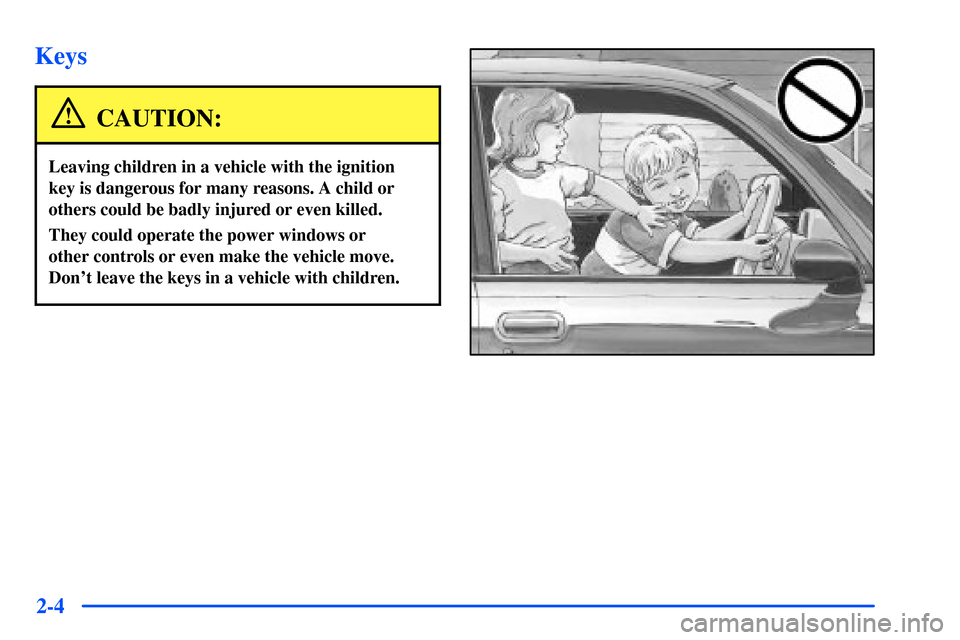

2-4
Keys
CAUTION:
Leaving children in a vehicle with the ignition
key is dangerous for many reasons. A child or
others could be badly injured or even killed.
They could operate the power windows or
other controls or even make the vehicle move.
Don't leave the keys in a vehicle with children.

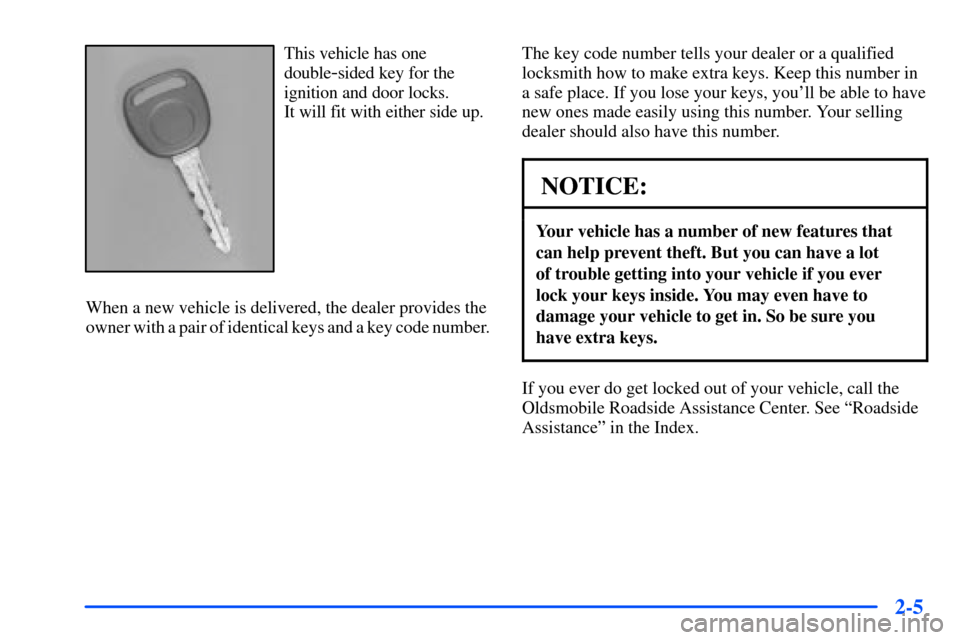

2-5
This vehicle has one
double
-sided key for the
ignition and door locks.
It will fit with either side up.
When a new vehicle is delivered, the dealer provides the
owner with a pair of identical keys and a key code number.The key code number tells your dealer or a qualified
locksmith how to make extra keys. Keep this number in
a safe place. If you lose your keys, you'll be able to have
new ones made easily using this number. Your selling
dealer should also have this number.
NOTICE:
Your vehicle has a number of new features that
can help prevent theft. But you can have a lot
of trouble getting into your vehicle if you ever
lock your keys inside. You may even have to
damage your vehicle to get in. So be sure you
have extra keys.
If you ever do get locked out of your vehicle, call the
Oldsmobile Roadside Assistance Center. See ªRoadside
Assistanceº in the Index.
