6-24 What to Use
Use a mixture of one-half clean, drinkable water and
one
-half DEX-COOL
coolant which won't damage
aluminum parts. If you use this coolant mixture,
you don't need to add anything else.
CAUTION:
Adding only plain water to your cooling system
can be dangerous. Plain water, or some other
liquid such as alcohol, can boil before the proper
coolant mixture will. Your vehicle's coolant
warning system is set for the proper coolant
mixture. With plain water or the wrong mixture,
your engine could get too hot but you wouldn't
get the overheat warning. Your engine could
catch fire and you or others could be burned.
Use a 50/50 mixture of clean, drinkable water
and DEX
-COOL
coolant.
NOTICE:
If you use an improper coolant mixture, your
engine could overheat and be badly damaged.
The repair cost wouldn't be covered by your
warranty. Too much water in the mixture can
freeze and crack the engine, radiator, heater core
and other parts.
If you have to add coolant more than four times a year,
have your dealer check your cooling system.
NOTICE:
If you use the proper coolant, you don't have to
add extra inhibitors or additives which claim to
improve the system. These can be harmful.

6-25 Checking Coolant
The engine coolant
recovery tank is in the
engine compartment on
the passenger's side of
the vehicle. See ªEngine
Compartment Overviewº
in the Index for more
information on location.
The vehicle must be on a level surface. When your
engine is cold, the coolant level should be at FULL
COLD, or a little higher. When your engine is warm,
the level should be at the base of the filler neck or a
little higher.Adding Coolant
If you need more coolant, add the proper DEX-COOL

coolant mixture at the coolant recovery tank.
CAUTION:
Turning the radiator pressure cap when the
engine and radiator are hot can allow steam
and scalding liquids to blow out and burn you
badly. With the coolant recovery tank, you will
almost never have to add coolant at the radiator.
Never turn the radiator pressure cap
-- even a
little
-- when the engine and radiator are hot.
Add coolant mixture at the recovery tank, but be careful
not to spill it.

6-26
CAUTION:
You can be burned if you spill coolant on hot
engine parts. Coolant contains ethylene glycol,
and it will burn if the engine parts are hot
enough. Don't spill coolant on a hot engine.
Occasionally check the coolant level in the radiator.
For information on how to add coolant to the radiator,
see ªCooling Systemº in the Index.
Radiator Pressure Cap
NOTICE:
Your radiator cap is a 15 psi (105 kPa)
pressure
-type cap and must be tightly installed to
prevent coolant loss and possible engine damage
from overheating.
See ªEngine Compartment Overviewº in the Index for
information on location.

6-27
Power Steering Fluid
The power steering fluid
reservoir is located in
the engine compartment
on the passenger's side
of the vehicle.
When to Check Power Steering Fluid
It is not necessary to regularly check power steering
fluid unless you suspect there is a leak in the system or
you hear an unusual noise. A fluid loss in this system
could indicate a problem. Have the system inspected and
repaired. See ªEngine Compartment Overviewº in the
Index for reservoir location.
How to Check Power Steering Fluid
Turn the key off, let the engine compartment cool down,
wipe the cap and the top of the reservoir clean, then
unscrew the cap and wipe the dipstick with a clean rag.
Replace the cap and completely tighten it. Then remove
the cap again and look at the fluid level on the dipstick.
The level should be at the C (Cold) mark. If necessary,
add only enough fluid to bring the level up to the mark.
What to Use
To determine what kind of fluid to use, see
ªRecommended Fluids and Lubricantsº in the Index.
Always use the proper fluid. Failure to use the proper
fluid can cause leaks and damage hoses and seals.

6-29

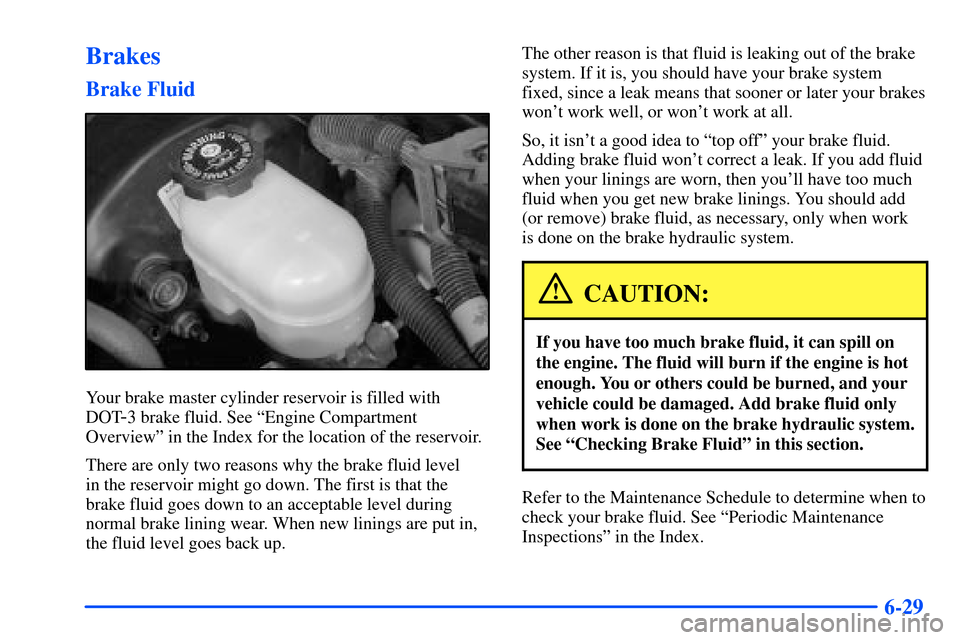

Brakes
Brake Fluid
Your brake master cylinder reservoir is filled with
DOT
-3 brake fluid. See ªEngine Compartment
Overviewº in the Index for the location of the reservoir.
There are only two reasons why the brake fluid level
in the reservoir might go down. The first is that the
brake fluid goes down to an acceptable level during
normal brake lining wear. When new linings are put in,
the fluid level goes back up. The other reason is that fluid is leaking out of the brake
system. If it is, you should have your brake system
fixed, since a leak means that sooner or later your brakes
won't work well, or won't work at all.
So, it isn't a good idea to ªtop offº your brake fluid.
Adding brake fluid won't correct a leak. If you add fluid
when your linings are worn, then you'll have too much
fluid when you get new brake linings. You should add
(or remove) brake fluid, as necessary, only when work
is done on the brake hydraulic system.
CAUTION:
If you have too much brake fluid, it can spill on
the engine. The fluid will burn if the engine is hot
enough. You or others could be burned, and your
vehicle could be damaged. Add brake fluid only
when work is done on the brake hydraulic system.
See ªChecking Brake Fluidº in this section.
Refer to the Maintenance Schedule to determine when to
check your brake fluid. See ªPeriodic Maintenance
Inspectionsº in the Index.

6-63
Replacement Bulbs
Lamps Number
Tail and Stoplamps 3057. . . . . . . . . . . . . . . . . . . . . . .
Rear Turn Signal Lamps 3057. . . . . . . . . . . . . . . . . .
For any bulb not listed here contact your dealer.
Capacities and Specifications
Engine Specifications
Engine Description ªVORTECº 4200. . . . . . . . . . . .
Type L6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
VIN Code S. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Firing Order 1
-5-3-6-2-4 . . . . . . . . . . . . . . . . . . . . . .
Spark Plug Gap 0.050 inches (1.25 mm). . . . . . . . . .
Wheel and Tires
Wheel Nut Torque 100 lb-ft (140 N´m) . . . . . . . . . . .
Capacities
Cooling System 13.9 quarts (13.1 L). . . . . . . . . . . . .
Crankcase 7.0 quarts (6.6 L). . . . . . . . . . . . . . . . . . . .
Transmission
(Drain and Refill) 5.0 quarts (4.7 L). . . . . . . . . . . . Differential Fluid
Rear 4.0 pints (1.9 L). . . . . . . . . . . . . . . . . . . . . . .
Front 2.6 pints (0.8 L). . . . . . . . . . . . . . . . . . . . . . .
Fuel Tank 18.7 U.S. gallons (75.7 L). . . . . . . . . . . . .
All capacities are approximate. When adding, be sure
to fill to the appropriate level, as recommended in
this manual. Recheck the fluid level after filling.
See ªRecommended Fluids and Lubricantsº in the
Index for more information.
Normal Maintenance
Replacement Parts
Engine Oil Filter PF59*. . . . . . . . . . . . . . . . . . . . . . .
Engine Air Cleaner/Filter A2014C*. . . . . . . . . . . . . . .
Automatic Transmission
Filter Kit GM Part No. 24200796. . . . . . . . . . . . . . .
Spark Plugs 41
-965* . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel Filter GF831*. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windshield Wiper Blade 20.0 inches (50.8 cm). . . . .
Backglass Wiper Blade 14.0 inches (35.6 cm). . . . . .
*ACDelco

part number

Scheduled Maintenance
7-12
60,000 Miles (100 000 km)

Check rear/front axle fluid level and add fluid as needed. Check constant
velocity joints and axle seals for leaking.

Rotate tires. See ªTire Inspection and Rotationº in the Index for proper
rotation pattern and additional information. (See footnote +.)

Inspect engine accessory drive belt.
An Emission Control Service.

Replace fuel filter.
An Emission Control Service. (See footnote
.)
67,500 Miles (112 500 km)
Check rear/front axle fluid level and add fluid as needed. Check constant
velocity joints and axle seals for leaking.
Rotate tires. See ªTire Inspection and Rotationº in the Index for proper
rotation pattern and additional information. (See footnote +.)
75,000 Miles (125 000 km)
Check rear/front axle fluid level and add fluid as needed. Check constant
velocity joints and axle seals for leaking.
Rotate tires. See ªTire Inspection and Rotationº in the Index for proper
rotation pattern and additional information. (See footnote +.)
ACTUAL
SERVICED BY:MILEAGE
DATE
ACTUAL
SERVICED BY:MILEAGE
DATE
ACTUAL
SERVICED BY:MILEAGE
DATE

7-15
Part B: Owner Checks and Services
Listed in this part are owner checks and services which
should be performed at the intervals specified to help
ensure the safety, dependability and emission control
performance of your vehicle.
Be sure any necessary repairs are completed at once.
Whenever any fluids or lubricants are added to your
vehicle, make sure they are the proper ones, as shown
in Part D.
At Each Fuel Fill
It is important for you or a service station attendant
to perform these underhood checks at each fuel fill.
Engine Oil Level Check
Check the engine oil level and add the proper oil
if necessary. See ªEngine Oilº in the Index for
further details.Engine Coolant Level Check
Check the engine coolant level and add DEX
-COOL

coolant mixture if necessary. See ªEngine Coolantº in
the Index for further details.
Windshield Washer Fluid Level Check
Check the windshield washer fluid level in the windshield
washer tank and add the proper fluid if necessary.
See ªWindshield Washer Fluidº in the Index for
further details.
At Least Once a Month
Tire Inflation Check
Make sure tires are inflated to the correct pressures.
Don't forget to check your spare tire. See ªTiresº in
the Index for further details.
Cassette Deck Service
Clean cassette deck. Cleaning should be done every
50 hours of tape play. See ªAudio Systemsº in the
Index for further details.
