2002 MERCEDES-BENZ S430 synchronizing

5 ContentsCoolant level ...................................344
Adding coolant ...........................344
Windshield and headlamp
washer system ...........................345
Windshield and headlamp
washer fluid mixing ratio .........345
Spare wheel, vehicle tools,
storage compartment ................346
Vehicle jack .....................................347
Wheels .............................................348
Tire Replacement .......................348
Rotating wheels ..........................349
Spare wheel ....................................349
Changing wheels ........................... 351
Tire inflation pressure ..................356
Battery .............................................357
Jump starting ..................................359
Towing the vehicle ......................... 361
Exterior lamps ................................364
Headlamp assembly ...................365
Taillamp assemblies ..................368Changing batteries in
the electronic key ......................371
Synchronizing
remote control ............................ 373
Changing batteries in the
KEYLESS-GO-card .....................374
Emergency engine
shut-down ...................................376
Fuel filler flap,
manual release ..........................376
Emergency operation of
sliding/pop-up roof .................. 377
Replacing wiper blades ................ 378
Roof rack ......................................... 380
Vehicle careCleaning and care
of the vehicle ............................. 382
Power washer ............................. 383
Tar stains .................................... 384
Paintwork, painted body
components ................................ 384Engine cleaning ..........................384
Vehicle washing .........................384
Ornamental moldings ................385
Headlamps, taillamps,
turn signal lenses ......................385
Cleaning the Distronic
system sensor .............................386
Cleaning the parktronic
system sensors ...........................386
Wiper blades ...............................387
Light alloy wheels ......................388
Instrument cluster .....................388
Steering wheel and
gear selector lever ......................388
Cup holder ...................................388
Seat belts .....................................389
Headliner and shelf
below rear window .....................389
Leather upholstery .....................389
Hard plastic trim items .............389
Plastic and rubber parts ............389

186 Interior equipment
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index
Blocking of rear door window operation
If no operation of the rear door windows by switch (for
instance by children) is desired, slide override
switch (3) to the right; the N symbol becomes
visible.
Operation of the rear door windows with the switches
located in the driver’s door is still possible.
Note:
The operation of the rear door lighters and the setting of
the front passenger power seat from the rear is blocked.
See page 206 for lighter and page 80 for power seat
setting passenger position from rear.Synchronizing power windows
If the power supply was interrupted, (battery
disconnected or low), the windows cannot be opened or
closed by the express feature.
To resynchronize the express feature, press j side of
power window switch until the window is completely
closed and hold down for approximately 1 second.
Repeat procedure for each window.
The automatic full opening and closing procedure of the
windows should now be restored.

189 Interior equipment
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index With the roof closed or tilted open, a screen can be slid
into the roof opening to guard against sun rays. When
sliding the roof open, the screen will also retract.Notes:
The sliding / pop-up roof can also be opened and closed
using the summer opening / convenience feature, see
page 43, or pressing button O or e in the control
panel of the automatic climate control, see page 174 and
17 5 .
To avoid damaging the seals, do not transport any
objects with sharp edges which can stick out of the
sliding / pop-up roof.
The sliding/pop-up roof can be opened or closed
manually should an electrical malfunction occur, see
page 377.

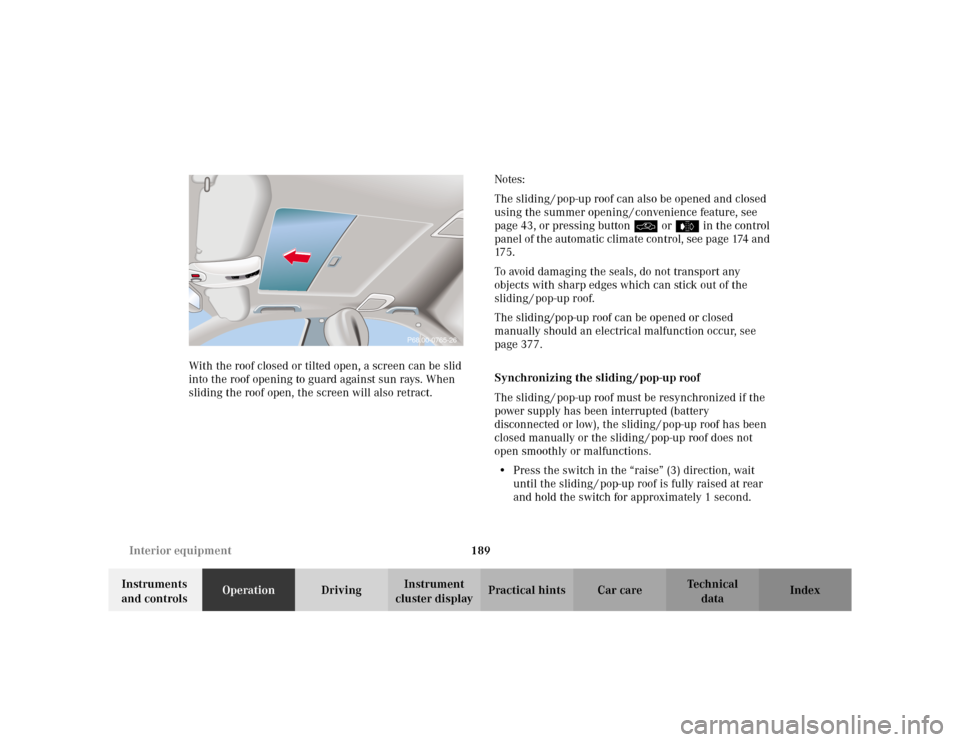

Synchronizing the sliding / pop-up roof
The sliding / pop-up roof must be resynchronized if the
power supply has been interrupted (battery
disconnected or low), the sliding / pop-up roof has been
closed manually or the sliding / pop-up roof does not
open smoothly or malfunctions.
•Press the switch in the “raise” (3) direction, wait
until the sliding / pop-up roof is fully raised at rear
and hold the switch for approximately 1 second.
P68.00-0765-26

281 Driving systems
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index Notes:
The yellow ESP warning lampv in the speedometer
dial comes on with the electronic key in starter switch
position 2. It should go out with the engine running.
If the ESP warning message is displayed, a malfunction
has been detected in the system. Only partial engine
output will be available.
Have the ESP checked at your authorized
Mercedes-Benz Center as soon as possible.
For ESP warning message, see page 307.
With the ABS malfunctioning, the ESP is also switched
off.
Driving the vehicle with varied size tires will cause the
wheels to rotate at different speeds, therefore the ESP
may activate (yellow ESP warning lamp in speedometer
dial comes on). For this reason, all wheels, including the
spare wheel, must have the same tire size. When testing the parking brake on a brake test
dynamometer, the engine must be shut off. Otherwise,
the ESP will immediately be engaged and will apply the
rear wheel brakes.
In winter operation, the maximum effectiveness of the
ESP is only achieved with Mercedes-Benz recommended
M+S rated radial-ply tires and / or snow chains.
Synchronizing ESP
If the power supply was interrupted (battery
disconnected or empty), the ESP warning message may
be displayed with the engine running.
Turn steering wheel completely to the left and then to
the right. The ESP warning message should go out.

335 Contents – Practical hints
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hintsCar care Index
Practical hintsFirst aid kit .....................................336
Stowing things in the vehicle ......336
Fuses ................................................337
Hood .................................................339
Checking engine oil level .............342
Automatic transmission
fluid level ...................................343
Active body control (ABC)
fluid level ...................................343
Coolant level ...................................344
Adding coolant ...........................344
Windshield and headlamp
washer system ...........................345
Windshield and headlamp
washer fluid mixing ratio .........345Spare wheel, vehicle tools,
storage compartment ............... 346
Vehicle jack .................................... 347
Wheels ............................................ 348
Tire Replacement ....................... 348
Rotating wheels ......................... 349
Spare wheel .................................... 349
Changing wheels ........................... 351
Tire inflation pressure ................. 356
Battery ............................................. 357
Jump starting ................................. 359
Towing the vehicle ........................ 361
Exterior lamps ............................... 364
Headlamp assembly .................. 365
Taillamp assemblies .................. 368Changing batteries in
the electronic key ..................... 371
Synchronizing
remote control ............................373
Changing batteries in the
KEYLESS-GO-card ..................... 374
Emergency engine
shut-down .................................. 376
Fuel filler flap,
manual release .......................... 376
Emergency operation of
sliding/pop-up roof ...................377
Replacing wiper blades .................378
Roof rack .........................................380

373 Electronic key
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hintsCar care Index Important!
Batteries contain materials that can harm the
environment if disposed of improperly. Recycling of
batteries is the preferred method of disposal. For
disposal, please follow manufacturer’s recommendation
on battery package.
Replacement Battery:
Lithium, type CR 2025 or equivalent.Synchronizing remote control
The remote control may have to be resynchronized, if
the vehicle cannot be locked or unlocked.
To synchronize insert electronic key in starter switch.
The remote control should once again be operational.

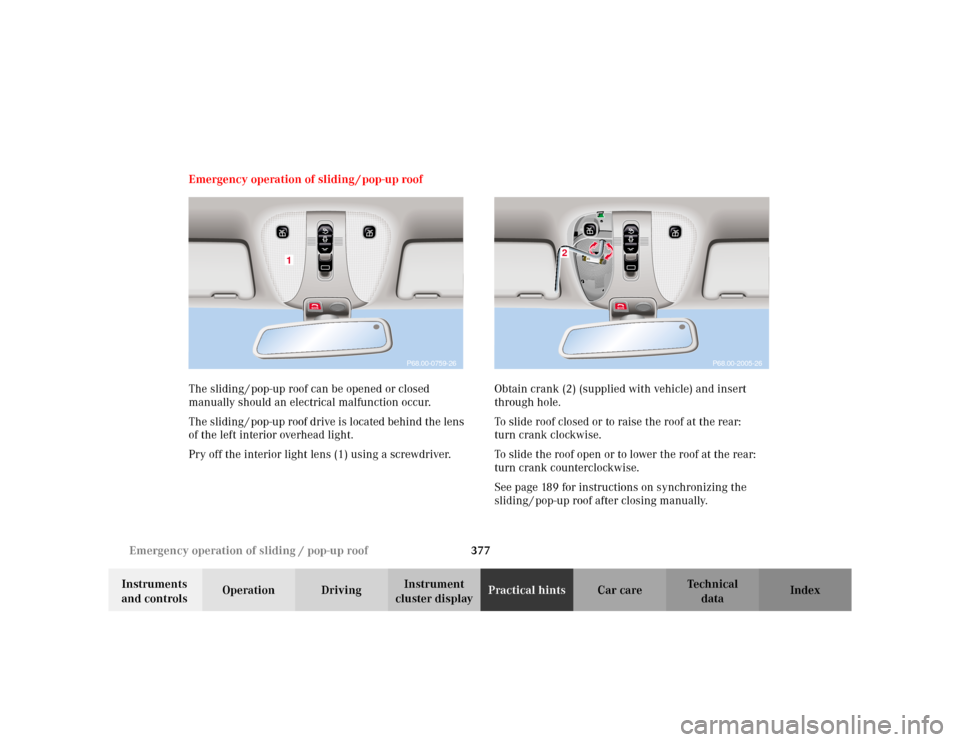

377 Emergency operation of sliding / pop-up roof
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hintsCar care Index Emergency operation of sliding / pop-up roof
The sliding / pop-up roof can be opened or closed
manually should an electrical malfunction occur.
The sliding / pop-up roof drive is located behind the lens
of the left interior overhead light.
Pry off the interior light lens (1) using a screwdriver.Obtain crank (2) (supplied with vehicle) and insert
through hole.
To slide roof closed or to raise the roof at the rear:
turn crank clockwise.
To slide the roof open or to lower the roof at the rear:
turn crank counterclockwise.
See page 189 for instructions on synchronizing the
sliding / pop-up roof after closing manually.
P68.00-0759-26
1
P68.00-2005-26
2

413 Index
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car careIndex
DDashboard ......................................................................... 22
Deep water
Driving instructions ................................................. 256
DISPLAY DEFECTIVE (engine control unit) -
malfunction and warning messages ...................... 310
DISPLAY DEFECTIVE (several systems) -
malfunction and warning messages ...................... 310
Display illumination .......................................................114
Distronic (DTR) .......................................................133, 261
Activation of Distronic ............................................. 264
Additional driving hints .......................................... 269
Cleaning sensor ........................................................ 386
Deactivation of Distronic .........................................266
Displays in the speedometer dial ........................... 276
Distance warning function ...................................... 272
Distronic settings ......................................................273
Driving with Distronic activated ............................267
Invalid attempts to activate ..................................... 265
Multifunction display ...............................................275
Warning lamp ............................................................307
DISTRONIC (DTR) -
malfunction and warning messages ......................332
DOOR - malfunction and warning messages ............. 326
Door control panel ........................................................... 20Door entry lamps ........................................................... 192
Doors
Power closing assist .................................................... 48
Drinking and driving .................................................... 247
Drive sensibly - Save Fuel ............................................ 247
Driving instructions ..................................................... 247
Driving off ...................................................................... 249
EEasy-entry/exit feature ...................................................63
Electronic key ................................................................... 29
Changing batteries ................................................... 371
Starting the engine .................................................. 235
Turning off the engine ............................................ 235
Electronic main key
Synchronizing remote control ............................... 373
Electronic stability program (ESP) ............................. 280
ESP control switch ................................................... 282
Malfunction and warning messages ...................... 315
Synchronizing ........................................................... 281
Warning lamp ........................................................... 307
Emergency call
See Tele Aid ............................................................... 219
Emergency engine shut-down ...................................... 376
