2002 MERCEDES-BENZ S-Class key

Telephone
Telephone115
Introduction
AudioTelephone
Navigation
Index Info Services and

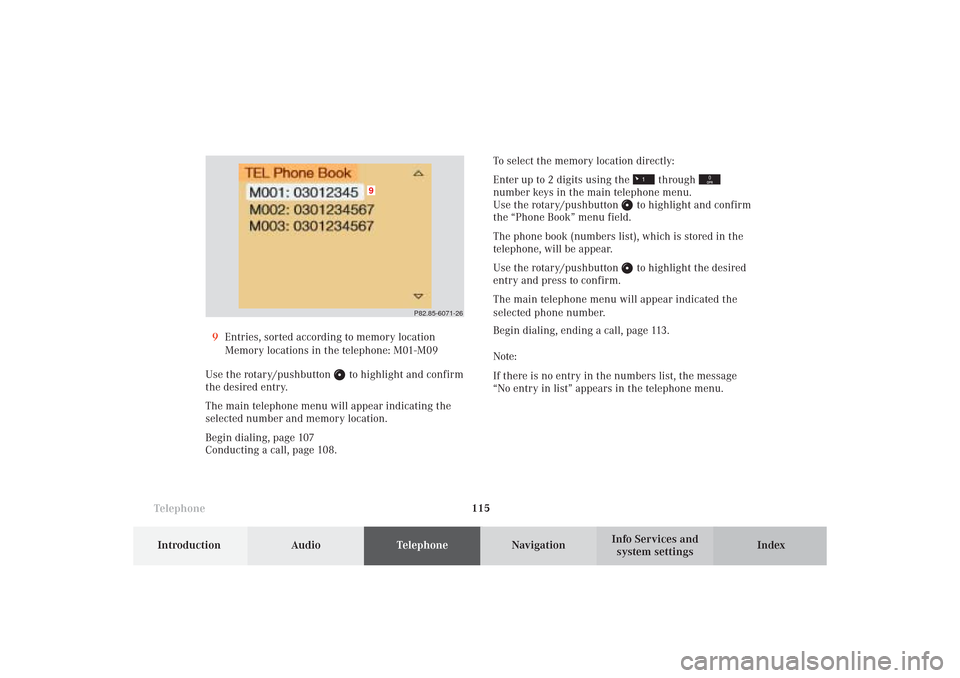

system settings 9Entries, sorted according to memory location
Memory locations in the telephone: M01-M09
Use the rotary/pushbutton
to highlight and confirm
the desired entry.
The main telephone menu will appear indicating the
selected number and memory location.
Begin dialing, page 107
Conducting a call, page 108.To select the memory location directly:
Enter up to 2 digits using the
through
number keys in the main telephone menu.
Use the rotary/pushbutton
to highlight and confirm
the “Phone Book” menu field.
The phone book (numbers list), which is stored in the
telephone, will be appear.
Use the rotary/pushbutton to highlight the desired
entry and press to confirm.
The main telephone menu will appear indicated the
selected phone number.
Begin dialing, ending a call, page 113.
Note:
If there is no entry in the numbers list, the message
“No entry in list” appears in the telephone menu.
P82.85-6071-26
9
08-TELEFON-25-US.pm509.07.2004, 14:22 Uhr 115

Telephone
Telephone121
Introduction
AudioTelephone
Navigation
Index Info Services and
system settings Speed-dialing (only with COMAND)
For all memory locations
When the main telephone menu is on display enter the
memory location desired with the number keys, e.g.
. You can enter up to 2 digits.Begin dialing, use one of the two ways:
• Press the rotary/pushbutton
to confirm the
“Send” button. The “End” button will now be
highlighted.
• Press the last number key longer than
2 seconds.
Important!
If you enter “1” and press the rotary/pushbutton
,
the number stored in memory location 1 (default is
9-1-1) will be dialed.
Pressing or holding “1” longer than 2 seconds will also
initiate the call.
The 9-1-1 emergency call system is a public service.
Using it without due cause is a criminal offense.
P82.85-6075-26
08-TELEFON-25-US.pm509.07.2004, 14:22 Uhr 121

124 Telephone
AudioTelephoneNavigation
Index Info Services and
system settings Introduction
Notebook
You can enter a telephone number in the notebook or
edit an existing one at any time, if the main telephone
menu is displayed.
To open the notebook:
Use the rotary/pushbutton
to highlight the “
”
symbol and press to confirm.
Then use the rotary/pushbutton
to highlight the
“Notebook” menu field and press to confirm.To enter the telephone number:
Use the number keys
through
, or press
and
.
To correct input:
• Press
briefly or use the rotary/pushbutton
to highlight the back arrow and confirm by press-
ing – the last digit will be corrected
• Press
longer than 2 seconds – the whole entry
will be corrected.
To close the notebook and store input:
Press
.
Dialing a telephone number from the notebook
To open the notebook, see information on the left.
When the telephone number in the notebook appears,
press the rotary/pushbutton
to dial the number.
Note:
The telephone number in the notebook can be trans-
ferred to the phone book, page 115.
P82.85-6078-26
08-TELEFON-25-US.pm509.07.2004, 14:22 Uhr 124

Telephone
Telephone127
Introduction
AudioTelephone
Navigation
Index Info Services and
system settings To adopt the character selected and to enter it in the
input line:
• press
or turn the rotary/pushbutton
• automatically after 2 seconds.
Select one of the options to store a name changed in the
phone book:
• Use the rotary/pushbutton
highlight the “OK”
menu field and press it to confirm.
• Press and hold down the rotary/pushbutton
to
confirm the last letter of the name.
The menu for entering telephone numbers (page 128)
will appear.
If you do not wish to save the changes:
Press
. Note:
The characters can also be selected using the numerical
keys. Each numerical key has more than one assign-
ment.
Select a character by pressing the key as listed below the
corresponding number of times. The character selected
(6) will appear magnified.
Button 1: , . – 1 : ‘ /
Button 2: A B C 2 Ä Å Æ Ç
Button 3: D E F 3 É È
Button 4: G H I 4 IJ
Button 5: J K L 5
Button 6: M N O 6 Ñ Ö Ø Œ
Button 7: P Q R S 7
Button 8: T U V 8 Ü
Button 9: W X Y Z 9
Button 0: Blank 0
08-TELEFON-25-US.pm509.07.2004, 14:23 Uhr 127

128 Telephone
AudioTelephoneNavigation
Index Info Services and
system settings Introduction
Changing a telephone number:
9Current name or name previously changed (brown)
will not be displayed if there is no name entry in
the phone book for the telephone number con-
cerned.
10Input line, marked when activated
11Telephone number will be stored in the phone book
Enter the telephone number using the numerical keys
through
, or press
and
.To correct input:
• Press
briefly or use the rotary/pushbutton
to highlight the back arrow and confirm by
pressing – the last digit will be corrected
• Press
longer than 2 seconds – the whole entry
will be corrected.
To store the telephone number in the phone book:
Use the rotary/pushbutton
to highlight menu field
(11) and press to confirm.
The main telephone menu will be activated.
P82.85-6081-26
9
11
10
08-TELEFON-25-US.pm509.07.2004, 14:23 Uhr 128

Telephone
Telephone131
Introduction
AudioTelephone
Navigation
Index Info Services and
system settings Entering and storing a telephone number:
18Name previously entered
19Input line for telephone number
Enter the telephone number using the numerical
keys
through
, or press
and
.
20The telephone number will be filed in the memory
selected, the main telephone menu will be acti-
vated.Storing a number in the notebook
After selecting the “Copy notebook” menu field in the
“Phone book” selection menu (page 125) the menu for
entering the name (page 126) and then the menu for
entering the telephone numbers (page 128) will appear.
P82.85-6084-26
18
19
20
08-TELEFON-25-US.pm509.07.2004, 14:23 Uhr 131

138 Telephone
AudioTelephoneNavigation
Index Info Services and
system settings Introduction
Telephone is ready for operation
When the main telephone menu or a memory menu is
displayed on the screen, enter the emergency number
by pressing for longer than 2 seconds (quick-
dialing).
Do not place the emergency call:
Mark the “End” button with the rotary/pushbutton
and press to confirm or press
.Begin dialing:
After pressing the
key longer than 2 seconds the
number being dialed will appear. The “End” button is
highlighted.
When the call is initiated, the call time will appear in
the display.
Ending a call, use one of the three ways:
• Press the rotary/pushbutton
to confirm the
“End” button
• Press
• Press
.
Notes:
To use this function you must ensure that the number
stored in memory location 1 is the number to be dialed
in case of emergency.
This function will also be performed if the phone is
locked.
P82.85-6090-26
08-TELEFON-25-US.pm509.07.2004, 14:24 Uhr 138

140 Telephone
AudioTelephoneNavigation
Index Info Services and
system settings Introduction
Changing personal service number
Use the rotary/pushbutton
to highlight the menu
field “Change 1” in the “Service No.” menu and confirm
by pressing.
The menu “Change Service No. 1” is activated.Use the number keys
through
to enter the
new service number.
Confirm the new service number by pressing the
rotary/pushbutton
.
The new service number is now stored in the menu
“Service No.”.
Note:
The personal service number is deleted after pressing the
rotary/pushbutton and inserting an empty input
line.
Return to the main telephone menu by pressing
.
P82.85-6092-26
08-TELEFON-25-US.pm509.07.2004, 14:24 Uhr 140
