2 Contents
Supplemental restraint
system (SRS) ................................ 90
Emergency tensioning
retractor (ETR) ............................. 91
Airbags .............................................. 92
Safety guidelines for the
seat belt, emergency
tensioning retractor
and airbag .................................. 100
Infant and
child restraint systems ............. 102
Steering wheel adjustment .......... 105
Rear view mirrors .......................... 106
Rear view mirror,
automatic antiglare ................... 106
Memory function ............................111
Key dependent
memory settings ........................113
Instrument cluster ..........................114
Multifunction steering wheel,
multifunction display ............... 120
Trip and main odometer
and sub menu ............................ 124Audio systems ................................ 126
Radio ............................................ 126
CD player .................................... 127
Cassette player ........................... 128
Telephone ....................................... 129
Telephone book .......................... 129
Redialing ...................................... 131
Incoming call ...............................133
Navigation system ..........................134
Distronic (DTR) ...............................135
Trip computer .................................136
Malfunction/warning
message memory ......................138
Individual settings ........................ 140
Setting the audio volume ............. 149
Flexible service system
(FSS) ............................................150
Tire inflation pressure
monitor ........................................153
Engine oil level indicator ..............157
Engine oil consumption ................158
Exterior lamp switch ......................159
Headlamp mode ..............................160
Night security illumination ..........162Headlamp cleaning system .......... 163
Combination switch ...................... 164
Hazard warning flasher
switch .......................................... 167
Automatic climate control ............ 168
Display and controls .................. 170
Dust filter .................................... 172
Automatic maximum
cooling ......................................... 172
Basic setting ............................... 173
Special settings .......................... 174
Air recirculation ......................... 176
Activated charcoal filter ............ 177
Economy mode ........................... 178
Residual engine
heat utilization ........................... 179
Switching the
automatic climate control
on and off .................................... 180
Front center console storage
compartment ventilation .......... 180
Rear window defroster .................. 181
Rear passenger compartment
adjustable air outlets ................ 182
J_OM_215.book Seite 2 Mittwoch, 30. Mai 2001 2:01 14

9 IntroductionImportant notice for California retail buyers of Mercedes-Benz automobiles
Under California law you may be entitled to a replacement of your vehicle or a refund of the purchase price or lease
price, if Mercedes-Benz USA, LLC and / or its authorized repair or service facilities fail to fix one ore more substantial
defects or malfunctions in the vehicle that are covered by its express warranty after a reasonable number of repair
attempts. During the period of 18 months from original delivery of the vehicle or the accumulation of 18 000 miles on
the odometer of the vehicle, whichever occurs first, a reasonable number of repair attempts is presumed for a retail
buyer or lessee if one or more of the following occurs: (1) the same substantial defect or malfunction results in a
condition that is likely to cause death or serious bodily injury if the vehicle is driven, that defect or malfunction has
been subject to repair two or more times, and you have directly notified Mercedes-Benz USA, LLC in writing of the
need for its repair and have given us a direct opportunity to perform a repair ourselves, (2) the same substantial defect
or malfunction of a less serious nature than category (1) has been subject to repair four or more times and you have
directly notified us of the need for its repair and given us the opportunity to repair ourselves, or (3) the vehicle is out
of service by reason of repair of the same or different substantial defects or malfunctions for a cumulative total of
more than 30 calender days. Written notification should be sent to us, not a dealer, at Mercedes-Benz USA, LLC,
Customer Assistance Center, One Mercedes Drive, Montvale, NJ 07645-0350.
Maintenance
The Service Booklet describes all the necessary maintenance work which should be performed at regular intervals.
Always have the Service Booklet with you when you take the vehicle to your authorized Mercedes-Benz Center for
service. The service advisor will record each service in the booklet for you.
J_OM_215.book Seite 9 Mittwoch, 30. Mai 2001 2:01 14

27 Contents - Operation
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index Multifunction steering wheel,
multifunction display ............... 120

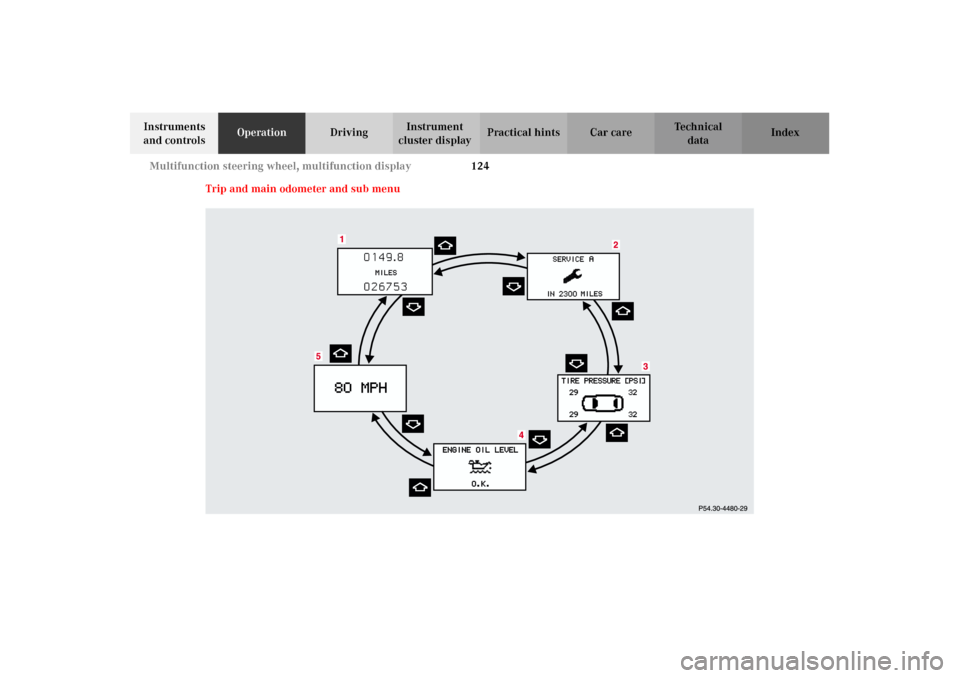

Trip and main odometer
and sub menu ............................ 124
Audio systems ................................ 126
Radio ............................................ 126
CD player ..................................... 127
Cassette player ........................... 128
Telephone ........................................ 129
Telephone book .......................... 129
Redialing ..................................... 131
Incoming call .............................. 133
Navigation system .......................... 134
Distronic (DTR) ............................... 135
Trip computer ................................. 136
Malfunction/warning
message memory ...................... 138
Individual settings ......................... 140
Setting the audio volume .............. 149
Flexible service system (FSS) ...... 150
Tire inflation pressure
monitor ....................................... 153
Engine oil level indicator .............. 157
Engine oil consumption ................ 158Exterior lamp switch ......................159
Headlamp mode ..............................160
Night security illumination ..........162
Headlamp cleaning system ...........163
Combination switch .......................164
Hazard warning flasher
switch ..........................................167
Automatic climate control .............168
Display and controls ................. 170
Dust filter .................................... 172
Automatic maximum
cooling ......................................... 172
Basic setting ............................... 173
Special settings ........................... 174
Air recirculation ......................... 176
Activated charcoal filter ........... 177
Economy mode ........................... 178
Residual engine
heat utilization ........................... 179
Switching the
automatic climate control
on and off .....................................180
Front center console storage
compartment ventilation ...........180Rear window defroster .................. 181
Rear passenger compartment
adjustable air outlets ................ 182
Power windows ............................... 183
Sliding/pop-up roof ....................... 186
Interior lighting ............................. 189
Rear window sunshade ................. 191
Sun visors ....................................... 192
Vanity mirrors ................................ 192
Interior ............................................ 193
Storage compartments and
armrests ..................................... 193
Glove box ..................................... 194
Coat hooks ...................................... 198
Cup holder ...................................... 199
Ashtrays ..........................................202
Lighter .............................................204
Parcel net in trunk ........................205
Cargo tie-down hooks ....................206
Parcel net in
front passenger footwell ..........206
Telephone, general ........................207
Garage door opener .......................208
Infrared reflecting windshield .... 212
J_OM_215.book Seite 27 Mittwoch, 30. Mai 2001 2:01 14

115 Instrument cluster
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index 1Knob for instrument cluster illumination,
seepage116
2Engine malfunction indicator lamp, see page 296
3Brake fluid low or parking brake engaged,
seepage307
4Supplemental restraint system (SRS) malfunction
indicator lamp, see page 299
5Coolant temperature gauge, see page 117
6Outside temperature indicator, see page 117
7Fuel gauge with reserve warning lamp, see page 299
8Left turn signal indicator lamp, see combination
switch on page 164
9Speedometer, see page 118
10Electronic stability program (ESP) warning lamp,
system is adjusting to road conditions, see page 301
11Distance warning lamp – vehicles with Distronic
(DTR), distance to the vehicle ahead is insufficient,
see page 270 and page 301.
Vehicles without Distronic: It illuminates with the
electronic key in starter switch position 2. It should
go out when the engine is running.12Multifunction display, see page 120
Malfunction and warning messages in the
multifunction display, see page 303
13Trip odometer, see page 119 and 124
14Main odometer, see page 124
15Right turn signal indicator lamp, see combination
switch on page 164
16Tachometer, see page 119
17Gear range indicator display, see selector lever
positions on page 238
18Digital clock
To set the time, see COMAND operator’s manual
19Antilock brake system (ABS) malfunction indicator
lamp, see page 300
20High beam headlamp indicator,
see exterior lamp switch, page 159, and
combination switch, page 164
21Fasten seat belts, see page 302
22Reset buttonJ, s e e p a g e s 116 , 119
J_OM_215.book Seite 115 Mittwoch, 30. Mai 2001 2:01 14

119 Instrument cluster
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index Trip odometer (13)
To reset to “0” miles/km:
Activate the instrument cluster if it is not already
activated by pressing the Jbutton on the instrument
cluster.
Press buttonè orÿ on the multifunction
steering wheel repeatedly until the trip odometer
appears if it is not displayed. See page 124.
Press button Jon the instrument cluster until the
trip odometer is reset.Tachometer (16)
The red marking on the tachometer denotes excessive
engine speed.
Avoid this engine speed, as it may result in serious
engine damage that is not covered by the
Mercedes-Benz Limited Warranty.
To help protect the engine, the fuel supply is interrupted
if the engine is operated within the red marking.
J_OM_215.book Seite 119 Mittwoch, 30. Mai 2001 2:01 14

121 Multifunction steering wheel, multifunction display
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index Depending on your vehicle’s equipment, you may use
the buttons on the multifunction steering wheel to call
up, control and set the following systems in the
multifunction display:
1Trip odometer and main odometer, see page 119 and
page 124
Flexible service system (FSS), see page 150
Tire inflation pressure monitor, see page 153
Engine oil level indicator, see page 157
2Audio systems, see page 126
Radio, see page 126
CD player, see page 127
Cassette player, see page 128
3Telephone, see page 1294Navigation system, see page 134
5Distronic (DTR), see page 259
6Trip computer, see page 136
After start
After reset
Range
7Malfunction message memory, see page 138
8Individual settings, see page 140
9Malfunction messages are stored in memory (7),
see page 138.
Press theè orÿ button repeatedly until the
required system is displayed.
The display advances by one system each time the
button is pressed.
You may call up additional displays within some of these
categories by pressing thej or kbutton.
J_OM_215.book Seite 121 Mittwoch, 30. Mai 2001 2:01 14

124 Multifunction steering wheel, multifunction display
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index
Trip and main odometer and sub menu
J_OM_215.book Seite 124 Mittwoch, 30. Mai 2001 2:01 14

125 Multifunction steering wheel, multifunction display
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index 1Trip odometer and main odometer
See page 119 for instructions on resetting the trip
odometer.
2FSS (Flexible service system), see page 150
3Tire inflation pressure monitor, see page 153
4Engine oil level indicator, see page 157
5Ve h i c l e s p e e dPressè or ÿbutton repeatedly until the trip and
main odometer display (1) appears.
Press thej or kbutton repeatedly until the
required display (2, 3, 4, 5, 1) appears.
Pressing theè or ÿbutton displays the next or
previous system.
J_OM_215.book Seite 125 Mittwoch, 30. Mai 2001 2:01 14
