2002 MAZDA MODEL PROTÉGÉ width

2-11
Essential Safety Equipment
Form No. 8Q36-EA-01F
Seat Belt Systems
Seat belts help to decrease the possibility of severe injury during accidents and sudden
stops. Mazda recommends that the driver and all passengers always wear seat belts.
All of the seat belt retractors are designed to keep the lap/shoulder belts out of the way
when not in use.
The driver’s seat belt has no provisions for child-restraint systems and has only an
emergency locking mode. The driver may wear it comfortably, and it will lock during a
collision.
However, the front passenger’s seat and rear lap/shoulder belt retractors operate in two
modes: emergency locking mode, and for child-restraint systems, automatic locking mode.
Seat Belt Precautions
Not Wearing Seat Belts:
Not wearing a seat belt is extremely dangerous. During a collision, occupants not
wearing seat belts could hit someone or things inside the vehicle or even be thrown
out of the vehicle. They could be seriously injured or even killed. In the same
collision, occupants wearing seat belts would be much safer. Always wear your seat
belt and make sure all occupants are properly restrained.
Seat Belt Damaged During an Accident:
Using a damaged seat belt is dangerous. An accident could damage the belt webbing
of the seat belt in use. A damaged seat belt cannot provide adequate protection in a
collision. Have an Authorized Mazda Dealer inspect all seat belt systems in use during
an accident before they are used again.
Twisted Seat Belts:
Twisted seat belts are dangerous. In a collision, the full width of the belt isn’t
available to absorb the impact. This puts more force on the bones beneath the belt,
which could break them or cause other serious injury or death. Don’t wear twisted
seat belts.
WARNING
J39L(02MY).book Page 11 Thursday, November 1, 2001 10:49 AM

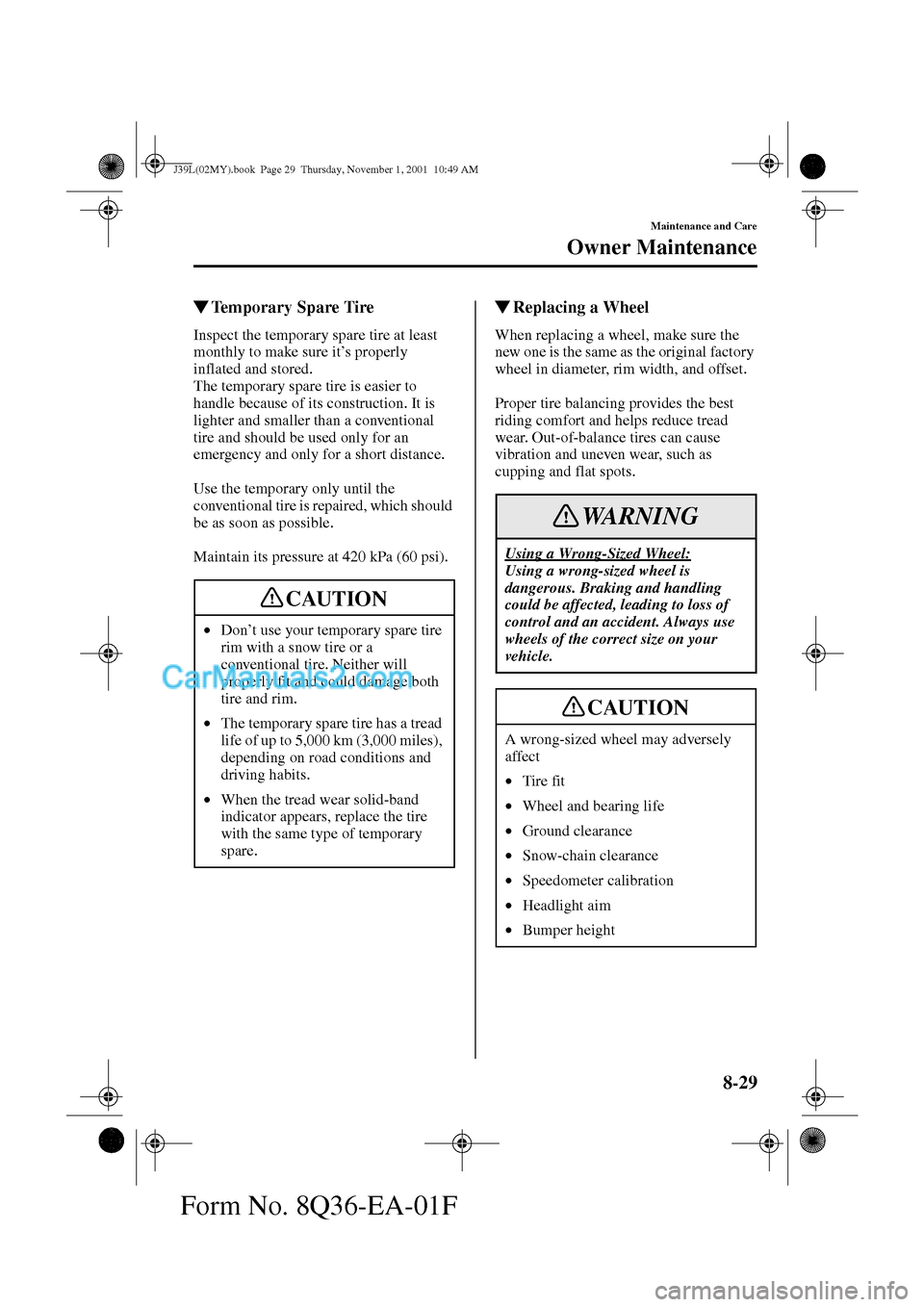

8-29
Maintenance and Care
Owner Maintenance
Form No. 8Q36-EA-01F

Temporary Spare Tire
Inspect the temporary spare tire at least
monthly to make sure it’s properly
inflated and stored.
The temporary spare tire is easier to
handle because of its construction. It is
lighter and smaller than a conventional
tire and should be used only for an
emergency and only for a short distance.
Use the temporary only until the
conventional tire is repaired, which should
be as soon as possible.
Maintain its pressure at 420 kPa (60 psi).

Replacing a Wheel
When replacing a wheel, make sure the
new one is the same as the original factory
wheel in diameter, rim width, and offset.
Proper tire balancing provides the best
riding comfort and helps reduce tread
wear. Out-of-balance tires can cause
vibration and uneven wear, such as
cupping and flat spots.
•Don’t use your temporary spare tire
rim with a snow tire or a
conventional tire. Neither will
properly fit and could damage both
tire and rim.
•The temporary spare tire has a tread
life of up to 5,000 km (3,000 miles),
depending on road conditions and
driving habits.
•When the tread wear solid-band
indicator appears, replace the tire
with the same type of temporary
spare.
CAUTION
Using a Wrong-Sized Wheel:
Using a wrong-sized wheel is
dangerous. Braking and handling
could be affected, leading to loss of
control and an accident. Always use
wheels of the correct size on your
vehicle.
A wrong-sized wheel may adversely
affect
•Tire fit
•Wheel and bearing life
•Ground clearance
•Snow-chain clearance
•Speedometer calibration
•Headlight aim
•Bumper height
WARNING
CAUTION
J39L(02MY).book Page 29 Thursday, November 1, 2001 10:49 AM

9-13
Customer Information
Uniform Tire Quality Grading System (UTQGS)
Form No. 8Q36-EA-01F
These grades will be added to the sidewalls of passenger vehicle tires over the next several
years according to a schedule established by the NHTSA and the tire manufacturers.
The grade of tires available as standard or optional equipment on Mazda vehicle may vary
with respect to grade.
ALL PASSENGER VEHICLE TIRES MUST CONFORM TO THESE GRADES AND
TO ALL OTHER FEDERAL TIRE-SAFETY REQUIREMENTS.

Uniform Tire Quality Grading
Quality grades can be found where applicable on the tire sidewall between tread shoulder
and maximum section width.
For example:
Treadwear 200 Traction AA Temperature A
The temperature grade for this tire is established for a tire that is properly inflated
and not overloaded. Excessive speed, underinflation, or excessive loading, either
separately or in combination, can cause heat buildup and possible tire failure.
WARNING
UTQGS MARK (example)
TREADWEAR 200 TRACTION AA
TEMPERATURE A
J39L(02MY).book Page 13 Thursday, November 1, 2001 10:49 AM

10-5
Specifications
Form No. 8Q36-EA-01F

Capacities
(Approximate Quantities)
Check oil and fluid levels with dipsticks or reservoir gauges.

Dimensions
ItemUnit
L US qt Imp qt
Engine oil1.6-liter engineWith oil filter replacement 3.2 3.4 2.8
Without oil filter
replacement3.0 3.2 2.6
1.8 and 2.0-liter
enginesWith oil filter replacement 3.5 3.7 3.1
Without oil filter
replacement3.3 3.5 2.9
Coolant1.6-liter engineWith heater 6.0 6.3 5.3
Without heater 5.5 5.8 4.8
1.8 and 2.0-liter
enginesWith heater 7.5 7.9 6.6
Without heater 6.9 7.3 6.1
Transaxle oilManual transaxle 2.7 2.9 2.4
Automatic transaxle 7.2 7.6 6.3
Fuel tank1.6-liter engine 50 13.2 (US gal) 11.0 (Imp gal)
1.8 and 2.0-liter engines 55 14.5 (US gal) 12.1 (Imp gal)
ItemModel
Sedan Hatchback
Overall length 4,450 mm (175.2 in) 4,331 mm (170.5 in)
Overall width 1,705 mm (67.1 in) 1,705 mm (67.1 in)
Overall height 1,410 mm (55.5 in) 1,410 mm (55.5 in)
Front tread 1,470 mm (57.9 in) 1,465 mm (57.7 in)
Rear tread 1,470 mm (57.9 in) 1,470 mm (57.9 in)
Wheelbase 2,610 mm (102.8 in) 2,610 mm (102.8 in)
