2002 MAZDA MODEL PROTÉGÉ ECO mode

A Word to Mazda Owners
Form No. 8Q36-EA-01F
Thank you for choosing a Mazda. We at Mazda design and build vehicles with complete
customer satisfaction in mind.
To help ensure enjoyable and trouble-free operation of your Mazda, read this manual
carefully and follow its recommendations.
An Authorized Mazda Dealer knows your vehicle best. So when maintenance or service is
necessary, that’s the place to go.
Our nationwide network of Mazda professionals is dedicated to providing you with the
best possible service.
We assure you that all of us at Mazda have an ongoing interest in your motoring pleasure
and in your full satisfaction with your Mazda product.
Mazda Motor Corporation
HIROSHIMA, JAPAN
©2001 Mazda Motor Corporation
Printed in Japan Nov. 2001(Print3) Important Notes About This Manual
Keep this manual in the glove box as a handy reference for the safe and enjoyable use of
your Mazda. Should you resell the vehicle, leave this manual with it for the next owner.
All specifications and descriptions are accurate at the time of printing. Because
improvement is a constant goal at Mazda, we reserve the right to make changes in
specifications at any time without notice and without obligation.
Air Conditioning and the Environment
Your Mazda’s genuine air conditioner is filled with R134a, a refrigerant that has been
found not to damage the earth’s ozone layer. If the air conditioner does not operate
properly, consult an Authorized Mazda Dealer.
Please be aware that this manual applies to all models, equipment and options. As a
result, you may find some explanations for equipment not installed on your vehicle.
J39L(02MY).book Page 1 Thursday, November 1, 2001 10:49 AM

2-11
Essential Safety Equipment
Form No. 8Q36-EA-01F
Seat Belt Systems
Seat belts help to decrease the possibility of severe injury during accidents and sudden
stops. Mazda recommends that the driver and all passengers always wear seat belts.
All of the seat belt retractors are designed to keep the lap/shoulder belts out of the way
when not in use.
The driver’s seat belt has no provisions for child-restraint systems and has only an
emergency locking mode. The driver may wear it comfortably, and it will lock during a
collision.
However, the front passenger’s seat and rear lap/shoulder belt retractors operate in two
modes: emergency locking mode, and for child-restraint systems, automatic locking mode.
Seat Belt Precautions
Not Wearing Seat Belts:
Not wearing a seat belt is extremely dangerous. During a collision, occupants not
wearing seat belts could hit someone or things inside the vehicle or even be thrown
out of the vehicle. They could be seriously injured or even killed. In the same
collision, occupants wearing seat belts would be much safer. Always wear your seat
belt and make sure all occupants are properly restrained.
Seat Belt Damaged During an Accident:
Using a damaged seat belt is dangerous. An accident could damage the belt webbing
of the seat belt in use. A damaged seat belt cannot provide adequate protection in a
collision. Have an Authorized Mazda Dealer inspect all seat belt systems in use during
an accident before they are used again.
Twisted Seat Belts:
Twisted seat belts are dangerous. In a collision, the full width of the belt isn’t
available to absorb the impact. This puts more force on the bones beneath the belt,
which could break them or cause other serious injury or death. Don’t wear twisted
seat belts.
WARNING
J39L(02MY).book Page 11 Thursday, November 1, 2001 10:49 AM

2-12
Essential Safety Equipment
Seat Belt Systems
Form No. 8Q36-EA-01F

Pregnant Women and Persons with Serious Medical Conditions
Pregnant women should wear seat belts. Ask your doctor for specific recommendations.
The lap belt should be worn SNUGLY AND AS LOW AS POSSIBLE OVER THE HIPS.
Persons with serious medical conditions also should wear seat belts. Check with your
doctor for any special instructions regarding specific medical conditions.

Emergency Locking Mode
If the belt has fully retracted, it will always be in the emergency locking mode until you
move it into automatic locking mode by pulling the belt all the way out to its full length. In
the emergency locking mode, the belt remains comfortable on the occupant and the
retractor will lock in position during a collision.
If the belt feels tight and hinders comfortable movement while the vehicle is stopped or in
motion, you may be in the automatic locking mode because you have pulled the belt too far
out. To return to the more comfortable emergency locking mode, wait until you can stop
the vehicle in a safe area, retract the belt fully to convert it back to emergency locking
mode and then again extend it around you.
One Belt, One Passenger:
Using one seat belt for more than one person at a time is dangerous. A seat belt used
in this way can’t spread the impact forces properly and the two passengers could be
crushed together and seriously injured or even killed. Never use one belt for more
than one person at a time.
Belt retraction may become difficult if the belts and rings are soiled, so try to keep them
clean.
WARNING
CAUTION
Ring
J39L(02MY).book Page 12 Thursday, November 1, 2001 10:49 AM

2-16
Essential Safety Equipment
Seat Belt Systems
Form No. 8Q36-EA-01F
For optimum protection, the driver and
front passenger seat belts are equipped
with pretensioner and load limiting
systems.
In moderate or greater frontal or near-
frontal accidents, the front air bag and
pretensioner systems deploy
simultaneously. The pretensioners take up
slack in the front seat belts as the air bags
are expanding. The load limiting system
releases belt webbing in a controlled
manner to reduce belt force on the
occupant’s chest.
Front Seat Belt
Pretensioner and Load
Limiting Systems
Incorrect Positioning of the Driver
and Front Passenger Seat Belts:
Incorrect positioning of the driver
and passenger seat belts is dangerous.
Without proper positioning, the
pretensioner and load limiting
systems cannot provide adequate
protection in an accident and this
could result in serious injury. Wear
seat belts only as recommended in
this owner’s manual.
Modification or Testing of the
Pretensioner System:
Modifying the components or wiring
of the pretensioner system, including
the use of electronic testing devices is
dangerous. You could accidentally
activate it or make it inoperable
which would prevent it from
activating in an accident. The
occupants could be seriously injured.
Never modify the components or
wiring, or use electronic testing
devices on the pretensioner system.
Pretensioner System Disposal:
Improper disposal of the pretensioner
system or a vehicle with non-
deactivated pretensioners is
dangerous. Unless all safety
procedures are followed, injury could
result. Ask an Authorized Mazda
Dealer how to safely dispose of the
pretensioner system or how to scrap a
pretensioner-equipped vehicle.
WARNING
J39L(02MY).book Page 16 Thursday, November 1, 2001 10:49 AM

2-17
Essential Safety Equipment
Seat Belt Systems
Form No. 8Q36-EA-01F

Air Bag/Front Seat Belt
Pretensioner Systems Warning
Light
If the air bag/front seat belt pretensioner
system is OK, the warning light comes on
when the ignition switch is turned to the
ON position or after the engine is
cranked. After about 6 seconds it goes
out.
A system malfunction is indicated when
the warning light constantly flashes, stays
on or doesn’t come on at all. If any of
these occur, consult an Authorized Mazda
Dealer as soon as possible. The system
may not work in an accident.
NOTE
•The pretensioner system will only
activate in a moderate or greater
frontal or near-frontal collision. It
will not activate in side or rear
impacts.
•Some smoke (non-toxic gas) will be
released when the air bags and
pretensioners deploy. This does not
indicate a fire. This gas normally
has no effect on occupants,
however, those with sensitive skin
may experience light skin irritation.
If residue from the deployment of
the air bags or the front pretensioner
system gets on the skin or in the
eyes, wash it off as soon as possible.
•The seat belt pretensioners will only
function once. After they are
expended, they will not work again
and must be replaced immediately,
even if there was no front seat
occupant seated at the time.
Self-Servicing the Air Bag/
Pretensioner Systems:
Self-servicing or tampering with the
systems is dangerous. An air bag/
pretensioner could accidentally
activate or become disabled. This
could cause serious injuries. Never
tamper with the systems and always
have an Authorized Mazda Dealer
perform all servicing and repairs.
WARNING
J39L(02MY).book Page 17 Thursday, November 1, 2001 10:49 AM

5-21
Driving Your Mazda
Instrument Cluster and Indicators
Form No. 8Q36-EA-01F

Speedometer
The speedometer indicates the speed of
the vehicle.

Odometer and Trip Meter
The ignition switch must be in the ON
position.
The display mode can be changed from
odometer to trip meter A to trip meter B
and then back to odometer by pressing the
selector. The selected mode will be
displayed.Odometer
When this mode is selected, ODO will be
displayed.
The odometer records the total distance
the vehicle has been driven.
Tr i p m e t e r
The trip meter can record the total
distance of two trips. One is recorded in
trip meter A, and the other is recorded in
trip meter B.
For instance, trip meter A can record the
distance from the point of origin, and trip
meter B can record the distance from
where the fuel tank is filled.
When trip meter A is selected, pressing
the selector again within one second will
change to trip meter B mode.
When trip meter A is selected, TRIP A
will be displayed. When meter B is
selected, TRIP B will be displayed.
The trip meter records the total distance
the vehicle is driven until the meter is
again reset. Return it to "0.0" by holding
the selector depressed for more than 1
second. Use this meter to measure trip
distances and in to compute fuel
consumption.
Selector
Odometer
Trip meter A Press the selector
Press the selector
Press the selector Trip meter B
NOTE
The display mode can be changed
while the vehicle is stopped for about a
10 minute period after the door is
opened or the ignition switch is in the
ACC or LOCK position.
J39L(02MY).book Page 21 Thursday, November 1, 2001 10:49 AM

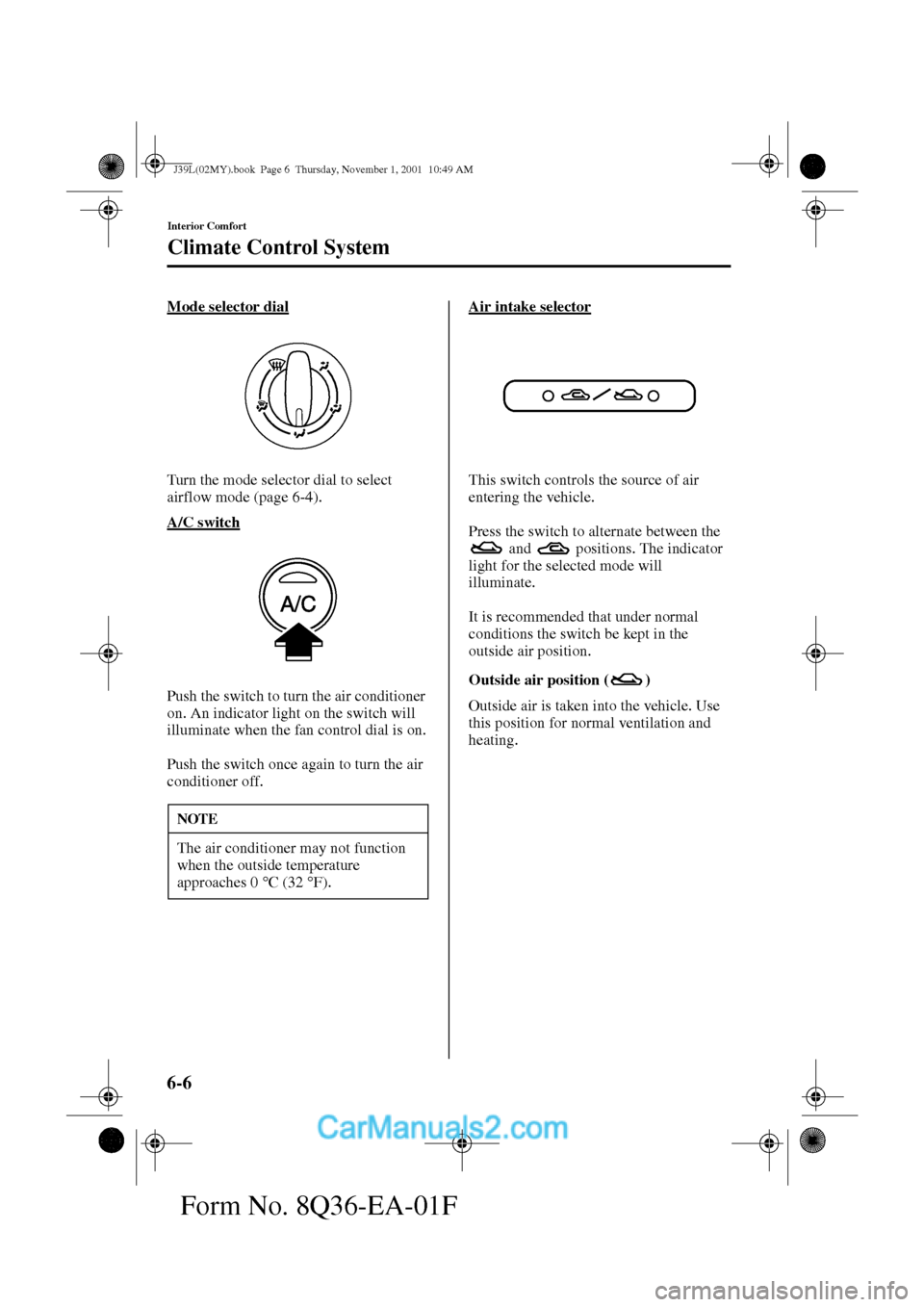

6-6
Interior Comfort
Climate Control System
Form No. 8Q36-EA-01F
Mode selector dial
Turn the mode selector dial to select
airflow mode (page 6-4).
A/C switch
Push the switch to turn the air conditioner
on. An indicator light on the switch will
illuminate when the fan control dial is on.
Push the switch once again to turn the air
conditioner off.Air intake selector
This switch controls the source of air
entering the vehicle.
Press the switch to alternate between the
and positions. The indicator
light for the selected mode will
illuminate.
It is recommended that under normal
conditions the switch be kept in the
outside air position.
Outside air position ( )
Outside air is taken into the vehicle. Use
this position for normal ventilation and
heating.
NOTE
The air conditioner may not function
when the outside temperature
approaches 0
°C (32
°F).
J39L(02MY).book Page 6 Thursday, November 1, 2001 10:49 AM

6-19
Interior Comfort
Au di o S ys t em
Form No. 8Q36-EA-01F
Audio sound adjustment
1. Press the audio control knob to select
bass, mid-range, treble, fade or balance
control. The selected function will be
indicated.
2. Turn the audio control knob to adjust
the selected functions as follows:
Indication Turn Left Turn Right
Decrease bass Increase bass
Decrease
mid-rangeIncrease
mid-range
Decrease
trebleIncrease
treble
Shift the sound
to the frontShift the sound
to the rear
Shift the sound
to the leftShift the sound
to the right
NOTE
About 5 seconds after selecting any
mode, the volume function will be
automatically selected. To reset bass,
mid-range, treble, fade, and balance,
press the audio control knob for 2
seconds. The unit will beep and "CL"
will be displayed.
J39L(02MY).book Page 19 Thursday, November 1, 2001 10:49 AM
