2002 MAZDA MODEL B4000 4WD fog light

These are some of the symbols you may see on your vehicle.Vehicle Symbol Glossary
Safety Alert
See Owner’s Guide
Protecting the
EnvironmentFasten Safety Belt
Air Bag-FrontAir Bag-Side
Child SeatChild Seat Installation
Warning
Child Seat Tether
AnchorageBrake System
Anti-Lock Brake SystemBrake Fluid -
Non-Petroleum Based
Traction ControlMaster Lighting Switch
Hazard Warning FlasherFog Lamps-Front
Fuse CompartmentFuel Pump Reset
Windshield Wash/WipeWindshield
Defrost/Demist
Rear Window
Defrost/DemistPower Windows
Front/Rear
Introduction
8

•OFF – Outside air is shut out and the fan will not operate. For short
periods of time only, use this mode to prevent undesirable odors from
entering the vehicle.
•
(Panel and floor) – Distributes outside air through the
instrument panel registers and the floor ducts. Heating and air
conditioning capabilities are provided in this mode. For added
customer comfort, when the temperature control knob is anywhere in
between the full hot and full cold positions, the air distributed through
the floor ducts will be slightly warmer than the air sent to the
instrument panel registers.
•
(Floor) – Distributes outside air through the floor ducts.
However, the air will not be cooled below the outside temperature
because the air conditioning does not operate in this mode.
•
(Floor and defrost) – Distributes outside air through the
windshield defroster ducts and the floor ducts. Heating and air
conditioning capabilities are provided in this mode. For added
customer comfort, the air distributed through the floor ducts will be
slightly warmer than the air sent to the windshield defroster ducts. If
the temperature is about 6°C (43°F) or higher, the air conditioner will
automatically dehumidify the air to reduce fogging.
•
(Defrost) – Distributes outside air through the windshield
defroster ducts. It can be used to clear ice or fog from the windshield.
If the temperature is about 6°C (43°F) or higher, the air conditioner
will automatically dehumidify the air to reduce fogging.
Operating tips
• In humid weather conditions, place the climate control system in
Defrost mode before driving. This will reduce fogging on your
windshield. Once the windshield has been cleared, operate the climate
control system as desired.
• To reduce humidity buildup inside the vehicle in cold weather
conditions, don’t drive with the climate control system in the OFF or
MAX A/C position.
• To reduce humidity buildup inside the vehicle in warm weather
conditions, don’t drive with the climate control system in the OFF
position.
• Under normal weather conditions, your vehicle’s climate control
system should be left in any position other than the MAX A/C or OFF
when the vehicle is parked. This allows the vehicle to “breathe”
through the outside air inlet duct.
Climate Controls
71

HEADLAMP CONTROL
Rotate the headlamp control to the
first position to turn on the parking
lamps.
Rotate to the second position to
turn on the headlamps.
FOG LAMP CONTROL (IF EQUIPPED)
The fog lamps can only be turned
on when the headlamp control is in
the low beams position.
Press the foglamp control to activate
the fog lamps. The fog lamp
indicator light will illuminate. When
the highbeams are activated, the fog
lamps will not operate.
Press the fog lamp control again to deactivate the fog lamps.
Daytime running lamps (DRL) (if equipped)
Turns the headlamps on with a reduced output.
To activate:
•the ignition must be in the ON position and
• the headlamp control is in the OFF or Parking lamps position.
WARNING: Always remember to turn on your headlamps at
dusk or during inclement weather. The Daytime Running Lamp
(DRL) system does not activate with your tail lamps and
generally may not provide adequate lighting during these
conditions. Failure to activate your headlamps under these
conditions may result in a collision.
OFF
Lights
73

TURN SIGNAL CONTROL
•Push down to activate the left
turn signal.
• Push up to activate the right turn
signal.
• In vehicles equipped with daytime
running lights, use of the turn
signals will shut off the
highbeams in daytime driving.
COURTESY/READING LAMPS (IF EQUIPPED)
The courtesy lamp lights when:
• any door is opened.
• the instrument panel dimmer
switch is held up until the
courtesy lamps come on.
• the remote entry controls are
pressed and the ignition is OFF.
The reading lamps can be turned on by moving the switch on the dome
lamp to either the left or the right.
BULBS
Replacing exterior bulbs
Check the operation of the following lamps frequently:
• Headlamps
• Fog lamps (if equipped)
• High-mount brake lamp
• Brake lamps
• Turn signal lamps
• License plate lamp
• Tail lamps
• Back-up lamps
Do not remove lamp bulbs unless they can be replaced immediately with
new ones. If a bulb is removed for an extended period of time,
contaminants may enter the lamp housings and affect lamp performance.
Lights
75

Using the right bulbs
Replacement bulbs are specified in the chart below. Headlamp bulbs
must be marked with an authorized “D.O.T.” for North America to assure
lamp performance, light brightness and pattern and safe visibility.
NOTE:The correct bulbs will not damage the lamp assembly or void the
lamp assembly warranty and will provide quality bulb burn time.
Function Number of bulbs Trade number
Park/turn lamps
(front) 2
3157 AK (amber)
Headlamps 29003
Rear stop/tail lamps 23157K
Rear turn lamps 23156K
Rear license plate
lamps 2
3156K/168
Backup lamp 23156K
Rear/turn/sidemarker 2916NA (amber)
Fog lamp (if
equipped) 2
899
Cargo lamp 1211-2
Interior overhead lamp 1912 (906)
Front door courtesy
lamp 1
168
Map lamps 2168 (T10)
Ashtray lamp 1161
All replacement bulbs are clear in color except where noted.
To replace all instrument panel lights - see your dealer.
Replacing the interior bulbs
Check the operation of the following interior bulbs frequently:
• interior overhead lamp
• map lamp
For bulb replacement, see an authorized Mazda dealer.
Lights
76

Replacing tail lamp/backup lamp bulbs
The tail lamp/backup lamp bulbs are
located in the same portion of the
tail lamp assembly, one just below
the other. Follow the same steps to
replace either bulb:1. Open the tailgate to expose the lamp assemblies.
2. Remove the four screws and the lamp assembly from vehicle.
3. Rotate bulb socket counterclockwise turn and
remove from lamp assembly.
4. Carefully pull the bulb straight out of the socket and push in
the new bulb.
5. Install the bulb socket in lamp assembly by turning clockwise.
6. Install the lamp assembly and secure with four screws.
Replacing fog lamp bulbs 1. Remove the bulb socket from the fog lamp by turning
counterclockwise.
2. Disconnect the electrical connector from the fog lamp
bulb.
Lights
80

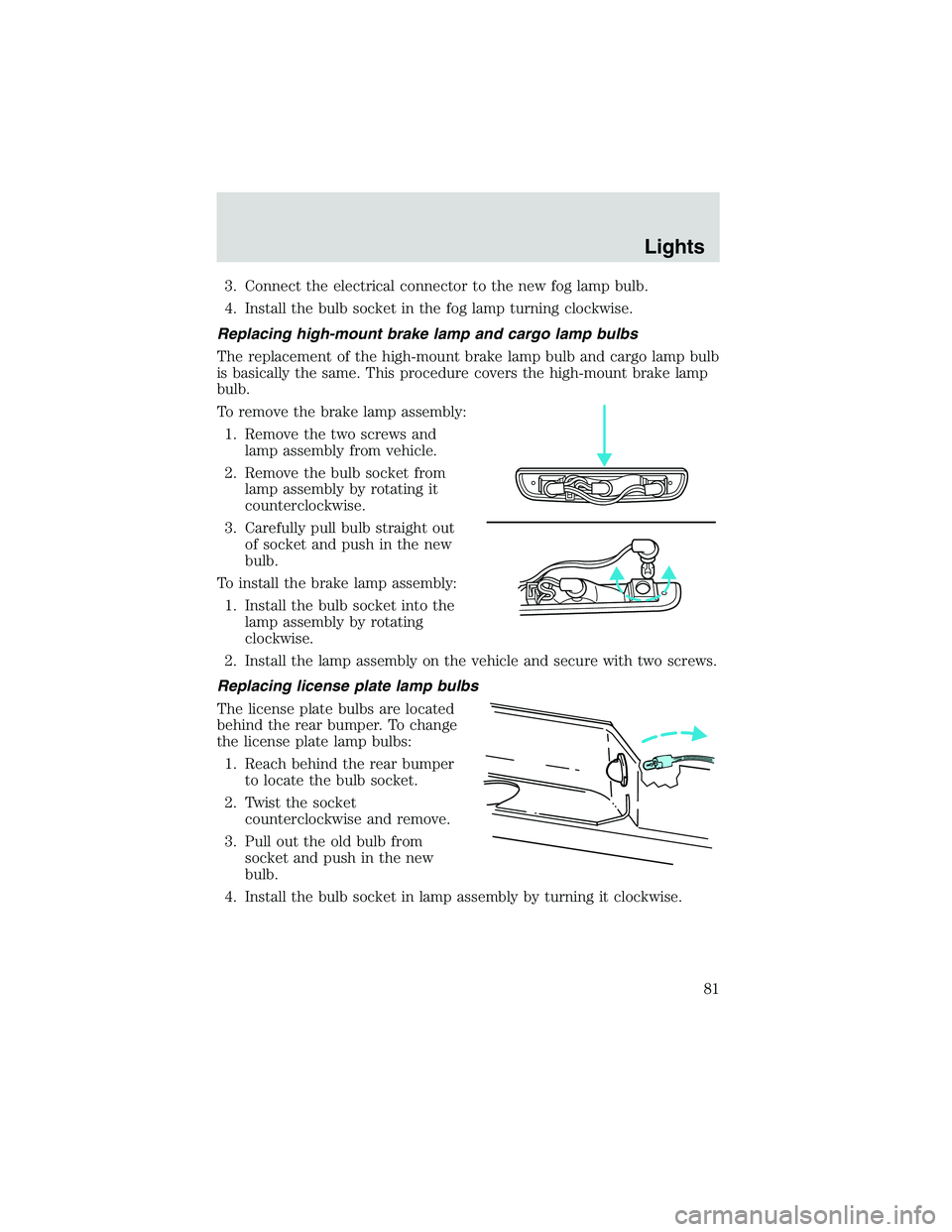

3. Connect the electrical connector to the new fog lamp bulb.
4. Install the bulb socket in the fog lamp turning clockwise.
Replacing high-mount brake lamp and cargo lamp bulbs
The replacement of the high-mount brake lamp bulb and cargo lamp bulb
is basically the same. This procedure covers the high-mount brake lamp
bulb.
To remove the brake lamp assembly: 1. Remove the two screws and lamp assembly from vehicle.
2. Remove the bulb socket from lamp assembly by rotating it
counterclockwise.
3. Carefully pull bulb straight out of socket and push in the new
bulb.
To install the brake lamp assembly: 1. Install the bulb socket into the lamp assembly by rotating
clockwise.
2. Install the lamp assembly on the vehicle and secure with two screws.
Replacing license plate lamp bulbs
The license plate bulbs are located
behind the rear bumper. To change
the license plate lamp bulbs: 1. Reach behind the rear bumper to locate the bulb socket.
2. Twist the socket counterclockwise and remove.
3. Pull out the old bulb from socket and push in the new
bulb.
4. Install the bulb socket in lamp assembly by turning it clockwise.
Lights
81

filter, specifications ................242
recommendations ...................242
refill capacities ........................272
specifications ..................275–276
Exhaust fumes ..........................152
F
Flexible Fuel Vehicle (FFV) ....250
Fluid capacities .........................272
Foglamps .....................................73
Four-Wheel Drive
vehicles ..........................16–17, 165 description ..............................165
driving off road .......................167
electronic shift ........................165
indicator light .........................165
preparing to drive your
vehicle .....................................157
Fuel ............................................250 calculating fuel economy .......256
cap .....................................15, 252
capacity ...................................272
choosing the right fuel ...........253
comparisons with EPA fuel
economy estimates .................259
detergent in fuel .....................255
filling your vehicle with
fuel ...........................250, 252, 256
filter, specifications ................255
fuel pump shut-off switch .....182
gauge .........................................19
improving fuel economy ........256
octane rating ...................254, 276
quality ......................................254
running out of fuel .................255
safety information relating to
automotive fuels .....................250
Fuel - flex fuel vehicle
(FFV) .........................250, 253–254 Fuses ..................................183, 185
G
Gas cap (see Fuel cap) ......15, 252
Gas mileage (see Fuel
economy) ...................................256
Gauges .........................................18
battery voltage gauge ...............19
engine coolant temperature
gauge .........................................18
engine oil pressure gauge ........19
fuel gauge ..................................19
odometer ...................................20
speedometer .............................20
tachometer ................................20
trip odometer ............................20
GAWR (Gross Axle Weight
Rating) .......................................170 calculating ...............................172
definition .................................170
driving with a heavy load ......170
location ....................................170
GVWR (Gross Vehicle Weight
Rating) .......................................170 calculating .......................170, 172
definition .................................170
driving with a heavy load ......170
location ....................................170
H
Hazard flashers .........................182
Headlamps ...................................73 aiming ........................................74
bulb specifications ....................76
daytime running lights .............73
flash to pass ..............................74
high beam ...........................16, 74
replacing bulbs .........................77
turning on and off ....................73
Index
282
