5-25
Driving Your Mazda
Warning/Indicator Lights and Beeps
Form No. 8Q50-EA-01G





Brake System Warning Light
This warning has the following functions:
Parking brake warning
The light comes on when the parking
brake is applied with the ignition switch
in the START or ON position. It goes off
when the parking brake is fully released.
Low brake fluid level warning
If the light stays on after the parking brake
is fully released, you may have a brake
problem.
Drive to the side of the road and park off
the right-of-way.
You may notice that the pedal is harder to
push or that it may go closer to the floor.
In either case, it will take longer to stop
the vehicle.
1. With the engine stopped, check the
brake fluid level immediately and add
fluid as required (page 8-15).
2. After adding fluid, check the light again.
If the warning light remains on, or if the
brakes do not operate properly, do not
drive the vehicle. Have it towed to an
Authorized Mazda Dealer.
Even if the light goes off, have your brake
system inspected as soon as possible.





Seat Belt Warning Light/Beep
If the driver ’s seat belt is not fastened
when the ignition switch is turned to the
ON position, a beep will sound for about
6 seconds and the seat belt warning light
will remain on until the belt is fastened.
If the system does not operate correctly,
consult an Authorized Mazda Dealer.
Brake Warning Light:Driving with the brake system
warning light on is dangerous. It
indicates that your brakes may not
work at all or that they could
completely fail at any time. If this
light remains on, have the brakes
inspected immediately. Don ’t drive
with this light on, and contact an
Authorized Mazda Dealer to have the
brakes inspected as soon as possible.
WARNING
J94S.book Page 25 Saturday, June 23, 2001 1:04 PM

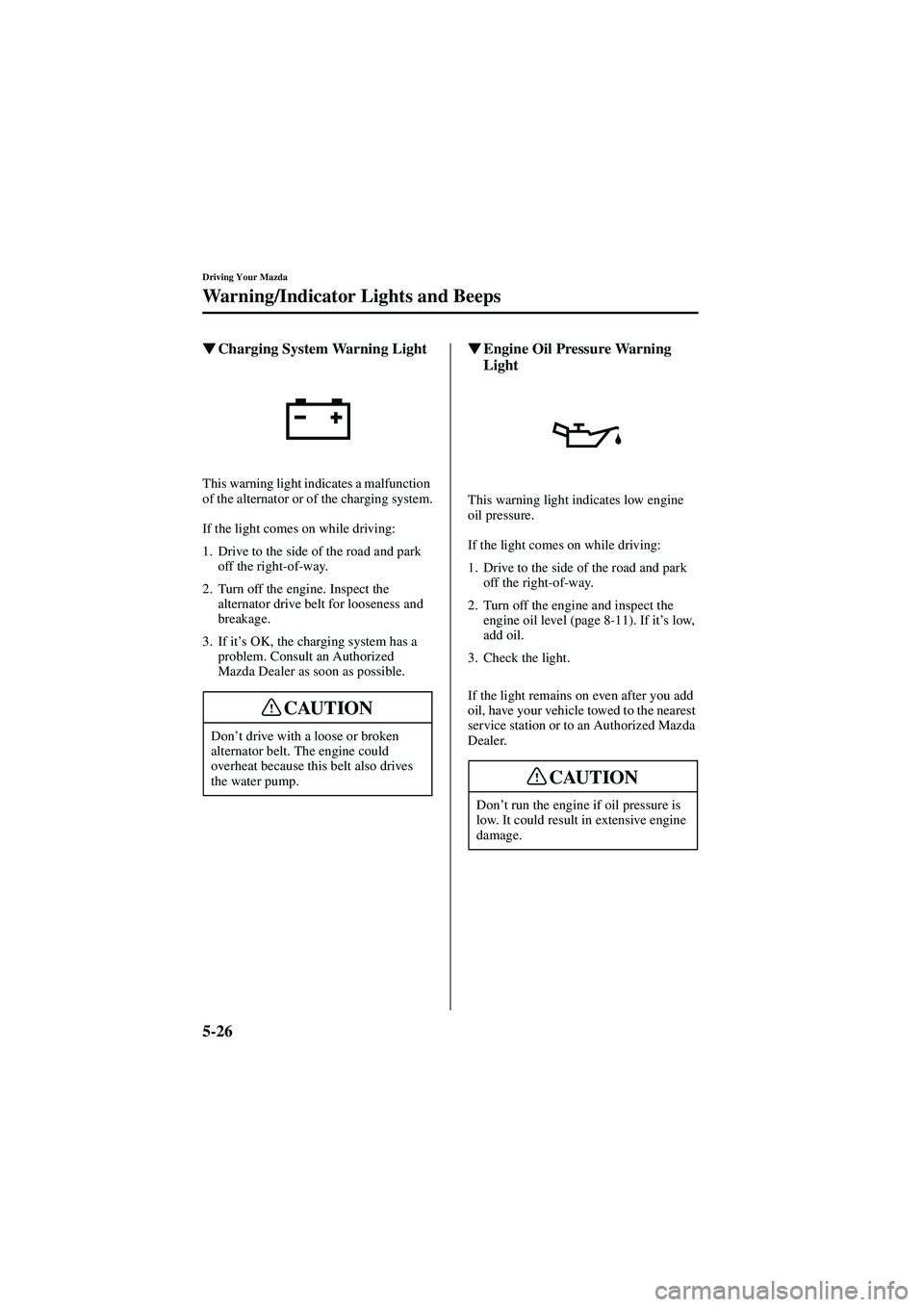

5-26
Driving Your Mazda
Warning/Indicator Lights and Beeps
Form No. 8Q50-EA-01G





Charging System Warning Light
This warning light indicates a malfunction
of the alternator or of the charging system.
If the light comes on while driving:
1. Drive to the side of the road and park
off the right-of-way.
2. Turn off the engine. Inspect the alternator drive belt for looseness and
breakage.
3. If it ’s OK, the charging system has a
problem. Consult an Authorized
Mazda Dealer as soon as possible.





Engine Oil Pressure Warning
Light
This warning light indicates low engine
oil pressure.
If the light comes on while driving:
1. Drive to the side of the road and park
off the right-of-way.
2. Turn off the engine and inspect the engine oil level (page 8-11). If it ’s low,
add oil.
3. Check the light.
If the light remains on even after you add
oil, have your vehicle towed to the nearest
service station or to an Authorized Mazda
Dealer.
Don
’t drive with a loose or broken
alternator belt. The engine could
overheat because this belt also drives
the water pump.
CAUTION
Don ’t run the engine if oil pressure is
low. It could result in extensive engine
damage.
CAUTION
J94S.book Page 26 Saturday, June 23, 2001 1:04 PM

5-27
Driving Your Mazda
Warning/Indicator Lights and Beeps
Form No. 8Q50-EA-01G





TCS Warning Light
This warning light stays on for a few
seconds when the ignition switch is turned
to the ON position. It flashes when the
system regulates engine torque.
If the light stays on, take your vehicle to
an Authorized Mazda Dealer. The traction
control system may have a malfunction.





Low Fuel Warning Light
This warning light in the fuel gauge
signals that the fuel tank will soon be
empty.
Get fuel as soon as possible.





Low Washer Fluid Level
Warning Light
This warning light reveals that little
windshield washer fluid remains. Add
fluid (page 8-20).





Check Engine Light
If this light comes on while driving, the
vehicle may have a problem. It is
important to note the driving conditions
when the light came on and consult an
Authorized Mazda Dealer.
The check engine light may come on in
the following cases:
• The fuel tank level being very low or
approaching empty.
• The engine ’s electrical system has a
problem.
• The emission control system has a
problem.
• The fuel-filler cap is missing or not
tightened securely.
NOTE
•In addition to the TCS warning light
flashing, a slight lugging sound will
come from the engine. This
indicates that the traction control
system is operating properly.
• On slippery surfaces, such as fresh
snow, it will be impossible to
achieve high rpm when the traction
control system is on.
J94S.book Page 27 Saturday, June 23, 2001 1:04 PM

5-28
Driving Your Mazda
Warning/Indicator Lights and Beeps
Form No. 8Q50-EA-01G
If the check engine light flashes
continuously, decrease your speed and
consult an Authorized Mazda Dealer as
soon as possible.





Door-Ajar Warning Light
This warning light comes on when any
door or trunk isn ’t securely closed.





ABS Warning Light
The warning light stays on for a few
seconds when the ignition switch is turned
to the ON position.
If the ABS warning light stays on while
you’ re driving, the ABS control unit has
detected a system malfunction. If this
occurs, your brakes will function
normally as if the vehicle had no ABS.
Should this happen, consult an Authorized
Mazda Dealer as soon as possible.





Air Bag System Warning Light
If the air bagseat belt pretensioner system
is OK, the warning light comes on when
the ignition switch is turned to the ON
position or after the engine is cranked.
After about 6 seconds it goes out.
A system malfunction is indicated when
the warning light constantly flashes, stays
on or doesn ’t come on at all. If any of
these occur, consult an Authorized Mazda
Dealer as soon as possible. The system
may not work in an accident.
NOTE
When the engine is jump-started to
charge the battery, uneven rpm occurs
and the ABS warning light comes on.
This is due to a weak battery, not a
malfunction.
Recharge the battery.
Self-Servicing the Air Bag Systems:Self-servicing or tampering with the
systems is dangerous. An air bag
could accidentally activate or become
disabled. This could cause serious
injuries. Never tamper with the
systems and always have an
Authorized Mazda Dealer perform all
servicing and repairs.
WARNING
J94S.book Page 28 Saturday, June 23, 2001 1:04 PM

6-2
Interior Comfort
Form No. 8Q50-EA-01G
Climate Control System





Operating the Climate Control
System
Operate the climate control system with
the engine running.





Clearing the Air Inlet
Clear all obstructions like leaves, snow
and ice from the hood and the air inlet in
the cowling grille to improve the system
efficiency.





Foggy Windows
The windows may fog up easily in humid
weather. Use the climate control system to
defog the windows.
To help defog the windows, operate the
air conditioner to dehumidify the air.





Outside/Recirculated Air
Position
Use the outside air position in normal
conditions. The recirculated air position
can be used temporarily when driving on
dusty roads or for quick cooling of the
interior.





Parking in Direct Sunlight
If the vehicle has been parked in direct
sunlight during hot weather, open the
windows to let warm air escape, then run
the climate control system.





Not Using for a Long Period
Run the air conditioner at least once a
month to keep internal parts lubricated.





Check the Refrigerant before
Weather Gets Hot
Have the air conditioner checked before
the weather gets hot. Lack of refrigerant
may make the air conditioner less
efficient. Consult an Authorized Mazda
Dealer for refrigerant inspection.
The optional air conditioner is filled with
R134a, a refrigerant that will not damage
the ozone layer.
If the air conditioner is low on refrigerant
or has a malfunction, consult an
Authorized Mazda Dealer.
Operating Tips
J94S.book Page 2 Saturday, June 23, 2001 1:04 PM

11-6
Index
Form No. 8Q50-EA-01G
T
Trunk Release Handle ...................... 3-12
Turn and Lane-Change Signals
....... 5-33
V
Vanity Mirrors ................................. 6-44
Vehicle Information Labels
............. 10-2
W
Warning Lights ................................ 5-23
ABS
.......................................... 5-28
Air bag system
.......................... 5-28
Brake system
............................ 5-25
Charging system
....................... 5-26
Check engine
............................ 5-27
Door-ajar
................................... 5-28
Engine oil pressure
................... 5-26
Immobilizer system
.................. 5-29
Low fuel
.................................... 5-27
Low washer fluid level
............. 5-27
Seat belt
.................................... 5-25
TCS
........................................... 5-27
Warranty
............................................ 9-8
Washer Fluid
.................................... 8-20
Weights
............................................ 10-5
Wheel Replacement
......................... 8-28
Windows Power windows
.......................... 3-7
Windshield Washer
.......................... 5-35
Windshield Wipers
.......................... 5-34
Blades replacement
................... 8-22
Winter Driving
................................... 4-9
J94S.book Page 6 Saturday, June 23, 2001 1:04 PM
