2002 LINCOLN BLACKWOOD engine

MOTORCRAFT PART NUMBERS
Component 5.4L (4V) V8 engine
Air filter element FA-1634
Fuel filter FG-986B
Oil filter FL-820-S
PCV valve EV-233
Battery BXT-65-650
Spark plugs-platinum* AWSF-32P
* Refer to Vehicle Emissions Control Information (VECI) decal for spark
plug gap information.
REFILL CAPACITIES
Fluid Ford Part Name Application Capacity
Brake fluid High Performance
DOT 3 Motor
Vehicle Brake FluidAll Fill to line on
reservoir
Engine
Coolant
1Motorcraft Premium
Engine Coolant
(green- colored)VC-4-A (or
CXC-10 in
Canada)25L (26.4 quarts)
Motorcraft Premium
Gold Engine
Coolant (yellow-
colored)VC-7-A 25L (26.4 quarts)
Engine oil
(includes
filter change)Motorcraft SAE
5W-20 Super
Premium Motor OilAll 5.7L (6.0 quarts)
Fuel tank N/A All 94.6L (25.0 gallons)
Power
steering fluidMotorcraft
MERCONtAT FAll Fill to line on
reservoir
Transmission
fluid
2Motorcraft
MERCONtAutomatic 15.2L (16.1 quarts)3
Rear axle4Motorcraft SAE
75W-140 Synthetic
Rear Axle LubricantAll 2.7L (5.5 pints)5
Capacities and specifications
218

LUBRICANT SPECIFICATIONS
ItemFord part
nameFord part
numberFord
specification
Hinges, latches,
striker plates
and rotors, seat
tracks, fuel filler
door hinge and
springMulti-Purpose
GreaseDOAZ-19584-AA
or
F5AZ-19G209-AAESB-M1C93-B or
ESR-M1C159-A
Lock cylinders Penetrating and
Lock LubricantMotorcraft XL-1 ESB-M2C75-B
Brake fluid High
Performance
DOT 3 Motor
Vehicle Brake
FluidC6AZ-19542-AB ESA-M6C25-A
and DOT 3
Driveshaft, slip
spline, double
Cardan joint
center ballPremium Long
Life GreaseXG-1-C or
XG-1-KESA-M1C75±B
Engine coolant Motorcraft
Premium Engine
Coolant
(green-colored)VC-4-A (US) or
CXC-10
(Canada)ESE-M97B44-A
Motorcraft
Premium Gold
Engine Coolant
(yellow-colored)VC-7-A WSS-M97B51±A1
Engine oil Motorcraft SAE
5W-20 Super
Premium Motor
OilXO-5W-20-QSP WSS-M2C153-H
with API
Certification
Mark
Automatic
transmission
1Motorcraft
MERCONtAT FXT-2-QDX MERCONt
Capacities and specifications
220

ENGINE DATA
Engine 5.4L (4V) V8 engine
Cubic inches 330
Required fuel 91 octane
Firing order 1-3-7-2-6-5-4-8
Spark plug gap 1.3-1.4 mm (0.052-0.056 inch)
Ignition system Coil on plug
Compression ratio 9.5:1
BLACKWOOD DIMENSIONS
DimensionBody Style
4x2 mm (in)
(1) Overall length5 613
(221.0)
(2) Overall width
(closed mirrors)2 022
(79.6)
1
(3) Overall height1 842
(72.5)
(4) Wheel base3 518
(138.5)
(5)Track front/rear1 661
(65.4)
Capacities and specifications
222

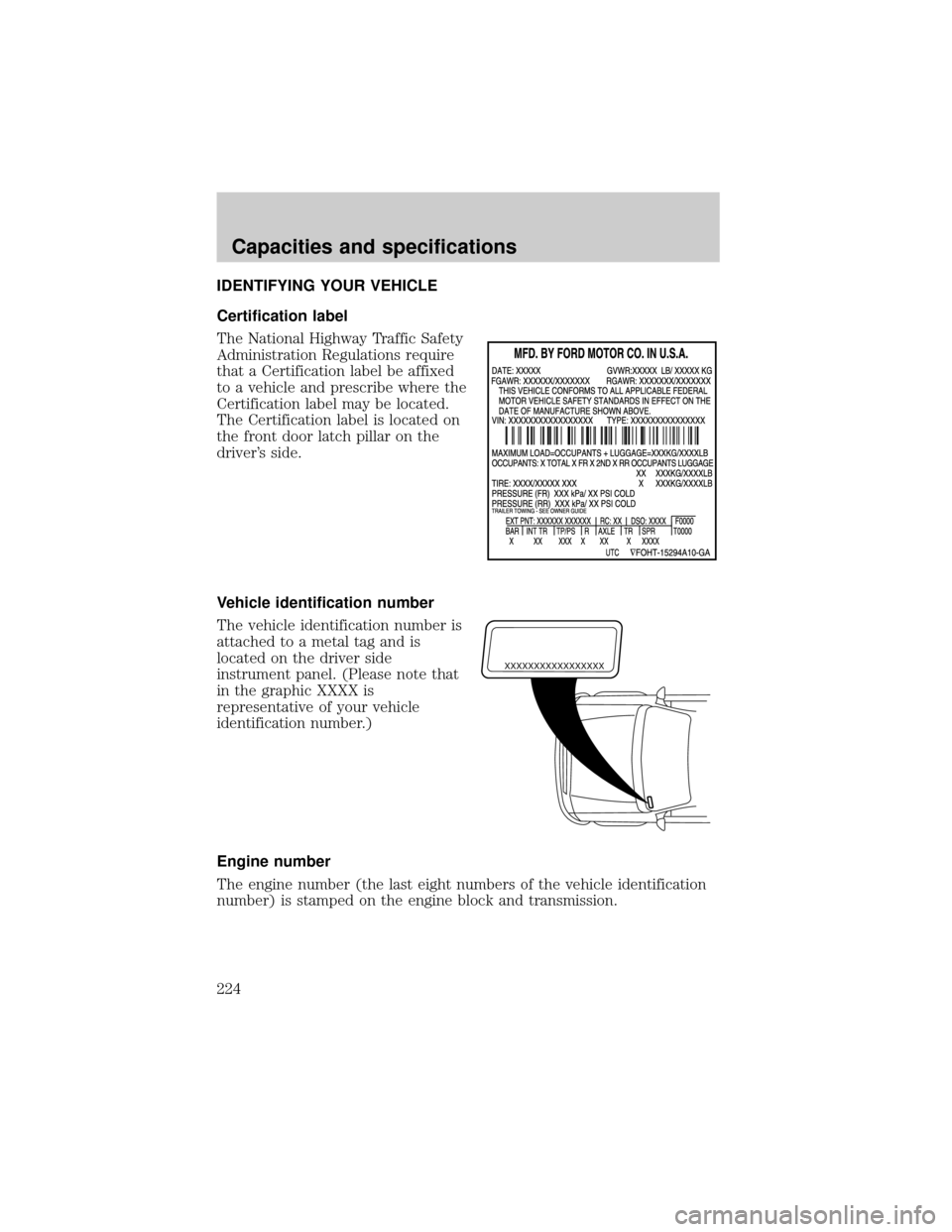

IDENTIFYING YOUR VEHICLE
Certification label
The National Highway Traffic Safety
Administration Regulations require
that a Certification label be affixed
to a vehicle and prescribe where the
Certification label may be located.
The Certification label is located on
the front door latch pillar on the
driver's side.
Vehicle identification number
The vehicle identification number is
attached to a metal tag and is
located on the driver side
instrument panel. (Please note that
in the graphic XXXX is
representative of your vehicle
identification number.)
Engine number
The engine number (the last eight numbers of the vehicle identification
number) is stamped on the engine block and transmission.
XXXXXXXXXXXXXXXXX
Capacities and specifications
224

The use of leaded fuel in your vehicle without proper conversion may
damage the effectiveness of your emission control system and may cause
engine knocking or serious engine damage. Ford Motor Company/Ford of
Canada is not responsible for any damage caused by use of improper
fuel.
In the United States, using leaded fuel may also result in difficulty
importing your vehicle back into the U.S.
If your vehicle must be serviced while you are traveling or living in
Central or South America, the Caribbean, or the Middle East, contact the
nearest Ford dealership. If the dealership cannot help you, write or call:
FORD MOTOR COMPANY
WORLDWIDE DIRECT MARKET OPERATIONS
1555 Fairlane Drive
Fairlane Business Park #3
Allen Park, Michigan 48101
U.S.A.
Telephone: (313) 594-4857
FAX: (313) 390-0804
If you are in another foreign country, contact the nearest Ford
dealership. If the dealership employees cannot help you, they can direct
you to the nearest Ford affiliate office.
If you buy your vehicle in North America and then relocate outside of
the U.S. or Canada, register your vehicle identification number (VIN) and
new address with Ford Motor Company Worldwide Direct Market
Operations.
FORD CAR CARE PRODUCTS FOR YOUR VEHICLE
Ford has many quality products available from your dealer to clean your
vehicle and protect its finishes. These quality products have been
specifically engineered to fulfill your automotive needs; they are custom
designed to complement the style and appearance of your vehicle. Each
product is made from high quality materials and that meet or exceed
Ford's rigid specifications. For best results, use the following or products
of equivalent quality:
Ford Custom Clearcoat Polish*
Ford Custom Silicone Gloss Polish
Ford Custom Vinyl Protectant* (not available in Canada)
Motorcraft Vinyl Conditioner (Canada only)
Customer assistance
232

Ford Deluxe Leather and Vinyl Cleaner (not available in Canada)
Motorcraft Vinyl Cleaner (Canada only)
Ford Extra Strength Tar and Road Oil Remover* (not available in
Canada)
Ford Extra Strength Upholstery Cleaner (not available in Canada)
Ford Metal Surface Cleaner
Ford Multi-Purpose Cleaner*
Motorcraft Car Wash Concentrate
Motorcraft Carlite Glass Cleaner
Ford Spot and Stain Remover*
Ford Super Premium Tire and Trim Dressing
Ford Triple Clean
Ford Ultra-Clear Spray Glass Cleaner (not available in Canada)
* May be sold with the Motorcraft name
FORD ACCESSORIES FOR YOUR VEHICLE
A wide selection of Ford accessories are available for your vehicle
through your local authorized Ford, Lincoln Mercury or Ford of Canada
dealer. These quality accessories have been specifically engineered to
fulfill your automotive needs; they are custom designed to complement
the style and aerodynamic appearance of your vehicle. In addition, each
accessory is made from high quality materials and meets or exceeds
Ford's rigid engineering and safety specifications. Ford accessories are
warranted for up to 12 months or 20 000 km (12 000 miles) on all cars
and light trucks and 12 months with unlimited distance on medium duty
trucks unless the accessory is installed on a new vehicle, then the
warranty becomes the balance of the new vehicle's warranty or the
accessories warranty, whichever is greater. See your dealer for complete
warranty information and availability.
Not all accessories are available for all models.
Vehicle Security
Styled wheel locks
Vehicle security systems
Customer assistance
233

Comfort and convenience
Air filtration systems
Cargo nets
Cargo organizers (interior)
Cargo trays (interior)
Celluar phone holder
Engine block heaters
Tire step
Travel equipment
Daytime running lights (DRL)
Hitch mount bike carrier
Inside mirror with compass display
Inside mirror with compass and temperature display
Running boards (molded, diamond plate, tubular and stirrup step)
Seatback organizer
Towing mirrors
Trailer hitch bars and balls
Trailer hitch wiring adaptor
Trailer swivel hitch
Winter front
Protection and appearance equipment
Air bag anti-theft locks
Battery warmer/blanket
Cargo cover
Diamond plate, front box protector
Diamond plate, splash guards
Door edge guards
Carpet floor mats
Flat splash guards
Front end covers (full)
Customer assistance
234

Hood deflectors
Locking gas cap
Molded ªall weatherº vinyl floor mats
Side window air deflectors
Spare tire lock
Truck cover
Underbody vehicle lighting
Universal floor mats
Wheels
