10A±1
CRUISE CONTROL SYSTEM
AXIOM
CONTROL SYSTEM
CRUISE CONTROL SYSTEM
CONTENTS
Service Precaution 10A±1. . . . . . . . . . . . . . . . . . . . . .
General Description 10A±1. . . . . . . . . . . . . . . . . . . . .
Brake Switch 10A±2. . . . . . . . . . . . . . . . . . . . . . . . . . .
Removal and Installation 10A±2. . . . . . . . . . . . . . .
Adjustment 10A±2. . . . . . . . . . . . . . . . . . . . . . . . . . .
Powertrain Control Module (PCM) 10A±3. . . . . . . . .
Removal and Installation 10A±3. . . . . . . . . . . . . . .
Mode Switch 10A±3. . . . . . . . . . . . . . . . . . . . . . . . . . . . Removal and Installation 10A±3. . . . . . . . . . . . . . .
Cruise Control Main Switch 10A±3. . . . . . . . . . . . . . .
Removal 10A±3. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 10A±3. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cruise Control Switch (Combination Switch) 10A±3
Removal and Installation 10A±3. . . . . . . . . . . . . . .
Diagnosis 10A±4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service Precaution
WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING, REFER TO
THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.
CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener. When
you install fasteners, use the correct tightening
sequence and specifications. Following these
instructions can help you avoid damage to parts and
systems.
General Description
The cruise control keeps the vehicle running at a fixed
speed until a signal canceling this fixed speed is received.
When the main switch ªAUTO CRUISEº is turned on with
the vehicle in the running mode, the battery voltage is
applied to the PCM. When a signal from the control
switch is input to the PCM while the vehicle is in this state,
the cruise control system is activated. Also, while the
system is operating, the ªAUTO CRUISEº indicator light in
the meter assembly lights up.
1 . SET/COAST Switch Function
1.Set Function: When the SET/COAST switch is
pressed and released with the main switch on, the
speed at which the vehicle is running at that moment
is stored in the memory, and the vehicle automatically
runs at the speed stored.
2.Coast±Down Function: When the SET/COAST
switch is kept on while the vehicle is running, the
vehicle decelerates during that time. The speed at
which vehicle is running when the control switch is
turned off is stored in the memory, and the vehicle
automatically returns to the stored speed.
3.Tap±Down Function: When the SET/COAST
switch is turned on and off instantaneously while the
vehicle is running, the vehicle decelerates a mile for
each on/off operation. The vehicle speed at which the
vehicle was running when the SET/COAST was
turned off last is stored in the memory, and the vehicle
automatically returns to this stored speed.
10A±2
CRUISE CONTROL SYSTEM

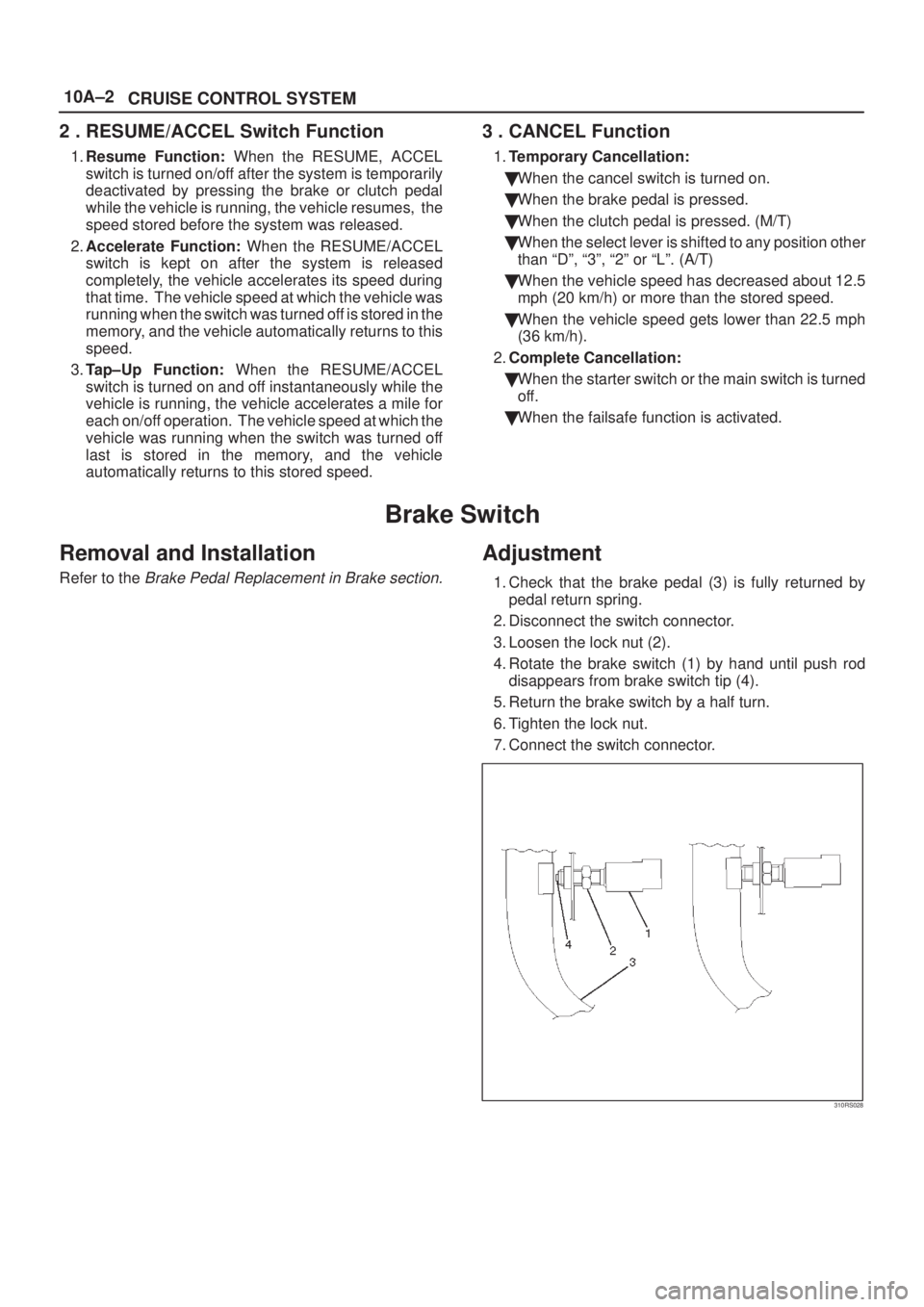

2 . RESUME/ACCEL Switch Function
1.Resume Function: When the RESUME, ACCEL
switch is turned on/off after the system is temporarily
deactivated by pressing the brake or clutch pedal
while the vehicle is running, the vehicle resumes, the
speed stored before the system was released.
2.Accelerate Function: When the RESUME/ACCEL
switch is kept on after the system is released
completely, the vehicle accelerates its speed during
that time. The vehicle speed at which the vehicle was
running when the switch was turned off is stored in the
memory, and the vehicle automatically returns to this
speed.
3.Tap±Up Function: When the RESUME/ACCEL
switch is turned on and off instantaneously while the
vehicle is running, the vehicle accelerates a mile for
each on/off operation. The vehicle speed at which the
vehicle was running when the switch was turned off
last is stored in the memory, and the vehicle
automatically returns to this stored speed.
3 . CANCEL Function
1.Temporary Cancellation:
When the cancel switch is turned on.
When the brake pedal is pressed.
When the clutch pedal is pressed. (M/T)
When the select lever is shifted to any position other
than ªDº, ª3º, ª2º or ªLº. (A/T)
When the vehicle speed has decreased about 12.5
mph (20 km/h) or more than the stored speed.
When the vehicle speed gets lower than 22.5 mph
(36 km/h).
2.Complete Cancellation:
When the starter switch or the main switch is turned
off.
When the failsafe function is activated.
Brake Switch
Removal and Installation
Refer to the Brake Pedal Replacement in Brake section.
Adjustment
1. Check that the brake pedal (3) is fully returned by
pedal return spring.
2. Disconnect the switch connector.
3. Loosen the lock nut (2).
4. Rotate the brake switch (1) by hand until push rod
disappears from brake switch tip (4).
5. Return the brake switch by a half turn.
6. Tighten the lock nut.
7. Connect the switch connector.
310RS028
10A±3
CRUISE CONTROL SYSTEM

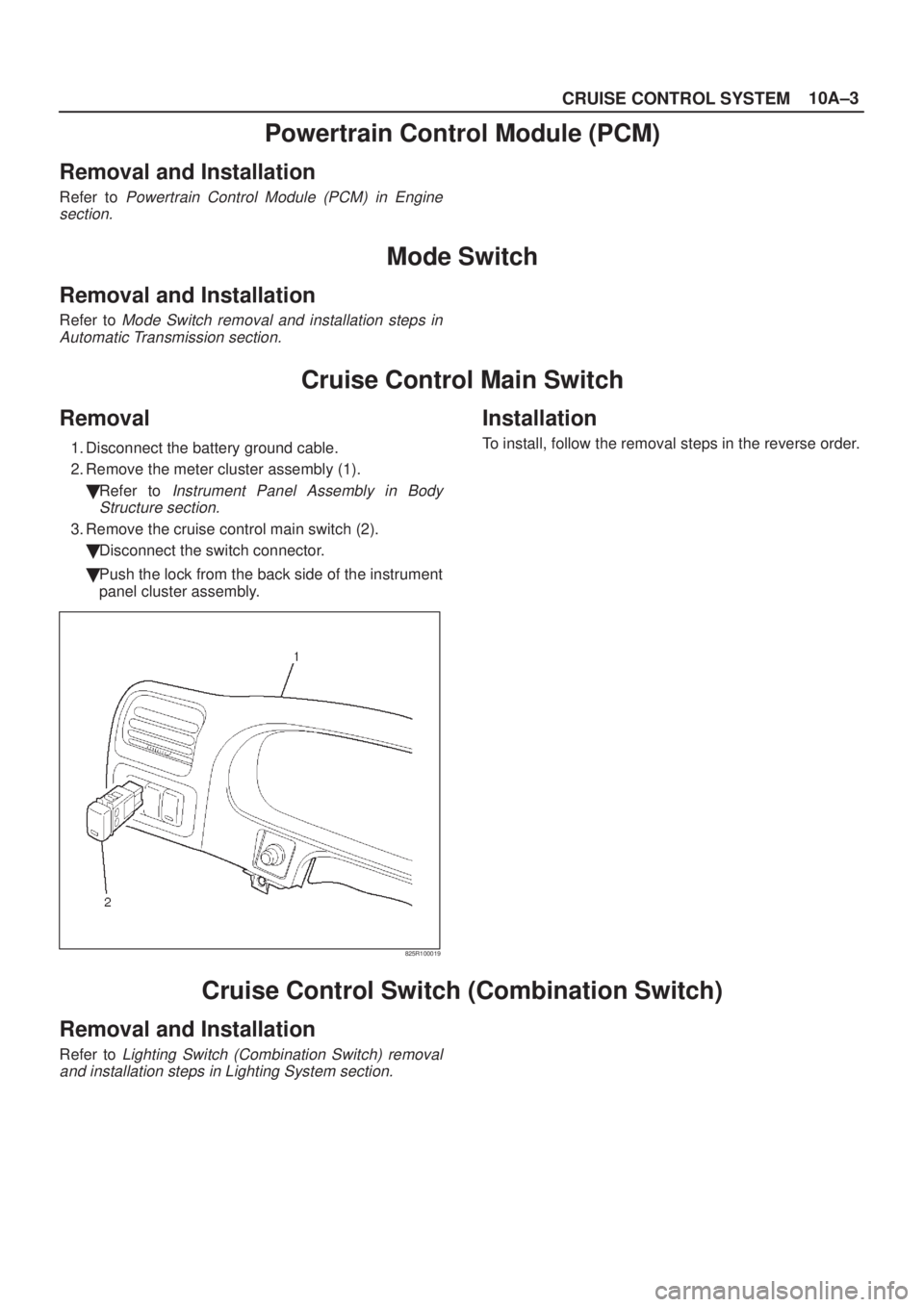

Powertrain Control Module (PCM)
Removal and Installation
Refer to Powertrain Control Module (PCM) in Engine
section.
Mode Switch
Removal and Installation
Refer to Mode Switch removal and installation steps in
Automatic Transmission section.
Cruise Control Main Switch
Removal
1. Disconnect the battery ground cable.
2. Remove the meter cluster assembly (1).
Refer to
Instrument Panel Assembly in Body
Structure section.
3. Remove the cruise control main switch (2).
Disconnect the switch connector.
Push the lock from the back side of the instrument
panel cluster assembly.
825R100019
Installation
To install, follow the removal steps in the reverse order.
Cruise Control Switch (Combination Switch)
Removal and Installation
Refer to Lighting Switch (Combination Switch) removal
and installation steps in Lighting System section.
10A±4
CRUISE CONTROL SYSTEM
Diagnosis
Cruise control system is controlled by the PCM as well as
6VE1 engine and automatic transmission. DTC codes are
stored in the PCM if troubles occur in the circuit. DTC
codes categorized ªtype Dº are shown only by the Tech 2
scan tool. The following chart only shows some typical
DTCs for cruise control system. Refer to
PCM Diagnostic
Trouble Codes in Driveability and Emissions for entire
DTC diagnosis.
DTCTROUBLE
PARTDTC
TYPEMAJOR CONDITION OF
TROUBLEDIAGNOSIS PERIOD
P0565CRUISE MAIN
CIRCUITDTHE SWITCH CONTACT
REMAINS ON FOR 15
SECONDS OR MORE.
NOISES ARE GENERATED
BY THE POOR SWITCH
CONTACT 60 TIMES WITHIN
1 SECOND.DIAGNOSIS IS ENABLED IN
130 SECONDS AFTER THE
SWITCH OPERATED.
P0566CRUISE CAN-
CEL CIRCUITDTHE SWITCH CONTACT
REMAINS ON FOR 40
SECONDS OR MORE.DIAGNOSIS IS ENABLED IN
120 SECONDS AFTER THE
SWITCH OPERATED.
P0567CRUISE RE-
SUME CIRCUITDTHE SWITCH CONTACT
REMAINS ON FOR 50
SECONDS OR MORE.
NOISES ARE GENERATED
BY THE POOR SWITCH
CONTACT 100 TIMES
WITHIN 1.6 SECONDS.DIAGNOSIS IS ENABLED IN
110 SECONDS AFTER THE
SWITCH OPERATED.
P0568CRUISE SET
CIRCUITDTHE SWITCH CONTACT
REMAINS ON FOR 120
SECONDS OR MORE.
NOISES ARE GENERATED
BY THE POOR SWITCH
CONTACT 100 TIMES
WITHIN 1.6 SECONDS.DIAGNOSIS IS ENABLED IN
125 SECONDS AFTER THE
SWITCH OPERATED.
DTC: Diagnostic Trouble Code
NOTE: The DTCs are detected while the engine is
running.
