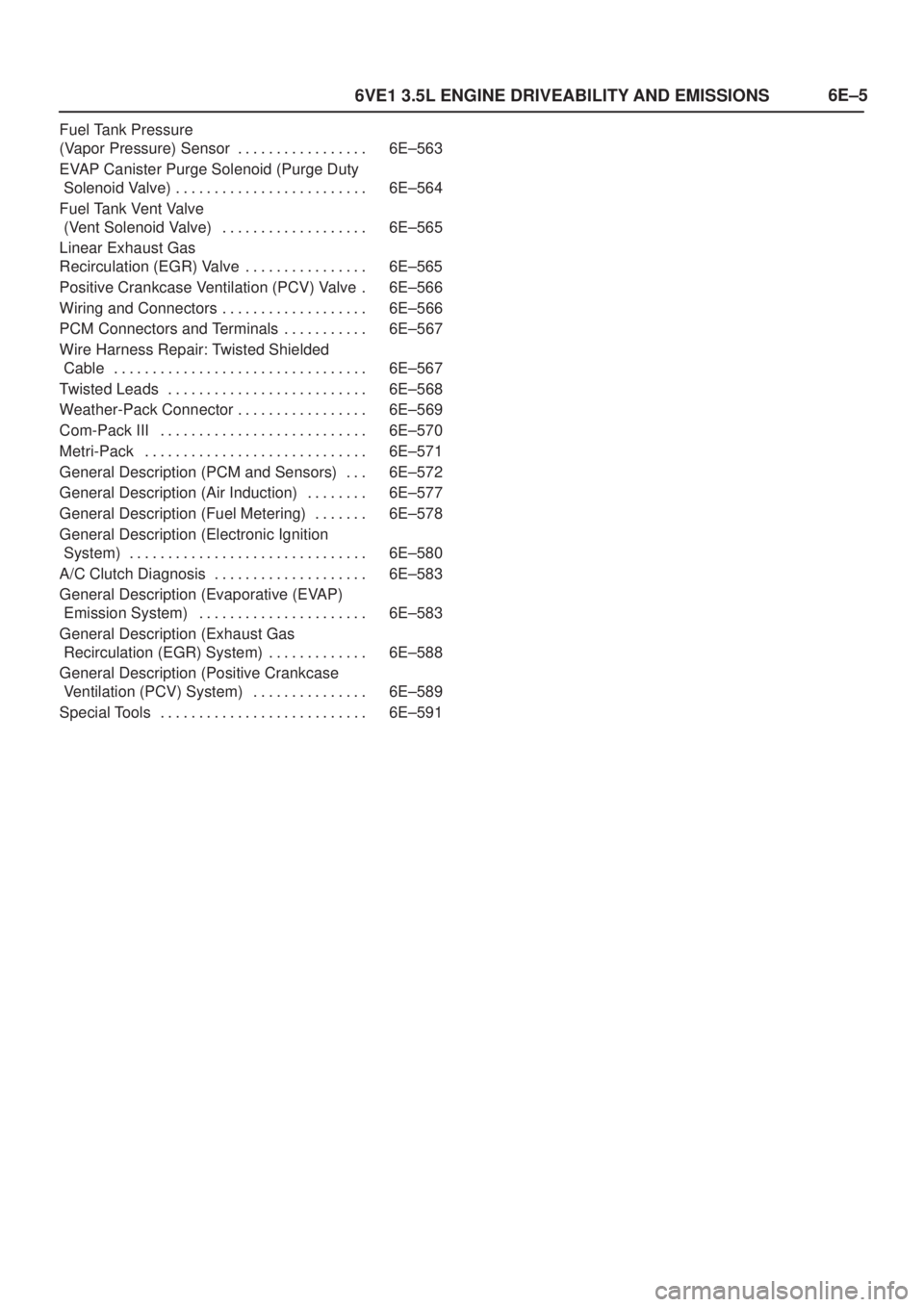

6E±5
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Fuel Tank Pressure
(Vapor Pressure) Sensor 6E±563. . . . . . . . . . . . . . . . .
EVAP Canister Purge Solenoid (Purge Duty
Solenoid Valve) 6E±564. . . . . . . . . . . . . . . . . . . . . . . . .
Fuel Tank Vent Valve
(Vent Solenoid Valve) 6E±565. . . . . . . . . . . . . . . . . . .
Linear Exhaust Gas
Recirculation (EGR) Valve 6E±565. . . . . . . . . . . . . . . .
Positive Crankcase Ventilation (PCV) Valve 6E±566.
Wiring and Connectors 6E±566. . . . . . . . . . . . . . . . . . .
PCM Connectors and Terminals 6E±567. . . . . . . . . . .
Wire Harness Repair: Twisted Shielded
Cable 6E±567. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Twisted Leads 6E±568. . . . . . . . . . . . . . . . . . . . . . . . . .
Weather-Pack Connector 6E±569. . . . . . . . . . . . . . . . .
Com-Pack III 6E±570. . . . . . . . . . . . . . . . . . . . . . . . . . .
Metri-Pack 6E±571. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
General Description (PCM and Sensors) 6E±572. . .
General Description (Air Induction) 6E±577. . . . . . . .
General Description (Fuel Metering) 6E±578. . . . . . .
General Description (Electronic Ignition
System) 6E±580. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
A/C Clutch Diagnosis 6E±583. . . . . . . . . . . . . . . . . . . .
General Description (Evaporative (EVAP)
Emission System) 6E±583. . . . . . . . . . . . . . . . . . . . . .
General Description (Exhaust Gas
Recirculation (EGR) System) 6E±588. . . . . . . . . . . . .
General Description (Positive Crankcase
Ventilation (PCV) System) 6E±589. . . . . . . . . . . . . . .
Special Tools 6E±591. . . . . . . . . . . . . . . . . . . . . . . . . . .

6E±6
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Specifications
Tightening Specifications
ApplicationN´mLb Ft.Lb In.
EGR Bolt2518Ð
Engine Coolant Temperature Sensor3022Ð
Fuel Drain Plug2014Ð
Fuel Pressure Regulator Attaching Screw3Ð26
Fuel Rail Bolts2518Ð
Fuel Tank Undercover Retaining Bolts3627Ð
Heated Oxygen Sensor5540Ð
Lower Intake Manifold to Engine Block Bolts2518Ð
Lower Intake Manifold to Engine Block Nuts2518Ð
Spark Plugs1813Ð
Throttle Body Mounting Bolts10Ð87
Common Chamber to Lower Intake Manifold Bolts2518Ð
VSS Retaining Bolt1612Ð

6E±14
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
PCM Pinouts
PCM Pinout Table, 80-Way Blue Connector ± Row ªF1 ~ 20º
060RY00045
PINPIN FunctionWire ColorIGN ONENG RUNRefer To
F1PCM GroundBLK0.0V0.0VChassis Electrical
F25Volt Referenceª2º (AP
Sensor 2)GRN5.0V5.0VAccelerator Position (AP)
Sensor
F35Volt Referenceª2º (TP
Sensor 2)RED/WHT5.0V5.0VThrottle Position (TP) Sensor
F4A/C ClutchGRY/REDB+(A/C off)B+(A/C off)General Description and
Operation, A/C Clutch Circuit
Operation
F5Relay Shift SolenoidGRN/RED0.0V0.0V4L30E T/Mission
F6Not UsedÐÐÐÐ
F7TachometerBLK/RED8.8V10.0V (at
idle)Chassis Electrical
F8Not UsedÐÐÐÐ
F9Not UsedÐÐÐÐ
F10Not UsedÐÐÐÐ
F11T.O.DRED/WHTÐÐÐ
F12Not UsedÐÐÐÐ
F13Starter FeedPNKÐÐÐ
F14Mass Air Flow(MAF)BLK/BLU4.9V4.2VGeneral Description, Mass
Air Flow Sensor
F15Not UsedÐÐÐÐ
F16Not UsedÐÐÐÐ
F17Bank 1 HO2S LowRED0.3V0.1±0.9VGeneral Description and
Operation, Catalyst Monitor
HO2S 2
F18Not UsedÐÐÐÐ
F19Ignition FeedRED/GRNB+B+6D Section
F20Ignition FeedRED/WHTB+B+6D Section

6E±15
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
PCM Pinout Table, 80-Way Blue Connector ± Row ªF20 ~ 40º
060RY00156
PINPIN FunctionWire ColorIGN ONENG RUNRefer To
F21Bank 1 HO2S 1 GroundWHT0.0V0.0VÐ
F22Not UsedÐÐÐÐ
F23Bank 2 HO2S 1 GroundBLU0.0V0.0VGeneral Description
F24Not UsedÐÐÐÐ
F25ION Sensing ModuleRED/BLU1.555V1.555VGeneral Description and
Operation, ION Sensing
Module
F26ION Sensing ModuleRED/BLK1.555V1.555VGeneral Description and
Operation, ION Sensing
Module
F27Intake Air Temperature
(IAT) Sensor SignalGRN0.5±4.9V0.5±4.9VGeneral Description and
Operation, IAT
F28Not UsedÐÐÐÐ
F29Manifold Absolute
Pressure (MAP) Sensor
SignalRED3.5V±4.9V
(depends on
altitude and
barometric
pressure)0.6-1.3VGeneral Description and
Operation, Manifold Absolute
Pressure
F30Not UsedÐÐÐÐ
F31Not UsedÐÐÐÐ
F32Not UsedÐÐÐÐ
F33Not UsedÐÐÐÐ
F34Not UsedÐÐÐÐ
F35Not UsedÐÐÐÐ
F36Not UsedÐÐÐÐ
F37Power Steering Pressure
(PSP)GRN/YELB+B+Power Steering
F38Illuminated SwitchGRN/YELB+B+Chassis Electrical
F39Brake SwitchRED0.0V0.0V4L30E T/Mission
F40PCM GroundBLK/BLU0.0V0.0VChassis Electrical

6E±16
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
PCM Pinout Table, 80-Way Blue Connector ± Row ªF41 ~ 60º
060RY00046
PINPIN FunctionWire ColorIGN ONENG RUNRefer To
F41Throttle Position(TP) 1
Sensor GroundGRN0.0V0.0VGeneral Description and
Operation, TPS
F42Fuel Pump RelayPNK/WHT0.0VB+On Vehicle Service, Fuel
Pump Relay
F43Adaptor CaseVIO/RED0.0V0.0V4L30E T/Mission
F44Bank 1 HO2S 2 Heater
GroundORN/WHT0.0V0.0VGeneral Description and
Operation, Catalyst Monitor
HO2S 2
F45A/C RequestGRN/BLK0.0V0.0VChassis Electrical
F46Stop Lamp SwitchBRN/RED0.0V0.0VChassis Electrical
F47Adaptor CaseVIO/WHTB+B+4L30E T/Mission
F48Throttle Valve DC Motor(±:
REV)BLUDuty CycleDuty CycleGeneral Description and
Operation, ETC
F49Not UsedÐÐÐÐ
F50Bank 2 HO2S 2 GroundORN0.0V0.0VÐ
F51Not UsedÐÐÐÐ
F52Bank 1 HO2S 2 GroundRED0.0V0.0VÐ
F53ECT GroundYEL/BLK0.0V0.0VGeneral Description and
Operation, ECT Sensor
F54Vapor Pressure (Fuel Tank
Pressure) Sensor GroundGRN0.0V0.0VGeneral Description and
Operation, VP Sensor
F55Not UsedÐÐÐÐ
F56Injector Cylinder #5GRN/BLKB+B+General Description and
Operation, Fuel Injector
F57Ignition FeedRED/WHTB+B+Chassis Electrical
F58Class 2 DataORN/BLK0.0V0.0VGeneral Description
F59Not UsedÐÐÐÐ
F60Not UsedÐÐÐÐ

6E±17
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
PCM Pinout Table, 80-Way Blue Connector ± Row ªF61 ~ 80º
060RY00047
PINPIN FunctionWire ColorIGN ONENG RUNRefer To
F61Throttle Position(TP) 2
Sensor GroundGRN/WHT0.0V0.0VGeneral Description and
Operation, TPS
F62Injector Cylinder #2GRN/ORNB+B+General Description and
Operation, Fuel Injector
F63AP Sensor 1 Sensor
GroundRED0.0V0.0VOn-Vehicle Service
F64Injector Cylinder #4GRN/REDB+B+General Description and
Operation, Fuel Injector
F65Throttle Position(TP) 2
Sensor SignalBLU/WHT0.5±0.8V0.8±0.8V (at
idle)General Description and
Operation, TPS
F66Injector Cylinder #3GRNB+B+General Description and
Operation, Fuel Injector
F67ION Sensing ModuleYEL1.555V1.555VGeneral Description and
Operation, ION Sensing
Module
F68ION Sensing ModuleRED1.555V1.555VGeneral Description and
Operation, ION Sensing
Module
F69Injector Cylinder #1GRN/WHTB+B+General Description and
Operation, Fuel Injector
F70ANTI TheftWHT/GRNÐÐÐ
F71Bank 2 HO2S 2 Heater
GroundGRN/WHT0.0V0.0VGeneral Description and
Operation, Catalyst Monitor
HO2S 1
F72Auto Cruise Switch
ResumeWHT/BLU0.0V0.0VChassis Electrical
F73Crankshaft Position
SensorWHT/BLU0.3V2.2VGeneral Description and
Operation, CKP sensor
F74ECT SensorBLU/RED0.5±4.9V0.5±4.9VGeneral Description and
Operation, ECT Sensor
F75Ignition FeedRED/GRNB+B+Chassis Electrical
F76Mode SwitchPNK/BLKB+B+4L30E T/Mission
F77Mode SwitchPNK/BLUB+B+4L30E T/Mission

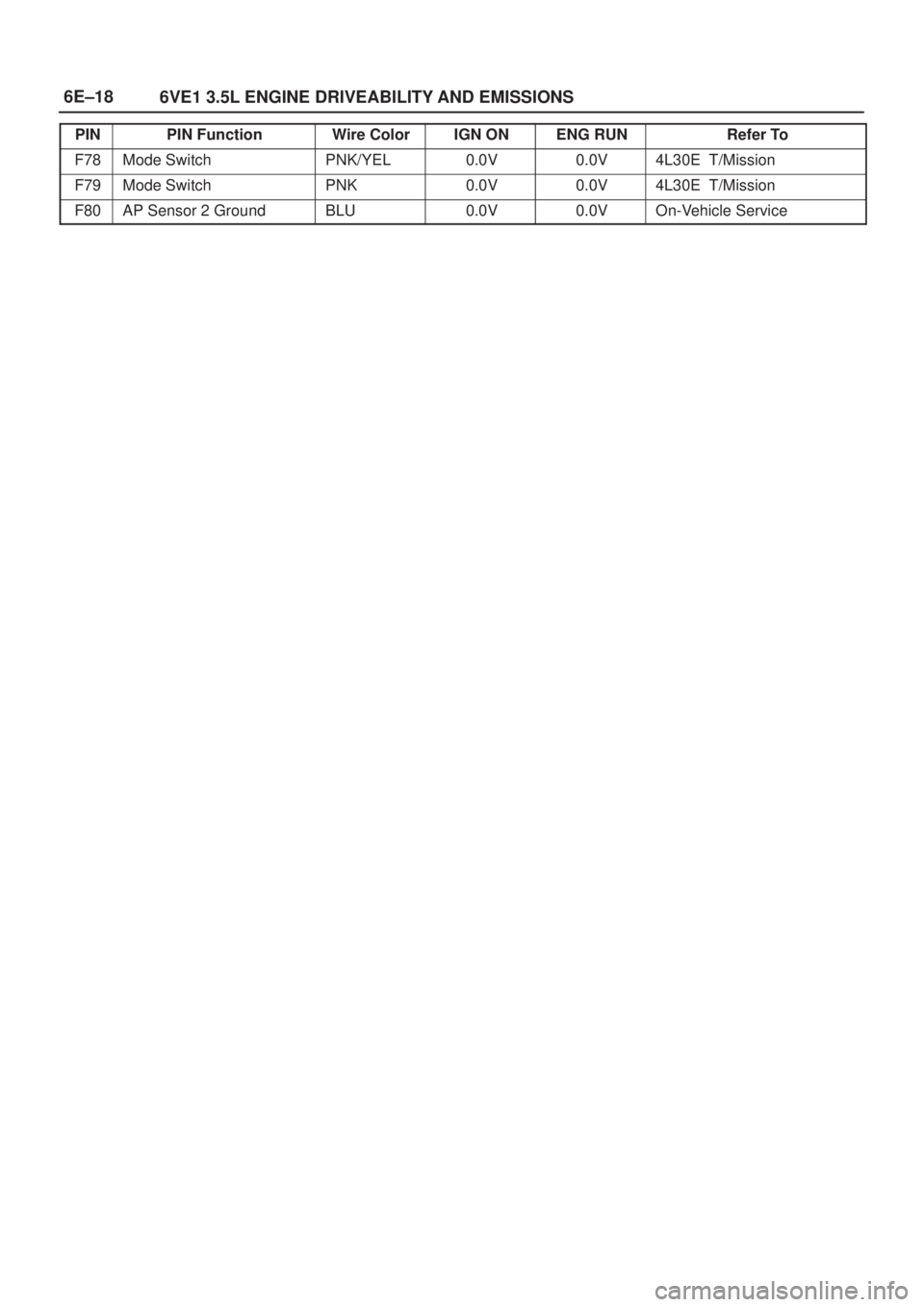

6E±18
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
PINRefer To ENG RUN IGN ON Wire Color PIN Function
F78Mode SwitchPNK/YEL0.0V0.0V4L30E T/Mission
F79Mode SwitchPNK0.0V0.0V4L30E T/Mission
F80AP Sensor 2 GroundBLU0.0V0.0VOn-Vehicle Service

6E±19
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
PCM Pinout Table, 80-Way Red Connector ± Row ªS1 ~ 20º
060RY00069
PINPIN FunctionWire ColorIGN ONENG RUNRefer To
S1PCM GroundBLK/PNK0.0V0.0VChassis Electrical
S2Bank 1 HO2S 1 Heater
GroundBLK/ORN0.0V0.0VGeneral Description and
Operation, Catalyst Monitor
HO2S
S3Not UsedÐÐÐÐ
S4Not UsedÐÐÐÐ
S55Volt Referenceª2º (CKP
Sensor)WHT5.0V5.0VAppropriate Sensor (CKP
Sensor, AP2 Sensor)
S6Auto Cruise Switch CancelGRY/GRN0.0V0.0VChassis Electrical
S7Purge Duty Solenoid ValveRED/BLUB+B+EVAP Emission Control
System
S8M.I.D0.5 GRNÐÐÐ
S9Not UsedÐÐÐÐ
S10Shift High (Band Apply)BRN/YELB+B+4L30E T/Mission
S11Malfunction Indicator
(Check Engine) LampWHT/GRN0.0VB+Chassis Electrical
S12Not UsedÐÐÐÐ
S13ION Sensing ModuleRED/WHT1.555V1.555VGeneral Description and
Operation, ION Sensing
Module
S14Bank 2 HO2S 1 GroundBLU0.0V0.0VÐ
S15Bank 2 HO2S 2 GroundORN0.0V0.0VÐ
S16Bank 2 HO2S 2 LowBLU0.0V0.1VGeneral Description and
Operation, Catalyst Monitor
HO2S
S17Bank 1 HO2S 1 GroundWHT0.0V0.0VÐ
S18Bank 1 HO2S 1 LowWHT/BLU0.0V0.1VGeneral Description and
Operation, Catalyst Monitor
HO2S
