2002 HONDA CIVIC HATCHBACK light

Itmaybehelpfultohavesomeone
assist you with this procedure.Find the ‘‘Training’’ button on your
garage door opener unit. The
location will vary, depending on
the manufacturer. The
manufacturer’s documentation
may help. Press the Training button on the
garage door opener unit until the
light next to the button comes on,
then release it. The light may blink,
or come on and stay on. You then
have approximately 30 seconds to
complete the f ollowing steps.
Make sure you have properly
completed the ‘‘Training
HomeLink’’ procedure.
Press and release the button on
HomeLink. (The same button you
trained with the ‘‘Training
HomeLink’’ procedure.)
Press and release the HomeLink
button again. This should turn of f
the training light on the garage
door opener unit. (Some systems
may require you to press and
releasethebuttonuptothree
times.)
Press the HomeLink button again.
It should operate the garage door.
6.
2. 4. 5.
1.
3.
HomeL ink Universal T ransceiver
Comf ort and Convenience Feat ures191
TTRRAAIINNIINNGGBBUUTTTTOONN

As required by the FCC:This device complies with Part 15 of theFCC rules. Operation is subject to thef ollowing two conditions: (1) This devicemay not cause harmf ul interf erence, and(2) this device must accept anyinterf erence received, including
interf erence that may cause undesiredoperation.
Changes or modif ications not expresslyapproved by the party responsible f or
compliance could void the user’sauthority to operate the equipment.
This device complies with IndustryCanada Standard RSS-210.Operation is subject to the f ollowing twoconditions: (1) this device may not cause
interf erence, and (2) this device mustaccept any interf erence that may causeundesired operation of the device.
Totrainanalreadyprogrammed
transmitter button to operate a new
device:
Toerasethecodesstoredinallthree
buttons, press and hold the two
outside buttons until the red light
begins to f lash, then release the
buttons.
Youshoulderaseallthreecodes
bef ore selling the car.
Select the HomeLink button you
want to train.
Press and hold the HomeLink
button until the red light begins to
f lash slowly (approximately 20
seconds).
While continuing to hold the
HomeLink button, place the
remotecontrolforthedevice2to
5inchesfromHomeLink. Release both buttons. HomeLink
should now be trained to operate
the device.
Press and hold the button on the
remote control. Hold both buttons
until the red light begins to f lash
rapidly.
1. 2. 3.4. 5.
Retraining a Button
Erasing Codes
HomeL ink Universal T ransceiver
Comf ort and Convenience Feat ures192

CONT INUED
To close the hood, lif t it up slightly to
remove the support rod f rom the
hole. Put the support rod back into
its holding clip. Lower the hood to
about a f oot (30 cm) above the
fender,thenletitdrop.
After closing the hood, make sure it
is securely latched.Lif t the hood up most of the way.
The hydraulic supports will lif t it
uptherestof thewayandholditup.
Pull the support rod out of its clip
and insert the end into the hole on
the f ront of the hood around the
center. 3.
3.
6-cylinder models
4-cylinder models
Bef ore Driving
Service Station Procedures
197
SSUUPPPPOORRTTRROODD

µµBeing able to see
clearly in all directions and being
visible to other drivers are important
in all weather conditions. This is
more dif f icult in bad weather. To be
seen more clearly during daylight
hours, turn on your headlights. Check your tires
f requently f or wear and proper
pressure. Both are important in
preventing ‘‘hydroplaning’’ (loss of
traction on a wet surface). In the
winter, mount snow tires on all f our
wheels f or the best handling.
Watch road conditions caref ully,
they can change f rom moment to
moment. Wet leaves can be as slip-
pery as ice. ‘‘Clear’’ roads can have
patches of ice. Driving conditions
can be very hazardous when the
outside temperature is near f reezing.
The road surf ace can become
covered with areas of water puddles
mixed with areas of ice, so your
traction can change without warning.
Inspect your windshield wipers and
washers f requently. Keep the wind-
shield washer reservoir f ull of the
proper f luid. Have the windshield
wiper blades replaced if they start to
streak the windshield or leave parts
unwiped. Use the def rosters and air
conditioning to keep the windows
f rom f ogging up on the inside (see
page ).
Be caref ul when downshif ting. If
traction is low, you can lock up the
drive wheels f or a moment and cause
askid.Be very cautious when passing, or
beingpassedbyothervehicles.The
spray f rom large vehicles reduces
your visibility, and the wind buf f eting
can cause you to lose control.
109
Visibility Traction
Driving
Driving in Bad Weather
226

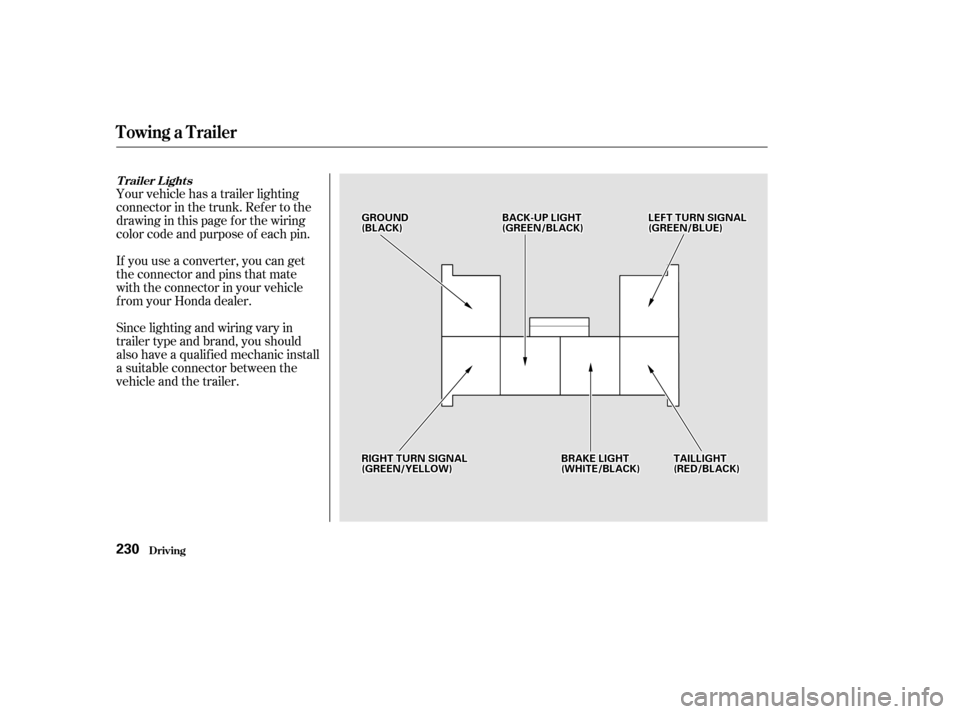

Your vehicle has a trailer lighting
connector in the trunk. Ref er to the
drawing in this page f or the wiring
color code and purpose of each pin.
If you use a converter, you can get
the connector and pins that mate
with the connector in your vehicle
f rom your Honda dealer.
Since lighting and wiring vary in
trailer type and brand, you should
also have a qualif ied mechanic install
a suitable connector between the
vehicleandthetrailer.
T railer L ights
Towing a Trailer
Driving230
GGRROOUUNNDD((BBLLAACCKK))BBAACCKK--UUPPLLIIGGHHTT((GGRREEEENN//BBLLAACCKK))LLEEFFTTTTUURRNNSSIIGGNNAALL((GGRREEEENN//BBLLUUEE))
RRIIGGHHTTTTUURRNNSSIIGGNNAALL((GGRREEEENN//YYEELLLLOOWW))TTAAIILLLLIIGGHHTT((RREEDD//BBLLAACCKK))BBRRAAKKEELLIIGGHHTT((WWHHIITTEE//BBLLAACCKK))

Many states and Canadian provinces
require special outside mirrors when
towing a trailer. Even if they don’t,
you should install special mirrors if
you cannot clearly see behind you, or
if the trailer creates a blind spot.
Askyourtrailersalesorrental
agency if any other items are
recommended or required f or your
towing situation.When preparing to tow, and bef ore
driving away, be sure to check the
f ollowing:
Your vehicle tires and spare are
properly inf lated (see page ),
and the trailer tires and spare are
inflated as recommended by the
trailer maker.
The vehicle has been properly
serviced, and the tires, brakes,
suspension, and cooling system
are in good operating condition.
All weights and loads are within
limits (see pages and ).
Thehitch,safetychains,andany
other attachments are secure.
Allitemsonandinthetrailerare
properly secured and cannot shif t
while you drive.
The lights and brakes on your
vehicle and the trailer are working
properly. 227 228
285
Additional Trailer EquipmentPre-T ow Checklist
Towing a Trailer
Driving231

µ
Ì
Î ÎÎ ÌÎÎ
Î
Î
ÌÌ
Follow the Maintenance
Schedule f or Severe Conditions.
Follow the Severe Conditions
Maintenance Schedule if you
drive your vehicle
under one or more of the
f ollowing conditions:
Driving less than 5 miles (8
km) per trip or, in f reezing
temperatures, driving less
than 10 miles (16 km) per trip.
Driving in extremely hot
[over 90°F (32°C)] conditions.
Extensive idling or long
periods of stop-and-go driving.
Trailer towing, driving with a
car top carrier, or driving in
mountainous conditions.
Driving on muddy, dusty, or
de-iced roads.
MAINLY
Maint enance
U.S. Owners
Canadian Owners
242
Visually inspect the following items: Replace every 3,750 miles (6,000 km) or 6 months
Check oil and coolant at each fuel stop
Service at the indicated
distance or time whichever
comes first.
miles x 1,000
km x 1,000
months
Balancer belt applies to 4-cylinder models only.
See timing belt on page to determine need for replacement. See information on maintenance and
emissions warranty, last column, page .
Every 60,000 miles (96,000 km) or 3 years
120,000 miles (192,000 km) or 10 years, then every
60,000 miles (96,000 km) or 5 years
See Dust and Pollen Filter on page for replacement information under special driving conditions.
Replace engine oil and oil filter
Check engine oil and coolant
Clean ( ) or replace ( ) air cleaner element
Use normal schedule except in dusty conditons
Inspect valve clearance
Replace spark plugs
Replace timing belt , balancer belt , and
inspect water pump
Inspect and adjust drive belts
Inspect idle speed
Replace engine coolant
Replace transmission fluid
Inspect front and rear brakes
Replace brake fluid
Check parking brake adjustment
Replace dust and pollen filter
Lubricate all hinges, locks and latches
Rotate tires (Check tire inflation and condition
at least once per month) Every 3 years (independent of mileage)
Tie rod ends, steering gear box, and boots
Suspension components, driveshaft boots
Brake hoses and lines (including ABS)
All fluid levels and conditions of fluids
Cooling system hoses and connections Exhaust system, fuel lines and connections
Lights and controls, vehicle underbody 152412
304824457236609648
75
120
60 90
144 72 105168
84 120192
96
Rotate tires every 7,500 miles (12,000 km)
Every 7,500 miles (12,000 km) or 6 months Adjust only if noisy
Every 7,500 miles (12,000 km) or 6 months
:
1:2:3: 239
283 MTAT
282
60,000 miles (96,000 km) or 3 years, then every 30,000 miles (48,000 km) or 2 years
11 ,2
3
Maintenance Schedule for Severe Conditions

µµ
Ø ØØØØØØØ Ø Ø Ø ØØØØØØØØ
Ø Ø Ø Ø Ø
Ì
Ì Ì
Î
ÌÎÎ Î
Î ÎÎ
CONT INUED
Maint enance243
A, B, C, D, E
U.S. Owners
Canadian Owners
AB C D E
Service at the indicated distance or time, whichever comes first. Do the items in as required for each distance/time.
Refer to page to determine which schedule to use.
Use the Maintenance Schedule for Severe Conditions. Replace engine oil and filter.
Inspect front and rear brakes.
Rotate tires (follow pattern on page ).
Inspect tie rod ends, steering gear box and boots.
Inspect suspension components.
Inspect driveshaft boots.
Check parking brake adjustment.
Lubricate all hinges, locks and latches with
multipurpose grease.
Inspect brake hoses and lines (including ABS)
Check all fluid leves, condition of fluids, and check
for leaks.
Inspect cooling system hoses and connections.Inspect exhaust system.
Inspect fuel lines and connections
Check all lights.
Inspect the underbody.
Replace air cleaner element.
Inspect and adjust drive belts.
Replace dust and pollen filter .
Replace brake fluid every 3 years
(independent of mileage).
Do items in A.
Do items in A, B.
Do items in A.
Clean air cleaner element.
DoitemsinA,B,C.
Do items in A.
Do items in A, B.
Do items in A.
DoitemsinA,B,C,D.
Do items in A.
Do items in A, B.
Do items in A.
Do item in E.
Clean air cleaner element. Do items in A, B, C.
Do items in A.
Do items in A, B.
Do items in A.
Replace MT fluid.
Replace AT fluid.
Replace timing belt , balancer belt , inspect
water pump.
DoitemsinA,B,C,D.
Do items in A.
3,750 mi/6,000 km
7,500 mi/12,000 km
11,250 mi/18,000 km
15,000 mi/24,000 km/1 yr
18,750 mi/30,000 km
22,500 mi/36,000 km
26,250 mi/42,000 km
30,000 mi/48,000 km/2 yrs
33,750 mi/54,000 km
37,500 mi/60,000 km
41,250 mi/66,000 km
3 yrs (independent ofmileage)
45,000 mi/72,000 km/3 yrs
48,750 mi/78,000 km
52,500 mi/84,000 km
56,250 mi/90,000 km
60,000 mi/96,000 km/3 yrs
60,000 mi/96,000 km/3 yrs,
then replace every 30,000 mi/
48,000 km/2 yrs.
60,000 mi/96,000 km/4 yrs
63,750 mi/102,000 km
287
:
242
Check engine oil and coolant at each fuel stop.
Check and adjust valve clearance, cold engine, only if noisy.
See information on maintenance and emissions warranty, last
column, page .
See timing belt on page to determine need for replacement.
Balancer belt applies to 4-cylinder models only.
See Dust and Pollen Filter on page for replacement
information under special driving conditions. NOTE:
283
282 239
1:2:3:
3
11 ,2
Maintenance Schedule for Severe Conditions (listed by distance/time)
