2002 HONDA CIVIC HATCHBACK clock

The parking light bulb is under the
headlight bulb.
Turn the bulb holder one-quarter
turn counterclockwise to remove it
from the lens.
Pull the bulb straight out of its
socket.
Push the new bulb straight into
the socket until it bottoms.Put the bulb holder back into its
hole in the lens, and turn it
clockwise until it locks.
Turn on the parking lights to
make sure the new bulb works.
1. 3.
2. 4.
Replacing a Parking L ight Bulb
Lights
Maint enance294

Open the trunk.Put the f astener in the hole on the
side of the trunk lining and push
on the center until it locks (the
center is f lush with the head).
Reinstall the trunk lining. Make
sure it is installed under the edge
of the trunk seal.
Testthelightstomakesurethe
new bulb is working.
Reinstall the socket into the light
assembly by turning it clockwise
until it locks.
Push the new bulb straight into
the socket until it bottoms.
Pull the bulb straight out of its
socket.
Determine which of the two bulbs
is burned out: stop/taillight or turn
signal.
Remove the socket by turning it
one-quarter turn counterclockwise.
Remove the fastener from the side
of the trunk lining by turning it
counterclockwise with a coin. Pull
the lining back.
1.
3.
2. 4. 5. 6. 7. 8.
Replacing Rear Bulbs
(in Fenders)
Lights
Maint enance295
FFAASSTTEENNEERR

Open the trunk.Install the new bulb in the socket.
Reinstall the socket into the light
assembly.
Testthelightstomakesurethe
new bulb is working.
Remove the socket by turning it
one-quarter turn counterclockwise.
Remove the burned out bulb f rom
the socket by pulling it straight out
of its socket.
Determine which of the two bulbs
is burned out: taillight or back-up
light.
1. 2.
3. 4.5. 6. 7.
Replacing Rear Bulbs
(in T runk L id)
Lights
Maint enance296

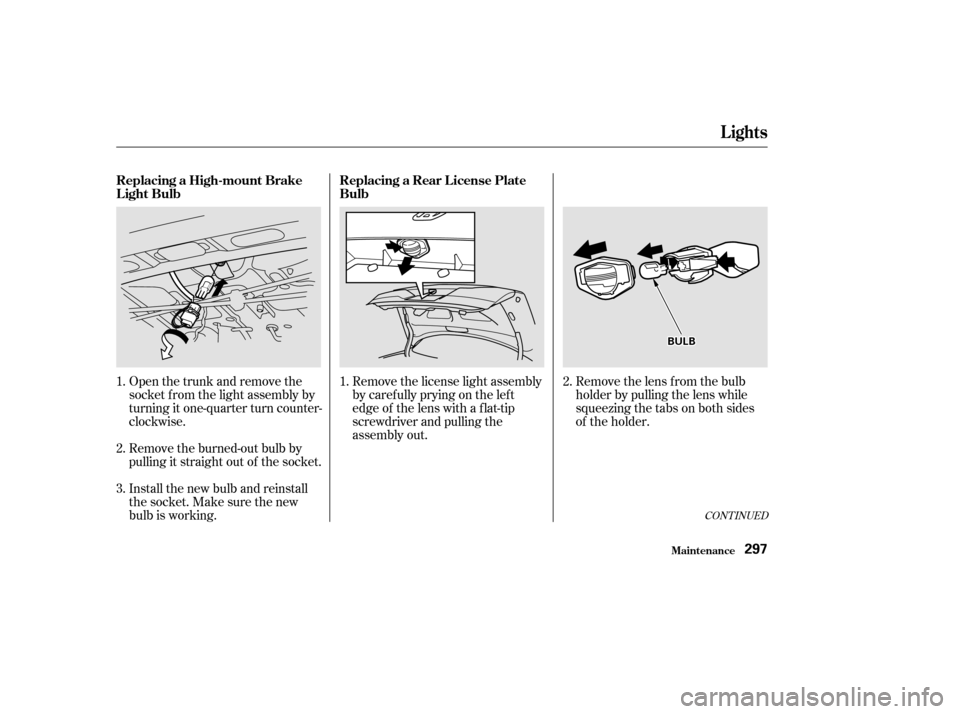

Open the trunk and remove the
socket f rom the light assembly by
turning it one-quarter turn counter-
clockwise.
Remove the burned-out bulb by
pulling it straight out of the socket.
Install the new bulb and reinstall
the socket. Make sure the new
bulb is working.Remove the license light assembly
by caref ully prying on the lef t
edge of the lens with a f lat-tip
screwdriver and pulling the
assembly out.
Remove the lens f rom the bulb
holder by pulling the lens while
squeezing the tabs on both sides
of the holder.
1.
2. 3. 1.
2.
CONT INUED
Replacing a High-mount Brake
Light BulbReplacing a Rear License PlateBulb
Lights
Maint enance297
BBUULLBB

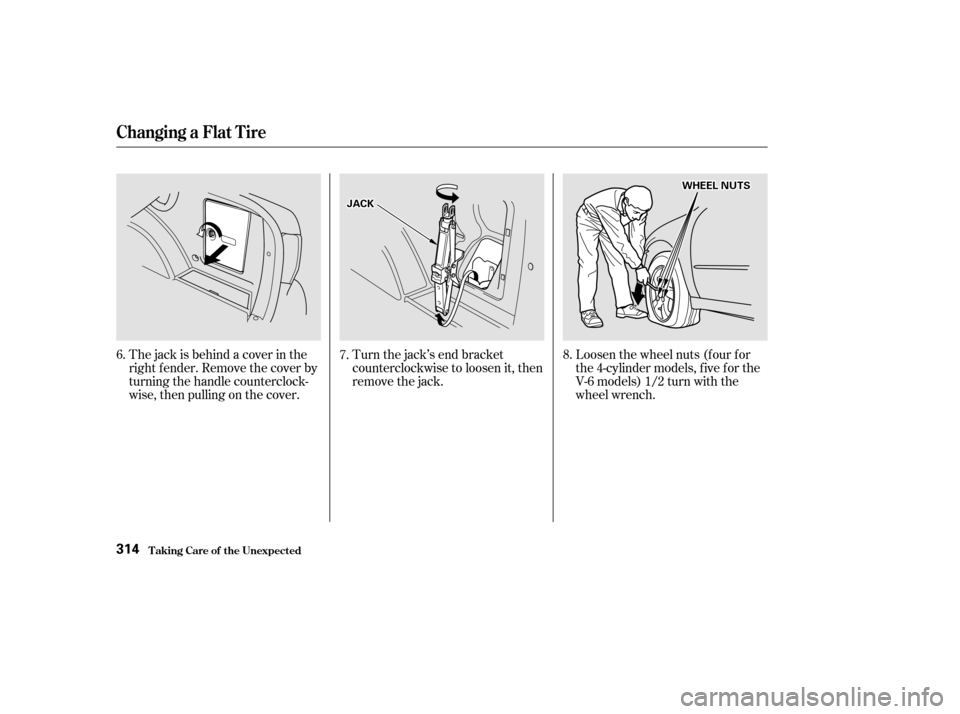

Turn the jack’s end bracket
counterclockwise to loosen it, then
remove the jack.Loosen the wheel nuts (f our f or
the4-cylindermodels,fiveforthe
V-6 models) 1/2 turn with the
wheel wrench.
The jack is behind a cover in the
right f ender. Remove the cover by
turning the handle counterclock-
wise, then pulling on the cover.
6.
7.8.
T aking Care of t he Unexpect ed
Changing a Flat T ire
314
JJAACCKK
WWHHEEEELLNNUUTTSS

CONT INUED
Use the extension and wheel
wrench as shown to raise the
vehicle until the f lat tire is of f the
ground.Remove the wheel nuts and f lat
tire. Temporarily place the f lat tire
on the ground with the outside
surf ace of the wheel f acing up.
Placing the wheel face down could
mar its f inish.
Locate the jacking point nearest
thetireyouneedtochange.Itis
pointed to by an arrow molded into
the underside of the body. Place
the jack under the jacking point.
Turn the end bracket clockwise
until the top of the jack contacts
the jacking point. Make sure the
jacking point tab is resting in the
jack notch.
Do not attempt to forcibly pry the
wheel cover of f with a screwdriver
or other tool. The wheel cover
cannot be removed without f irst
removing the wheel nuts.
9.
10.
11.
U.S. DX, Value Package, and LX
models:
Changing a Flat T ire
T aking Care of t he Unexpect ed315
JJAACCKKIINNGGPPOOIINNTTWWHHEEEELLWWRREENNCCHH
EEXXTTEENNSSIIOONN

If the temperature gauge stays at
the red mark, turn of f the engine.
Wait until you see no more signs
of steam or spray, then open thehood.
If there was no coolant in the
reserve tank, you may also have to
add coolant to the radiator. Let the
engine cool down until the pointerreaches the middle of the tempera-
ture gauge, or lower, bef ore check-
ing the radiator.
Using gloves or a large heavy
cloth, turn the radiator cap
counterclockwise, without pushing
down, to the f irst stop. This
releases any remaining pressure in
the cooling system. After the
pressure releases, push down on
the cap and turn it until it comes
off.
If you don’t f ind an obvious leak,
check the coolant level in the
radiator reserve tank (see page
). If the level is below the
MIN mark, add coolant to halfway
between the MIN and MAX marks. Start the engine and set the
temperature control dial to
maximum (climate control to
FULL AUTO at 90°F/32°C). Add
coolant to the radiator up to the
base of the f iller neck. If you do
not have the proper coolant
mixture available, you can add
plain water. Remember to have
the cooling system drained and
ref illed with the proper mixture as
soon as you can.
If the temperature stays normal,
check the coolant level in the
radiator reserve tank. If it has
gone down, add coolant to the
MAX mark. Put the cap back on
tightly.
Look f or any obvious coolant leaks,
such as a split radiator hose.
Everything is still extremely hot,
so use caution. If you f ind a leak, it
must be repaired bef ore you
continue driving (see
on page ). Put the radiator cap back on
tightly. Run the engine and watch
the temperature gauge. If it goes
back to the red mark, the engine
needs repair. (See on page .)
4. 5.
6. 7. 8. 9.
11.12.10.
336
200 336
T aking Care of t he Unexpect ed
If Your Engine Overheats
Emergency
Towing
Emergency
Towing
324
Removing the radiator cap
while the engine is hot can
cause the coolant to spray out,
seriously scalding you.
Always let the engine and
radiator cool down before
removing the radiator cap.

ÎÎ
Î
Î
On Canadian models
1 23456 7 89
10111213 15 A
10 A
7.5 A
7.5 A
7.5 A 15 A
7.5 A
7.5 A
7.5 A
7.5 A 15 A
30 A
7.5 A IG1 Fuel Pump
IG1 SRS
IG2 HAC
R/C Mirror
IG2 Day Light
ECU (ECM/PCM), Cruise
Control
IG1 Moonroof , Washer
ACC
Instrument Panel, Back-up
Lights
IG1 Turn Signals
IG1 Coil
IG1 Wiper
STS Moonroof
Driver Power Seat Recline
Assistant Power Seat
Recline
Driver Power Seat Slide
Assistant Power Seat Slide
Daytime Running Light
Rear Lef t Power Window
Front Right Power Window
Radio, Cigarette Lighter
Small Lights
Interior Light, Courtesy
Lights
Power Door Locks
Clock
ABS Motor Check
Front Left Power Window
Rear Right Power Window
On Canadian models
123 4 56789
1011 12 13141516 30 A
20 A
20 A
20 A
20 A
10 A
20 A
20 A
20 A
10 A
7.5 A
20 A
7.5 A
7.5 A 20 A
20 A
No. Amps. Circuits Protected Circuits Protected
No. Amps.
Fuses
T aking Care of t he Unexpect ed335
INTERIOR FUSE BOXES
:
DRIVER’S SIDE
PASSENGER’S SIDE
:
