6-10Engine Compartment Overview When you open the hood on the VORTEC 6000 V8 engine you will see the following:

6-11A. Engine Air Cleaner/Filter
B. Coolant Surge Tank
C. Air Filter Restriction Indicator
D. Engine Oil Dipstick
E. Engine Oil Fill
F. Automatic Transmission Dipstick
G. Fan
H. Remote Negative (
- ) Terminal (GND)
I. Remote Positive (+) Terminal
J. Power Steering Fluid Reservoir (Out of View)
K. Brake Master Cylinder Reservoir
L. Underhood Fuse Block
M. Battery
N. Windshield Washer Fluid Reservoir
Before closing the hood, be sure all filler caps are on
properly. Pull down the hood and close it firmly. Engine Oil If the CHECK ENG OIL
LEVEL message appears
on the instrument cluster,
it means you need to check
your engine oil level
right away.
For more information, see ªCHECK ENG OIL LEVELº
in the Index.
You should check your engine oil level regularly; this is
an added reminder.

6-12Checking Engine Oil It's a good idea to check your engine oil every time you
get fuel. In order to get an accurate reading, the oil must
be warm and the vehicle must be on level ground.
The engine oil dipstick is a
loop handle and is located
in the engine compartment
on the passenger's side of
the vehicle. See ªEngine
Compartment Overviewº in
the Index for more
information on location. Turn off the engine and give the oil several minutes to
drain back into the oil pan. If you don't, the oil dipstick
might not show the actual level.
Pull out the dipstick and clean it with a paper towel or
cloth, then push it back in all the way. Remove it again,
keeping the tip down, and check the level.

6-13When to Add Engine Oil If the oil is at or below the ADD mark, then you'll need
to add at least one quart of oil. But you must use the
right kind. This part explains what kind of oil to use.
For engine oil crankcase capacity, see ªCapacities and
Specificationsº in the Index.
NOTICE: Don't add too much oil. If your engine has so
much oil that the oil level gets above the
cross
- hatched area that shows the proper
operating range, your engine could be damaged. Your vehicle may have an engine oil fill cap with text
and a graphic or just a graphic as shown.
The engine oil fill cap is located on the valve cover on
the passenger's side of the vehicle. See ªEngine
Compartment Overviewº in the Index for further
location information.
Be sure to fill it enough to put the level somewhere in
the proper operating range. Push the dipstick all the way
back in when you're through.

6-14What Kind of Engine Oil to Use Oils recommended for your vehicle can be identified by
looking for the starburst symbol.
This symbol indicates that the oil has been certified by
the American Petroleum Institute (API). Do not use any
oil which does not carry this starburst symbol.
If you change your own oil,
be sure you use oil that has
the starburst symbol on the
front of the oil container. If
you have your oil changed
for you, be sure the oil put
into your engine is
American Petroleum
Institute certified for
gasoline engines.
You should also use the proper viscosity oil for your
vehicle, as shown in the following chart:

6-15As in the chart shown previously, SAE 5W
- 30 is best for
your vehicle. However, you can use SAE 10W
- 30 if it's
going to be 0  F (
- 18  C) or above. These numbers on an
oil container show its viscosity, or thickness. Do not use
other viscosity oils, such as SAE 20W
- 50.
NOTICE: Use only engine oil with the American Petroleum
Institute Certified For Gasoline Engines
starburst symbol. Failure to use the
recommended oil can result in engine damage not
covered by your warranty.
GM Goodwrench

oil meets all the requirements for
your vehicle.
If you are in an area where the temperature falls below
- 20  F (
- 29  C), consider using either an SAE 5W
- 30
synthetic oil or an SAE 0W
- 30 oil. Both will provide
easier cold starting and better protection for your engine
at extremely low temperatures.
Engine Oil Additives
Don't add anything to your oil. The recommended oils
with the starburst symbol are all you will need for good
performance and engine protection. When to Change Engine Oil
(GM Oil Life System  )Your vehicle has a computer system that lets you know
when to change the engine oil and filter. This is based on
engine revolutions and engine temperature, and not on
mileage. Based on driving conditions, the mileage at
which an oil change will be indicated can vary
considerably. For the oil life system to work properly,
you must reset the system every time the oil is changed.
When the system has calculated that oil life has been
diminished, it will indicate that an oil change is
necessary. A CHANGE ENGINE OIL message will
come on. Change your oil as soon as possible within the
next two times you stop for fuel. It is possible that, if
you are driving under the best conditions, the oil life
system may not indicate that an oil change is necessary
for over a year. However, your engine oil and filter must
be changed at least once a year and at this time the
system must be reset. It is also important to check your
oil regularly and keep it at the proper level.
If the system is ever reset accidentally, you must change
your oil at 3,000 miles (5 000 km) since your last oil
change. Remember to reset the oil life system whenever
the oil is changed.

6-16 How to Reset the CHANGE ENGINE OIL Message
The GM Oil Life System
calculates when to change
your engine oil and filter based on vehicle use. Anytime
your oil is changed, reset the system so it can calculate
when the next oil change is required. If a situation
occurs where you change your oil prior to a CHANGE
ENGINE OIL message being turned on, reset
the system.
To reset the CHANGE ENGINE OIL message, do
the following:
1. Turn the ignition key to RUN with the engine off.
2. Fully press and release the accelerator pedal three
times within five seconds.
3. If the CHANGE ENGINE OIL message flashes for
five seconds, the system is reset.
If the system does not reset, try the procedure
once again. If it still does not reset, see your dealer
for service. What to Do with Used Oil Used engine oil contains certain elements that may be
unhealthy for your skin and could even cause cancer.
Don't let used oil stay on your skin for very long. Clean
your skin and nails with soap and water, or a good hand
cleaner. Wash or properly throw away clothing or rags
containing used engine oil. See the manufacturer's
warnings about the use and disposal of oil products.
Used oil can be a threat to the environment. If you
change your own oil, be sure to drain all the oil from the
filter before disposal. Never dispose of oil by putting it
in the trash, pouring it on the ground, into sewers, or
into streams or bodies of water. Instead, recycle it by
taking it to a place that collects used oil. If you have a
problem properly disposing of your used oil, ask your
dealer, a service station or a local recycling center
for help.

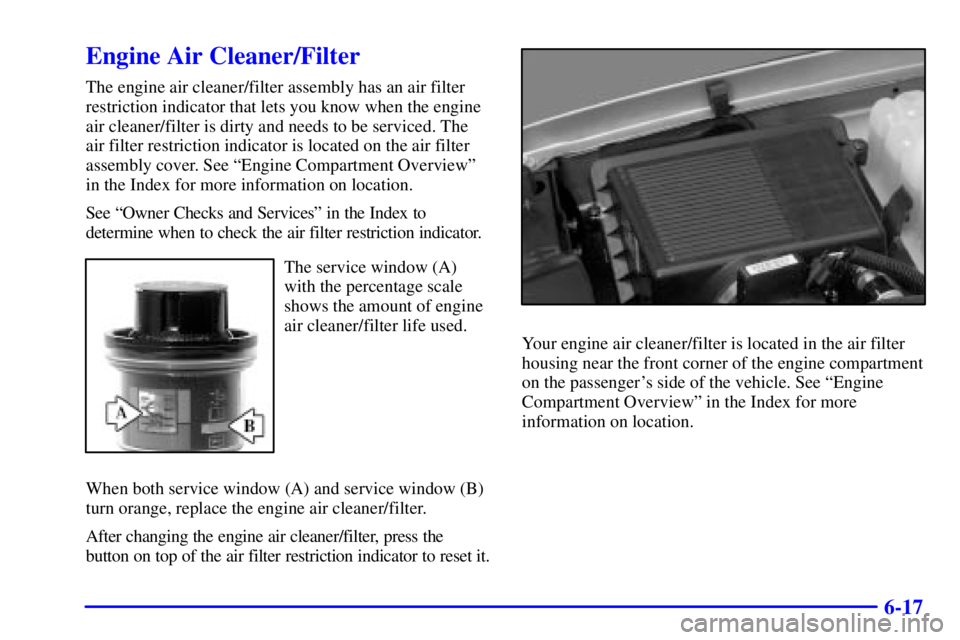

6-17Engine Air Cleaner/Filter The engine air cleaner/filter assembly has an air filter
restriction indicator that lets you know when the engine
air cleaner/filter is dirty and needs to be serviced. The
air filter restriction indicator is located on the air filter
assembly cover. See ªEngine Compartment Overviewº
in the Index for more information on location.
See ªOwner Checks and Servicesº in the Index to
determine when to check the air filter restriction indicator.
The service window (A)
with the percentage scale
shows the amount of engine
air cleaner/filter life used.
When both service window (A) and service window (B)
turn orange, replace the engine air cleaner/filter.
After changing the engine air cleaner/filter, press the
button on top of the air filter restriction indicator to reset it. Your engine air cleaner/filter is located in the air filter
housing near the front corner of the engine compartment
on the passenger's side of the vehicle. See ªEngine
Compartment Overviewº in the Index for more
information on location.
