2002 GMC SAFARI headlamp

6-41

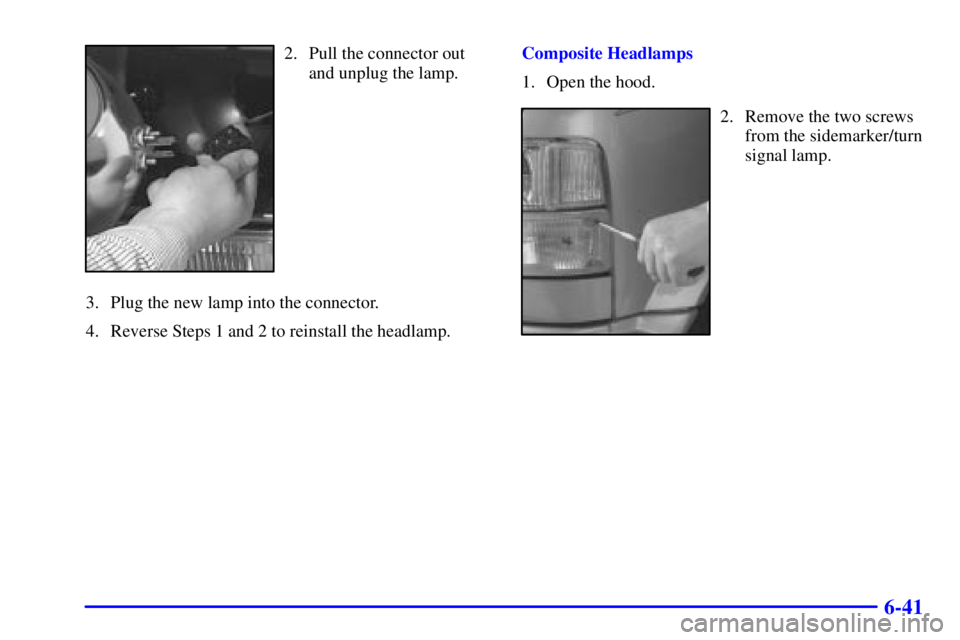

2. Pull the connector out
and unplug the lamp.
3. Plug the new lamp into the connector.
4. Reverse Steps 1 and 2 to reinstall the headlamp.Composite Headlamps
1. Open the hood.
2. Remove the two screws
from the sidemarker/turn
signal lamp.

6-54 Wheel Replacement
Replace any wheel that is bent, cracked, or badly rusted
or corroded. If wheel nuts keep coming loose, the wheel,
wheel bolts and wheel nuts should be replaced. If the
wheel leaks air, replace it (except some aluminum
wheels, which can sometimes be repaired). See your
dealer if any of these conditions exist.
Your dealer will know the kind of wheel you need.
Each new wheel should have the same load
-carrying
capacity, diameter, width, offset and be mounted the
same way as the one it replaces.
If you need to replace any of your wheels, wheel bolts
or wheel nuts, replace them only with new GM original
equipment parts. This way, you will be sure to have the
right wheel, wheel bolts and wheel nuts for your vehicle.
CAUTION:
Using the wrong replacement wheels, wheel bolts
or wheel nuts on your vehicle can be dangerous.
It could affect the braking and handling of your
vehicle, make your tires lose air and make you
lose control. You could have a collision in which
you or others could be injured. Always use
the correct wheel, wheel bolts and wheel nuts
for replacement.
NOTICE:
The wrong wheel can also cause problems
with bearing life, brake cooling, speedometer
or odometer calibration, headlamp aim, bumper
height, vehicle ground clearance and tire or tire
chain clearance to the body and chassis.
See ªChanging a Flat Tireº in the Index for
more information.

6-66
Electrical System
Add-On Electrical Equipment
NOTICE:
Don't add anything electrical to your vehicle
unless you check with your dealer first. Some
electrical equipment can damage your vehicle
and the damage wouldn't be covered by your
warranty. Some add
-on electrical equipment
can keep other components from working as
they should.
Your vehicle has an air bag system. Before attempting to
add anything electrical to your vehicle, see ªServicing
Your Air Bag
-Equipped Vehicleº in the Index.
Headlamp Wiring
The headlamp wiring is protected by a circuit breaker
in the lamp switch. An electrical overload will cause the
lamps to go on and off, or in some cases to remain off.
If this happens, have your headlamp wiring checked
right away.
Windshield Wiper Fuses
The windshield wiper motor is protected by a circuit
breaker and a fuse. If the motor overheats due to heavy
snow, etc., the wiper will stop until the motor cools.
If the overload is caused by some electrical problem and
not snow, etc., be sure to get it fixed.
Power Windows and Other Power Options
Circuit breakers in the fuse panel protect the power
windows and other power accessories. When the current
load is too heavy, the circuit breaker opens and closes,
protecting the circuit until the problem is fixed or
goes away.

6-68
Fuse/Circuit
BreakerUsage
1 Stop/Turn/Hazard Lamps,
Center High Mounted Stop
Lamp, Anti
-Lock Brakes
2 Radio Accy, RR Seat
Audio ControlsFuse/Circuit
BreakerUsage
3 Courtesy Lamps, Glove Box Lamp,
Dome Reading Lamps, Vanity
Mirror Lamps, Courtesy Lamps
4 Daytime Running Lamps Relay,
Instrument Panel Cluster
5 Rear Defogger
6 Cruise Module, TBC Module,
Instrument Panel Cluster,
Cruise Control Switch,
Electrochromic Mirror
7 Power Outlets, DLC,
Subwoofer Amplifier
8 Crank Circuit Fuse, Park/Neutral
Switch, Starter Enable Relay
9 License Plate Lamp, Taillamps,
Parking Lamps, Ashtray Lamp,
Panel Lights, Trailer Taillamps,
Front and Rear Sidemarker
Lamps, Door Switch Illumination,
Headlamp Switch Illumination,
Rear Seat Audio Illumination,
TBC Module

6-69
Fuse/Circuit
BreakerUsage
10 Air Bag System
11 Not Used
12 L, M1, M2 Blower Motor, Rear A/C
Relay Coil, Front Cont. Temp. Door
Motor, HI Blower Relay, Defogger
Timer Coil
13 Cigarette Lighter, Door Lock
Switches, Dutch Door Release
Module
14 Cluster Illum, HVAC Controls,
Chime Module, Radio Illumination,
Rear Heat Switch Illumination,
Rear Wiper/Washer Switch
Illumination, Rear Liftgate Switch
Illumination, Remote Cassette
Illumination, O/H Console,
TBC Illumination
15 TBC Module, Headlamp Relay
16 Front Turn Signals, Rear Turn
Signals, Trailer Turn Signals,
Back
-Up Lamps, BTSI SolenoidFuse/Circuit
BreakerUsage
17 Front Wipers, Front Washer Pump
18 VCM
-Ign 3, VCM-Brake, Cruise
Stepper Motor Signal, ATC Module
19 Instrument Panel Radio: ATC
(Main Feed), 2000 Series (Standby)
20 PRNDL/Odometer, TCC Enable
and PWM Solenoid, Shift A and
Shift B Solenoids, 3
-2 Downshift
Solenoid, Instrument Panel Cluster,
VCM Module
21 Pwr Adj Mirrors
22 Not Used
23 Rear Wiper, Rear Washer Pump
24 Not Used
A (Circuit Breaker) Power Door
Lock Relay, 6
-Way Power Seats
B (Circuit Breaker) Power Windows

6-71
Relay Usage
A/C Relay
(Rear Heat
and A/C)Rear Heat and
Air Conditioning
Upfitter
-ACCY
RelayUpfitter Accessory
Starter
Enable RelayStarter
A/C Enable Relay Air Conditioning
Headlamps Relay Headlamps
Fuel Pump Relay Fuel Pump
Fuse/Circuit
BreakerUsage
UPFITTER
-BATT Upfitter Battery Power Stud,
Trailer Wiring Harness
UPFITTER
-ACCY Upfitter Accessory Relay
Spare Not used
Spare Not used
Spare Not used
ECM
-1B Fuel Pump Relay and Motor,
VCM, Oil Pressure Switch/SenderFuse/Circuit
BreakerUsage
HORN Horn Relay and Horn
A/C COMP A/C Enable Relay and
Compressor
RR HTR/AC Rear Heater and A/C
ATC Active Transfer Case
-L Van
FRT HVAC Front Heater and A/C
ENG
-I Oxygen Sensors, Camshaft
Position Sensor, Mass Air Flow
Sensor, Evaporative Emission
Canister Vent Solenoid
IGN
-E A/C Enable Relay Coil
ECM
-I Fuel Injectors 1-6, Crankshaft
Position Sensor, VCM,
Coil Driver Module (EST),
Ignition Coil
Blank Not Used
RH HDLMP Right Headlamp
LH Headlamp Left Headlamp
Blank Not Used
Blank Not Used

6-72
Fuse/Circuit
BreakerUsage
DIODE
-1 A/C
Blank Not Used
Blank Not Used
Blank Not Used
LIGHTING Courtesy Fuse, Pwr. Adj. Mirrors
Fuse, TBC
-Battery Fuse
BATT Power ACCY CB, Stop/Hazard
Fuse, Auxiliary Power Fuse,
Cigarette Lighter Fuse,
Radio Battery Fuse
IGN A Starter Relay, Ignition Switch
IGN B Ignition Switch
ABS Electronic Brake
Control Module
Blank Not Used
RAP Radio Accy, Power Windows
HTD MIR/
RR DEFOGRear Window Defogger,
HVAC Control Head
Replacement Bulbs
Halogen Headlamps -
Sealed Beam2 H6054
Halogen Headlamps
-
Composite2 9006
(Low Beam)
Halogen Headlamps
-
Composite2 9005
(High Beam)
Parking, Turn Signal Lamps 23157NA
Rear, Stoplamps 22057
Sidemarker Lamps 4 194
Back
-Up Lamps2 1156
For any bulb not listed here, contact your dealer.
