2002 FORD EXPLORER radio controls

Radio frequency information
The Federal Communications Commission (FCC) and the Canadian Radio
and Telecommunications Commission(CRTC) establish the frequencies
AM and FM stations may use for their broadcasts. Allowable frequencies
are:
AM 530, 540±1600, 1610 kHz
FM 87.7, 87.9±107.7, 107.9 MHz
Not all frequencies are used in a given area.
Radio reception factors
Three factors can affect radio reception:
²Distance/strength.The further an FM signal travels, the weaker it is.
The listenable range of the average FM station is approximately 40 km
(24 miles). This range can be affected by ªsignal modulation.º Signal
modulation is a process radio stations use to increase their
strength/volume relative to other stations.
²Terrain.Hills, mountains and tall buildings between your vehicle's
antenna and the radio station signal can cause FM reception problems.
Static can be caused on AM stations by power lines, electric fences,
traffic lights and thunderstorms. Moving away from an interfering
structure (out of its ªshadowº) returns your reception to normal.
²Station overload.Weak signals are sometimes captured by stronger
signals when you pass a broadcast tower. A stronger signal may
temporarily overtake a weaker signal and play while the weak station
frequency is displayed.
The audio system automatically switches to single channel reception if it
will improve the reception of a station normally received in stereo.
Audio system warranties and service
Refer to the ªWarranty Guideº for audio system warranty information.
If service is necessary, see your dealer or a qualified technician.
Controls and features
88

TURN SIGNAL CONTROL
²Push down to activate the left
turn signal.
²Push up to activate the right turn
signal.
POSITIONS OF THE IGNITION
1. OFF/LOCK, shuts off the engine
and all accessories/locks the steering
wheel, gearshift lever and allows key
removal.
2. ACC, allows the electrical
accessories such as the radio to
operate while the engine is not
running.
3. ON, all electrical circuits
operational. Warning lights
illuminated. Key position when driving.
4. START, cranks the engine. Release the key as soon as the engine
starts.
LOWINTOFFOFF
4
3
2
1
Controls and features
89

STEERING WHEEL CONTROLS (IF EQUIPPED)
These controls allow you to operate some radio and climate control
features.
Audio control features
Press
to select AM, FM1, FM2,
TAPE, or CD (if equipped).
In AM, FM1, or FM2 mode:
²Press MEM to select preset
stations within the selected radio
band.
In Tape mode:
²Press MEM to select the next
selection on the tape.
In CD mode:
²Press MEM to select the next
selection on the CD.
In any mode:
²Press VOL + or þ to adjust
volume.
Controls and features
99

The dome lamp will stay on if the
control is moved to the passenger
side position. When the control is in
the middle position, the lamp will
only come on when a door is
opened. If the control is moved to
the driver's side position, the lamp
will not come on at all.
With the control in the middle position, the dome lamp will illuminate
whenever a front door is opened. If either front door has been opened
from the outside, the lamp will remain on for 25 seconds after the door
is shut. If any other door has been opened from the inside, the lamp will
shut off immediately after the door is closed.
The map lamp controls (if
equipped) are located on the dome
lamp. Press the controls on either
side of each lens on each map lamp
to activate the lamps.
If equipped with a moon roof or an
auxillary air control, the map lamps
are located on the control panel.
Press the controls on either side of
each map lamp to activate the
lamps.
HOMELINKTUNIVERSAL TRANSCEIVER (IF EQUIPPED)
The HomeLinktUniversal Transceiver, located on the overhead console,
provides a convenient way to replace up to three hand-held transmitters
with a single built-in device. This feature will learn the radio frequency
codes of most current transmitters to operate garage doors, entry gates,
security systems, entry door locks, and home or office lighting.
When programming your HomeLinktUniversal Transceiver, to a
garage door or gate be sure that people and objects are out of
the way to prevent potential harm or damage.
Controls and features
103

Activating the memory seat feature
To activate this feature:
1. Position the seat to the position you desire.
2. Press the SET control on the driver's door panel.
3. Within 5 five seconds, press one control on the remote transmitter and
then press the 1 or 2 button on the driver's door panel to which you
would like to associate with the seat and Driver 1 or Driver 2 positions.
4. Repeat this procedure for another remote transmitter if desired.
Deactivating the memory seat feature
To deactivate this feature:
1. Press the SET control on the driver's door panel.
2. Within 5 five seconds, press one control on the remote transmitter
which you would like to deactivate and then press the SET control on
the driver's door panel.
3. Repeat this procedure for another remote transmitter if desired.
Replacing the battery
The remote transmitter is powered by one coin type three-volt lithium
battery CR2032 or equivalent. Typical operating range will allow you to
be up to 10 meters (33 feet) away from your vehicle. A decrease in
operating range can be caused by:
²weather conditions
²nearby radio towers
²structures around the vehicle
²other vehicles parked next to the vehicle
Controls and features
118

PREPARING TO START YOUR VEHICLE
Engine starting is controlled by the powertrain control system. This
system meets all Canadian Interference-Causing Equipment standard
requirements regulating the impulse electrical field strength of radio
noise.
When starting a fuel-injected engine, avoid pressing the accelerator
before or during starting. Only use the accelerator when you have
difficulty starting the engine. For more information on starting the
vehicle, refer toStarting the enginein this chapter.

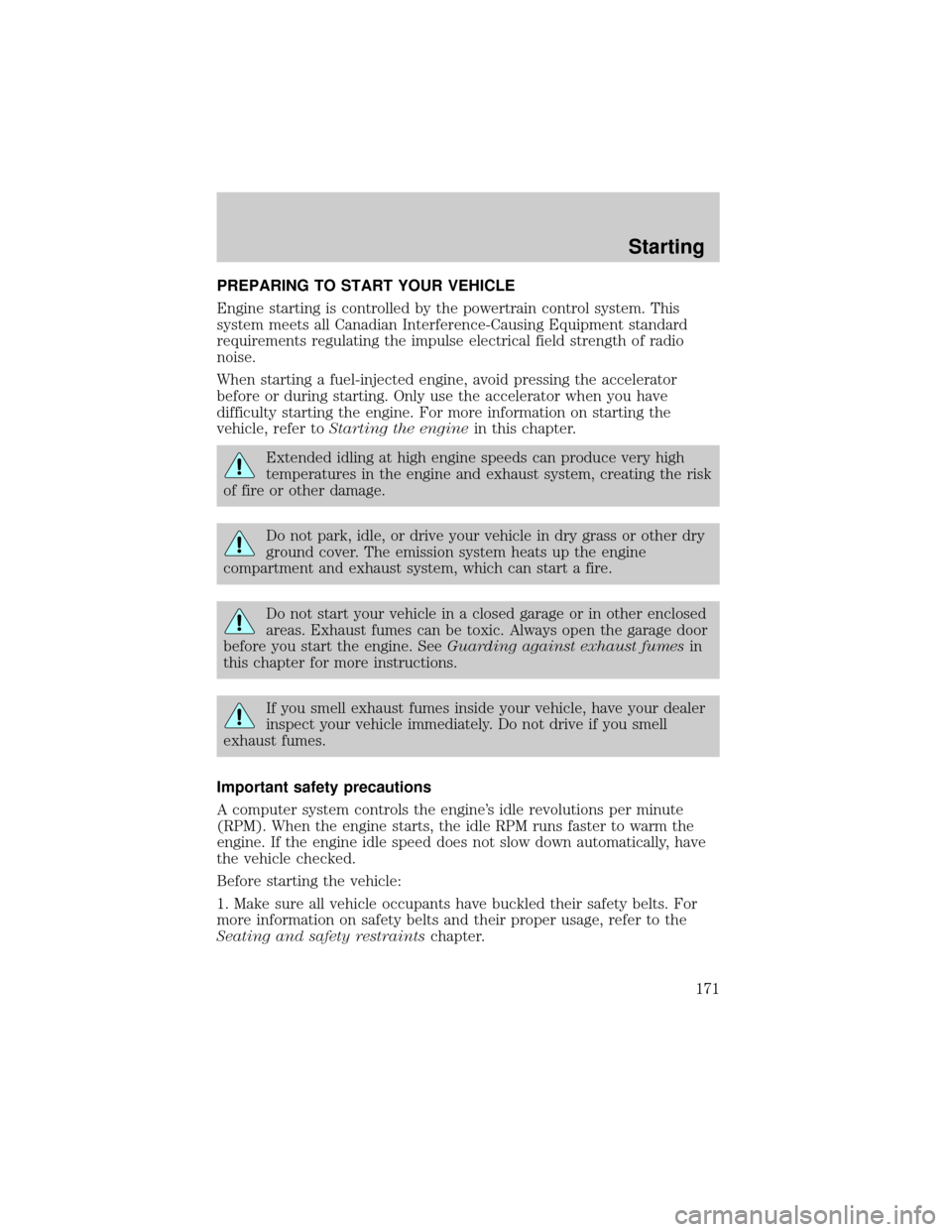

Extended idling at high engine speeds can produce very high
temperatures in the engine and exhaust system, creating the risk
of fire or other damage.
Do not park, idle, or drive your vehicle in dry grass or other dry
ground cover. The emission system heats up the engine
compartment and exhaust system, which can start a fire.
Do not start your vehicle in a closed garage or in other enclosed
areas. Exhaust fumes can be toxic. Always open the garage door
before you start the engine. SeeGuarding against exhaust fumesin
this chapter for more instructions.
If you smell exhaust fumes inside your vehicle, have your dealer
inspect your vehicle immediately. Do not drive if you smell
exhaust fumes.
Important safety precautions
A computer system controls the engine's idle revolutions per minute
(RPM). When the engine starts, the idle RPM runs faster to warm the
engine. If the engine idle speed does not slow down automatically, have
the vehicle checked.
Before starting the vehicle:
1. Make sure all vehicle occupants have buckled their safety belts. For
more information on safety belts and their proper usage, refer to the
Seating and safety restraintschapter.
Starting
171

A
Air bag supplemental
restraint system ................155, 159
and child safety seats ............157
description ......................155, 159
disposal ....................................162
driver air bag ..................157, 160
indicator light ...........10, 159, 161
operation .........................157, 160
passenger air bag ...........157, 160
side air bag ..............................159
Air cleaner filter .......................283
Air conditioning ..........................33
automatic temperature
control system ..........................37
auxiliary heater and air
conditioner ................................46
rear seat controls .....................47
Ambulance packages ....................3
Antifreeze
(see Engine coolant) ................241
Anti-lock brake system
(see Brakes) ......................176±177
Anti-theft system ......................125
arming the system ..................125
disarming a
triggered system .....................126
warning light .............................11
Audio system (see Radio) ...51, 74
Automatic transmission
driving an automatic
overdrive .................................182
fluid, adding ............................248
fluid, checking ........................248
fluid, refill capacities ..............283
fluid, specification ..................287
Auxiliary power point ...............112Axle
lubricant specifications ..285, 287
refill capacities ........................283
traction lok ..............................194
B
Battery .......................................251
acid, treating emergencies .....251
charging system
warning light .............................11
jumping a disabled battery ....222
maintenance-free ....................251
replacement, specifications ...283
servicing ..................................251
voltage gauge ............................16
Belt minder ...............................151
Brakes ........................................176
anti-lock ...........................176±177
anti-lock brake system
(ABS) warning light .........11, 177
brake warning light ..................10
fluid, checking and adding ....240
fluid, refill capacities ..............283
fluid, specifications .........285, 287
lubricant specifications ..285, 287
parking ....................................177
pedals (see Power
adjustable foot pedals) ............30
shift interlock ..........................180
Break-in period .............................3
C
Capacities for refilling fluids ....283
Cargo cover ...............................115
Certification Label ....................289
Child safety restraints ..............162
child safety belts ....................162
Index
304

fluid, checking and adding ....247
fluid, refill capacity ................283
fluid, specifications .........285, 287
Preparing to
drive your vehicle .....................179
R
Radio ............................................51
Relays ................................207, 216
Remote entry system .......115, 117
illuminated entry ....................120
locking/unlocking doors .........116
opening the trunk ...................117
panic alarm .............................117
replacement/additional
transmitters .............................119
replacing the batteries ...........118
Reverse sensing system .............30
Roof rack ...................................204
S
Safety belts (see Safety
restraints) ............13, 142±146, 149
Safety defects, reporting ..........303
Safety restraints ........142±146, 149
belt minder .............................151
cleaning the
safety belts ......................154, 282
extension assembly ................150
for adults .........................143±146
for children .............................162
lap belt ....................................147
warning light
and chime ....................10, 13, 150
Safety seats for children ..........163Seat belts
(see Safety restraints) .............142
Seats ..........................................131
child safety seats ....................163
cleaning ...........................281±282
memory seat ...................117, 134
SecuriLock passive
anti-theft system .......127±128, 130
Servicing your vehicle ..............229
Snowplowing .................................3
Spark plugs,
specifications .....................283, 287
Special notice ................................3
ambulance conversions ..............3
utility-type vehicles ....................3
Specification chart,
lubricants ...........................285, 287
Speed control ..............................90
Speedometer ...............................14
Starting your
vehicle ........................171, 173±174
jump starting ..........................222
Steering wheel
controls ......................................99
tilting .........................................96
T
Tachometer .................................16
Tires ...........................217, 254±256
changing ..........................217, 219
checking the pressure ............256
replacing ..................218±219, 257
rotating ....................................256
snow tires and chains ............258
tire grades ...............................255
treadwear ................................255
Index
309
