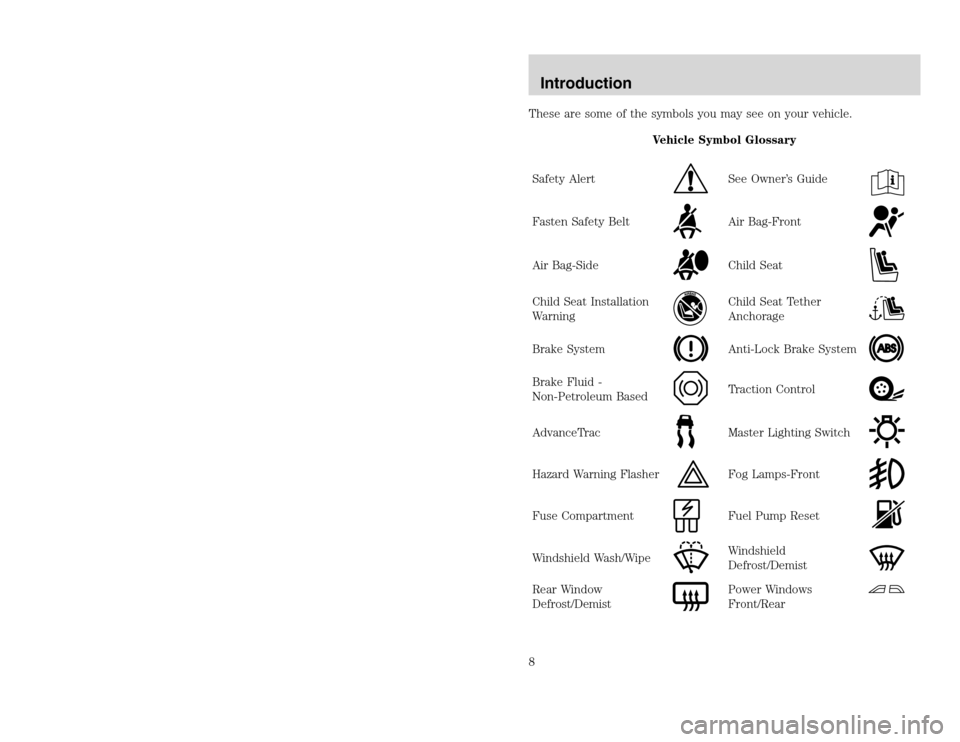

These are some of the symbols you may see on your vehicle.
Vehicle Symbol Glossary
Safety Alert
See Owner’s Guide
Fasten Safety Belt
Air Bag-Front
Air Bag-Side
Child Seat
Child Seat Installation
Warning
Child Seat Tether
Anchorage
Brake System
Anti-Lock Brake System
Brake Fluid -
Non-Petroleum Based
Traction Control
AdvanceTrac
Master Lighting Switch
Hazard Warning Flasher
Fog Lamps-Front
Fuse Compartment
Fuel Pump Reset
Windshield Wash/Wipe
Windshield
Defrost/Demist
Rear Window
Defrost/Demist
Power Windows
Front/Rear
Introduction8
These are some of the symbols you may see on your vehicle.
Vehicle Symbol Glossary
Safety Alert
See Owner’s Guide
Fasten Safety Belt
Air Bag-Front
Air Bag-Side
Child Seat
Child Seat Installation
Warning
Child Seat Tether
Anchorage
Brake System
Anti-Lock Brake System
Brake Fluid -
Non-Petroleum Based
Traction Control
AdvanceTrac
Master Lighting Switch
Hazard Warning Flasher
Fog Lamps-Front
Fuse Compartment
Fuel Pump Reset
Windshield Wash/Wipe
Windshield
Defrost/Demist
Rear Window
Defrost/Demist
Power Windows
Front/Rear
Introduction8

20815.psp Ford O/G 2002 Excursion English 4th Print 2C3J-19A321-HB 04/24/2003 09:14:57 29 B
•

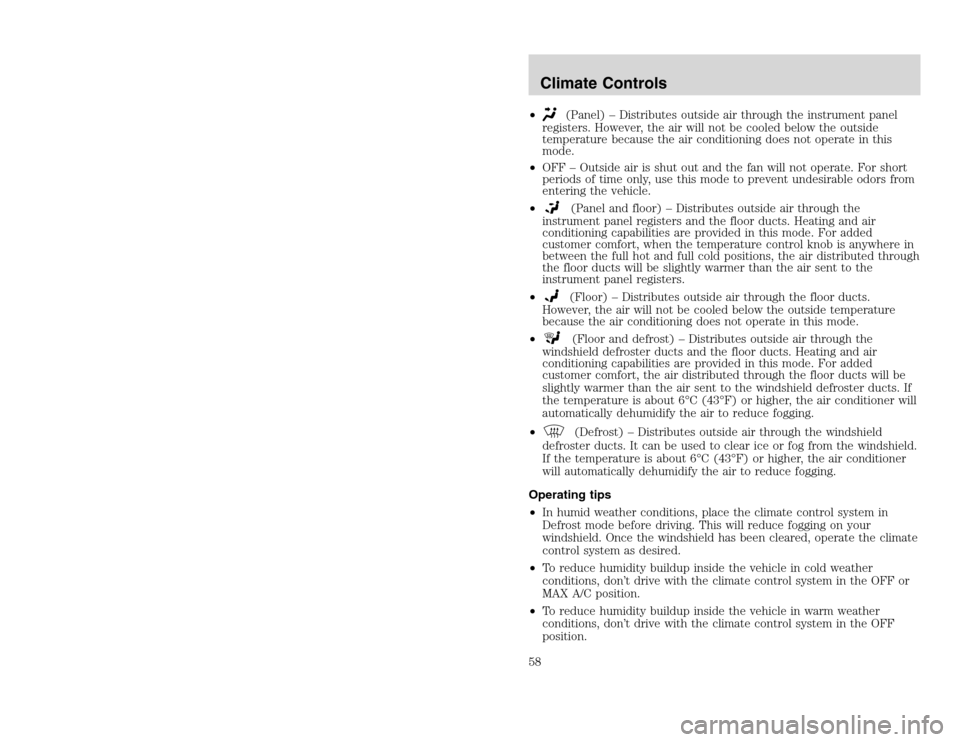

(Panel) – Distributes outside air through the instrument panel
