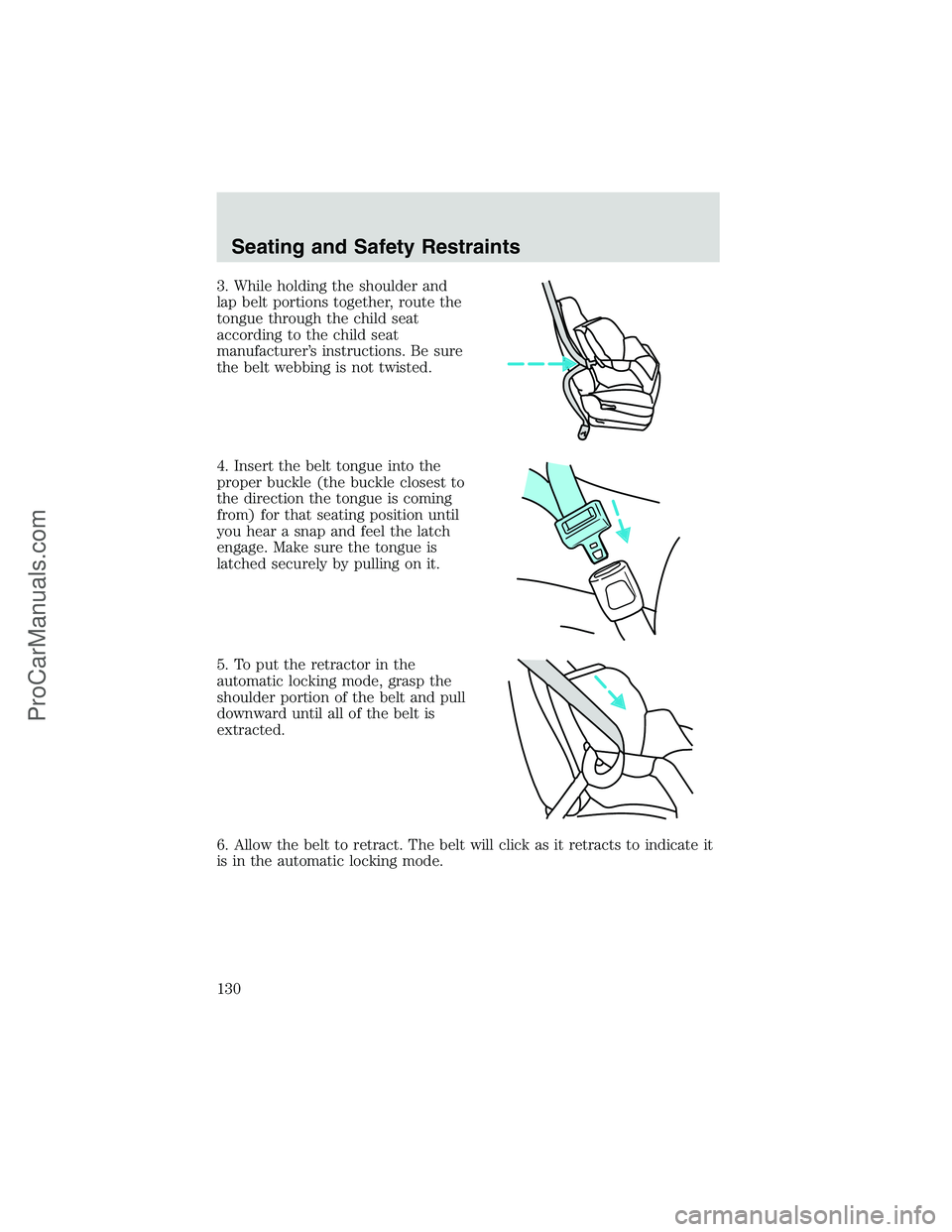

Page 130 of 256
3. While holding the shoulder and
lap belt portions together, route the
tongue through the child seat
according to the child seat
manufacturer’s instructions. Be sure
the belt webbing is not twisted.
4. Insert the belt tongue into the
proper buckle (the buckle closest to
the direction the tongue is coming
from) for that seating position until
you hear a snap and feel the latch
engage. Make sure the tongue is
latched securely by pulling on it.
5. To put the retractor in the
automatic locking mode, grasp the
shoulder portion of the belt and pull
downward until all of the belt is
extracted.
6. Allow the belt to retract. The belt will click as it retracts to indicate it
is in the automatic locking mode.
Seating and Safety Restraints
130
ProCarManuals.com
Page 131 of 256
7. Pull the lap belt portion across
the child seat toward the buckle and
pull up on the shoulder belt while
pushing down with your knee on the
child seat.
8. Allow the safety belt to retract to
remove any slack in the belt.
9. Before placing the child in the
seat, forcibly tilt the seat forward
and back to make sure the seat is
securely held in place. To check
this, grab the seat at the belt path
and attempt to move it side to side
and forward and back. There should
be no more than one inch of
movement for proper installation.
10. Try to pull the belt out of the retractor to make sure the retractor is
in the automatic locking mode (you should not be able to pull more belt
out). If the retractor is not locked, unbuckle the belt and repeat steps
two through nine.
Check to make sure the child seat is properly secured before each use.
Attaching safety seats with tether straps
Children should be placed in the rear in an appropriate child
safety seat that is properly secured to the vehicle.
When using forward-facing child safety seats in vehicles with
only two seating positions so the forward-facing child safety seat
cannot be placed in the rear of the vehicle, move the passenger seat as
far back from the instrument panel as possible.
Do notuse a forward–facing safety seat or an infant seat in the
last row of a 12–or 15–passenger Club Wagon.
Seating and Safety Restraints
131
ProCarManuals.com
Page 251 of 256
A
ABS (see Brakes) .....................141
Air bag supplemental restraint
system ................................119–120
and child safety seats ............121
description ..............................120
disposal ....................................124
driver air bag ..........................122
indicator light ...................12, 123
operation .................................122
passenger air bag ...................122
Air cleaner filter ...............229, 235
Air conditioning
manual heating and air
conditioning system .................71
Ambulance packages ....................6
Antifreeze (see Engine
coolant) .....................................209
Anti-lock brake system
(see Brakes) ..............................141
Audio system
(see Radio) ................17, 22, 28, 36
Automatic transmission
driving an automatic
overdrive .................................146
fluid, adding ............................227
fluid, checking ........................227
fluid, refill capacities ..............236
fluid, specification ..................243
Auxiliary power point .................86
Axle
lubricant specifications ..240, 243
refill capacities ........................236
traction lok ..............................143
B
Battery .......................................204acid, treating emergencies .....204
charging system warning
light ............................................12
disconnecting ..........................206
jumping a disabled battery ....175
maintenance-free ....................204
replacement, specifications ...235
servicing ..................................204
voltage gauge ............................15
BeltMinder .................................115
Brakes ........................................140
anti-lock ...................................141
anti-lock brake system (ABS)
warning light .....................12, 142
brake warning light ..................11
fluid, checking and adding ....226
fluid, refill capacities ..............236
fluid, specifications .........240, 243
lubricant specifications ..240, 243
shift interlock ..........................145
Break-in period .............................5
Bulbs ............................................79
C
Capacities for refilling fluids ....236
CD-6 disc .....................................36
CD-single premium .....................28
Changing a tire .........................168
Child safety restraints ..............125
child safety belts ....................125
Child safety seats ......................127
in front seat ............................129
in rear seat ..............................129
tether anchorage hardware ...131
Cleaning your vehicle
engine compartment ..............192
exterior ....................................195
instrument panel ....................194
Index
251
ProCarManuals.com
Page 255 of 256
Parts (see Motorcraft parts) ....235
Power distribution box
(see Fuses) ...............................165
Power door locks ........................97
Power mirrors .............................87
Power point .................................86
Power steering ..........................143
fluid, checking and adding ....225
fluid, refill capacity ................236
fluid, specifications .........240, 243
Power Windows ...........................86
Preparing to drive your
vehicle ........................................144
R
Radio ..........................17, 22, 28, 36
Radio reception ...........................69
Relays ................................161, 168
Remote entry system ...........97, 99
illuminated entry ....................100
locking/unlocking doors .....97–98
panic alarm ...............................99
replacement/additional
transmitters .............................100
replacing the batteries .............99
Roadside assistance ..................158
S
Safety belts (see Safety
restraints) ....................14, 109–113
Safety defects, reporting ..........190
Safety restraints ................109–113
belt minder .............................115
cleaning the safety belts ........118
extension assembly ................118
for adults .........................110–112for children .....................124–125
lap belt ....................................113
warning light and
chime ...........................12–14, 114
Safety seats for children ..........127
Seat belts (see Safety
restraints) ..................................109
Seats ..........................................101
child safety seats ....................127
Servicing your vehicle ..............198
Spare tire (see Changing the
Tire) ...........................................168
Spark plugs,
specifications .............235, 243–244
Special notice
ambulance conversions ..............6
diesel-powered vehicles .............6
utility-type vehicles ....................6
Specification chart,
lubricants ...........................240, 243
Speed control ..............................88
Speedometer ...............................16
Starting your vehicle ........136–138
jump starting ..........................175
Steering wheel
controls ................................85, 88
tilting .........................................85
T
Temperature control
(see Climate control) .................70
Tires ...........................168, 230–232
changing ..........................168, 170
replacing ..........................171, 234
rotating ....................................233
snow tires and chains ............234
tire grades ...............................231
Index
255
