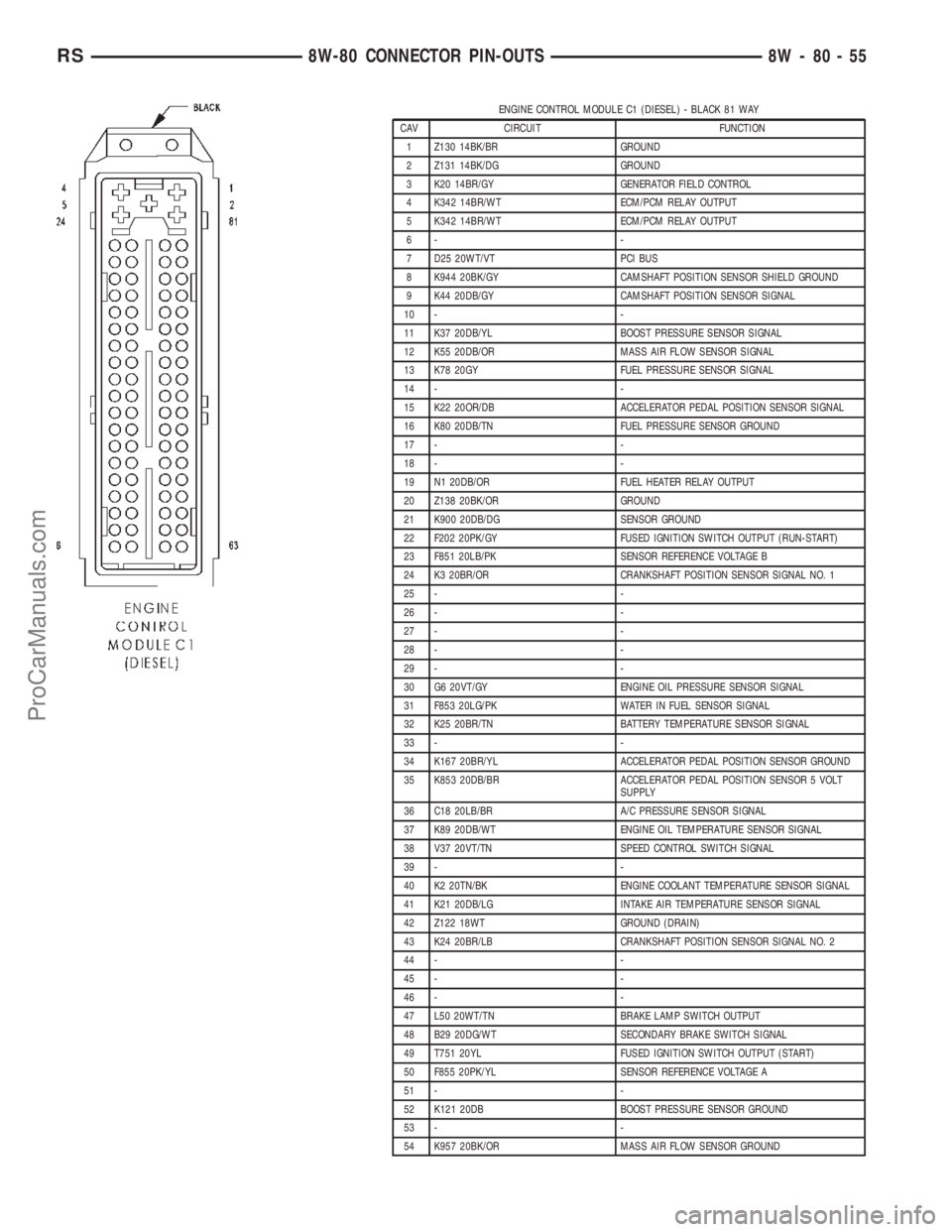

ENGINE CONTROL MODULE C1 (DIESEL) - BLACK 81 WAY
CAV CIRCUIT FUNCTION
1 Z130 14BK/BR GROUND
2 Z131 14BK/DG GROUND
3 K20 14BR/GY GENERATOR FIELD CONTROL
4 K342 14BR/WT ECM/PCM RELAY OUTPUT
5 K342 14BR/WT ECM/PCM RELAY OUTPUT
6- -
7 D25 20WT/VT PCI BUS
8 K944 20BK/GY CAMSHAFT POSITION SENSOR SHIELD GROUND
9 K44 20DB/GY CAMSHAFT POSITION SENSOR SIGNAL
10 - -
11 K37 20DB/YL BOOST PRESSURE SENSOR SIGNAL
12 K55 20DB/OR MASS AIR FLOW SENSOR SIGNAL
13 K78 20GY FUEL PRESSURE SENSOR SIGNAL
14 - -
15 K22 20OR/DB ACCELERATOR PEDAL POSITION SENSOR SIGNAL
16 K80 20DB/TN FUEL PRESSURE SENSOR GROUND
17 - -
18 - -
19 N1 20DB/OR FUEL HEATER RELAY OUTPUT
20 Z138 20BK/OR GROUND
21 K900 20DB/DG SENSOR GROUND
22 F202 20PK/GY FUSED IGNITION SWITCH OUTPUT (RUN-START)
23 F851 20LB/PK SENSOR REFERENCE VOLTAGE B
24 K3 20BR/OR CRANKSHAFT POSITION SENSOR SIGNAL NO. 1
25 - -
26 - -
27 - -
28 - -
29 - -
30 G6 20VT/GY ENGINE OIL PRESSURE SENSOR SIGNAL
31 F853 20LG/PK WATER IN FUEL SENSOR SIGNAL
32 K25 20BR/TN BATTERY TEMPERATURE SENSOR SIGNAL
33 - -
34 K167 20BR/YL ACCELERATOR PEDAL POSITION SENSOR GROUND
35 K853 20DB/BR ACCELERATOR PEDAL POSITION SENSOR 5 VOLT
SUPPLY
36 C18 20LB/BR A/C PRESSURE SENSOR SIGNAL
37 K89 20DB/WT ENGINE OIL TEMPERATURE SENSOR SIGNAL
38 V37 20VT/TN SPEED CONTROL SWITCH SIGNAL
39 - -
40 K2 20TN/BK ENGINE COOLANT TEMPERATURE SENSOR SIGNAL
41 K21 20DB/LG INTAKE AIR TEMPERATURE SENSOR SIGNAL
42 Z122 18WT GROUND (DRAIN)
43 K24 20BR/LB CRANKSHAFT POSITION SENSOR SIGNAL NO. 2
44 - -
45 - -
46 - -
47 L50 20WT/TN BRAKE LAMP SWITCH OUTPUT
48 B29 20DG/WT SECONDARY BRAKE SWITCH SIGNAL
49 T751 20YL FUSED IGNITION SWITCH OUTPUT (START)
50 F855 20PK/YL SENSOR REFERENCE VOLTAGE A
51 - -
52 K121 20DB BOOST PRESSURE SENSOR GROUND
53 - -
54 K957 20BK/OR MASS AIR FLOW SENSOR GROUND
RS8W-80 CONNECTOR PIN-OUTS8W-80-55
ProCarManuals.com

ENGINE CONTROL MODULE C1 (DIESEL) - BLACK 81 WAY
CAV CIRCUIT FUNCTION
55 N7 20DB/OR VEHICLE SPEED SENSOR SIGNAL
56 C918 20BK/LB A/C PRESSURE SENSOR GROUND
57 - -
58 K4 20BK/LB LOW IDLE POSITION SWITCH GROUND
59 - -
60 K9 20LB FUEL PRESSURE SENSOR 5 VOLT SUPPLY
61 K51 20BR/WT ECM/PCM RELAY CONTROL
62 - -
63 D21 20WT/BR SCI TRANSMIT
64 K151 20WT LOW IDLE POSITION SWITCH SENSE
65 - -
66 K936 20BR/YL ENGINE OIL PRESSURE SENSOR GROUND
67 - -
68 - -
69 C13 20LB/OR A/C COMPRESSOR CLUTCH RELAY CONTROL
70 N210 20DB/DG LOW SPEED RADIATOR FAN RELAY CONTROL
71 - -
72 N21 20DB/TN LIFT PUMP RELAY CONTROL
73 - -
74 T752 20DG/OR ENGINE STARTER MOTOR RELAY CONTROL
75 - -
76 - -
77 K152 20DB/WT GLOW PLUG RELAY CONTROL
78 N122 20DB/YL HIGH SPEED RADIATOR FAN DUAL RELAY CONTROL
79 - -
80 K87 20BR FUEL PRESSURE SOLENOID CONTROL
81 K87 20BR FUEL PRESSURE SOLENOID CONTROL
8W - 80 - 56 8W-80 CONNECTOR PIN-OUTSRS
ProCarManuals.com

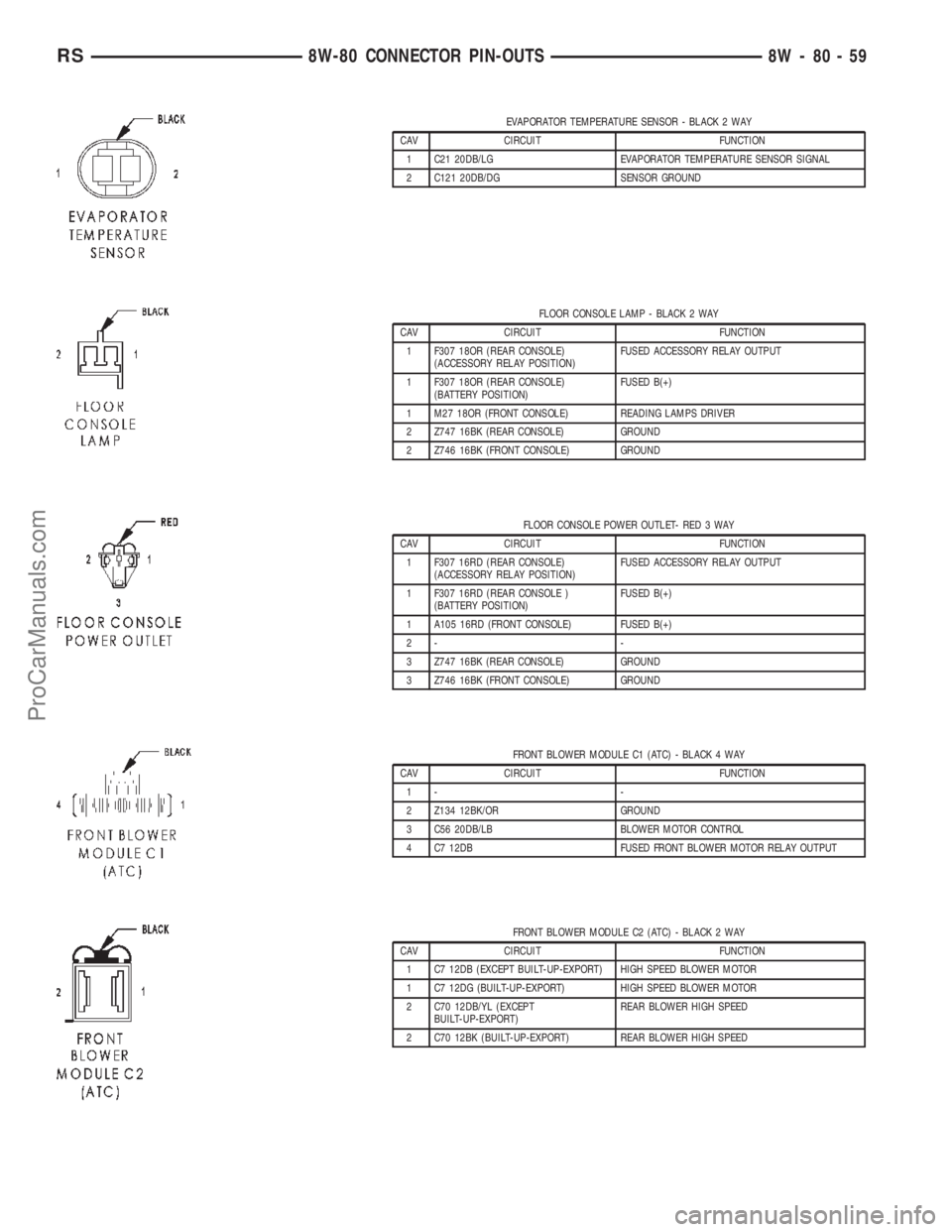

EVAPORATOR TEMPERATURE SENSOR - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 C21 20DB/LG EVAPORATOR TEMPERATURE SENSOR SIGNAL
2 C121 20DB/DG SENSOR GROUND
FLOOR CONSOLE LAMP - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 F307 18OR (REAR CONSOLE)
(ACCESSORY RELAY POSITION)FUSED ACCESSORY RELAY OUTPUT
1 F307 18OR (REAR CONSOLE)
(BATTERY POSITION)FUSED B(+)
1 M27 18OR (FRONT CONSOLE) READING LAMPS DRIVER
2 Z747 16BK (REAR CONSOLE) GROUND
2 Z746 16BK (FRONT CONSOLE) GROUND
FLOOR CONSOLE POWER OUTLET- RED 3 WAY
CAV CIRCUIT FUNCTION
1 F307 16RD (REAR CONSOLE)
(ACCESSORY RELAY POSITION)FUSED ACCESSORY RELAY OUTPUT
1 F307 16RD (REAR CONSOLE )
(BATTERY POSITION)FUSED B(+)
1 A105 16RD (FRONT CONSOLE) FUSED B(+)
2- -
3 Z747 16BK (REAR CONSOLE) GROUND
3 Z746 16BK (FRONT CONSOLE) GROUND
FRONT BLOWER MODULE C1 (ATC) - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1- -
2 Z134 12BK/OR GROUND
3 C56 20DB/LB BLOWER MOTOR CONTROL
4 C7 12DB FUSED FRONT BLOWER MOTOR RELAY OUTPUT
FRONT BLOWER MODULE C2 (ATC) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 C7 12DB (EXCEPT BUILT-UP-EXPORT) HIGH SPEED BLOWER MOTOR
1 C7 12DG (BUILT-UP-EXPORT) HIGH SPEED BLOWER MOTOR
2 C70 12DB/YL (EXCEPT
BUILT-UP-EXPORT)REAR BLOWER HIGH SPEED
2 C70 12BK (BUILT-UP-EXPORT) REAR BLOWER HIGH SPEED
RS8W-80 CONNECTOR PIN-OUTS8W-80-59
ProCarManuals.com

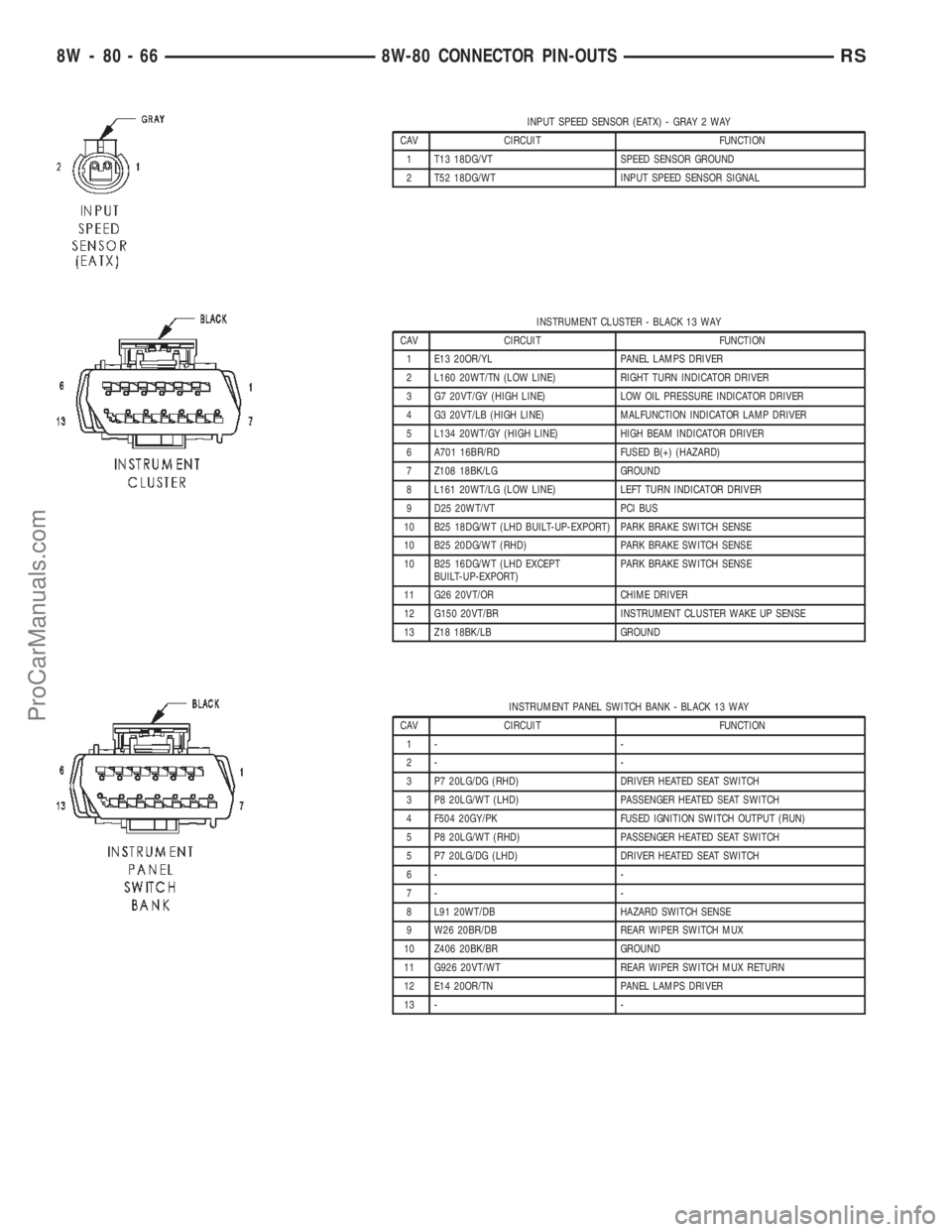

INPUT SPEED SENSOR (EATX) - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 T13 18DG/VT SPEED SENSOR GROUND
2 T52 18DG/WT INPUT SPEED SENSOR SIGNAL
INSTRUMENT CLUSTER - BLACK 13 WAY
CAV CIRCUIT FUNCTION
1 E13 20OR/YL PANEL LAMPS DRIVER
2 L160 20WT/TN (LOW LINE) RIGHT TURN INDICATOR DRIVER
3 G7 20VT/GY (HIGH LINE) LOW OIL PRESSURE INDICATOR DRIVER
4 G3 20VT/LB (HIGH LINE) MALFUNCTION INDICATOR LAMP DRIVER
5 L134 20WT/GY (HIGH LINE) HIGH BEAM INDICATOR DRIVER
6 A701 16BR/RD FUSED B(+) (HAZARD)
7 Z108 18BK/LG GROUND
8 L161 20WT/LG (LOW LINE) LEFT TURN INDICATOR DRIVER
9 D25 20WT/VT PCI BUS
10 B25 18DG/WT (LHD BUILT-UP-EXPORT) PARK BRAKE SWITCH SENSE
10 B25 20DG/WT (RHD) PARK BRAKE SWITCH SENSE
10 B25 16DG/WT (LHD EXCEPT
BUILT-UP-EXPORT)PARK BRAKE SWITCH SENSE
11 G26 20VT/OR CHIME DRIVER
12 G150 20VT/BR INSTRUMENT CLUSTER WAKE UP SENSE
13 Z18 18BK/LB GROUND
INSTRUMENT PANEL SWITCH BANK - BLACK 13 WAY
CAV CIRCUIT FUNCTION
1- -
2- -
3 P7 20LG/DG (RHD) DRIVER HEATED SEAT SWITCH
3 P8 20LG/WT (LHD) PASSENGER HEATED SEAT SWITCH
4 F504 20GY/PK FUSED IGNITION SWITCH OUTPUT (RUN)
5 P8 20LG/WT (RHD) PASSENGER HEATED SEAT SWITCH
5 P7 20LG/DG (LHD) DRIVER HEATED SEAT SWITCH
6- -
7- -
8 L91 20WT/DB HAZARD SWITCH SENSE
9 W26 20BR/DB REAR WIPER SWITCH MUX
10 Z406 20BK/BR GROUND
11 G926 20VT/WT REAR WIPER SWITCH MUX RETURN
12 E14 20OR/TN PANEL LAMPS DRIVER
13 - -
8W - 80 - 66 8W-80 CONNECTOR PIN-OUTSRS
ProCarManuals.com

LEFT FRONT WHEEL SPEED SENSOR - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 B9 18DG/WT (3.3L/3.8L) LEFT FRONT WHEEL SPEED SENSOR 12 VOLT
SUPPLY
1 B9 18DG/LG (EXCEPT 3.3L/3.8L) LEFT FRONT WHEEL SPEED SENSOR 12 VOLT
SUPPLY
2 B8 18DG/TN LEFT FRONT WHEEL SPEED SENSOR SIGNAL
LEFT FULL OPEN SWITCH (POWER SLIDING DOOR) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Q53 20OR LEFT FULL OPEN SWITCH SENSE
2 Z77 20BK/GY GROUND
LEFT HEADLAMP (EXCEPT BUILT-UP-EXPORT) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 L43 18WT/DB LEFT LOW BEAM DRIVER
2 Z343 18BK/LG GROUND
3 L33 18WT/LG LEFT HIGH BEAM DRIVER
LEFT HEADLAMP LEVELING MOTOR (BUILT-UP-EXPORT) - WHITE 3 WAY
CAV CIRCUIT FUNCTION
1 Z203 16BR GROUND
2 L77 16BK FUSED PARK LAMP RELAY OUTPUT (LEFT)
3 L13 16RD HEADLAMP ADJUST SIGNAL
LEFT HIGH BEAM LAMP (BUILT-UP-EXPORT) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Z343 16BR GROUND
1 Z343 16BR GROUND
2 L33 16GY LEFT HIGH BEAM DRIVER
8W - 80 - 74 8W-80 CONNECTOR PIN-OUTSRS
ProCarManuals.com

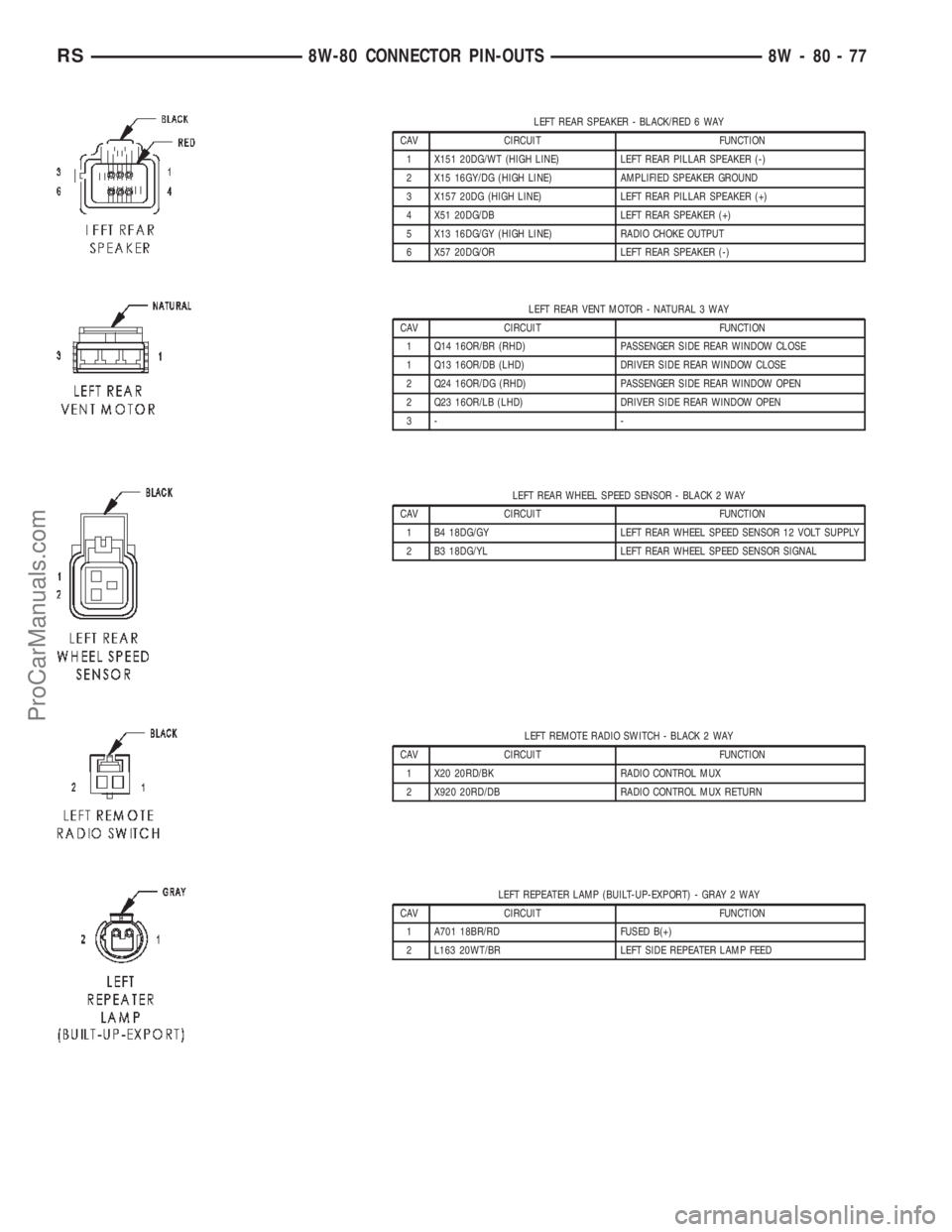

LEFT REAR SPEAKER - BLACK/RED 6 WAY
CAV CIRCUIT FUNCTION
1 X151 20DG/WT (HIGH LINE) LEFT REAR PILLAR SPEAKER (-)
2 X15 16GY/DG (HIGH LINE) AMPLIFIED SPEAKER GROUND
3 X157 20DG (HIGH LINE) LEFT REAR PILLAR SPEAKER (+)
4 X51 20DG/DB LEFT REAR SPEAKER (+)
5 X13 16DG/GY (HIGH LINE) RADIO CHOKE OUTPUT
6 X57 20DG/OR LEFT REAR SPEAKER (-)
LEFT REAR VENT MOTOR - NATURAL 3 WAY
CAV CIRCUIT FUNCTION
1 Q14 16OR/BR (RHD) PASSENGER SIDE REAR WINDOW CLOSE
1 Q13 16OR/DB (LHD) DRIVER SIDE REAR WINDOW CLOSE
2 Q24 16OR/DG (RHD) PASSENGER SIDE REAR WINDOW OPEN
2 Q23 16OR/LB (LHD) DRIVER SIDE REAR WINDOW OPEN
3- -
LEFT REAR WHEEL SPEED SENSOR - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 B4 18DG/GY LEFT REAR WHEEL SPEED SENSOR 12 VOLT SUPPLY
2 B3 18DG/YL LEFT REAR WHEEL SPEED SENSOR SIGNAL
LEFT REMOTE RADIO SWITCH - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 X20 20RD/BK RADIO CONTROL MUX
2 X920 20RD/DB RADIO CONTROL MUX RETURN
LEFT REPEATER LAMP (BUILT-UP-EXPORT) - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 A701 18BR/RD FUSED B(+)
2 L163 20WT/BR LEFT SIDE REPEATER LAMP FEED
RS8W-80 CONNECTOR PIN-OUTS8W-80-77
ProCarManuals.com

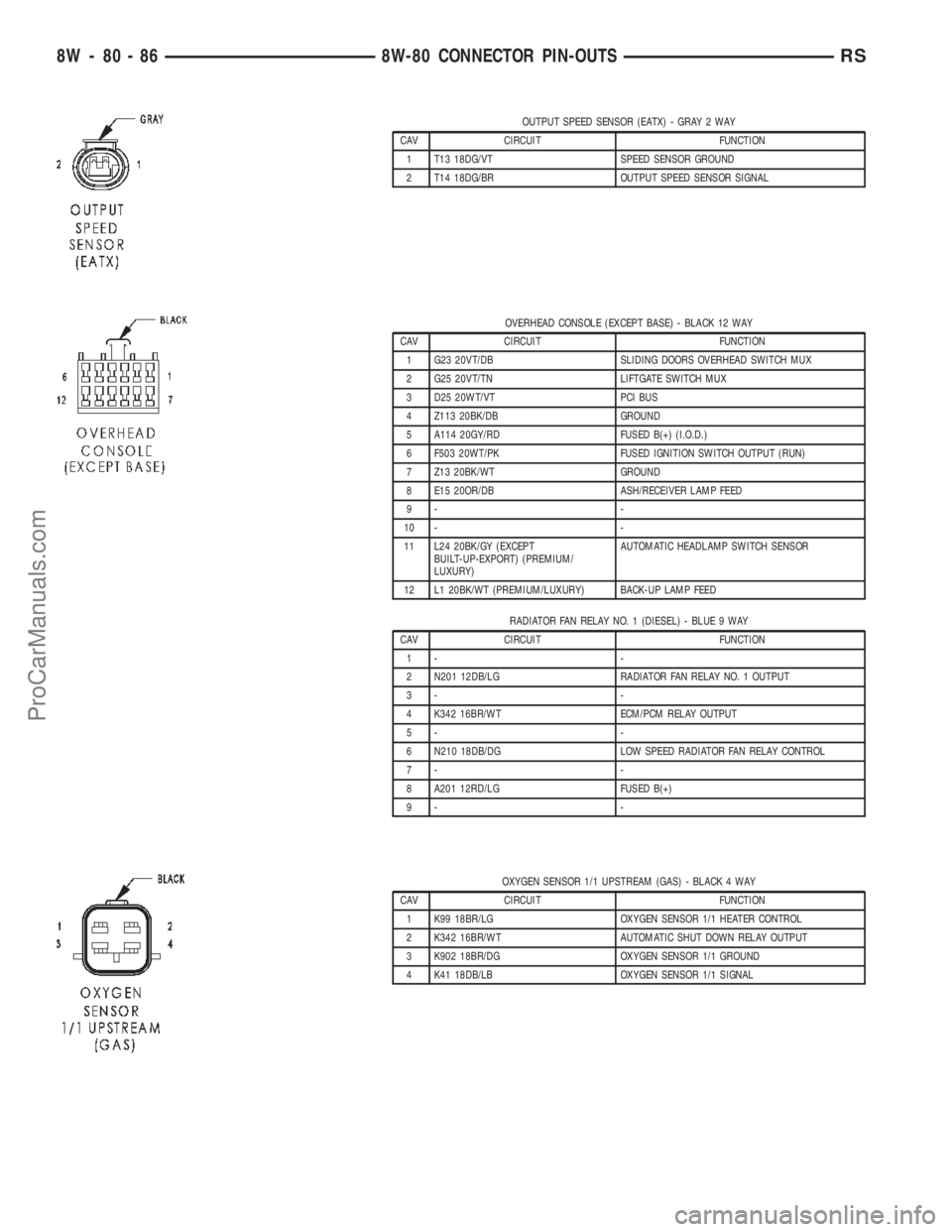

OUTPUT SPEED SENSOR (EATX) - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 T13 18DG/VT SPEED SENSOR GROUND
2 T14 18DG/BR OUTPUT SPEED SENSOR SIGNAL
OVERHEAD CONSOLE (EXCEPT BASE) - BLACK 12 WAY
CAV CIRCUIT FUNCTION
1 G23 20VT/DB SLIDING DOORS OVERHEAD SWITCH MUX
2 G25 20VT/TN LIFTGATE SWITCH MUX
3 D25 20WT/VT PCI BUS
4 Z113 20BK/DB GROUND
5 A114 20GY/RD FUSED B(+) (I.O.D.)
6 F503 20WT/PK FUSED IGNITION SWITCH OUTPUT (RUN)
7 Z13 20BK/WT GROUND
8 E15 20OR/DB ASH/RECEIVER LAMP FEED
9- -
10 - -
11 L24 20BK/GY (EXCEPT
BUILT-UP-EXPORT) (PREMIUM/
LUXURY)AUTOMATIC HEADLAMP SWITCH SENSOR
12 L1 20BK/WT (PREMIUM/LUXURY) BACK-UP LAMP FEED
RADIATOR FAN RELAY NO. 1 (DIESEL) - BLUE 9 WAY
CAV CIRCUIT FUNCTION
1- -
2 N201 12DB/LG RADIATOR FAN RELAY NO. 1 OUTPUT
3- -
4 K342 16BR/WT ECM/PCM RELAY OUTPUT
5- -
6 N210 18DB/DG LOW SPEED RADIATOR FAN RELAY CONTROL
7- -
8 A201 12RD/LG FUSED B(+)
9- -
OXYGEN SENSOR 1/1 UPSTREAM (GAS) - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 K99 18BR/LG OXYGEN SENSOR 1/1 HEATER CONTROL
2 K342 16BR/WT AUTOMATIC SHUT DOWN RELAY OUTPUT
3 K902 18BR/DG OXYGEN SENSOR 1/1 GROUND
4 K41 18DB/LB OXYGEN SENSOR 1/1 SIGNAL
8W - 80 - 86 8W-80 CONNECTOR PIN-OUTSRS
ProCarManuals.com

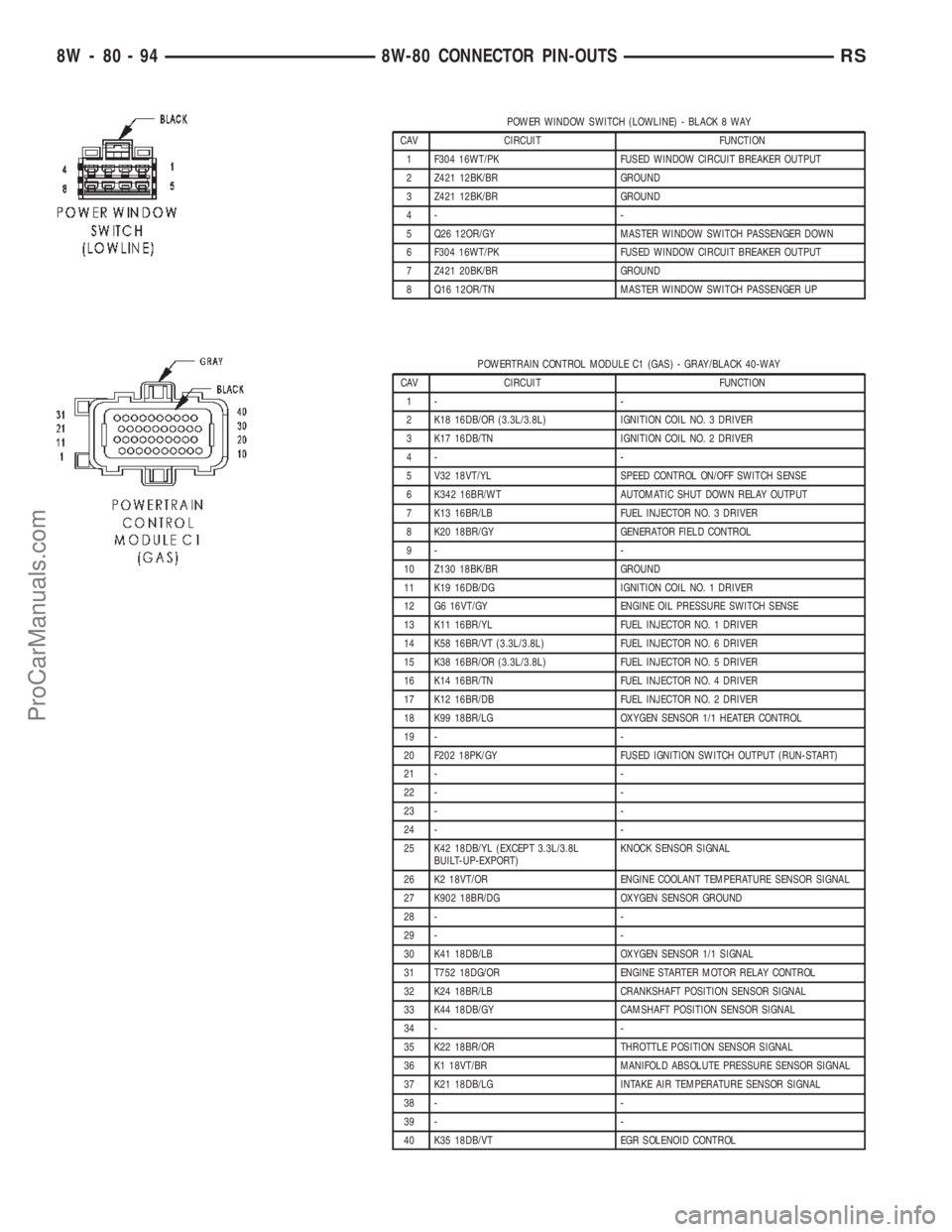

POWER WINDOW SWITCH (LOWLINE) - BLACK 8 WAY
CAV CIRCUIT FUNCTION
1 F304 16WT/PK FUSED WINDOW CIRCUIT BREAKER OUTPUT
2 Z421 12BK/BR GROUND
3 Z421 12BK/BR GROUND
4- -
5 Q26 12OR/GY MASTER WINDOW SWITCH PASSENGER DOWN
6 F304 16WT/PK FUSED WINDOW CIRCUIT BREAKER OUTPUT
7 Z421 20BK/BR GROUND
8 Q16 12OR/TN MASTER WINDOW SWITCH PASSENGER UP
POWERTRAIN CONTROL MODULE C1 (GAS) - GRAY/BLACK 40-WAY
CAV CIRCUIT FUNCTION
1- -
2 K18 16DB/OR (3.3L/3.8L) IGNITION COIL NO. 3 DRIVER
3 K17 16DB/TN IGNITION COIL NO. 2 DRIVER
4- -
5 V32 18VT/YL SPEED CONTROL ON/OFF SWITCH SENSE
6 K342 16BR/WT AUTOMATIC SHUT DOWN RELAY OUTPUT
7 K13 16BR/LB FUEL INJECTOR NO. 3 DRIVER
8 K20 18BR/GY GENERATOR FIELD CONTROL
9- -
10 Z130 18BK/BR GROUND
11 K19 16DB/DG IGNITION COIL NO. 1 DRIVER
12 G6 16VT/GY ENGINE OIL PRESSURE SWITCH SENSE
13 K11 16BR/YL FUEL INJECTOR NO. 1 DRIVER
14 K58 16BR/VT (3.3L/3.8L) FUEL INJECTOR NO. 6 DRIVER
15 K38 16BR/OR (3.3L/3.8L) FUEL INJECTOR NO. 5 DRIVER
16 K14 16BR/TN FUEL INJECTOR NO. 4 DRIVER
17 K12 16BR/DB FUEL INJECTOR NO. 2 DRIVER
18 K99 18BR/LG OXYGEN SENSOR 1/1 HEATER CONTROL
19 - -
20 F202 18PK/GY FUSED IGNITION SWITCH OUTPUT (RUN-START)
21 - -
22 - -
23 - -
24 - -
25 K42 18DB/YL (EXCEPT 3.3L/3.8L
BUILT-UP-EXPORT)KNOCK SENSOR SIGNAL
26 K2 18VT/OR ENGINE COOLANT TEMPERATURE SENSOR SIGNAL
27 K902 18BR/DG OXYGEN SENSOR GROUND
28 - -
29 - -
30 K41 18DB/LB OXYGEN SENSOR 1/1 SIGNAL
31 T752 18DG/OR ENGINE STARTER MOTOR RELAY CONTROL
32 K24 18BR/LB CRANKSHAFT POSITION SENSOR SIGNAL
33 K44 18DB/GY CAMSHAFT POSITION SENSOR SIGNAL
34 - -
35 K22 18BR/OR THROTTLE POSITION SENSOR SIGNAL
36 K1 18VT/BR MANIFOLD ABSOLUTE PRESSURE SENSOR SIGNAL
37 K21 18DB/LG INTAKE AIR TEMPERATURE SENSOR SIGNAL
38 - -
39 - -
40 K35 18DB/VT EGR SOLENOID CONTROL
8W - 80 - 94 8W-80 CONNECTOR PIN-OUTSRS
