2002 CHRYSLER CARAVAN headlamp

Component Page
Glove Box Lamp.................... 8W-80-63
Glow Plug Relay (Diesel).............. 8W-80-63
Halo Lamp........................ 8W-80-63
Headlamp Switch................... 8W-80-64
Headlamp Washer Pump Motor
(Built-Up-Export)................. 8W-80-64
High Note Horn.................... 8W-80-64
Hood Ajar Switch................... 8W-80-64
Idle Air Control Motor (2.4L).......... 8W-80-64
Idle Air Control Motor (3.3L/3.8L)....... 8W-80-65
Ignition Coil (2.4L).................. 8W-80-65
Ignition Coil (3.3L/3.8L).............. 8W-80-65
Ignition Switch..................... 8W-80-65
Inlet Air Temperature Sensor.......... 8W-80-65
Input Speed Sensor (EATX)........... 8W-80-66
Instrument Cluster.................. 8W-80-66
Instrument Panel Switch Bank......... 8W-80-66
Integrated Power Module C1.......... 8W-80-67
Integrated Power Module C2.......... 8W-80-67
Integrated Power Module C3 (Diesel).... 8W-80-68
Integrated Power Module C3 (Gas)...... 8W-80-68
Integrated Power Module C4.......... 8W-80-69
Integrated Power Module C5.......... 8W-80-69
Integrated Power Module C6.......... 8W-80-69
Integrated Power Module C7.......... 8W-80-70
Integrated Power Module C8.......... 8W-80-70
Integrated Power Module C9.......... 8W-80-71
Knock Sensor (2.4L)................. 8W-80-71
Knock Sensor (3.3L/3.8L) (Except
Built-Up-Export).................. 8W-80-71
Leak Detection Pump (Except
Built-Up-Export).................. 8W-80-71
Left B-Pillar Switch (Power
Sliding Door)..................... 8W-80-72
Left Cinch/Release Motor (Power
Sliding Door)..................... 8W-80-72
Left Combination Relay (Trailer Tow).... 8W-80-72
Left Cylinder Lock Switch............. 8W-80-72
Left Door Speaker................... 8W-80-72
Left Fog Lamp (Built-Up-Export)....... 8W-80-73
Left Fog Lamp (Except
Built-Up-Export).................. 8W-80-73
Left Front Door Ajar Switch (Base)...... 8W-80-73
Left Front Door Lock Motor/Ajar Switch
(Except Base).................... 8W-80-73
Left Front Park/Turn Signal Lamp
(Except Built-Up-Export)........... 8W-80-73
Left Front Wheel Speed Sensor......... 8W-80-74
Left Full Open Switch
(Power Sliding Door)............... 8W-80-74
Left Headlamp (Except Built-Up-Export) . 8W-80-74
Left Headlamp Leveling Motor
(Built-Up-Export)................. 8W-80-74
Left High Beam Lamp
(Built-Up-Export)................. 8W-80-74Component Page
Left Instrument Panel Speaker......... 8W-80-75
Left Liftgate Flood Lamp............. 8W-80-75
Left Low Beam Lamp (Built-Up-Export) . . 8W-80-75
Left Mid Reading Lamp
(Premium/Luxury)................. 8W-80-75
Left Park Lamp (Built-Up-Export)...... 8W-80-75
Left Power Mirror................... 8W-80-76
Left Rear Lamp Assembly............. 8W-80-76
Left Rear Pillar Speaker.............. 8W-80-76
Left Rear Reading Lamp (Luxury)...... 8W-80-76
Left Rear Speaker................... 8W-80-77
Left Rear Vent Motor................ 8W-80-77
Left Rear Wheel Speed Sensor......... 8W-80-77
Left Remote Radio Switch............. 8W-80-77
Left Repeater Lamp (Built-Up-Export) . . . 8W-80-77
Left Seat Airbag.................... 8W-80-78
Left Side Impact Airbag Control Module . . 8W-80-78
Left Sliding Door Control Module C1
(Power Sliding Door)............... 8W-80-78
Left Sliding Door Control Module C2
(Power Sliding Door)............... 8W-80-78
Left Sliding Door Latch Sensing Switch
(Power Sliding Door)............... 8W-80-79
Left Sliding Door Lock Motor
(Power Sliding Door)............... 8W-80-79
Left Sliding Door Lock Motor/Ajar Switch
(Manual Sliding Door).............. 8W-80-79
Left Sliding Door Motor
(Power Sliding Door)............... 8W-80-79
Left Speed Control Switch............ 8W-80-79
Left Stop/Turn Signal Relay (Trailer Tow) . 8W-80-80
Left Turn Signal Lamp (Built-Up-Export) . 8W-80-80
Left Visor/Vanity Lamp
(Premium/Luxury)................. 8W-80-80
License Lamp (Manual Release)........ 8W-80-80
License Lamp (Power Liftgate)......... 8W-80-80
License Lamp (Power Release)......... 8W-80-81
Lift Pump Motor (Diesel)............. 8W-80-81
Liftgate Ajar Switch (Manual Release) . . . 8W-80-81
Liftgate Ajar Switch (Power Release).... 8W-80-81
Liftgate Cinch/Release Motor
(Power Liftgate).................. 8W-80-81
Liftgate Cylinder Lock Switch.......... 8W-80-82
Liftgate Left Pinch Sensor
(Power Liftgate).................. 8W-80-82
Liftgate Right Pinch Sensor
(Power Liftgate).................. 8W-80-82
Low Note Horn..................... 8W-80-82
Manifold Absolute Pressure Sensor
(Gas)........................... 8W-80-82
Mass Air Flow Sensor (Diesel)......... 8W-80-83
Memory Seat/Mirror Module C1........ 8W-80-83
Memory Seat/Mirror Module C2........ 8W-80-84
Memory Seat/Mirror Module C3........ 8W-80-84
Memory Seat/Mirror Module C4........ 8W-80-84
RS8W-80 CONNECTOR PIN-OUTS8W-80-3
ProCarManuals.com

Component Page
Memory Set Switch.................. 8W-80-84
Message Center (High Line)........... 8W-80-85
Mode Door Actuator (ATC)............ 8W-80-85
Mode Door Actuator (MTC)............ 8W-80-85
Multi-Function Switch............... 8W-80-85
Output Speed Sensor (EATX).......... 8W-80-86
Overhead Console (Except Base)........ 8W-80-86
Oxygen Sensor 1/1 Upstream (Gas)...... 8W-80-86
Oxygen Sensor 1/2 Downstream (Gas) . . . 8W-80-87
Park/Neutral Position Switch (ATX)..... 8W-80-87
Passenger Airbag................... 8W-80-87
Passenger Blend Door Actuator (ATC) . . . 8W-80-87
Passenger Blend Door Actuator (MTC) . . . 8W-80-87
Passenger Door Courtesy Lamp........ 8W-80-88
Passenger Door Lock Switch........... 8W-80-88
Passenger Folding Mirror Relay
(Built-Up-Export)................. 8W-80-88
Passenger Heated Seat Back........... 8W-80-88
Passenger Heated Seat Cushion........ 8W-80-88
Passenger Heated Seat Module C1...... 8W-80-89
Passenger Heated Seat Module C2...... 8W-80-89
Passenger Heated Seat Module C3...... 8W-80-89
Passenger Power Seat Front Riser Motor . 8W-80-89
Passenger Power Seat Horizontal Motor . . 8W-80-90
Passenger Power Seat Rear Riser Motor . . 8W-80-90
Passenger Power Seat Recliner Motor.... 8W-80-90
Passenger Power Seat Switch.......... 8W-80-90
Passenger Power Window Motor........ 8W-80-90
Passenger Power Window Switch....... 8W-80-91
Passenger Seat Belt Switch........... 8W-80-91
Passenger Seat Belt Tensioner......... 8W-80-91
Power Folding Mirror Switch
(Built-Up-Export)................. 8W-80-91
Power Liftgate Module C1............ 8W-80-92
Power Liftgate Module C2............ 8W-80-92
Power Liftgate Motor................ 8W-80-92
Power Mirror Switch................. 8W-80-93
Power Outlet....................... 8W-80-93
Power Seat Circuit Breaker (30A)....... 8W-80-93
Power Window Circuit Breaker (25A).... 8W-80-93
Power Window Switch (Lowline)........ 8W-80-94
Powertrain Control Module C1 (Gas).... 8W-80-94
Powertrain Control Module C2 (Gas).... 8W-80-95
Radiator Fan No. 1 (Diesel)........... 8W-80-96
Radiator Fan No. 1 (Gas)............. 8W-80-96
Radiator Fan No. 2 (Diesel)........... 8W-80-96
Radiator Fan No. 2 (Gas)............. 8W-80-96
Radiator Fan Relay (Gas)............. 8W-80-96
Radiator Fan Relay No. 1 (Diesel)....... 8W-80-97
Radiator Fan Relay No. 2 (Diesel)....... 8W-80-97
Radiator Fan Relay No. 3 (Diesel)....... 8W-80-97
Radio C1.......................... 8W-80-98
Radio C2.......................... 8W-80-98
Radio Choke....................... 8W-80-99Component Page
Rear A/C-Heater Unit (3 Zone HVAC).... 8W-80-99
Rear Auto Temp Control Switch (ATC) . . . 8W-80-99
Rear Blower Front Control Switch
(3 Zone HVAC)................... 8W-80-99
Rear Blower Motor Power Module
C1(ATC) ....................... 8W-80-100
Rear Blower Motor Power Module C2
(ATC).......................... 8W-80-100
Rear Blower Rear Control Switch C1
(3 Zone HVAC).................. 8W-80-100
Rear Blower Rear Control Switch C2
(3 Zone HVAC).................. 8W-80-100
Rear Dome Lamp (Except Luxury)..... 8W-80-100
Rear Mode Motor (ATC)............. 8W-80-101
Rear Power Outlet................. 8W-80-101
Rear Temperature Motor (ATC)........ 8W-80-101
Rear Washer Pump Motor............ 8W-80-101
Rear Wiper Motor.................. 8W-80-101
Recirculation Door Actuator (ATC)..... 8W-80-102
Recirculation Door Actuator (MTC)..... 8W-80-102
Remote Keyless Entry Antenna
(Japan)........................ 8W-80-102
Remote Keyless Entry Module........ 8W-80-102
Right B-Pillar Switch
(Power Sliding Door).............. 8W-80-102
Right Cinch/Release Motor
(Power Sliding Door).............. 8W-80-103
Right Combination Relay (Trailer Tow) . . 8W-80-103
Right Cylinder Lock Switch.......... 8W-80-103
Right Door Speaker................. 8W-80-103
Right Fog Lamp (Built-Up-Export)..... 8W-80-103
Right Fog Lamp (Except
Built-Up-Export)................. 8W-80-104
Right Front Door Ajar Switch (Base).... 8W-80-104
Right Front Door Lock Motor/Ajar
Switch (Except Base).............. 8W-80-104
Right Front Park/Turn Signal Lamp
(Except Built-Up-Export).......... 8W-80-104
Right Front Wheel Speed Sensor...... 8W-80-104
Right Full Open Switch
(Power Sliding Door).............. 8W-80-105
Right Headlamp (Except
Built-Up-Export)................. 8W-80-105
Right Headlamp Leveling Motor
(Built-Up-Export)................ 8W-80-105
Right High Beam Lamp
(Built-Up-Export)................ 8W-80-105
Right Instrument Panel Speaker...... 8W-80-105
Right Liftgate Flood Lamp........... 8W-80-106
Right Low Beam Lamp
(Built-Up-Export)................ 8W-80-106
Right Mid Reading Lamp
(Premium/Luxury)................ 8W-80-106
Right Park Lamp (Built-Up-Export).... 8W-80-106
Right Power Mirror................. 8W-80-106
8W - 80 - 4 8W-80 CONNECTOR PIN-OUTSRS
ProCarManuals.com

AUTO TEMP CONTROL C1 - WHITE 13 WAY
CAV CIRCUIT FUNCTION
1 C161 20LB/WT DRIVER BLEND DOOR DRIVER (B)
2 C61 20DB/LG DRIVER BLEND DOOR DRIVER (A)
3 C133 20DB/WT PASSENGER BLEND DOOR DRIVER (B)
4 C33 20LB/BR PASSENGER BLEND DOOR DRIVER (A)
5 C132 20DB/YL RECIRCULATION DOOR DRIVER (B)
6 C32 20DB/TN RECIRCULATION DOOR DRIVER (A)
7 C135 20DB/GY MODE DOOR DRIVER (B)
8 C35 20LB/OR MODE DOOR DRIVER (A)
9 C53 20LB REAR MODE DOOR DRIVER (A)
10 C154 20LB/OR REAR MODE DOOR DRIVER (B)
11 C54 20LB/YL REAR BLEND DOOR DRIVER (A)
12 C169 20DB/OR REAR BLEND DOOR DRIVER (B)
13 - -
AUTO TEMP CONTROL C2 - BLACK 13 WAY
CAV CIRCUIT FUNCTION
1 C21 20DB/LG EVAPORATOR TEMPERATURE SENSOR SIGNAL
2 C121 20DB/DG SENSOR GROUND
3 E12 20OR/GY PANEL LAMPS DRIVER
4 A114 20GY/RD FUSED B(+) (I.O.D.)
5 F504 20GY/PK FUSED IGNITION SWITCH OUTPUT (RUN)
6 D25 20WT/VT PCI BUS
7 C56 20DB/LB BLOWER MOTOR CONTROL
8 C59 20DB/LB REAR BLOWER MOTOR CONTROL
9 D22 20WT/TN KDB CLOCK
10 D17 20WT/DG KDB DATA
11 Z24 18BK/OR GROUND
12 C200 20LB/DG TXV SOLENOID FEED
13 C900 18LB/VT WIPER DE-ICER DRIVER
AUTO TEMP CONTROL C3-4WAY
CAV CIRCUIT FUNCTION
1 F600 20LB/PK PROTECTED IGNITION
2 D40 20WT/LB KDB NO. 2 CLOCK
3 C905 20BR/LB SENSOR RETURN
4 D18 20WT/YL KDB NO. 2 DATA
AUTOMATIC DAY/NIGHT MIRROR (PREMIUM/LUXURY) - BLACK 7 WAY
CAV CIRCUIT FUNCTION
1 F503 20BK/PK FUSED IGNITION SWITCH OUTPUT (RUN)
2 Z113 20BK GROUND
3 L1 20BK/WT BACK-UP LAMP FEED
4 P112 20BK/OR (EXCEPT
BUILT-UP-EXPORT)MIRROR B(+)
5 P114 20BK/LB (EXCEPT
BUILT-UP-EXPORT)MIRROR B(-)
6- -
7 L24 20BK/GY (EXCEPT
BUILT-UP-EXPORT)AUTOMATIC HEADLAMP SWITCH SENSOR
RS8W-80 CONNECTOR PIN-OUTS8W-80-9
ProCarManuals.com

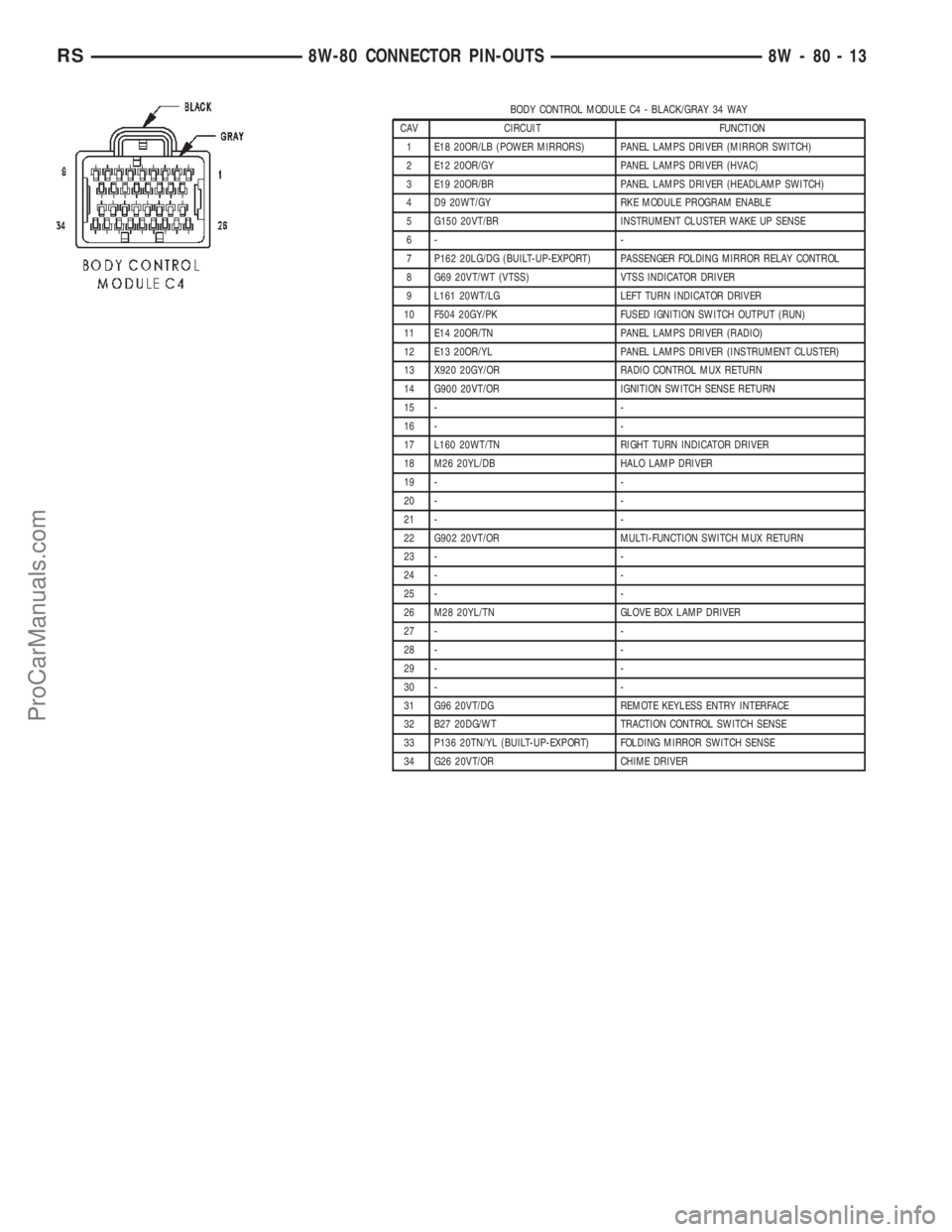

BODY CONTROL MODULE C4 - BLACK/GRAY 34 WAY
CAV CIRCUIT FUNCTION
1 E18 20OR/LB (POWER MIRRORS) PANEL LAMPS DRIVER (MIRROR SWITCH)
2 E12 20OR/GY PANEL LAMPS DRIVER (HVAC)
3 E19 20OR/BR PANEL LAMPS DRIVER (HEADLAMP SWITCH)
4 D9 20WT/GY RKE MODULE PROGRAM ENABLE
5 G150 20VT/BR INSTRUMENT CLUSTER WAKE UP SENSE
6- -
7 P162 20LG/DG (BUILT-UP-EXPORT) PASSENGER FOLDING MIRROR RELAY CONTROL
8 G69 20VT/WT (VTSS) VTSS INDICATOR DRIVER
9 L161 20WT/LG LEFT TURN INDICATOR DRIVER
10 F504 20GY/PK FUSED IGNITION SWITCH OUTPUT (RUN)
11 E14 20OR/TN PANEL LAMPS DRIVER (RADIO)
12 E13 20OR/YL PANEL LAMPS DRIVER (INSTRUMENT CLUSTER)
13 X920 20GY/OR RADIO CONTROL MUX RETURN
14 G900 20VT/OR IGNITION SWITCH SENSE RETURN
15 - -
16 - -
17 L160 20WT/TN RIGHT TURN INDICATOR DRIVER
18 M26 20YL/DB HALO LAMP DRIVER
19 - -
20 - -
21 - -
22 G902 20VT/OR MULTI-FUNCTION SWITCH MUX RETURN
23 - -
24 - -
25 - -
26 M28 20YL/TN GLOVE BOX LAMP DRIVER
27 - -
28 - -
29 - -
30 - -
31 G96 20VT/DG REMOTE KEYLESS ENTRY INTERFACE
32 B27 20DG/WT TRACTION CONTROL SWITCH SENSE
33 P136 20TN/YL (BUILT-UP-EXPORT) FOLDING MIRROR SWITCH SENSE
34 G26 20VT/OR CHIME DRIVER
RS8W-80 CONNECTOR PIN-OUTS8W-80-13
ProCarManuals.com

BODY CONTROL MODULE C5 - BLACK/BLACK 34 WAY
CAV CIRCUIT FUNCTION
1 L91 20WT/DB HAZARD SWITCH SENSE
2- -
3- -
4- -
5- -
6- -
7- -
8- -
9- -
10 G20 20VT/BR IGNITION SWITCH SENSE
11 - -
12 - -
13 - -
14 - -
15 - -
16 G926 20VT/WT REAR WIPER SWITCH MUX RETURN
17 L900 20WT/YL HEADLAMP SWITCH MUX RETURN
18 L307 20WT/BR HEADLAMP SWITCH MUX
19 - -
20 - -
21 - -
22 - -
23 - -
24 - -
25 L36 20WT/DB (BUILT-UP-EXPORT) REAR FOG LAMP INDICATOR DRIVER
26 X20 20GY/WT RADIO CONTROL MUX
27 G194 20VT/LG HIGH BEAM/FRONT WASHER SWITCH MUX
28 W26 20BR/DB REAR WIPER SWITCH MUX
29 W52 20BR/YL FRONT WIPER SWITCH MUX
30 E2 20OR/BR PANEL LAMPS DIMMER SIGNAL
31 L305 20WT/LB TURN SIGNAL SWITCH MUX
32 - -
33 - -
34 L39 20WT/OR (HIGH LINE) FRONT FOG LAMP INDICATOR DRIVER
BOOST PRESSURE SENSOR (DIESEL) - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 K121 20DB BOOST PRESSURE SENSOR GROUND
2 K21 20DB/LG INTAKE AIR TEMPERATURE SENSOR SIGNAL
3 F851 18LB/PK SENSOR REFERENCE VOLTAGE B
4 K37 20DB/YL BOOST PRESSURE SENSOR SIGNAL
BRAKE FLUID LEVEL SWITCH - BLACK 2 WAY
CAV CIRCUIT FUNCTION
A B20 20DG/OR BRAKE FLUID LEVEL SWITCH SENSE
B Z420 20BK/OR GROUND
8W - 80 - 14 8W-80 CONNECTOR PIN-OUTSRS
ProCarManuals.com

HEADLAMP SWITCH - BLACK 13 WAY
CAV CIRCUIT FUNCTION
1 Z403 20BK/YL (BUILT-UP-EXPORT) GROUND
2 L78 20WT/OR (BUILT-UP-EXPORT) FUSED PARK LAMP RELAY OUTPUT
3- -
4 Z407 18BK/OR GROUND
5 L36 20WT/DB (BUILT-UP-EXPORT) REAR FOG LAMP INDICATOR DRIVER
6 L900 20WT/YL HEADLAMP SWITCH MUX RETURN
7 L13 20WT/YL (BUILT-UP-EXPORT) HEADLAMP ADJUST SIGNAL
8 E19 20OR/BR PANEL LAMPS DRIVER (HEADLAMP SWITCH)
9- -
10 L39 20WT/OR (HIGH LINE) FRONT FOG LAMP INDICATOR DRIVER
11 L307 20WT/BR HEADLAMP SWITCH MUX
12 E2 20OR/BR PANEL LAMPS DIMMER SIGNAL
13 - -
HEADLAMP WASHER PUMP MOTOR (BUILT-UP-EXPORT) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 V53 12BR/OR HEADLAMP WASHER RELAY OUTPUT
2 Z243 12BK/OR GROUND
HIGH NOTE HORN - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Z299 18BK/OR GROUND
2 X2 18DG/OR HORN RELAY OUTPUT
HOOD AJAR SWITCH - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 G70 20VT/LB HOOD AJAR SWITCH SENSE
2 Z470 20BK/LB GROUND
IDLE AIR CONTROL MOTOR (2.4L) - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 K59 18BR/DG IDLE AIR CONTROL NO. 4 DRIVER
2 K40 18BR/LG IDLE AIR CONTROL NO. 3 DRIVER
3 K60 18VT/LG IDLE AIR CONTROL NO. 2 DRIVER
4 K39 18VT/DG IDLE AIR CONTROL NO. 1 DRIVER
8W - 80 - 64 8W-80 CONNECTOR PIN-OUTSRS
ProCarManuals.com

INTEGRATED POWER MODULE C1 - LT. GREEN/RED 20 WAY
CAV CIRCUIT FUNCTION
1 F301 18VT/PK FUSED ACCESSORY RELAY OUTPUT
2- -
3- -
4 L43 18WT/DB LEFT LOW BEAM DRIVER
5 Z344 16BK/TN GROUND
6 L34 16WT/GY RIGHT HIGH BEAM DRIVER
7 W1 18BR/TN WASHER FLUID LEVEL SWITCH SENSE
8 L33 18WT/LG LEFT HIGH BEAM DRIVER
9 G31 18VT/LG (EXCEPT BASE) AMBIENT TEMPERATURE SENSOR SIGNAL
10 L44 16WT/TN RIGHT LOW BEAM DRIVER
11 F300 18OR/PK FUSED ACCESSORY RELAY OUTPUT
12 - -
13 Z343 18BK/LG GROUND
14 - -
15 L78 18WT/OR FUSED PARK LAMP RELAY OUTPUT (RIGHT)
16 L77 18WT/BR FUSED PARK LAMP RELAY OUTPUT (LEFT)
17 - -
18 G931 18VT/BR (EXCEPT BASE) AMBIENT TEMPERATURE SENSOR RETURN
19 W20 18BR/YL REAR WASHER PUMP MOTOR CONTROL
20 W10 18BR FRONT WASHER PUMP MOTOR CONTROL
INTEGRATED POWER MODULE C2 - GREEN/BLUE 10 WAY
CAV CIRCUIT FUNCTION
1 N173 16DB/VT (GAS) RADIATOR FAN RELAY CONTROL
2 V53 12BR/OR (BUILT-UP-EXPORT) HEADLAMP WASHER RELAY OUTPUT
3 L60 18WT/TN (EXCEPT
BUILT-UP-EXPORT)RIGHT FRONT TURN SIGNAL DRIVER
3 L60 16WT/TN (BUILT-UP-EXPORT) RIGHT FRONT TURN SIGNAL DRIVER
4 L13 18WT/YL (BUILT-UP-EXPORT) HEADLAMP ADJUST SIGNAL
5 X2 18DG/OR HORN RELAY OUTPUT
6 L90 18WT/OR (FOG LAMPS) FRONT FOG LAMP RELAY OUTPUT
7 L61 16WT/LG LEFT FRONT TURN SIGNAL DRIVER
8- -
9 A112 12OR/RD FUSED B(+)
10 L89 18WT/YL (FOG LAMPS) FRONT FOG LAMP RELAY OUTPUT
RS8W-80 CONNECTOR PIN-OUTS8W-80-67
ProCarManuals.com

INTEGRATED POWER MODULE C7 - BLACK/RED 20 WAY
CAV CIRCUIT FUNCTION
1 C16 20DB/GY (EXCEPT
BUILT-UP-EXPORT)FUSED REAR WINDOW DEFOGGER RELAY OUTPUT
1 C16 18DB/GY (BUILT-UP-EXPORT) FUSED REAR WINDOW DEFOGGER RELAY OUTPUT
2 T141 20YL/OR (BUILT-UP-EXPORT) FUSED IGNITION SWITCH OUTPUT (START)
2 T751 20YL (EXCEPT
BUILT-UP-EXPORT)FUSED IGNITION SWITCH OUTPUT (START)
3 D25 20WT/VT PCI BUS
4 L13 20WT/YL (BUILT-UP-EXPORT) HEADLAMP ADJUST SIGNAL
5 K32 18DB/YL (GAS) BRAKE TRANSMISSION SHIFT INTERLOCK SOLENOID
CONTROL
6- -
7 W7 20BR/GY FRONT WIPER PARK SWITCH SENSE
8 B20 20DG/OR BRAKE FLUID LEVEL SWITCH SENSE
9 F201 18PK/OR FCM OUTPUT (ORC RUN-START DRIVER)
10 F214 18PK/LG FCM OUTPUT (SIACM RUN-START DRIVER)
11 A106 20LB/RD FUSED B(+)
12 - -
13 F2 18PK/WT (GAS) FCM OUTPUT (UNLOCK-RUN-START)
14 - -
15 A114 16GY/RD FUSED B(+) (I.O.D.)
16 D23 20WT/BR FLASH PROGRAM ENABLE
17 L50 18WT/TN BRAKE LAMP SWITCH OUTPUT
18 X1 16DG/BR (PREMIUM 8 SPEAKER) NAME BRAND SPEAKER RELAY OUTPUT
19 X3 20DG/VT HORN SWITCH SENSE
20 F100 18PK/VT FCM OUTPUT (ORC RUN ONLY DRIVER)
INTEGRATED POWER MODULE C8 - ORANGE 10 WAY
CAV CIRCUIT FUNCTION
1 W3 12BR/WT FRONT WIPER HIGH/LOW RELAY LOW SPEED
OUTPUT
2 N1 16DB/OR (DIESEL) FUEL HEATER RELAY OUTPUT
2 N1 16DB/OR (GAS) FUEL PUMP RELAY OUTPUT
3 A108 18LG/RD (BUILT-UP-EXPORT) FUSED B(+)
3 A108 18LG/RD FUSED B(+)
4 A103 18GY/RD FUSED B(+)
5 L77 18WT/BR FUSED PARK LAMP RELAY OUTPUT (LEFT)
6 W4 12BR/OR FRONT WIPER HIGH/LOW RELAY HIGH SPEED
OUTPUT
7 C51 12LB/BR (AUTOMATIC
TEMPERATURE CONTROL) (3 ZONE
HVAC)FUSED REAR BLOWER MOTOR RELAY OUTPUT
8- -
9 L78 18WT/OR FUSED PARK LAMP RELAY OUTPUT (RIGHT)
10 L60 18WT/TN RIGHT FRONT TURN SIGNAL DRIVER
8W - 80 - 70 8W-80 CONNECTOR PIN-OUTSRS
ProCarManuals.com
