Component Page
Mid Reading Lamps.................... 8W-44
Mode Door Actuator.................... 8W-42
Multi- Function Switch........... 8W-50, 52, 53
Output Speed Sensor................... 8W-31
Overhead Console..................... 8W-49
Oxygen Sensor 1/1 Upstream............. 8W-30
Oxygen Sensor 1/2 Downstream.......... 8W-30
Park Lamp Relay...................... 8W-10
Park Lamps.......................... 8W-50
Park/Turn Signal Lamps................ 8W-50
Parking Brake Switch.................. 8W-40
Passenger Airbag...................... 8W-43
Positive Temperature Coefficients......... 8W-10
Power Liftgate Module.................. 8W-61
Power Liftgate Motor................... 8W-61
Power Mirror Switch................... 8W-62
Power Mirrors........................ 8W-62
Power Outlet......................... 8W-41
Power Seat Circuit Breaker.............. 8W-10
Power Seat Front Riser Motors........... 8W-63
Power Seat Horizontal Motors............ 8W-63
Power Seat Horizontal Position Sensors.... 8W-63
Power Seat Rear Riser Motors............ 8W-63
Power Seat Rear Riser Position Sensors.... 8W-63
Power Seat Recliner Motors.............. 8W-63
Power Seat Switches................... 8W-63
Power Window Circuit Breaker........... 8W-10
Power Window Motors.................. 8W-60
Power Window Switches................ 8W-60
Powertrain Control Module.............. 8W-30
Radiator Fan Relays................... 8W-42
Radiator Fans........................ 8W-42
Radio Choke.......................... 8W-47
Radio............................... 8W-47
Reading Lamps....................... 8W-44
Rear A/C-Heater Unit.................. 8W-42
Rear Auto Temp Control Switch........... 8W-42
Rear Blower Front Control Switch......... 8W-42
Rear Blower Motor Power Module......... 8W-42
Rear Blower Motor Relay................ 8W-42
Rear Blower Motor..................... 8W-42
Rear Blower Rear Control Switch......... 8W-42
Rear Intrusion Sensor.................. 8W-39Component Page
Rear Lamp Assemblies.................. 8W-51
Rear Mode Motor...................... 8W-42
Rear Power Outlet..................... 8W-41
Rear Temperature Motor................ 8W-42
Rear Washer Pump Motor............... 8W-53
Rear Window Defogger Grid............. 8W-48
Recirculation Door Actuator.............. 8W-42
Remote Keyless Entry Antenna........... 8W-61
Remote Radio Switches................. 8W-47
Repeater Lamps....................... 8W-52
Seat Airbag.......................... 8W-43
Seat Belt Tensioners................... 8W-43
Sentry Key Immobilizer Module.......... 8W-39
Side Impact Airbag Control Modules....... 8W-43
Siren............................... 8W-39
Sliding Door Control Modules............ 8W-61
Sliding Door Latch Sensing Switches....... 8W-61
Sliding Door Lock Motor/Ajar Switches..... 8W-61
Sliding Door Lock Motors............... 8W-61
Sliding Door Motors.................... 8W-61
Solenoid/Pressure Switch Assy............ 8W-31
Speakers............................ 8W-47
Speed Control Servo................... 8W-33
Speed Control Switches................. 8W-33
Splice Information..................... 8W-70
Starter Motor Relay.................... 8W-21
Starter Motor......................... 8W-21
Stop/Turn Signal Relays................ 8W-54
Thatcham Alarm Module................ 8W-39
Throttle Position Sensor................ 8W-30
Torque Converter Clutch Solenoid......... 8W-31
Traction Control Switch................. 8W-35
Trailer Tow Connector.................. 8W-54
Transmission Control Module............ 8W-31
Transmission Range Sensor.............. 8W-31
Turn Signal Lamps.................... 8W-52
TXV Solenoid......................... 8W-42
Vehicle Speed Sensor................... 8W-30
Vent Motors.......................... 8W-60
Visor/Vanity Lamps.................... 8W-44
Washer Fluid Level Switch.............. 8W-53
Water In Fuel Sensor................... 8W-30
Wheel Speed Sensors................... 8W-35
8W - 02 - 2 8W-02 COMPONENT INDEXRS
ProCarManuals.com
Page 679 of 2399
Component Page
Headlamp Washer Pump Motor....... 8W-10-26, 52
Headlamp Washer Relay......... 8W-10-26, 52, 63
High Note Horn..................... 8W-10-36
Horn Relay................... 8W-10-17, 36, 59
Ignition Coil........................ 8W-10-42
Ignition Switch . . 8W-10-18, 25, 37, 45, 46, 48, 53, 54,
60
Instrument Cluster................ 8W-10-25, 51
Integrated Power Module . . . 8W-10-3, 4, 5, 13, 15, 16,
17, 18, 19, 20, 21, 22, 23,
24, 25, 26, 27, 28, 29, 30,
31, 32, 33, 36, 37, 38, 39,
40, 41, 42, 43, 44, 45, 46,
47, 48, 49, 51, 52, 53, 54,
55, 56, 57, 58, 59, 60, 61,
62, 63, 64, 65, 66, 68
Leak Detection Pump................. 8W-10-46
Left B-Pillar Switch.................. 8W-10-33
Left Combination Relay............... 8W-10-67
Left Fog Lamp................... 8W-10-15, 27
Left Front Park/Turn Signal
Lamp................... 8W-10-15, 28, 56, 65
Left Headlamp...................... 8W-10-57
Left Headlamp Leveling Motor..... 8W-10-29, 62, 65
Left High Beam Lamp................ 8W-10-58
Left Low Beam Lamp................. 8W-10-58
Left Park Lamp................... 8W-10-29, 65
Left Power Mirror.................... 8W-10-39
Left Rear Lamp Assembly . . . 8W-10-28, 29, 65, 66, 67
Left Repeater Lamp.................. 8W-10-51
Left Side Impact Airbag Control Module . . . 8W-10-62
Left Sliding Door Control Module........ 8W-10-52
Left Stop/Turn Signal Relay............ 8W-10-67
Left Turn Signal Lamp................ 8W-10-56
License Lamp................. 8W-10-28, 29, 65
Lift Pump Motor.................. 8W-10-23, 43
Lift Pump Relay.................. 8W-10-23, 43
Low Note Horn...................... 8W-10-36
Mass Air Flow Sensor................. 8W-10-44
Memory Seat/Mirror Module............ 8W-10-49
Message Center..................... 8W-10-51
Name Brand Speaker Relay....... 8W-10-20, 39, 59
Overhead Console.................... 8W-10-40
Oxygen Sensor 1/1 Upstream........... 8W-10-42
Oxygen Sensor 1/2 Downstream......... 8W-10-42
Park Lamp Relay............ 8W-10-15, 28, 29, 59
Park/Neutral Position Switch........... 8W-10-65
Passenger Door Lock Switch......... 8W-10-31, 33
Passenger Folding Mirror Relay . 8W-10-22, 24, 45, 47
Passenger Heated Seat Module.......... 8W-10-50
Passenger Power Seat Switch........... 8W-10-50
Passenger Power Window Switch........ 8W-10-31
Power Liftgate Module............. 8W-10-26, 52
Power Mirror Switch......... 8W-10-22, 24, 46, 47
Power Outlet....................... 8W-10-36
Component Page
Power Seat Circuit Breaker.......... 8W-10-25, 49
Power Window Circuit Breaker....... 8W-10-16, 31
Power Window Switch................. 8W-10-34
Powertrain Control
Module.... 8W-10-18, 21, 22, 37, 41, 42, 45, 46, 55
PTC4 .......................... 8W-10-20, 39
PTC7 .................... 8W-10-16, 17, 18, 36
Radiator Fan Relay............. 8W-10-26, 51, 55
Radiator Fan Relay No. 1........... 8W-10-13, 44
Radiator Fan Relay No. 2......... 8W-10-26, 44, 51
Radiator Fan Relay No. 3.............. 8W-10-44
Radio.......................... 8W-10-32, 40
Radio Choke..................... 8W-10-20, 39
Rear A/C-Heater Unit.............. 8W-10-19, 38
Rear Blower Motor Power Module..... 8W-10-19, 38
Rear Blower Motor Relay...... 8W-10-19, 20, 38, 63
Rear Power Outlet.............. 8W-10-16, 31, 32
Rear Washer Pump Motor........ 8W-10-16, 31, 68
Rear Window Defogger Grid......... 8W-10-20, 39
Rear Wiper Motor.................... 8W-10-33
Remote Keyless Entry Module........... 8W-10-40
Right B-Pillar Switch................. 8W-10-33
Right Combination Relay.............. 8W-10-67
Right Fog Lamp.................. 8W-10-15, 27
Right Front Park/Turn Signal
Lamp................... 8W-10-15, 28, 56, 60
Right Headlamp..................... 8W-10-57
Right Headlamp Leveling Motor.... 8W-10-29, 60, 62
Right High Beam Lamp............... 8W-10-58
Right Low Beam Lamp................ 8W-10-58
Right Park Lamp................. 8W-10-29, 60
Right Power Mirror................... 8W-10-39
Right Rear Lamp Assembly.... 8W-10-15, 28, 29, 66
Right Repeater Lamp................. 8W-10-51
Right Side Impact Airbag Control Module . . 8W-10-62
Right Sliding Door Control Module....... 8W-10-52
Right Stop/Turn Signal Relay........... 8W-10-67
Right Turn Signal Lamp............... 8W-10-56
Sentry Key Immobilizer
Module............... 8W-10-40, 46, 48, 53, 54
Solenoid/Pressure Switch Assy.......... 8W-10-41
Starter Motor............... 8W-10-13, 14, 18, 37
Starter Motor Relay.......... 8W-10-18, 37, 53, 54
Thatcham Alarm Module...... 8W-10-46, 48, 54, 68
Torque Converter Clutch Solenoid........ 8W-10-46
Trailer Tow Connector.............. 8W-10-28, 65
Transmission Control
Module............ 8W-10-18, 21, 37, 41, 61, 62
Transmission Control Relay.......... 8W-10-21, 41
Transmission Range Sensor............. 8W-10-65
TXV Solenoid....................... 8W-10-38
Vehicle Speed Sensor................. 8W-10-43
Washer Fluid Level Switch............. 8W-10-60
Wiper Module................. 8W-10-16, 30, 59
8W - 10 - 2 8W-10 POWER DISTRIBUTIONRS
ProCarManuals.com
Page 786 of 2399
8W-30 FUEL/IGNITION SYSTEM
Component Page
A/C Compressor Clutch............... 8W-30-18
A/C Compressor Clutch Relay........ 8W-30-3, 18
A/C Pressure Sensor............ 8W-30-9, 15, 25
Accelerator Pedal Position Sensor....... 8W-30-32
Adjustable Pedals Module............. 8W-30-17
Adjustable Pedals Switch............. 8W-30-17
Auto Shut Down Relay.... 8W-30-2, 5, 7, 8, 12, 13
Battery...................... 8W-30-2, 18, 26
Battery Temperature Sensor........... 8W-30-25
Body Control Module.............. 8W-30-4, 19
Boost Pressure Sensor................ 8W-30-25
Brake Lamp Switch............. 8W-30-6, 21, 31
Cabin Heater Assist................. 8W-30-22
Camshaft Position Sensor........ 8W-30-7, 13, 24
Clockspring...................... 8W-30-3, 23
Clutch Pedal Upstop Switch........... 8W-30-30
Crank Case Ventilation Heater......... 8W-30-19
Crankshaft Position Sensor....... 8W-30-7, 13, 24
Data Link Connector............... 8W-30-4, 22
Diagnostic Junction Port......... 8W-30-4, 23, 17
Dosing Pump....................... 8W-30-22
ECM/PCM Relay........ 8W-30-18, 20, 24, 26, 28
EGR Solenoid.................... 8W-30-5, 28
Engine Control Module . . . 8W-30-18, 19, 20, 21, 22,
23, 24, 25, 26, 27, 28, 29, 30, 31, 32
Engine Coolant Temp Sensor...... 8W-30-9, 15, 25
Engine Oil Pressure Sensor........... 8W-30-21
Engine Oil Pressure Switch............ 8W-30-6
Engine Oil Temperature Sensor........ 8W-30-24
Evap/Purge Solenoid.................. 8W-30-3
Front Control Module...... 8W-30-3, 4, 17, 22, 30
Fuel Heater........................ 8W-30-29
Fuel Heater Relay................ 8W-30-19, 29
Fuel Injector No. 1............. 8W-30-8, 12, 27
Fuel Injector No. 2............. 8W-30-8, 12, 27
Fuel Injector No. 3............. 8W-30-8, 12, 27
Fuel Injector No. 4............. 8W-30-8, 12, 27
Fuel Injector No. 5.................. 8W-30-12
Fuel Injector No. 6.................. 8W-30-12
Fuel Pressure Sensor................ 8W-30-31
Fuel Pressure Solenoid............... 8W-30-20
Fuel Pump Module................ 8W-30-4, 19
Fuel Pump Relay.................... 8W-30-4
Fuse 14........................... 8W-30-17
Fuse 15........................ 8W-30-22, 29
Fuse 16 . . 8W-30-2, 5, 7, 8, 12, 13, 18, 20, 24, 26, 28
Fuse 17.................... 8W-30-2, 4, 19, 29Component Page
Fuse 18........................ 8W-30-18, 17
Fuse 26........................... 8W-30-31
Fuselink.......................... 8W-30-26
G100.............................. 8W-30-2
G101........................... 8W-30-2, 18
G103................... 8W-30-5, 6, 18, 19, 22
G300..................... 8W-30-6, 17, 21, 30
G302........................ 8W-30-4, 19, 29
Generator....................... 8W-30-2, 19
Glow Plug No. 1.................... 8W-30-26
Glow Plug No. 2.................... 8W-30-26
Glow Plug No. 3.................... 8W-30-26
Glow Plug No. 4.................... 8W-30-26
Glow Plug Relay.................... 8W-30-26
Idle Air Control Motor............. 8W-30-11, 14
Ignition Coil..................... 8W-30-7, 13
Ignition Switch..................... 8W-30-16
Inlet Air Temperature Sensor....... 8W-30-10, 14
Integrated Power
Module.......... 8W-30-2, 3, 4, 5, 7, 8, 12, 13,
18, 19, 20, 22, 24, 26, 28, 29, 30, 31
Knock Sensor.................... 8W-30-9, 15
Leak Detection Pump................ 8W-30-16
Left Speed Control Switch........... 8W-30-3, 23
Lift Pump Motor.................... 8W-30-29
Lift Pump Relay.................... 8W-30-29
Manifold Absolute Pressure Sensor.... 8W-30-9, 15
Mass Air Flow Sensor................ 8W-30-20
Oxygen Sensor 1/1 Upstream........... 8W-30-5
Oxygen Sensor 1/2 Downstream......... 8W-30-5
Park/Neutral Position Switch.......... 8W-30-11
Power Mirror Switch................. 8W-30-17
Powertrain Control Module . 8W-30-2, 3, 4, 5, 6, 10,
11, 7, 8, 9, 12, 13, 14, 15, 16
Radiator Fan Relay................... 8W-30-3
Radiator Fan Relay No. 1............. 8W-30-31
Radiator Fan Relay No. 2............. 8W-30-31
Radiator Fan Relay No. 3............. 8W-30-31
Right Speed Control Switch......... 8W-30-3, 23
Speed Control Servo.................. 8W-30-6
Starter Motor Relay............... 8W-30-4, 19
Throttle Position Sensor........... 8W-30-10, 14
Torque Converter Clutch Solenoid....... 8W-30-16
Transmission Control Module . . 8W-30-7, 10, 11, 14
Transmission Range Sensor......... 8W-30-11, 14
Vehicle Speed Sensor............ 8W-30-7, 11, 28
Water In Fuel Sensor................ 8W-30-30
RS8W-30 FUEL/IGNITION SYSTEM8W-30-1
ProCarManuals.com
Page 1076 of 2399

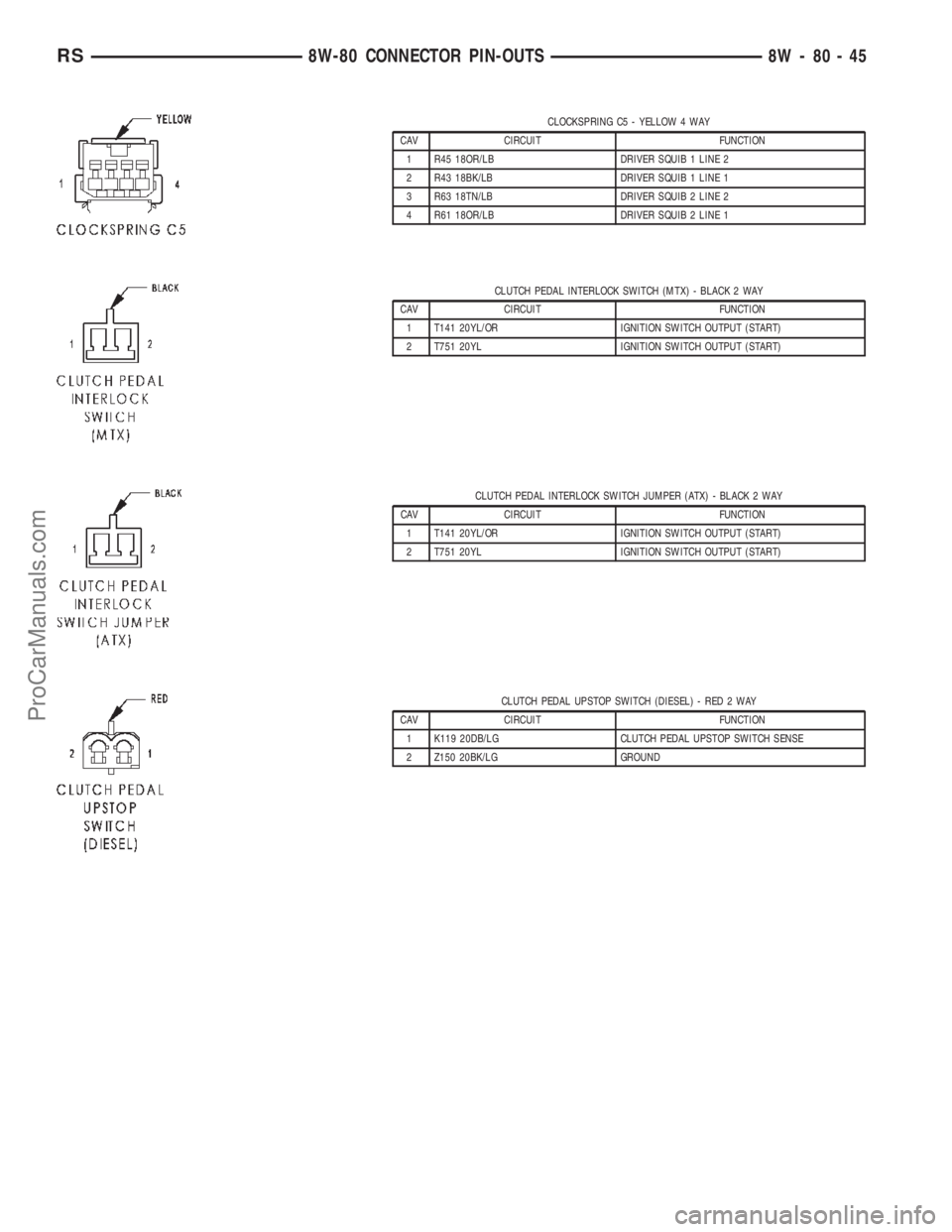

CLOCKSPRING C5 - YELLOW 4 WAY
CAV CIRCUIT FUNCTION
1 R45 18OR/LB DRIVER SQUIB 1 LINE 2
2 R43 18BK/LB DRIVER SQUIB 1 LINE 1
3 R63 18TN/LB DRIVER SQUIB 2 LINE 2
4 R61 18OR/LB DRIVER SQUIB 2 LINE 1
CLUTCH PEDAL INTERLOCK SWITCH (MTX) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 T141 20YL/OR IGNITION SWITCH OUTPUT (START)
2 T751 20YL IGNITION SWITCH OUTPUT (START)
CLUTCH PEDAL INTERLOCK SWITCH JUMPER (ATX) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 T141 20YL/OR IGNITION SWITCH OUTPUT (START)
2 T751 20YL IGNITION SWITCH OUTPUT (START)
CLUTCH PEDAL UPSTOP SWITCH (DIESEL) - RED 2 WAY
CAV CIRCUIT FUNCTION
1 K119 20DB/LG CLUTCH PEDAL UPSTOP SWITCH SENSE
2 Z150 20BK/LG GROUND
RS8W-80 CONNECTOR PIN-OUTS8W-80-45
ProCarManuals.com
Page 1088 of 2399

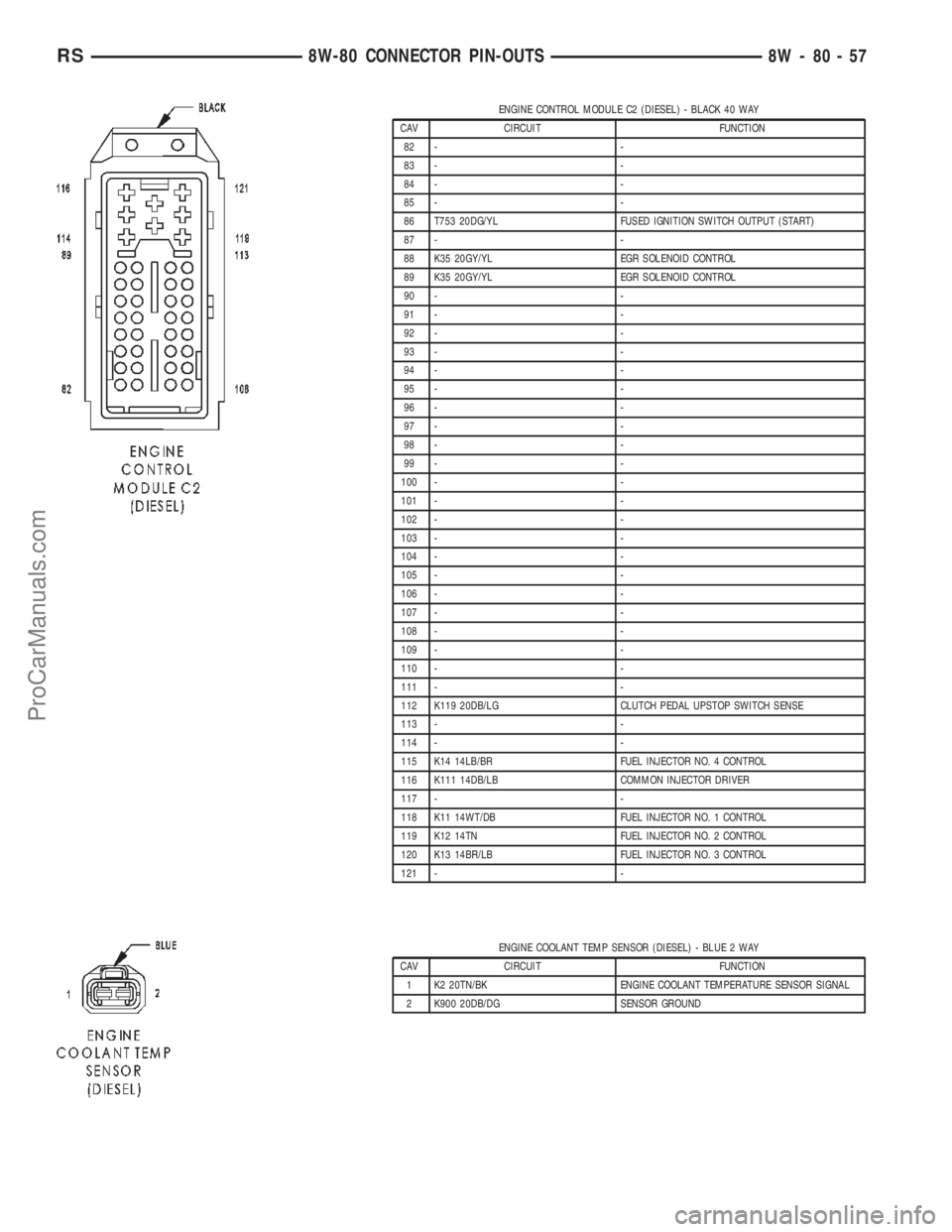

ENGINE CONTROL MODULE C2 (DIESEL) - BLACK 40 WAY
CAV CIRCUIT FUNCTION
82 - -
83 - -
84 - -
85 - -
86 T753 20DG/YL FUSED IGNITION SWITCH OUTPUT (START)
87 - -
88 K35 20GY/YL EGR SOLENOID CONTROL
89 K35 20GY/YL EGR SOLENOID CONTROL
90 - -
91 - -
92 - -
93 - -
94 - -
95 - -
96 - -
97 - -
98 - -
99 - -
100 - -
101 - -
102 - -
103 - -
104 - -
105 - -
106 - -
107 - -
108 - -
109 - -
110 - -
111 - -
112 K119 20DB/LG CLUTCH PEDAL UPSTOP SWITCH SENSE
113 - -
114 - -
115 K14 14LB/BR FUEL INJECTOR NO. 4 CONTROL
116 K111 14DB/LB COMMON INJECTOR DRIVER
117 - -
118 K11 14WT/DB FUEL INJECTOR NO. 1 CONTROL
119 K12 14TN FUEL INJECTOR NO. 2 CONTROL
120 K13 14BR/LB FUEL INJECTOR NO. 3 CONTROL
121 - -
ENGINE COOLANT TEMP SENSOR (DIESEL) - BLUE 2 WAY
CAV CIRCUIT FUNCTION
1 K2 20TN/BK ENGINE COOLANT TEMPERATURE SENSOR SIGNAL
2 K900 20DB/DG SENSOR GROUND
RS8W-80 CONNECTOR PIN-OUTS8W-80-57
ProCarManuals.com
Page 1144 of 2399
TORQUE CONVERTER CLUTCH SOLENOID (ATX) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1- -
2 F202 18PK/GY FUSED IGNITION SWITCH OUTPUT (RUN-START)
3 K54 18DB/WT TORQUE CONVERTER CLUTCH SOLENOID CONTROL
TRACTION CONTROL SWITCH - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 B27 20DG/WT TRACTION CONTROL SWITCH SENSE
2 Z427 20BK/WT GROUND
TRAILER TOW CONNECTOR (EXCEPT BUILT-UP-EXPORT)-4WAY
CAV CIRCUIT FUNCTION
1 L74 18LG RIGHT STOP SIGNAL
2 L77 18WT/BR FUSED PARK LAMP RELAY OUTPUT (LEFT)
3 Z1 18BK/DG GROUND
4 L73 18YL LEFT STOP SIGNAL
RS8W-80 CONNECTOR PIN-OUTS8W - 80 - 113
ProCarManuals.com
Page 1209 of 2399
CONDITION POSSIBLE CAUSES CORRECTION
OIL CONSUMPTION OR SPARK
PLUGS FOULED1. PCV system malfunction. 1. Check system and repair as
necessary. (Refer to 25 -
EMISSIONS CONTROL/
EVAPORATIVE EMISSIONS/PCV
VALVE - DIAGNOSIS AND
TESTING)
2. Worn, scuffed or broken rings. 2. Hone cylinder bores. Install new
rings.
3. Carbon in oil ring slots. 3. Install new rings.
4. Rings fitted too tightly in grooves. 4. Remove rings and check
grooves. If groove is not proper
width, replace piston.
5. Worn valve guide(s). 5. Replace cylinder head assembly.
6. Valve stem seal(s) worn or
damaged.6. Replace seal(s).
DIAGNOSIS AND TESTING - ENGINE OIL LEAK
INSPECTION
Begin with a thorough visual inspection of the
engine, particularly at the area of the suspected leak.
If an oil leak source is not readily identifiable, the
following steps should be followed:
(1) Do not clean or degrease the engine at this
time because some solvents may cause rubber to
swell, temporarily stopping the leak.
(2) Add an oil soluble dye (use as recommended by
manufacturer). Start the engine and let idle for
approximately 15 minutes. Check the oil dipstick to
make sure the dye is thoroughly mixed as indicated
with a bright yellow color under a black light.
(3) Using a black light, inspect the entire engine
for fluorescent dye, particularly at the suspected area
of oil leak. If the oil leak is found and identified,
repair as necessary.
(4) If dye is not observed, drive the vehicle at var-
ious speeds for approximately 24 km (15 miles), and
repeat inspection.
(5)If the oil leak source is not positively
identified at this time, proceed with the air leak
detection test method as follows:
²Disconnect the fresh air hose (make-up air) at
the cylinder head cover and plug or cap the nipple on
the cover.
²Remove the PCV valve hose from the cylinder
head cover. Cap or plug the PCV valve nipple on the
cover.
²Attach an air hose with pressure gauge and reg-
ulator to the dipstick tube.
CAUTION: Do not subject the engine assembly to
more than 20.6 kpa (3 PSI) of test pressure.²Gradually apply air pressure from 1 psi to 2.5
psi maximum while applying soapy water at the sus-
pected source. Adjust the regulator to the suitable
test pressure that provides the best bubbles which
will pinpoint the leak source. If the oil leak is
detected and identified, repair per service manual
procedures.
²If the leakage occurs at the crankshaft rear oil
seal area, refer to the section, Inspection for Rear
Seal Area Leak.
(6) If no leaks are detected, turn off the air supply.
Remove the air hose, all plugs, and caps. Install the
PCV valve and fresh air hose (make-up air). Proceed
to next step.
(7) Clean the oil off the suspect oil leak area using
a suitable solvent. Drive the vehicle at various
speeds approximately 24 km (15 miles). Inspect the
engine for signs of an oil leak by using a black light.
NOTE: If oil leakage is observed at the dipstick tube
to block location; remove the tube, clean and reseal
using MoparTStud & Bearing Mount (press fit tube
applications only), and for O-ring style tubes,
remove tube and replace the O-ring seal.
INSPECTION FOR REAR SEAL AREA LEAKS
Since it is sometimes difficult to determine the
source of an oil leak in the rear seal area of the
engine, a more involved inspection is necessary. The
following steps should be followed to help pinpoint
the source of the leak.
If the leakage occurs at the crankshaft rear oil seal
area:
(1) Disconnect the battery.
(2) Raise the vehicle.
9 - 8 ENGINE 2.4LRS
ENGINE 2.4L (Continued)
ProCarManuals.com
Page 1255 of 2399

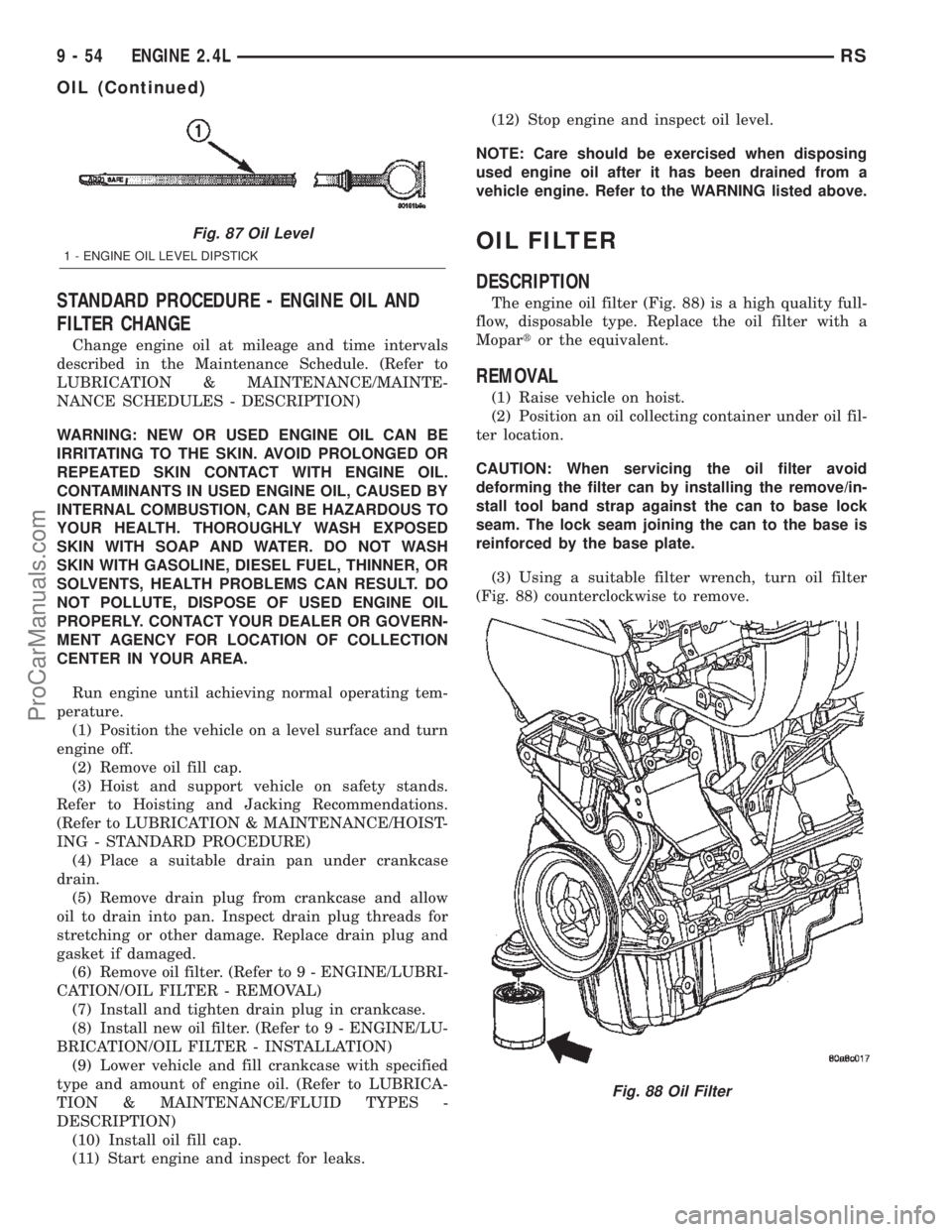

STANDARD PROCEDURE - ENGINE OIL AND
FILTER CHANGE
Change engine oil at mileage and time intervals
described in the Maintenance Schedule. (Refer to
LUBRICATION & MAINTENANCE/MAINTE-
NANCE SCHEDULES - DESCRIPTION)
WARNING: NEW OR USED ENGINE OIL CAN BE
IRRITATING TO THE SKIN. AVOID PROLONGED OR
REPEATED SKIN CONTACT WITH ENGINE OIL.
CONTAMINANTS IN USED ENGINE OIL, CAUSED BY
INTERNAL COMBUSTION, CAN BE HAZARDOUS TO
YOUR HEALTH. THOROUGHLY WASH EXPOSED
SKIN WITH SOAP AND WATER. DO NOT WASH
SKIN WITH GASOLINE, DIESEL FUEL, THINNER, OR
SOLVENTS, HEALTH PROBLEMS CAN RESULT. DO
NOT POLLUTE, DISPOSE OF USED ENGINE OIL
PROPERLY. CONTACT YOUR DEALER OR GOVERN-
MENT AGENCY FOR LOCATION OF COLLECTION
CENTER IN YOUR AREA.
Run engine until achieving normal operating tem-
perature.
(1) Position the vehicle on a level surface and turn
engine off.
(2) Remove oil fill cap.
(3) Hoist and support vehicle on safety stands.
Refer to Hoisting and Jacking Recommendations.
(Refer to LUBRICATION & MAINTENANCE/HOIST-
ING - STANDARD PROCEDURE)
(4) Place a suitable drain pan under crankcase
drain.
(5) Remove drain plug from crankcase and allow
oil to drain into pan. Inspect drain plug threads for
stretching or other damage. Replace drain plug and
gasket if damaged.
(6) Remove oil filter. (Refer to 9 - ENGINE/LUBRI-
CATION/OIL FILTER - REMOVAL)
(7) Install and tighten drain plug in crankcase.
(8) Install new oil filter. (Refer to 9 - ENGINE/LU-
BRICATION/OIL FILTER - INSTALLATION)
(9) Lower vehicle and fill crankcase with specified
type and amount of engine oil. (Refer to LUBRICA-
TION & MAINTENANCE/FLUID TYPES -
DESCRIPTION)
(10) Install oil fill cap.
(11) Start engine and inspect for leaks.(12) Stop engine and inspect oil level.
NOTE: Care should be exercised when disposing
used engine oil after it has been drained from a
vehicle engine. Refer to the WARNING listed above.
OIL FILTER
DESCRIPTION
The engine oil filter (Fig. 88) is a high quality full-
flow, disposable type. Replace the oil filter with a
Mopartor the equivalent.
REMOVAL
(1) Raise vehicle on hoist.
(2) Position an oil collecting container under oil fil-
ter location.
CAUTION: When servicing the oil filter avoid
deforming the filter can by installing the remove/in-
stall tool band strap against the can to base lock
seam. The lock seam joining the can to the base is
reinforced by the base plate.
(3) Using a suitable filter wrench, turn oil filter
(Fig. 88) counterclockwise to remove.
Fig. 87 Oil Level
1 - ENGINE OIL LEVEL DIPSTICK
Fig. 88 Oil Filter
9 - 54 ENGINE 2.4LRS
OIL (Continued)
ProCarManuals.com
