2002 CHRYSLER CARAVAN sensor

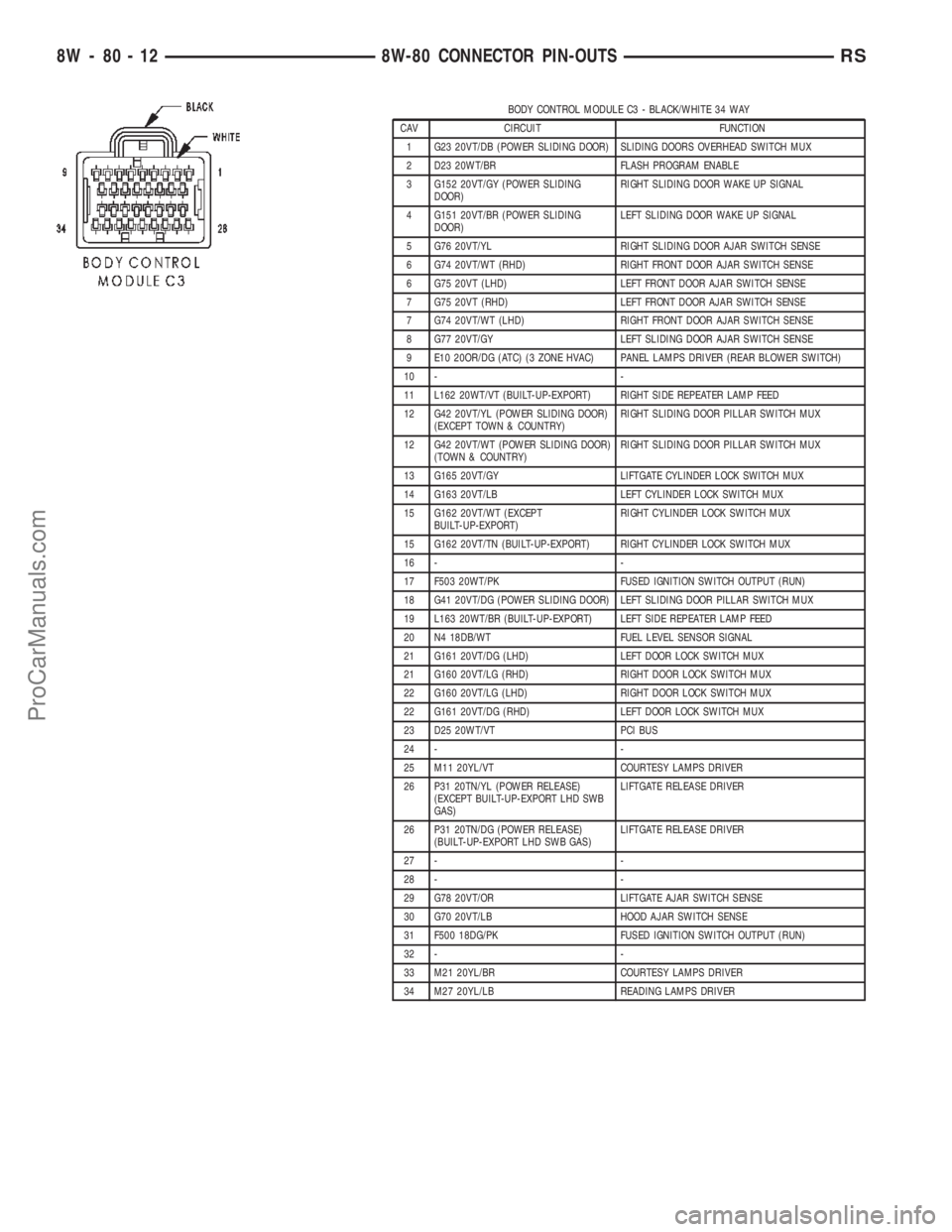

BODY CONTROL MODULE C3 - BLACK/WHITE 34 WAY
CAV CIRCUIT FUNCTION
1 G23 20VT/DB (POWER SLIDING DOOR) SLIDING DOORS OVERHEAD SWITCH MUX
2 D23 20WT/BR FLASH PROGRAM ENABLE
3 G152 20VT/GY (POWER SLIDING
DOOR)RIGHT SLIDING DOOR WAKE UP SIGNAL
4 G151 20VT/BR (POWER SLIDING
DOOR)LEFT SLIDING DOOR WAKE UP SIGNAL
5 G76 20VT/YL RIGHT SLIDING DOOR AJAR SWITCH SENSE
6 G74 20VT/WT (RHD) RIGHT FRONT DOOR AJAR SWITCH SENSE
6 G75 20VT (LHD) LEFT FRONT DOOR AJAR SWITCH SENSE
7 G75 20VT (RHD) LEFT FRONT DOOR AJAR SWITCH SENSE
7 G74 20VT/WT (LHD) RIGHT FRONT DOOR AJAR SWITCH SENSE
8 G77 20VT/GY LEFT SLIDING DOOR AJAR SWITCH SENSE
9 E10 20OR/DG (ATC) (3 ZONE HVAC) PANEL LAMPS DRIVER (REAR BLOWER SWITCH)
10 - -
11 L162 20WT/VT (BUILT-UP-EXPORT) RIGHT SIDE REPEATER LAMP FEED
12 G42 20VT/YL (POWER SLIDING DOOR)
(EXCEPT TOWN & COUNTRY)RIGHT SLIDING DOOR PILLAR SWITCH MUX
12 G42 20VT/WT (POWER SLIDING DOOR)
(TOWN & COUNTRY)RIGHT SLIDING DOOR PILLAR SWITCH MUX
13 G165 20VT/GY LIFTGATE CYLINDER LOCK SWITCH MUX
14 G163 20VT/LB LEFT CYLINDER LOCK SWITCH MUX
15 G162 20VT/WT (EXCEPT
BUILT-UP-EXPORT)RIGHT CYLINDER LOCK SWITCH MUX
15 G162 20VT/TN (BUILT-UP-EXPORT) RIGHT CYLINDER LOCK SWITCH MUX
16 - -
17 F503 20WT/PK FUSED IGNITION SWITCH OUTPUT (RUN)
18 G41 20VT/DG (POWER SLIDING DOOR) LEFT SLIDING DOOR PILLAR SWITCH MUX
19 L163 20WT/BR (BUILT-UP-EXPORT) LEFT SIDE REPEATER LAMP FEED
20 N4 18DB/WT FUEL LEVEL SENSOR SIGNAL
21 G161 20VT/DG (LHD) LEFT DOOR LOCK SWITCH MUX
21 G160 20VT/LG (RHD) RIGHT DOOR LOCK SWITCH MUX
22 G160 20VT/LG (LHD) RIGHT DOOR LOCK SWITCH MUX
22 G161 20VT/DG (RHD) LEFT DOOR LOCK SWITCH MUX
23 D25 20WT/VT PCI BUS
24 - -
25 M11 20YL/VT COURTESY LAMPS DRIVER
26 P31 20TN/YL (POWER RELEASE)
(EXCEPT BUILT-UP-EXPORT LHD SWB
GAS)LIFTGATE RELEASE DRIVER
26 P31 20TN/DG (POWER RELEASE)
(BUILT-UP-EXPORT LHD SWB GAS)LIFTGATE RELEASE DRIVER
27 - -
28 - -
29 G78 20VT/OR LIFTGATE AJAR SWITCH SENSE
30 G70 20VT/LB HOOD AJAR SWITCH SENSE
31 F500 18DG/PK FUSED IGNITION SWITCH OUTPUT (RUN)
32 - -
33 M21 20YL/BR COURTESY LAMPS DRIVER
34 M27 20YL/LB READING LAMPS DRIVER
8W - 80 - 12 8W-80 CONNECTOR PIN-OUTSRS
ProCarManuals.com

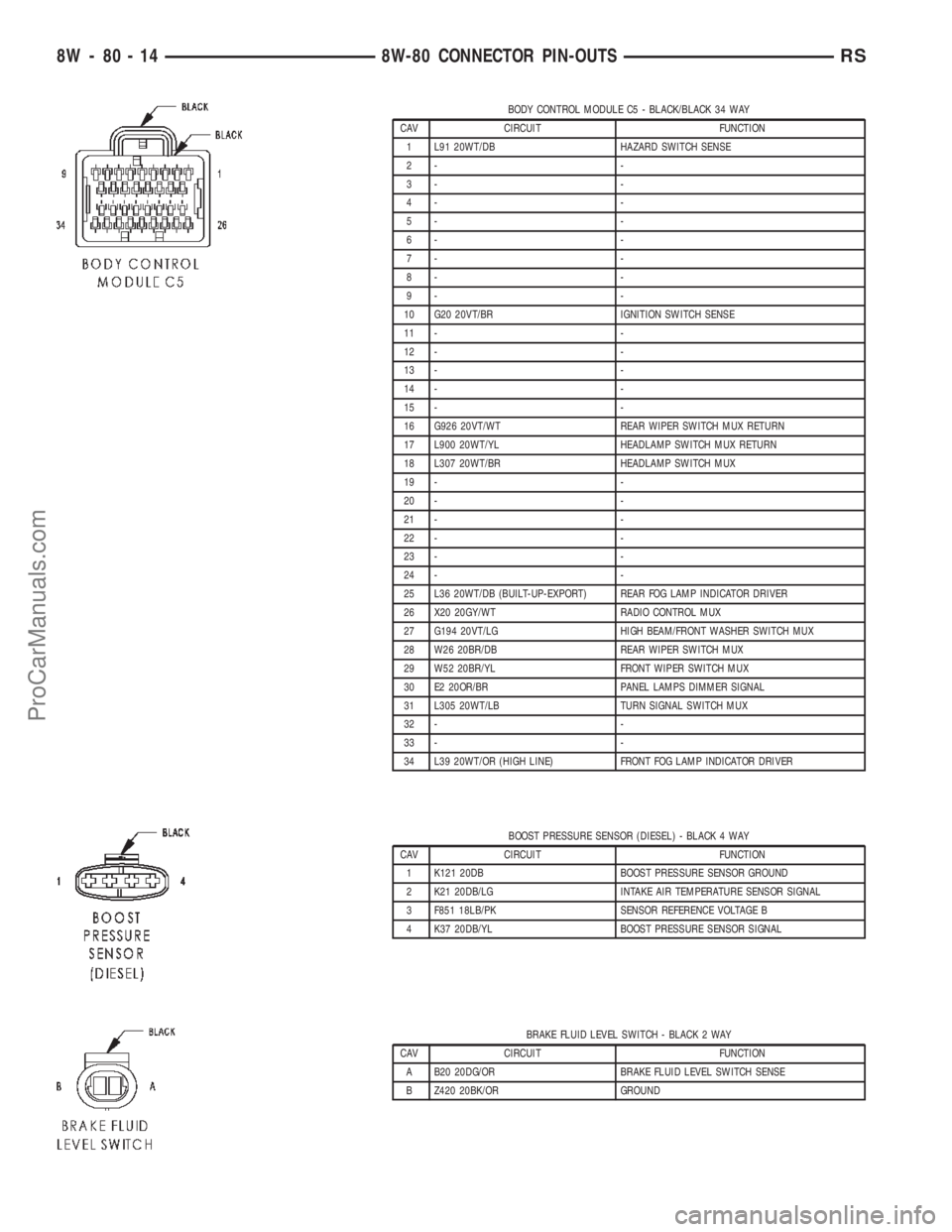

BODY CONTROL MODULE C5 - BLACK/BLACK 34 WAY
CAV CIRCUIT FUNCTION
1 L91 20WT/DB HAZARD SWITCH SENSE
2- -
3- -
4- -
5- -
6- -
7- -
8- -
9- -
10 G20 20VT/BR IGNITION SWITCH SENSE
11 - -
12 - -
13 - -
14 - -
15 - -
16 G926 20VT/WT REAR WIPER SWITCH MUX RETURN
17 L900 20WT/YL HEADLAMP SWITCH MUX RETURN
18 L307 20WT/BR HEADLAMP SWITCH MUX
19 - -
20 - -
21 - -
22 - -
23 - -
24 - -
25 L36 20WT/DB (BUILT-UP-EXPORT) REAR FOG LAMP INDICATOR DRIVER
26 X20 20GY/WT RADIO CONTROL MUX
27 G194 20VT/LG HIGH BEAM/FRONT WASHER SWITCH MUX
28 W26 20BR/DB REAR WIPER SWITCH MUX
29 W52 20BR/YL FRONT WIPER SWITCH MUX
30 E2 20OR/BR PANEL LAMPS DIMMER SIGNAL
31 L305 20WT/LB TURN SIGNAL SWITCH MUX
32 - -
33 - -
34 L39 20WT/OR (HIGH LINE) FRONT FOG LAMP INDICATOR DRIVER
BOOST PRESSURE SENSOR (DIESEL) - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 K121 20DB BOOST PRESSURE SENSOR GROUND
2 K21 20DB/LG INTAKE AIR TEMPERATURE SENSOR SIGNAL
3 F851 18LB/PK SENSOR REFERENCE VOLTAGE B
4 K37 20DB/YL BOOST PRESSURE SENSOR SIGNAL
BRAKE FLUID LEVEL SWITCH - BLACK 2 WAY
CAV CIRCUIT FUNCTION
A B20 20DG/OR BRAKE FLUID LEVEL SWITCH SENSE
B Z420 20BK/OR GROUND
8W - 80 - 14 8W-80 CONNECTOR PIN-OUTSRS
ProCarManuals.com

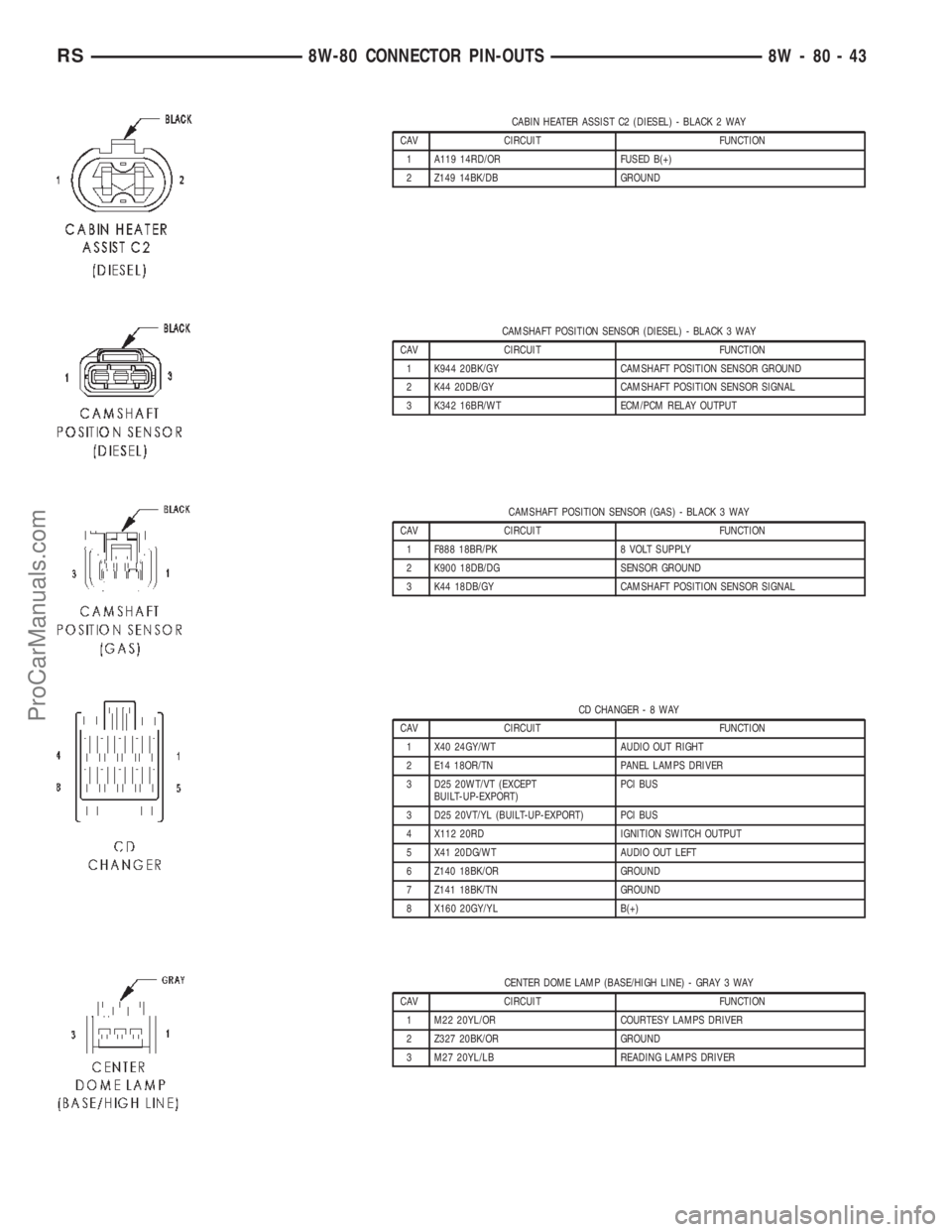

CABIN HEATER ASSIST C2 (DIESEL) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 A119 14RD/OR FUSED B(+)
2 Z149 14BK/DB GROUND
CAMSHAFT POSITION SENSOR (DIESEL) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 K944 20BK/GY CAMSHAFT POSITION SENSOR GROUND
2 K44 20DB/GY CAMSHAFT POSITION SENSOR SIGNAL
3 K342 16BR/WT ECM/PCM RELAY OUTPUT
CAMSHAFT POSITION SENSOR (GAS) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 F888 18BR/PK 8 VOLT SUPPLY
2 K900 18DB/DG SENSOR GROUND
3 K44 18DB/GY CAMSHAFT POSITION SENSOR SIGNAL
CD CHANGER-8WAY
CAV CIRCUIT FUNCTION
1 X40 24GY/WT AUDIO OUT RIGHT
2 E14 18OR/TN PANEL LAMPS DRIVER
3 D25 20WT/VT (EXCEPT
BUILT-UP-EXPORT)PCI BUS
3 D25 20VT/YL (BUILT-UP-EXPORT) PCI BUS
4 X112 20RD IGNITION SWITCH OUTPUT
5 X41 20DG/WT AUDIO OUT LEFT
6 Z140 18BK/OR GROUND
7 Z141 18BK/TN GROUND
8 X160 20GY/YL B(+)
CENTER DOME LAMP (BASE/HIGH LINE) - GRAY 3 WAY
CAV CIRCUIT FUNCTION
1 M22 20YL/OR COURTESY LAMPS DRIVER
2 Z327 20BK/OR GROUND
3 M27 20YL/LB READING LAMPS DRIVER
RS8W-80 CONNECTOR PIN-OUTS8W-80-43
ProCarManuals.com

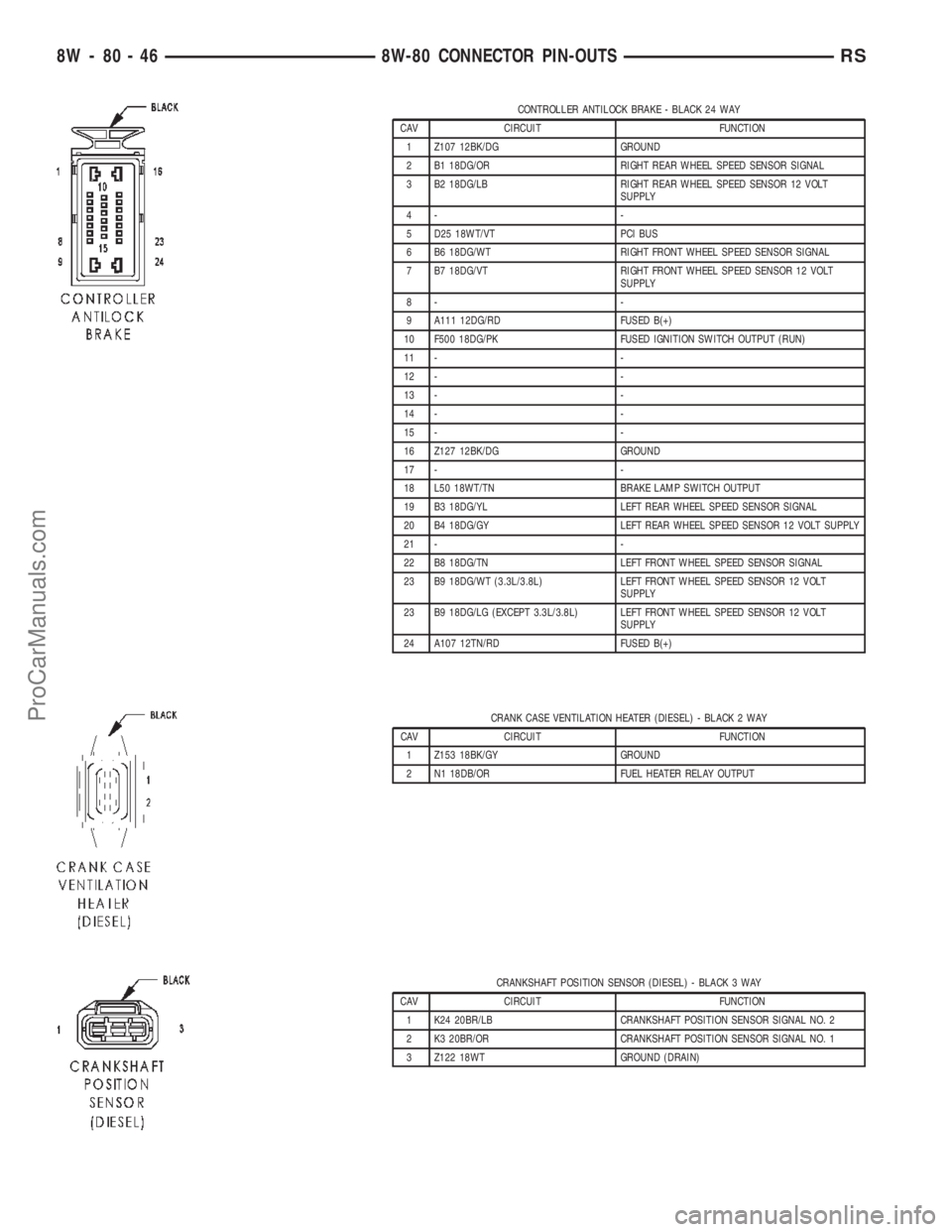

CONTROLLER ANTILOCK BRAKE - BLACK 24 WAY
CAV CIRCUIT FUNCTION
1 Z107 12BK/DG GROUND
2 B1 18DG/OR RIGHT REAR WHEEL SPEED SENSOR SIGNAL
3 B2 18DG/LB RIGHT REAR WHEEL SPEED SENSOR 12 VOLT
SUPPLY
4- -
5 D25 18WT/VT PCI BUS
6 B6 18DG/WT RIGHT FRONT WHEEL SPEED SENSOR SIGNAL
7 B7 18DG/VT RIGHT FRONT WHEEL SPEED SENSOR 12 VOLT
SUPPLY
8- -
9 A111 12DG/RD FUSED B(+)
10 F500 18DG/PK FUSED IGNITION SWITCH OUTPUT (RUN)
11 - -
12 - -
13 - -
14 - -
15 - -
16 Z127 12BK/DG GROUND
17 - -
18 L50 18WT/TN BRAKE LAMP SWITCH OUTPUT
19 B3 18DG/YL LEFT REAR WHEEL SPEED SENSOR SIGNAL
20 B4 18DG/GY LEFT REAR WHEEL SPEED SENSOR 12 VOLT SUPPLY
21 - -
22 B8 18DG/TN LEFT FRONT WHEEL SPEED SENSOR SIGNAL
23 B9 18DG/WT (3.3L/3.8L) LEFT FRONT WHEEL SPEED SENSOR 12 VOLT
SUPPLY
23 B9 18DG/LG (EXCEPT 3.3L/3.8L) LEFT FRONT WHEEL SPEED SENSOR 12 VOLT
SUPPLY
24 A107 12TN/RD FUSED B(+)
CRANK CASE VENTILATION HEATER (DIESEL) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Z153 18BK/GY GROUND
2 N1 18DB/OR FUEL HEATER RELAY OUTPUT
CRANKSHAFT POSITION SENSOR (DIESEL) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 K24 20BR/LB CRANKSHAFT POSITION SENSOR SIGNAL NO. 2
2 K3 20BR/OR CRANKSHAFT POSITION SENSOR SIGNAL NO. 1
3 Z122 18WT GROUND (DRAIN)
8W - 80 - 46 8W-80 CONNECTOR PIN-OUTSRS
ProCarManuals.com

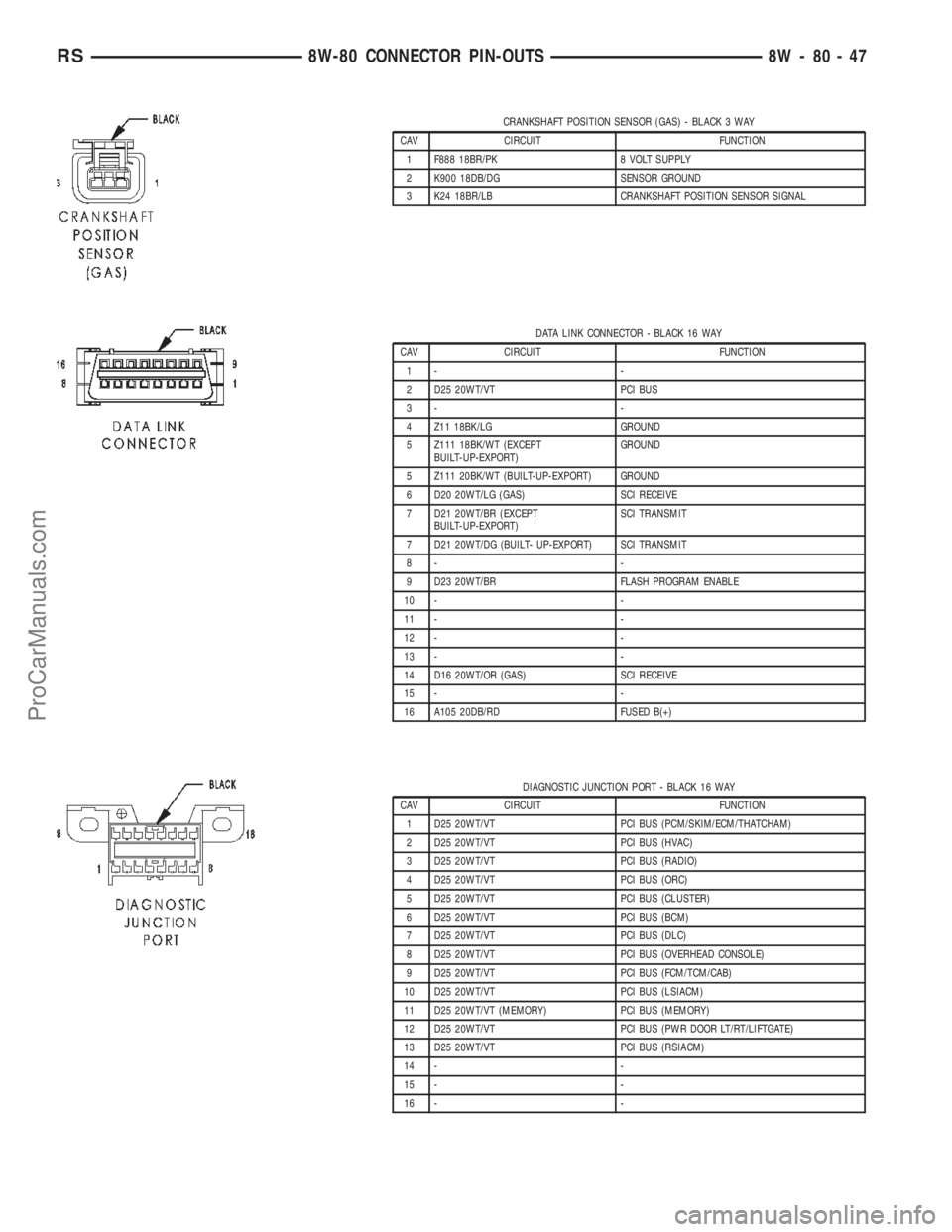

CRANKSHAFT POSITION SENSOR (GAS) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 F888 18BR/PK 8 VOLT SUPPLY
2 K900 18DB/DG SENSOR GROUND
3 K24 18BR/LB CRANKSHAFT POSITION SENSOR SIGNAL
DATA LINK CONNECTOR - BLACK 16 WAY
CAV CIRCUIT FUNCTION
1- -
2 D25 20WT/VT PCI BUS
3- -
4 Z11 18BK/LG GROUND
5 Z111 18BK/WT (EXCEPT
BUILT-UP-EXPORT)GROUND
5 Z111 20BK/WT (BUILT-UP-EXPORT) GROUND
6 D20 20WT/LG (GAS) SCI RECEIVE
7 D21 20WT/BR (EXCEPT
BUILT-UP-EXPORT)SCI TRANSMIT
7 D21 20WT/DG (BUILT- UP-EXPORT) SCI TRANSMIT
8- -
9 D23 20WT/BR FLASH PROGRAM ENABLE
10 - -
11 - -
12 - -
13 - -
14 D16 20WT/OR (GAS) SCI RECEIVE
15 - -
16 A105 20DB/RD FUSED B(+)
DIAGNOSTIC JUNCTION PORT - BLACK 16 WAY
CAV CIRCUIT FUNCTION
1 D25 20WT/VT PCI BUS (PCM/SKIM/ECM/THATCHAM)
2 D25 20WT/VT PCI BUS (HVAC)
3 D25 20WT/VT PCI BUS (RADIO)
4 D25 20WT/VT PCI BUS (ORC)
5 D25 20WT/VT PCI BUS (CLUSTER)
6 D25 20WT/VT PCI BUS (BCM)
7 D25 20WT/VT PCI BUS (DLC)
8 D25 20WT/VT PCI BUS (OVERHEAD CONSOLE)
9 D25 20WT/VT PCI BUS (FCM/TCM/CAB)
10 D25 20WT/VT PCI BUS (LSIACM)
11 D25 20WT/VT (MEMORY) PCI BUS (MEMORY)
12 D25 20WT/VT PCI BUS (PWR DOOR LT/RT/LIFTGATE)
13 D25 20WT/VT PCI BUS (RSIACM)
14 - -
15 - -
16 - -
RS8W-80 CONNECTOR PIN-OUTS8W-80-47
ProCarManuals.com

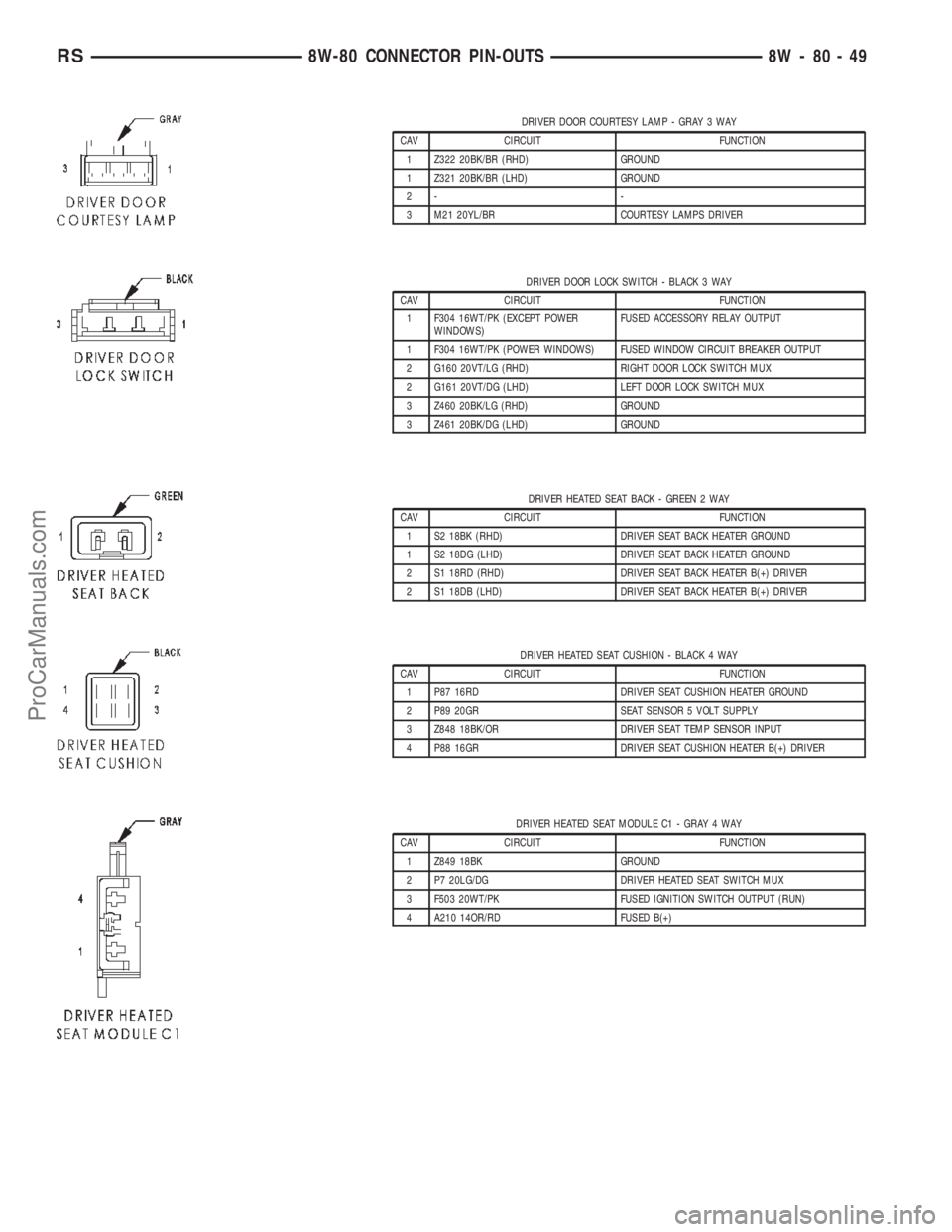

DRIVER DOOR COURTESY LAMP - GRAY 3 WAY
CAV CIRCUIT FUNCTION
1 Z322 20BK/BR (RHD) GROUND
1 Z321 20BK/BR (LHD) GROUND
2- -
3 M21 20YL/BR COURTESY LAMPS DRIVER
DRIVER DOOR LOCK SWITCH - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 F304 16WT/PK (EXCEPT POWER
WINDOWS)FUSED ACCESSORY RELAY OUTPUT
1 F304 16WT/PK (POWER WINDOWS) FUSED WINDOW CIRCUIT BREAKER OUTPUT
2 G160 20VT/LG (RHD) RIGHT DOOR LOCK SWITCH MUX
2 G161 20VT/DG (LHD) LEFT DOOR LOCK SWITCH MUX
3 Z460 20BK/LG (RHD) GROUND
3 Z461 20BK/DG (LHD) GROUND
DRIVER HEATED SEAT BACK - GREEN 2 WAY
CAV CIRCUIT FUNCTION
1 S2 18BK (RHD) DRIVER SEAT BACK HEATER GROUND
1 S2 18DG (LHD) DRIVER SEAT BACK HEATER GROUND
2 S1 18RD (RHD) DRIVER SEAT BACK HEATER B(+) DRIVER
2 S1 18DB (LHD) DRIVER SEAT BACK HEATER B(+) DRIVER
DRIVER HEATED SEAT CUSHION - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 P87 16RD DRIVER SEAT CUSHION HEATER GROUND
2 P89 20GR SEAT SENSOR 5 VOLT SUPPLY
3 Z848 18BK/OR DRIVER SEAT TEMP SENSOR INPUT
4 P88 16GR DRIVER SEAT CUSHION HEATER B(+) DRIVER
DRIVER HEATED SEAT MODULE C1 - GRAY 4 WAY
CAV CIRCUIT FUNCTION
1 Z849 18BK GROUND
2 P7 20LG/DG DRIVER HEATED SEAT SWITCH MUX
3 F503 20WT/PK FUSED IGNITION SWITCH OUTPUT (RUN)
4 A210 14OR/RD FUSED B(+)
RS8W-80 CONNECTOR PIN-OUTS8W-80-49
ProCarManuals.com

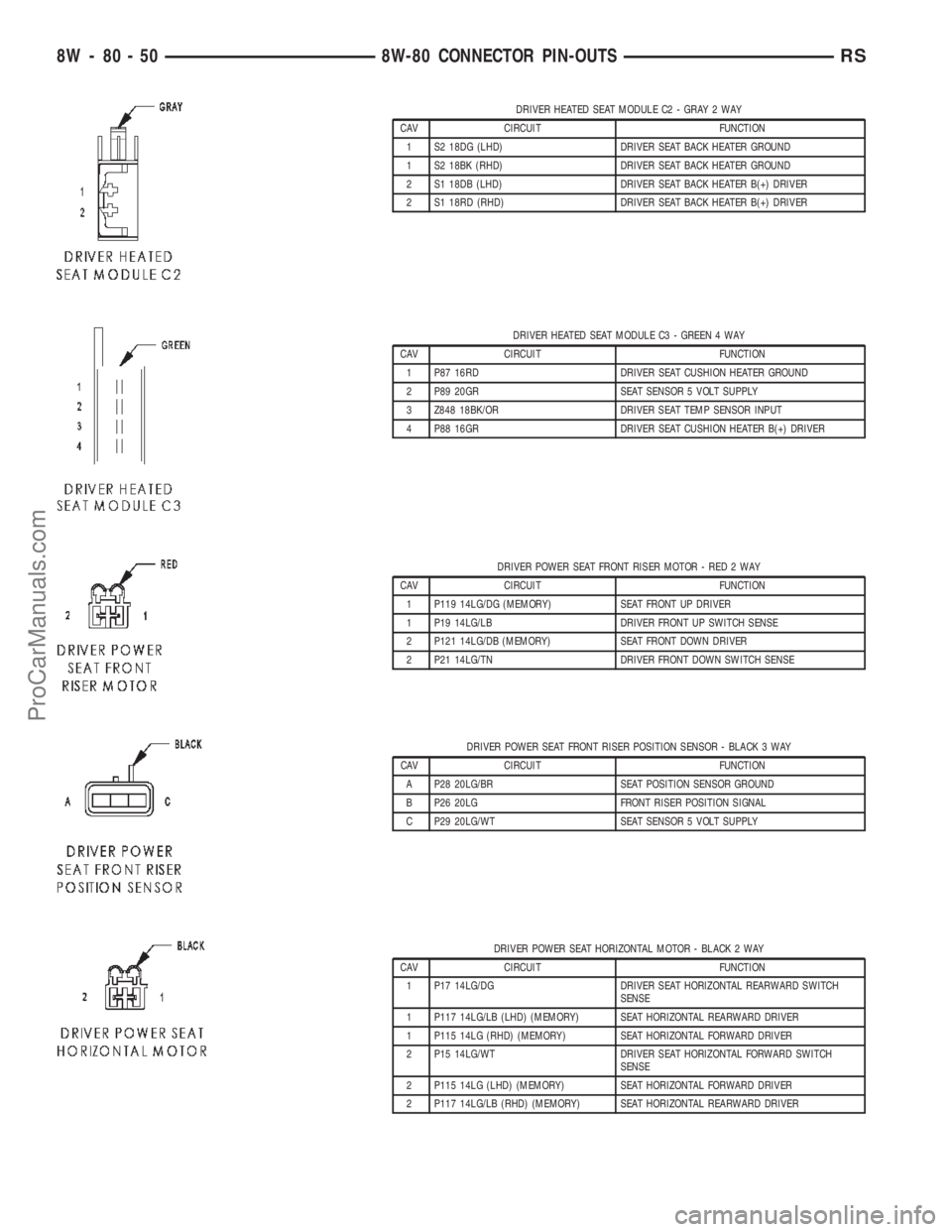

DRIVER HEATED SEAT MODULE C2 - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 S2 18DG (LHD) DRIVER SEAT BACK HEATER GROUND
1 S2 18BK (RHD) DRIVER SEAT BACK HEATER GROUND
2 S1 18DB (LHD) DRIVER SEAT BACK HEATER B(+) DRIVER
2 S1 18RD (RHD) DRIVER SEAT BACK HEATER B(+) DRIVER
DRIVER HEATED SEAT MODULE C3 - GREEN 4 WAY
CAV CIRCUIT FUNCTION
1 P87 16RD DRIVER SEAT CUSHION HEATER GROUND
2 P89 20GR SEAT SENSOR 5 VOLT SUPPLY
3 Z848 18BK/OR DRIVER SEAT TEMP SENSOR INPUT
4 P88 16GR DRIVER SEAT CUSHION HEATER B(+) DRIVER
DRIVER POWER SEAT FRONT RISER MOTOR - RED 2 WAY
CAV CIRCUIT FUNCTION
1 P119 14LG/DG (MEMORY) SEAT FRONT UP DRIVER
1 P19 14LG/LB DRIVER FRONT UP SWITCH SENSE
2 P121 14LG/DB (MEMORY) SEAT FRONT DOWN DRIVER
2 P21 14LG/TN DRIVER FRONT DOWN SWITCH SENSE
DRIVER POWER SEAT FRONT RISER POSITION SENSOR - BLACK 3 WAY
CAV CIRCUIT FUNCTION
A P28 20LG/BR SEAT POSITION SENSOR GROUND
B P26 20LG FRONT RISER POSITION SIGNAL
C P29 20LG/WT SEAT SENSOR 5 VOLT SUPPLY
DRIVER POWER SEAT HORIZONTAL MOTOR - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 P17 14LG/DG DRIVER SEAT HORIZONTAL REARWARD SWITCH
SENSE
1 P117 14LG/LB (LHD) (MEMORY) SEAT HORIZONTAL REARWARD DRIVER
1 P115 14LG (RHD) (MEMORY) SEAT HORIZONTAL FORWARD DRIVER
2 P15 14LG/WT DRIVER SEAT HORIZONTAL FORWARD SWITCH
SENSE
2 P115 14LG (LHD) (MEMORY) SEAT HORIZONTAL FORWARD DRIVER
2 P117 14LG/LB (RHD) (MEMORY) SEAT HORIZONTAL REARWARD DRIVER
8W - 80 - 50 8W-80 CONNECTOR PIN-OUTSRS
ProCarManuals.com

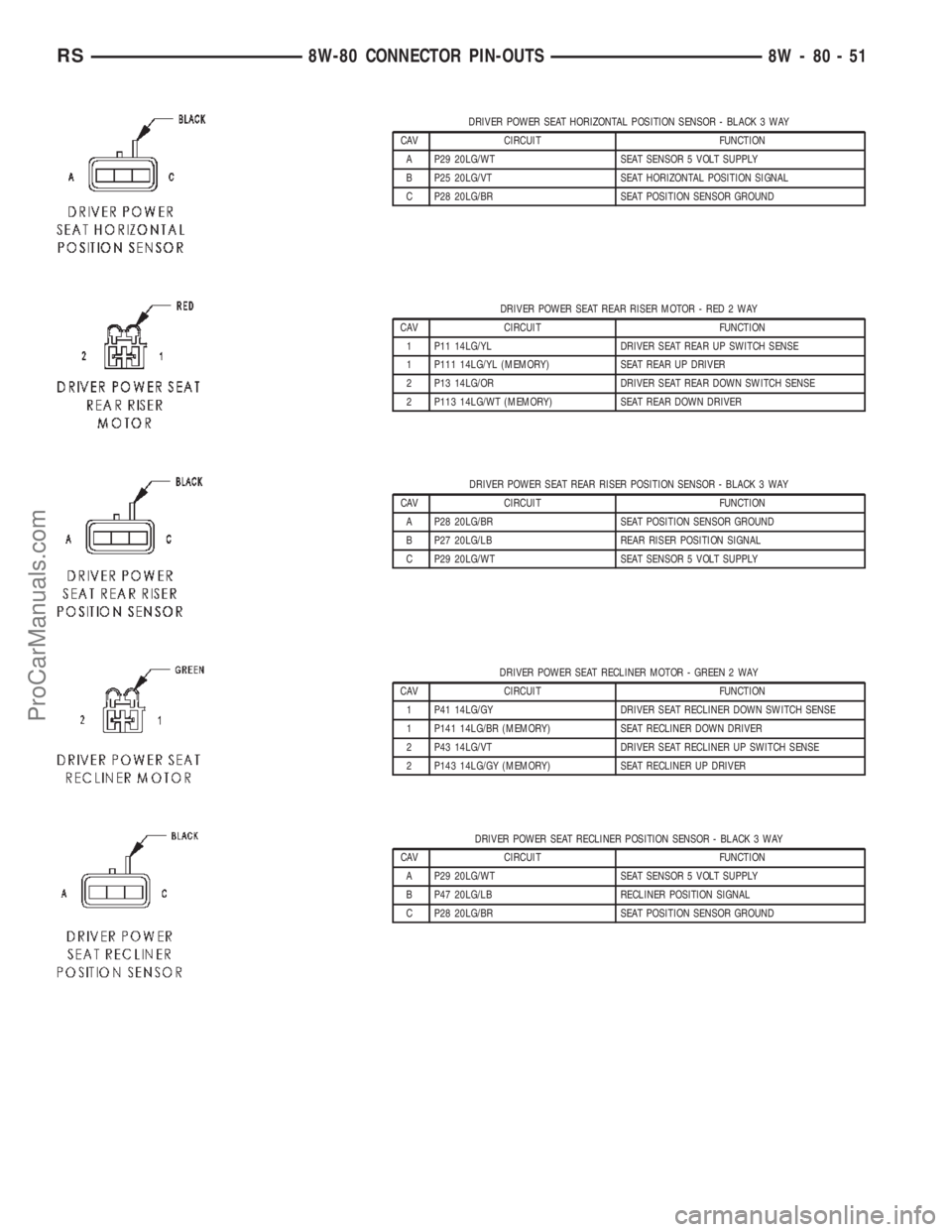

DRIVER POWER SEAT HORIZONTAL POSITION SENSOR - BLACK 3 WAY
CAV CIRCUIT FUNCTION
A P29 20LG/WT SEAT SENSOR 5 VOLT SUPPLY
B P25 20LG/VT SEAT HORIZONTAL POSITION SIGNAL
C P28 20LG/BR SEAT POSITION SENSOR GROUND
DRIVER POWER SEAT REAR RISER MOTOR - RED 2 WAY
CAV CIRCUIT FUNCTION
1 P11 14LG/YL DRIVER SEAT REAR UP SWITCH SENSE
1 P111 14LG/YL (MEMORY) SEAT REAR UP DRIVER
2 P13 14LG/OR DRIVER SEAT REAR DOWN SWITCH SENSE
2 P113 14LG/WT (MEMORY) SEAT REAR DOWN DRIVER
DRIVER POWER SEAT REAR RISER POSITION SENSOR - BLACK 3 WAY
CAV CIRCUIT FUNCTION
A P28 20LG/BR SEAT POSITION SENSOR GROUND
B P27 20LG/LB REAR RISER POSITION SIGNAL
C P29 20LG/WT SEAT SENSOR 5 VOLT SUPPLY
DRIVER POWER SEAT RECLINER MOTOR - GREEN 2 WAY
CAV CIRCUIT FUNCTION
1 P41 14LG/GY DRIVER SEAT RECLINER DOWN SWITCH SENSE
1 P141 14LG/BR (MEMORY) SEAT RECLINER DOWN DRIVER
2 P43 14LG/VT DRIVER SEAT RECLINER UP SWITCH SENSE
2 P143 14LG/GY (MEMORY) SEAT RECLINER UP DRIVER
DRIVER POWER SEAT RECLINER POSITION SENSOR - BLACK 3 WAY
CAV CIRCUIT FUNCTION
A P29 20LG/WT SEAT SENSOR 5 VOLT SUPPLY
B P47 20LG/LB RECLINER POSITION SIGNAL
C P28 20LG/BR SEAT POSITION SENSOR GROUND
RS8W-80 CONNECTOR PIN-OUTS8W-80-51
