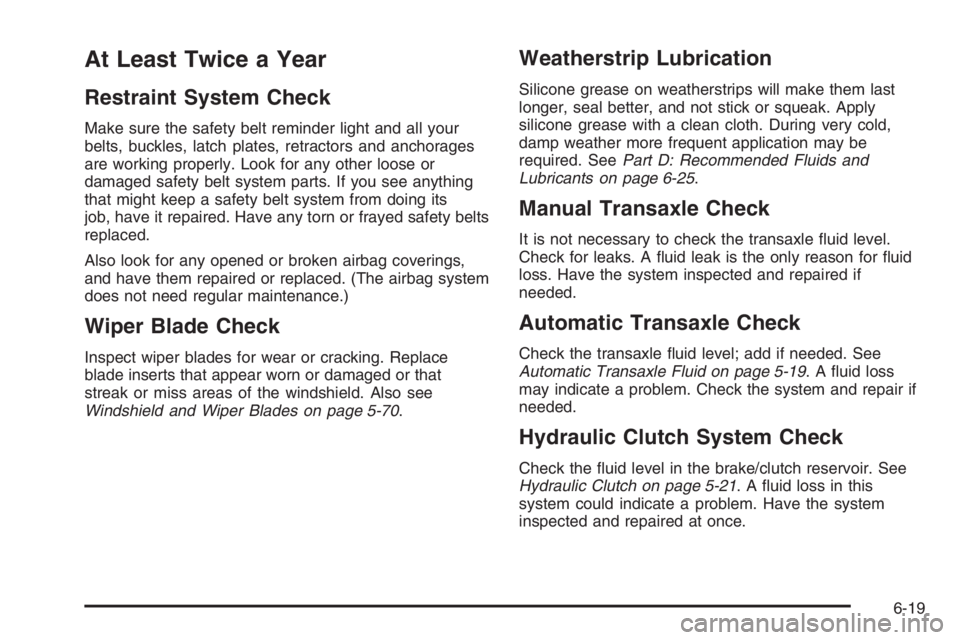

At Least Twice a Year
Restraint System Check
Make sure the safety belt reminder light and all your
belts, buckles, latch plates, retractors and anchorages
are working properly. Look for any other loose or
damaged safety belt system parts. If you see anything
that might keep a safety belt system from doing its
job, have it repaired. Have any torn or frayed safety belts
replaced.
Also look for any opened or broken airbag coverings,
and have them repaired or replaced. (The airbag system
does not need regular maintenance.)
Wiper Blade Check
Inspect wiper blades for wear or cracking. Replace
blade inserts that appear worn or damaged or that
streak or miss areas of the windshield. Also see
Windshield and Wiper Blades on page 5-70.
Weatherstrip Lubrication
Silicone grease on weatherstrips will make them last
longer, seal better, and not stick or squeak. Apply
silicone grease with a clean cloth. During very cold,
damp weather more frequent application may be
required. SeePart D: Recommended Fluids and
Lubricants on page 6-25.
Manual Transaxle Check
It is not necessary to check the transaxle fluid level.
Check for leaks. A fluid leak is the only reason for fluid
loss. Have the system inspected and repaired if
needed.
Automatic Transaxle Check
Check the transaxle fluid level; add if needed. See
Automatic Transaxle Fluid on page 5-19. A fluid loss
may indicate a problem. Check the system and repair if
needed.
Hydraulic Clutch System Check
Check the fluid level in the brake/clutch reservoir. See
Hydraulic Clutch on page 5-21. A fluid loss in this
system could indicate a problem. Have the system
inspected and repaired at once.
6-19

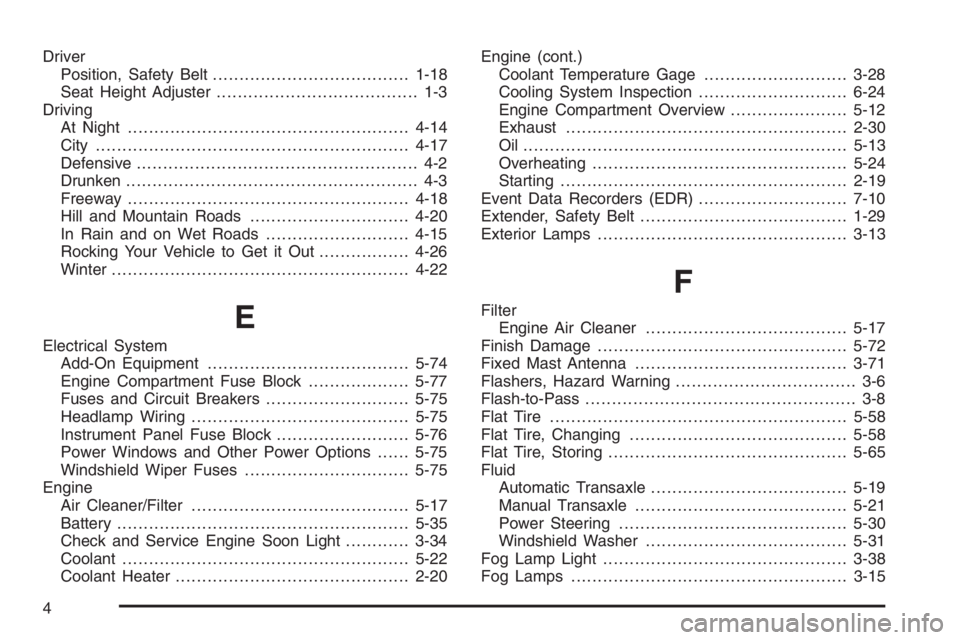

Driver
Position, Safety Belt.....................................1-18
Seat Height Adjuster...................................... 1-3
Driving
At Night.....................................................4-14
City ...........................................................4-17
Defensive..................................................... 4-2
Drunken....................................................... 4-3
Freeway.....................................................4-18
Hill and Mountain Roads..............................4-20
In Rain and on Wet Roads...........................4-15
Rocking Your Vehicle to Get it Out.................4-26
Winter........................................................4-22
E
Electrical System
Add-On Equipment......................................5-74
Engine Compartment Fuse Block...................5-77
Fuses and Circuit Breakers...........................5-75
Headlamp Wiring.........................................5-75
Instrument Panel Fuse Block.........................5-76
Power Windows and Other Power Options......5-75
Windshield Wiper Fuses...............................5-75
Engine
Air Cleaner/Filter.........................................5-17
Battery.......................................................5-35
Check and Service Engine Soon Light............3-34
Coolant......................................................5-22
Coolant Heater............................................2-20Engine (cont.)
Coolant Temperature Gage...........................3-28
Cooling System Inspection............................6-24
Engine Compartment Overview......................5-12
Exhaust.....................................................2-30
Oil .............................................................5-13
Overheating................................................5-24
Starting......................................................2-19
Event Data Recorders (EDR)............................7-10
Extender, Safety Belt.......................................1-29
Exterior Lamps...............................................3-13
F
Filter
Engine Air Cleaner......................................5-17
Finish Damage...............................................5-72
Fixed Mast Antenna........................................3-71
Flashers, Hazard Warning.................................. 3-6
Flash-to-Pass................................................... 3-8
Flat Tire........................................................5-58
Flat Tire, Changing.........................................5-58
Flat Tire, Storing.............................................5-65
Fluid
Automatic Transaxle.....................................5-19
Manual Transaxle........................................5-21
Power Steering...........................................5-30
Windshield Washer......................................5-31
Fog Lamp Light..............................................3-38
Fog Lamps ....................................................3-15
4

V

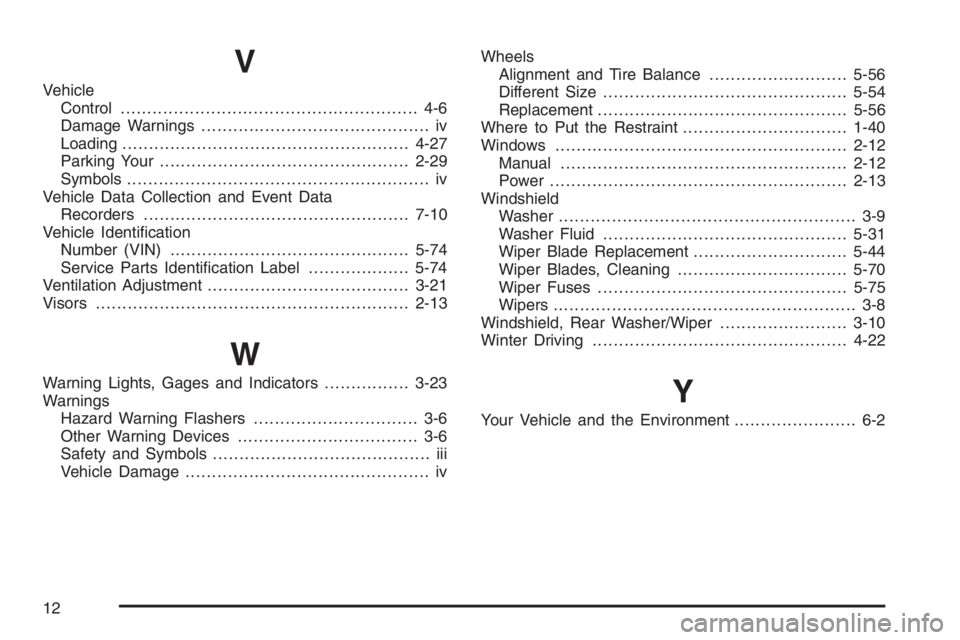

Vehicle
Control........................................................ 4-6
Damage Warnings........................................... iv
Loading......................................................4-27
Parking Your...............................................2-29
Symbols......................................................... iv
Vehicle Data Collection and Event Data
Recorders..................................................7-10
Vehicle Identification
Number (VIN).............................................5-74
Service Parts Identification Label...................5-74
Ventilation Adjustment......................................3-21
Visors...........................................................2-13
W
Warning Lights, Gages and Indicators................3-23
Warnings
Hazard Warning Flashers............................... 3-6
Other Warning Devices.................................. 3-6
Safety and Symbols......................................... iii
Vehicle Damage.............................................. ivWheels
Alignment and Tire Balance..........................5-56
Different Size..............................................5-54
Replacement...............................................5-56
Where to Put the Restraint...............................1-40
Windows.......................................................2-12
Manual......................................................2-12
Power ........................................................2-13
Windshield
Washer........................................................ 3-9
Washer Fluid..............................................5-31
Wiper Blade Replacement.............................5-44
Wiper Blades, Cleaning................................5-70
Wiper Fuses...............................................5-75
Wipers......................................................... 3-8
Windshield, Rear Washer/Wiper........................3-10
Winter Driving................................................4-22Y
Your Vehicle and the Environment....................... 6-2
