2002 CADILLAC SEVILLE ECU

2-20
PASS-Key
III
Your vehicle is equipped
with the PASS
-Key III
(Personalized Automotive
Security System)
theft
-deterrent system.
PASS
-Key III is a passive
theft
-deterrent system. This
means you don't have to do
anything different to arm or
disarm the system. It works
when you insert or remove
the key from the ignition.
Your PASS
-Key III system operates on a radio
frequency subject to Federal Communications
Commission (FCC) Rules and with Industry Canada.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.This device complies with RSS
-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation of
the device.
Changes or modifications to this system by other than
an authorized service facility could void authorization to
use this equipment.
PASS
-Key III uses a radio frequency transponder in
the key that matches a decoder in your vehicle.
When the PASS
-Key III system senses that someone is
using the wrong key, it shuts down the vehicle's starter
and fuel systems. The starter will not work and fuel will
stop being delivered to the engine. Anyone using a
trial
-and-error method to start the vehicle will be
discouraged because of the high number of electrical
key codes.
When trying to start the vehicle, if the engine does not
start and the SECURITY light comes on, the key may
have a damaged transponder. Turn the ignition off and
try again.

2-21
If the engine does not start, and the key appears to be
undamaged, try another ignition key. At this time, you
may also want to check the fuse. See ªFuses and Circuit
Breakersº in the Index. If the engine still does not start
with the other key, your vehicle needs service. If your
vehicle does start, the first key may be faulty. See your
dealer who can service the PASS
-Key III to have a
new key made.
It is possible for the PASS
-Key III decoder to learn the
transponder value of a new or replacement key. Up to
10 additional keys may be programmed for the vehicle.
This procedure is for learning additional keys only.
Canadian Owners: If you lose or damage your keys,
only a GM dealer can service PASS
-Key III to have new
keys made. To program additional keys you will require
two current driver's keys (black in color). You must add
a step to the following procedure. After Step 2, repeat
Steps 1 and 2 with the second current driver's key.
Then continue with Step 3.
To program the new key do the following:
1. Verify that the new key has PK3 stamped on it.
2. Insert the current driver's key in the ignition and
start the engine. If the engine will not start see your
dealer for service.3. After the engine has started, turn the key to OFF,
and remove the key.
4. Insert the key to be programmed and turn it to ON
within ten seconds of removing the previous key.
5. The SECURITY light will turn off once the key has
been programmed. It may not be apparent that the
SECURITY light went on due to how quickly the
key is programmed.
6. Repeat the Steps 1 through 4 if additional keys are
to be programmed.
If you are ever driving and the SECURITY light comes
on and stays on, you will be able to restart your engine
if you turn it off. Your PASS-Key III system,
however, is not working properly and must be serviced
by your dealer. Your vehicle is not protected by the
PASS
-Key III system at this time.
If you lose or damage a PASS
-Key III key, see your
dealer to have a new key made.
In an emergency, contact Cadillac Roadside Assistance.
See ªRoadside Assistanceº in the Index.

2-58
Storage Compartments
Glove Box
The glove box is located in front of the passenger's seat
on the instrument panel. To lock the glove box door,
insert the master key into the lock cylinder and turn it
clockwise. Turn the key counterclockwise to unlock
the door.
Map Pocket
The map/storage pockets are located on each
front door as well as on the passenger's and driver's
front seatbacks.
Center Console Storage
The center console comes with a storage tray, a storage
compartment for CDs or tapes, a dual cupholder that
unfolds, a coinholder, an optional phone and an armrest.
The cupholder can be opened by pressing on the surface
panel located in front of the armrest and unfolding it.
Close the lid to secure it.
Convenience Net
The convenience net attaches to the floor of the trunk.
Put small loads, like grocery bags, behind the net.
It can help keep them from falling over during sharp
turns or quick starts and stops.
The net is not for larger, heavier loads. Store them in the
trunk as far forward as you can. When not using the net,
hook the net to the tabs securing it to the sill plate.
Ashtrays and Cigarette Lighter (Option)
The ashtrays and cigarette lighters may be ordered
through your dealer.
NOTICE:
Don't put papers or other flammable items
into your ashtrays. Hot cigarettes or other
smoking materials could ignite them, causing
a damaging fire.

2-64
Roadside Assistance with Location: For vehicle
breakdowns, press the OnStar Services button.
An advisor will contact the appropriate help.
Remote Diagnostics: If an instrument panel light comes
on, press the OnStar Services button. An advisor can
perform a check of the engine on
-board computer,
and recommend what action needs to be taken.
OnStar MED
-NET: Med-Net can store your personal
medical history and provide it to emergency personnel
if necessary. (Requires activation and additional fee).
Accident Assist: An advisor can provide step
-by-step
guidance following an accident.
Remote Door Unlock: To contact the center, call
1
-888-4-ONSTAR. You will be required to provide your
security information. An advisor will send a command
to your vehicle to unlock itself. The advisor can delay
unlocking your vehicle. Remote Door Unlock is
disabled 48 hours after the vehicle is parked to maintain
the battery charge.
Vehicle Locator Service: To contact the center, call
1
-888-4-ONSTAR. You will be required to provide your
security information. An advisor will send a command
to your vehicle to sound the horn and/or flash the lamps.Route Support: An advisor can provide directions or
guidance to most places you want to go. In addition,
they can help you locate gas stations, rest areas, ATMs,
hospitals, hotels, stores, eateries and more.
Ride Assist: An advisor can locate transportation in the
event that you are unable to drive.
Concierge Services: The concierge advisor can obtain
tickets, reservations, or help with vacation/trip planning
and other unique items and services.
OnStar System Limitations
Complete limitations can be found on the Subscriber
Services Agreement.
In order to provide you with excellent service, calls with
the OnStar Center may be monitored or recorded.
OnStar service is:

available in the 48 contiguous United States, Alaska,
Hawaii and Canada;

available when the vehicle is within the operating
range of a cellular provider;

subject to limitations caused by atmospheric
conditions, such as severe weather or topographical
conditions, such as mountainous terrain;

subject to cellular carrier equipment limitations.

2-86 Security Light
For information
regarding this light,
see ªTheft
-Deterrent
Systemº in the Index.
Fog Lamp Light (STS Only)
This light will come on
when the fog lamps are in
use. It will go out when the
fog lamps are turned off.
For more information about
the fog lamps, see ªFog
Lampsº in the Index.
Lights On Reminder Light
United States Canada
This light comes on whenever the parking lamps are on
so that you know that your exterior lamps are on.
Cruise Control Light
This light comes on
whenever the cruise
control system is in use.
It will go out when the
system is turned off.

3-23
Each of the four information types may have multiple
pages of text. To reach a category, press and release the
MSG button consecutively until the desired type is
displayed. If there are multiple pages of text for the
information selected type, the radio will automatically
display all the pages for that type at a rate of
approximately one page every three seconds before
timing out and returning to the default display. You may
override this feature by pressing the MSG button to
review all of the pages at your own pace.
Setting PTY Preset Stations
PTY (Program Type): Press this button to activate
program type mode. PTY will appear on the display.
To select a desired PTY, press the LEVEL plus or minus
buttons to scroll up and down through the PTY listing.
PTYs might include rock, popular, jazz, etc. Once the
desired PTY is displayed, press either SEEK arrows or
the SCAN button to enter the PTY mode. This will
allow you to find the next or previous station available
that is broadcasting the selected PTY.
The SEEK arrows or the SCAN button may continue
to be used to search for the desired PTY as long as
PTY appears on the display. To cancel PTY mode, press
and release the PTY button. PTY will disappear from
the display.Playing a Cassette Tape
With the radio on, insert a cassette tape. The tape will
begin playing as soon as it is inserted. When one side of
your cassette tape is done playing, auto reverse plays the
other side of your cassette tape. Cassette tapes may be
loaded with the radio off but they will not start playing
until the radio is on. If you want to insert a cassette tape
when the ignition is off, first press the eject button.
While the tape is playing, use the VOL, TONE, LEVEL
and DSP controls just as you do for the radio. Other
controls may have different functions when a tape is
inserted. The display will show an underlined tape
symbol. TAPE PLAY will appear on the display when a
tape is playing, with an arrow to indicate which side of
the tape is playing.
If an error appears on the display, see ªCassette Tape
Messagesº later in this section.
1 PREV (Previous): Press this pushbutton to seek to the
previous selection on the tape. Your tape must have at
least three seconds of silence between each selection for
previous to work. The sound will mute while seeking.
2 NEXT: Press this pushbutton to seek to the next
selection on the tape. Your tape must have at least
three seconds of silence between each selection for next
to work. The sound will mute while seeking.

4-26
Winter Driving
Here are some tips for winter driving:

Have your vehicle in good shape for winter.

You may want to put winter emergency supplies in
your trunk.
Include an ice scraper, a small brush or broom, a supply
of windshield washer fluid, a rag, some winter outer
clothing, a small shovel, a flashlight, a red cloth and a
couple of reflective warning triangles. And, if you will
be driving under severe conditions, include a small bag
of sand, a piece of old carpet or a couple of burlap bags
to help provide traction. Be sure you properly secure
these items in your vehicle.

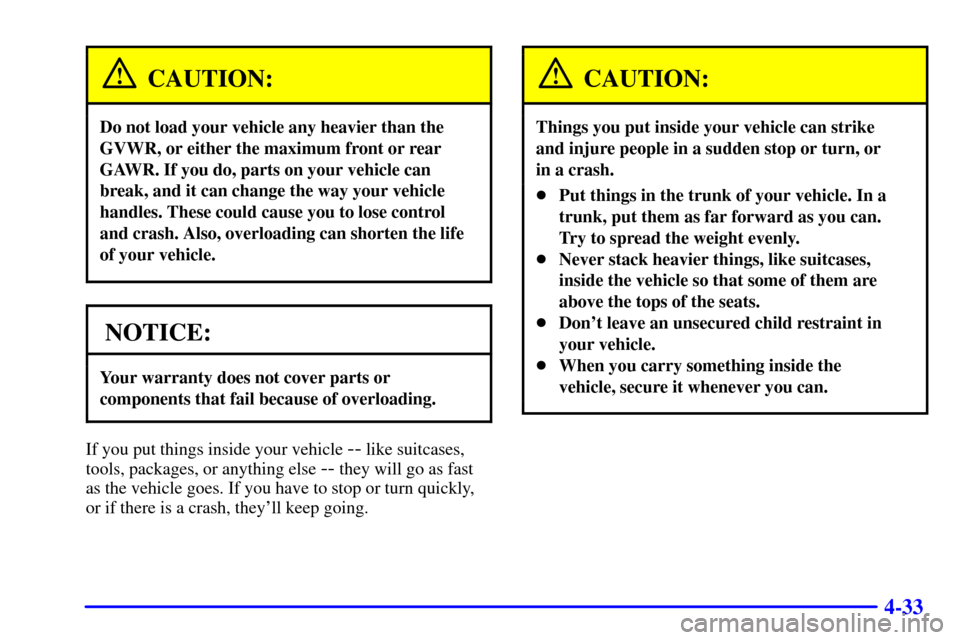

4-33
CAUTION:
Do not load your vehicle any heavier than the
GVWR, or either the maximum front or rear
GAWR. If you do, parts on your vehicle can
break, and it can change the way your vehicle
handles. These could cause you to lose control
and crash. Also, overloading can shorten the life
of your vehicle.
NOTICE:
Your warranty does not cover parts or
components that fail because of overloading.
If you put things inside your vehicle -- like suitcases,
tools, packages, or anything else
-- they will go as fast
as the vehicle goes. If you have to stop or turn quickly,
or if there is a crash, they'll keep going.
CAUTION:
Things you put inside your vehicle can strike
and injure people in a sudden stop or turn, or
in a crash.

Put things in the trunk of your vehicle. In a
trunk, put them as far forward as you can.
Try to spread the weight evenly.

Never stack heavier things, like suitcases,
inside the vehicle so that some of them are
above the tops of the seats.

Don't leave an unsecured child restraint in
your vehicle.

When you carry something inside the
vehicle, secure it whenever you can.
