2002 BUICK REGAL headlamp

2-52
Mirrors
Adjust all the mirrors so you can see clearly when you
are sitting in a comfortable driving position.
Inside Day/Night Rearview Mirror
To reduce glare from lamps behind you, pull the lever
at the bottom of the mirror toward you (to the night
position). To return the mirror to the day position, push
the lever away from you.
Inside Day/Night Rearview Mirror with
OnStar
and Map Lamps (If Equipped)
This mirror has a lever located at the bottom of the
mirror between the two map lamps. This lever is used to
change the mirror from day to night position. To reduce
glare from headlamps behind you while driving at night,
turn the lever 90. To return the mirror to the day
position, return the lever to its original position.
There are two map lamps located on the bottom of the
mirror. Each lamp is turned on and off by pressing the
button next to the lamp.
There are also three OnStar buttons located at the
bottom of the mirror face. See your dealer for more
information on the system and how to subscribe to
OnStar. See ªOnStar Systemº in the Index for more
information about the services OnStar provides.

2-53 Electrochromic Automatic Dimming
Rearview Mirror (If Equipped)
Your vehicle may have an electrochromic day/night
rearview mirror. Push the button in the center of the
mirror to turn this feature on. The mirror will darken
gradually to reduce glare from headlamps behind you.
This may take a few moments.
The mirror's two outer buttons operate the lights on the
bottom sides of the mirror.One photocell on the front of the mirror senses when
it is becoming dark outside. Another photocell, facing
rearward, senses headlamps behind you. To turn the
electrochromic feature off, press the button in the
center of the mirror again.
To keep the photocells operating well, occasionally
clean them with a cotton swab and glass cleaner.
Electrochromic Day/Night Rearview
Mirror with OnStar
and Map Lamps
(If Equipped)
Your vehicle may have an automatic electrochromic
day/night rearview mirror with the OnStar System.
The automatic dimming feature is turned on or off by
pressing the far left button, located on the lower part
of the mirror face, for up to three seconds. When
turned on, this mirror functions exactly like the
electrochromic mirror described previously. See
ªMirrors, Electrochromic Automatic Dimmingº
listed previously in this section for more information.

2-55 Convex Outside Mirror
Your passenger's side mirror is convex. A convex
mirror's surface is curved so you can see more from
the driver's seat.
CAUTION:
A convex mirror can make things (like other
vehicles) look farther away than they really are.
If you cut too sharply into the right lane, you
could hit a vehicle on your right. Check your
inside mirror or glance over your shoulder before
changing lanes.
Automatic Dimming/Heated Outside
Rearview Mirror (If Equipped)
With this feature, the driver's side outside mirror will
adjust for the glare of headlamps behind you. This
feature is controlled by the on and off settings on the
electrochromic automatic dimming rearview mirror.
(See ªElectrochromic Automatic Dimming Rearview
Mirrorº earlier in this section.)
The driver's and the front passenger's outside mirrors
are also heated when you activate the rear window
defogger. (See ªRear Window Defoggerº in the Index.)
Both outside mirrors can be folded forward or rearward.

4-18
Here are some tips on night driving.

Drive defensively.

Don't drink and drive.

Adjust your inside rearview mirror to reduce the
glare from headlamps behind you.

Since you can't see as well, you may need to
slow down and keep more space between you and
other vehicles.

Slow down, especially on higher speed roads. Your
headlamps can light up only so much road ahead.

In remote areas, watch for animals.

If you're tired, pull off the road in a safe place
and rest.
No one can see as well at night as in the daytime. But as
we get older these differences increase. A 50
-year-old
driver may require at least twice as much light to see the
same thing at night as a 20
-year-old.
What you do in the daytime can also affect your night
vision. For example, if you spend the day in bright
sunshine you are wise to wear sunglasses. Your eyes will
have less trouble adjusting to night. But if you're
driving, don't wear sunglasses at night. They may cut
down on glare from headlamps, but they also make a lot
of things invisible.You can be temporarily blinded by approaching
headlamps. It can take a second or two, or even several
seconds, for your eyes to readjust to the dark. When you
are faced with severe glare (as from a driver who
doesn't lower the high beams, or a vehicle with
misaimed headlamps), slow down a little. Avoid staring
directly into the approaching headlamps.
Keep your windshield and all the glass on your vehicle
clean
-- inside and out. Glare at night is made much
worse by dirt on the glass. Even the inside of the glass
can build up a film caused by dust. Dirty glass makes
lights dazzle and flash more than clean glass would,
making the pupils of your eyes contract repeatedly.
Remember that your headlamps light up far less of a
roadway when you are in a turn or curve. Keep your
eyes moving; that way, it's easier to pick out dimly
lighted objects. Just as your headlamps should be
checked regularly for proper aim, so should your eyes
be examined regularly. Some drivers suffer from night
blindness
-- the inability to see in dim light -- and
aren't even aware of it.

4-31
CAUTION:
Snow can trap exhaust gases under your vehicle.
This can cause deadly CO (carbon monoxide) gas
to get inside. CO could overcome you and kill
you. You can't see it or smell it, so you might not
know it is in your vehicle. Clear away snow from
around the base of your vehicle, especially any
that is blocking your exhaust pipe. And check
around again from time to time to be sure snow
doesn't collect there.
Open a window just a little on the side of the
vehicle that's away from the wind. This will help
keep CO out.
Run your engine only as long as you must. This saves
fuel. When you run the engine, make it go a little faster
than just idle. That is, push the accelerator slightly. This
uses less fuel for the heat that you get and it keeps the
battery charged. You will need a well
-charged battery to
restart the vehicle, and possibly for signaling later on
with your headlamps. Let the heater run for a while.Then, shut the engine off and close the window almost
all the way to preserve the heat. Start the engine again
and repeat this only when you feel really uncomfortable
from the cold. But do it as little as possible. Preserve the
fuel as long as you can. To help keep warm, you can get
out of the vehicle and do some fairly vigorous exercises
every half hour or so until help comes.
Recreational Vehicle Towing
Recreational vehicle towing means towing your
vehicle behind another vehicle
-- such as behind a
motorhome. The two most common types of
recreational vehicle towing are known as ªdinghy
towingº (towing your vehicle with all four wheels on the
ground) and ªdolly towingº (towing your vehicle with
two wheels on the ground and two wheels up on a
device known as a ªdollyº).
With the proper preparation and equipment, many
vehicles can be towed in these ways. See ªDinghy
Towingº and ªDolly Towing,º following.

6-36
Bulb Replacement
For any bulb changing procedure not listed in this
section, contact your dealer. For the type of bulb,
see ªReplacement Bulbsº in the Index.
Halogen Bulbs
CAUTION:
Halogen bulbs have pressurized gas inside and
can burst if you drop or scratch the bulb. You or
others could be injured. Be sure to read and
follow the instructions on the bulb package.
Headlamps
1. Open the hood.
2. Pull up on the headlamp retainers (A) to release the
assembly locator tabs.
3. Disconnect the electrical connector (B) from the
headlamp assembly.
4. Slide the headlamp assembly out of the slots.

6-37
5. Remove the rubber access cover from behind the
bulb you are replacing.
6. Turn the bulb socket one
-quarter turn and remove it
from the headlamp assembly.
7. Lift the plastic locking tab on the electrical
connector and pull the connector from the headlamp
bulb socket.8. Connect the new headlamp bulb to the electrical
connector, making sure the connector tab snaps
into place.
9. Insert the bulb socket into the headlamp assembly.
10. Reverse all steps to reassemble the headlamp
assembly, then check the lamps.
11. Close the hood.
Headlamp Aiming
Your vehicle has a headlamp system equipped with
horizontal and vertical aim indicators. The aim has been
pre
-set at the factory and should need no further
adjustment. This is true even though your vertical and
horizontal aim indicators may not fall exactly on the
ª0º (zero) marks on their scales.
If your vehicle is damaged in an accident, the headlamp
aim may be affected. Aim adjustment may be necessary
if it is difficult to see lane markers (for horizontal aim),
or if oncoming drivers flash their high beams at you (for
vertical aim). If you believe your headlamps need to be
re
-aimed, we recommend that you take it to your dealer
for service; however, it is possible for you to re
-aim
your headlamps as described in the following procedure.

6-38
NOTICE:
To make sure your headlamps are aimed
properly, read all the instructions before
beginning. Failure to follow these instructions
could cause damage to headlamp parts.
To check the aim, the vehicle should be properly
prepared as follows:

The headlamps must be off for one hour prior to
aiming and must remain off during this procedure.

The vehicle must have all four tires on a perfectly
level surface.

If necessary, pads may be used on an uneven surface.

The vehicle should not have any snow, ice or mud
attached to it.

The vehicle should be fully assembled and all other
work stopped while headlamp aiming is being done.

There should not be any cargo or loading of the
vehicle, except it should have a full tank of fuel and
one person or 160 lbs. (75 kg) on the driver's seat.

Close all doors.
Tires should be properly inflated.

Rock the vehicle to stabilize the suspension.

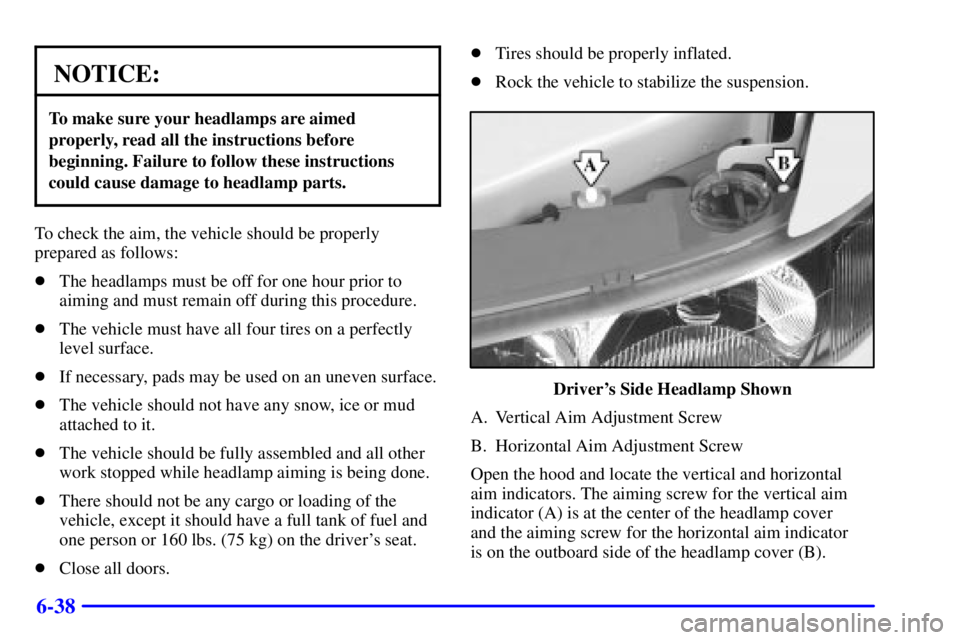

Driver's Side Headlamp Shown
A. Vertical Aim Adjustment Screw
B. Horizontal Aim Adjustment Screw
Open the hood and locate the vertical and horizontal
aim indicators. The aiming screw for the vertical aim
indicator (A) is at the center of the headlamp cover
and the aiming screw for the horizontal aim indicator
is on the outboard side of the headlamp cover (B).
