2002 BUICK RANDEZVOUS engine coolant

2-
2-1
Section 2 Features and Controls
Here you can learn about the many standard and optional features on your vehicle, and information on starting,
shifting and braking. Also explained are the instrument panel and the warning systems that tell you if everything is
working properly
-- and what to do if you have a problem.
2
-2 Windows
2
-4 Keys
2
-6 Door Locks
2
-9 Remote Keyless Entry System (Option)
2
-14 Vehicle Customization
2
-21 Liftgate
2
-22 Theft
2
-23 Content Theft-Deterrent (Option)
2
-25 PASS-Key III
2
-28 New Vehicle ªBreak-Inº
2
-28 Ignition Positions
2
-30 Starting Your Engine
2
-31 Engine Coolant Heater (If Equipped)
2
-32 Automatic Transaxle Operation
2
-37 Parking Brake
2
-38 Shifting Into PARK (P)
2
-40 Shifting Out of PARK (P)
2
-41 Parking Over Things That Burn
2
-41 Engine Exhaust2
-42 Running Your Engine While You're Parked
2
-43 Turn Signal/Multifunction Lever
2
-50 Exterior Lamps
2
-52 Interior Lamps
2
-59 Storage Compartments
2
-70 Accessory Inflator System (Option)
2
-71 Accessory Power Outlets
2
-72 OnStar System (Option)
2
-77 HomeLink Transmitter (Option)
2
-80 The Instrument Panel -- Your
Information System
2
-85 Warning Lights, Gages, Messages
and Indicators
2
-95 Message Center
2
-105 Driver Information Center (DIC)
(If Equipped)
2
-122 Head-Up Display (Option)
2
-125 Rear Parking Assist (Option)

2-31
3. If your engine still won't start (or starts but then
stops), it could be flooded with too much gasoline.
Try pushing your accelerator pedal all the way to the
floor and holding it there as you hold the key in
START for a maximum of 15 seconds. This clears
the extra gasoline from the engine. If the engine still
won't start or starts briefly but then stops again,
repeat Step 1 or 2, depending on temperature.
When the engine starts, release the key and the
accelerator pedal.
NOTICE:
Your engine is designed to work with the
electronics in your vehicle. If you add electrical
parts or accessories, you could change the way
the engine operates. Before adding electrical
equipment, check with your dealer. If you don't,
your engine might not perform properly.
Engine Coolant Heater (If Equipped)
In very cold weather, 0
F (-18
C) or colder, the engine
coolant heater can help. You'll get easier starting and
better fuel economy during engine warm
-up. Usually,
the coolant heater should be plugged in a minimum of
four hours prior to starting your vehicle. At temperatures
above 32
F (0
C), use of the coolant heater is
not required.

2-32
To Use the Engine Coolant Heater
1. Turn off the engine.
2. Open the hood and unwrap the electrical cord. The
electrical cord is located on the driver's side of the
engine compartment.
3. Plug it into a normal, grounded 110
-volt AC outlet.
CAUTION:
Plugging the cord into an ungrounded outlet
could cause an electrical shock. Also, the wrong
kind of extension cord could overheat and cause
a fire. You could be seriously injured. Plug the
cord into a properly grounded three
-prong
11 0
-volt AC outlet. If the cord won't reach, use a
heavy
-duty three-prong extension cord rated for
at least 15 amps.
4. Before starting the engine, be sure to unplug
and store the cord as it was before to keep it away
from moving engine parts. If you don't, it could
be damaged.How long should you keep the coolant heater plugged
in? The answer depends on the outside temperature, the
kind of oil you have, and some other things. Instead of
trying to list everything here, we ask that you contact
your dealer in the area where you'll be parking your
vehicle. The dealer can give you the best advice for that
particular area.
Automatic Transaxle Operation
Maximum engine speed is limited when you're in
PARK (P) or NEUTRAL (N), to protect driveline
components from improper operation.
There are several different positions for your shift lever.
PARK (P): This gear position locks your front wheels.
It's the best position to use when you start your engine
because your vehicle can't move easily.

2-89
If the traction control system warning light comes on
and stays on for an extended period of time when the
system is turned on, your vehicle needs service.
Engine Coolant Temperature Gage
United States Canada
This gage shows the engine coolant temperature. If the
gage pointer moves into the red area, your engine is
too hot!It means that your engine coolant has overheated. If you
have been operating your vehicle under normal driving
conditions, you should pull off the road, stop as soon
your vehicle and turn off the engine as soon as possible.
See ªEngine Overheatingº in the Index.

2-96

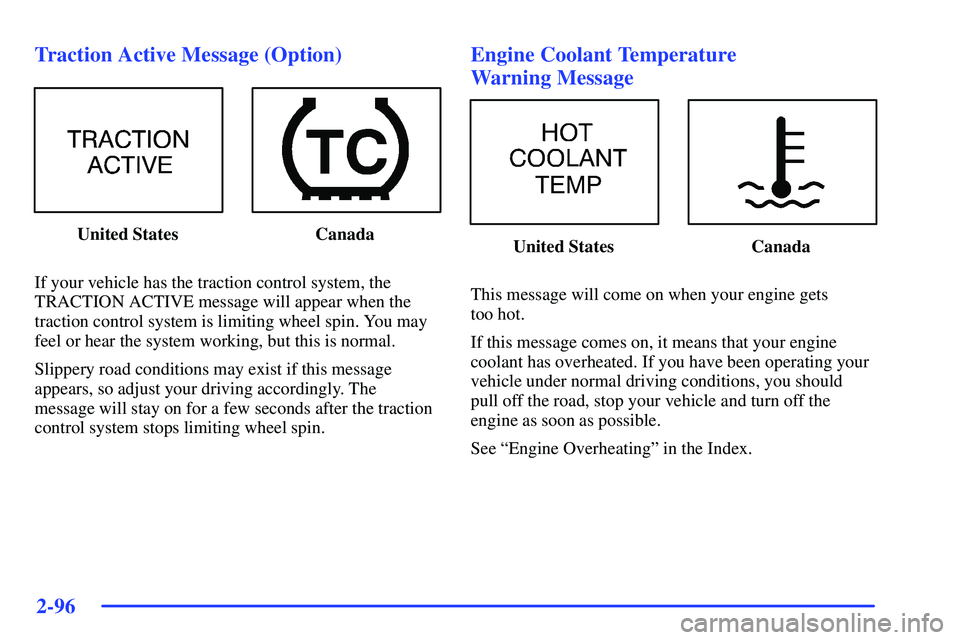

Traction Active Message (Option)
United States Canada
If your vehicle has the traction control system, the
TRACTION ACTIVE message will appear when the
traction control system is limiting wheel spin. You may
feel or hear the system working, but this is normal.
Slippery road conditions may exist if this message
appears, so adjust your driving accordingly. The
message will stay on for a few seconds after the traction
control system stops limiting wheel spin.
Engine Coolant Temperature
Warning Message
United States Canada
This message will come on when your engine gets
too hot.
If this message comes on, it means that your engine
coolant has overheated. If you have been operating your
vehicle under normal driving conditions, you should
pull off the road, stop your vehicle and turn off the
engine as soon as possible.
See ªEngine Overheatingº in the Index.

2-122
Head-Up Display (HUD) (Option)
CAUTION:
If the HUD image is too bright, or too high in
your field of view, it may take you more time to
see things you need to see when it's dark outside.
Be sure to keep the HUD image dim and placed
low in your field of view.
If your vehicle has this option, it can display the
speedometer reading in English or metric. The current
radio station, CD number and/or track number or tape
may also be displayed and will appear as an image
focused out toward the front of your vehicle.
The HUD is capable of displaying English or French.
See ªDriver Information Center (DIC) Messagesº
earlier in this section to change the display from English
to metric.The Head
-Up Display also displays the following lights
and messages when they appear on the instrument
panel cluster:

Turn Signal Indicators

High
-Beam Indicator

Low
-Fuel Warning Message
See each of these features in the Index for
more information.
The Head
-Up Display also displays a CHECK GAGES
icon. The following messages could appear on the
instrument panel cluster when CHECK GAGES appears:

Engine Coolant Temperature Warning Message

Low Oil Pressure Message

Charging System Indicator Message

Low Brake Fluid Warning Message
See each of these messages in the Index for
more information.

3-4
Heating
Turn the temperature knob clockwise (toward the red
area) to warm the air.
In the lower mode, outside air will be brought in and
sent through the floor outlets. The heater works best if
you keep your windows closed while using it.
The bi
-level setting is designed for use on sunny days
when the air is only moderately warm or cool. On days
like these, the sun may adequately warm your upper
body, but your lower body may not be warm enough.
For the best results, move the temperature knob to the
middle position, and then adjust it for comfort.
Your vehicle has a computer controlled transaxle
designed to warm up the engine faster when the outside
temperature is 35
F (2
C) or colder. You may notice
that the transaxle will shift at a higher vehicle speed
until the engine is warmed up. This is a normal
condition designed to provide heat to the passenger
compartment and defrost the windows more quickly.
If your vehicle is equipped with an engine coolant heater
and you use it during cold weather, 0
F (
-18
C) or
lower, your heating system will provide heat more
quickly because the engine coolant is already warmed.
See ªEngine Coolant Heaterº in the Index.Defogging and Defrosting
Your system has two settings for clearing the front and
side windows.
To rapidly defrost the windshield, turn the temperature
knob all the way clockwise (to the red area) and turn the
mode knob to defrost. Adjust the fan to the highest speed.
To keep the windshield clear and bring in heated air
through the heater ducts, turn the mode knob to defog.
When the temperature outside is above freezing, the air
conditioner compressor will run in these settings to help
remove moisture from the air.
Your vehicle is equipped with side window defogger
vents located on the top of the instrument panel. For
additional side window defogging, turn the mode knob
to the bi
-level setting and adjust the fan to the highest
speed. Aim the side vents on the instrument panel
toward the side windows. For increased airflow to the
side vents, close the center vents.
Operating the HVAC system in the recirculation mode may
cause fogging of the vehicle's windows when the weather is
cold and damp. To clear the fog, switch the HVAC system to
either the defog or defrost mode and increase the fan speed.
To avoid re
-fogging of the windows, operate the HVAC
system in the outside air mode.
For additional information, refer to ªRecirculationº
earlier in this section.

3-8
Heating
Turn the temperature knob to the desired interior
temperature to warm the air.
In the lower mode, outside air will be brought in and
sent through the floor outlets. The heater works best if
you keep your windows closed while using it.
The bi
-level setting is designed for use on sunny days
when the air is only moderately warm or cool. On days
like these, the sun may adequately warm your upper
body, but your lower body may not be warm enough.
For the best results, move the temperature knob to the
middle position, and then adjust it for comfort.
Your vehicle has a computer controlled transaxle
designed to warm up the engine faster when the outside
temperature is 35
F (2
C) or colder. You may notice
that the transaxle will shift at a higher vehicle speed
until the engine is warmed up. This is a normal
condition designed to provide heat to the passenger
compartment and defrost the windows more quickly.If your vehicle is equipped with an engine coolant heater
and you use it during cold weather, 0
F (
-18
C) or
lower, your heating system will provide heat more
quickly because the engine coolant is already warmed.
See ªEngine Coolant Heaterº in the Index.
Defogging and Defrosting
Your system has two settings for clearing the front and
side windows.
To defrost the windows quickly, press the defrost button
and set the temperature to 90
F (32
C) and select a high
fan speed.
To warm passengers while keeping the window clear,
select the defog mode with the mode button (the defog
symbol will be lit). Select the fan speed for comfort and
windshield clearing performance.
