2002 BUICK RANDEZVOUS Owner's Manual

1-10
Removing the Split Bench Seat
Each section of the split bench seat can be flipped
forward or removed individually.
1. Unlatch the shoulder belt from the lap-belt.
2. Make sure that the seatback is in the
upright position.
3. Lift up or push forward on the seatback recliner lever
to fold the seatback forward.
Base-Level
4. For base
-level split bench seats, pull the lever at the
base of the seat on the outboard side to release
the rear latches from the floor pins and flip the
seat forward.
For up
-level split bench seats, continue pushing
forward on the recliner lever to release the rear
latches from the floor pins and flip the seat forward.
The seat can stay in this position or it can be removed
from the vehicle by following the next steps.

1-11
5. To release the front latches, squeeze the angled latch
release bar toward the straight crossbar.
6. Remove the seat by rocking it slightly toward the
rear of the vehicle and then pulling it out.
Repeat these steps for the other section of the split
bench seat.Replacing the Split Bench Sections
CAUTION:
If the seatback isn't locked, it could move forward
in a sudden stop or crash. That could cause injury
to the person sitting there. Always press rearward
on the seatback to be sure it is locked.
CAUTION:
A seat that isn't locked into place properly
can move around in a collision or sudden stop.
People in the vehicle could be injured. Be sure
to lock the seat into place properly when
installing it.

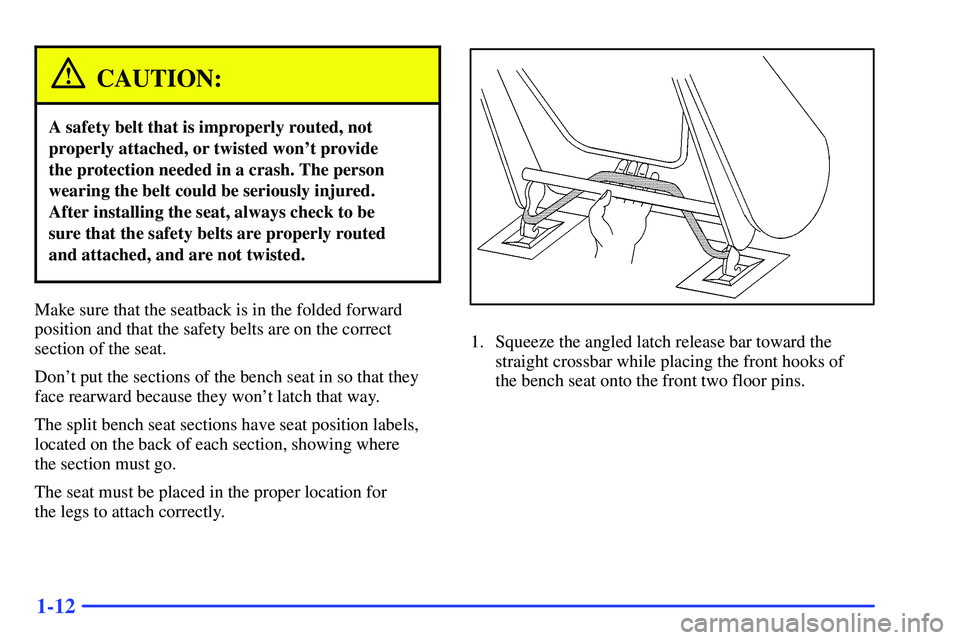

1-12
CAUTION:
A safety belt that is improperly routed, not
properly attached, or twisted won't provide
the protection needed in a crash. The person
wearing the belt could be seriously injured.
After installing the seat, always check to be
sure that the safety belts are properly routed
and attached, and are not twisted.
Make sure that the seatback is in the folded forward
position and that the safety belts are on the correct
section of the seat.
Don't put the sections of the bench seat in so that they
face rearward because they won't latch that way.
The split bench seat sections have seat position labels,
located on the back of each section, showing where
the section must go.
The seat must be placed in the proper location for
the legs to attach correctly.
1. Squeeze the angled latch release bar toward the
straight crossbar while placing the front hooks of
the bench seat onto the front two floor pins.

1-13
2. Make sure that the
bench seat is angled
so that the front hooks
clear the floor pins.
If the front legs are not
attached correctly,
the rear legs will not
attach to the rear set of
floor pins.
3. Firmly push the rear hooks onto the rear floor pins
by pushing down on the rear of the seat.
4. Try to raise the seat to check that it is locked down.
5. Lift the seatback recliner lever and raise the seatback
until it locks upright.
6. Push and pull on the seatback to check that it is
locked upright.
7. Attach the lap belt.

1-14 Captain's Chairs (If Equipped)
CAUTION:
If the seatback isn't locked, it could move forward
in a sudden stop or crash. That could cause injury
to the person sitting there. Always press rearward
on the seatback to be sure it is locked.
If your vehicle has the captain's chairs, the seatbacks
can be reclined or folded forward.
To recline the seatback, lift up on the recliner lever located
on the outboard side of the seatback. Use the recliner lever
to move the seatback to the desired position.
It is easier to raise or lower the seatback if you lean
forward and take the weight off the seatback.
The seatbacks on the second row captain's chairs also
fold forward.
Lift up on the recliner lever and fold the seatback
forward. The seatback will lock into place when you
push it back to the upright position.
After raising a seatback to an upright position, push and
pull on the seatback to check that it is locked upright.

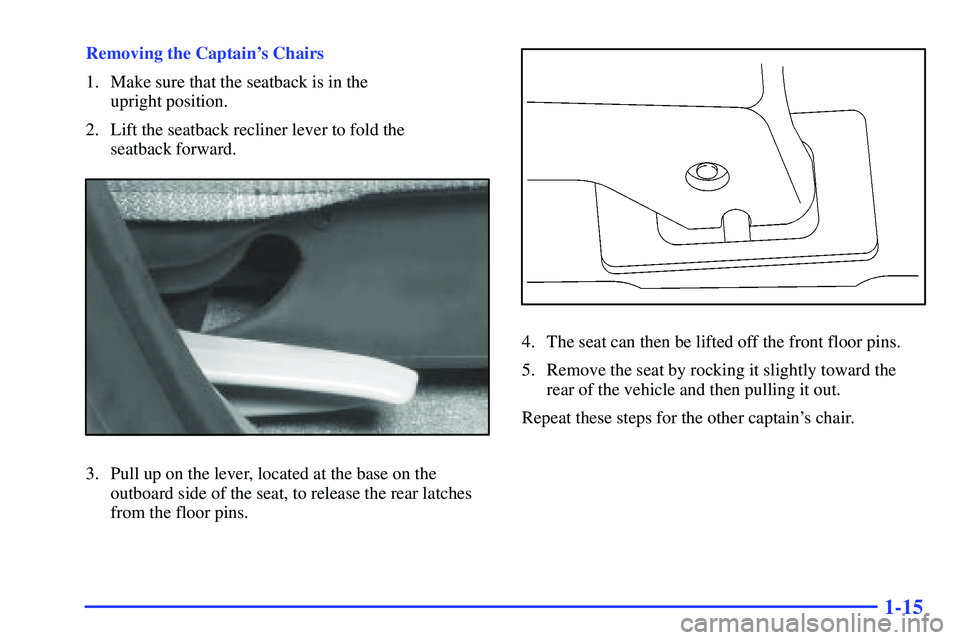

1-15
Removing the Captain's Chairs
1. Make sure that the seatback is in the
upright position.
2. Lift the seatback recliner lever to fold the
seatback forward.
3. Pull up on the lever, located at the base on the
outboard side of the seat, to release the rear latches
from the floor pins.
4. The seat can then be lifted off the front floor pins.
5. Remove the seat by rocking it slightly toward the
rear of the vehicle and then pulling it out.
Repeat these steps for the other captain's chair.

1-16
Replacing the Captain's Chairs
CAUTION:
If the seatback isn't locked, it could move forward
in a sudden stop or crash. That could cause injury
to the person sitting there. Always press rearward
on the seatback to be sure it is locked.
CAUTION:
A seat that isn't locked into place properly
can move around in a collision or sudden stop.
People in the vehicle could be injured. Be sure
to lock the seat into place properly when
installing it.
CAUTION:
A safety belt that is improperly routed, not
properly attached, or twisted won't provide
the protection needed in a crash. The person
wearing the belt could be seriously injured.
After installing the seat, always check to be
sure that the safety belts are properly routed
and attached, and are not twisted.
Make sure that the seatback is in the folded forward
position and that the safety belts are on the correct side
of the chair.
Don't put the chairs in so that they face rearward
because they won't latch that way.
The captain's chairs have seat position labels, located
on the back of each section, showing where the section
must go.
The seat must be placed in the proper location for the
legs to attach correctly.

1-17
1. Hook the front latches over the front floor pins.2. Push the rear of the seat down to lock the rear
latches onto the rear set of floor pins.
3. Push and pull on the seat to check that it is
properly attached.
