2002 BMW MOTORRAD R 1150 GS Rider's Manual (in English)

Rider’s Manual
R 1150 GS
R 1150 GS Adventure
BMW Motorrad
On-board
documentation
consisting of
Rider's Manual
and Maintenance
InstructionsBMW Motorrad
On-board
documentation
consisting of
Rider's Manual
and Maintenance
InstructionsBMW Motorrad
On-board
documentation
consisting of
Rider's Manual
and Maintenance
InstructionsBMW Motorrad
On-board
documentation
consisting of
Rider's Manual
and Maintenance
InstructionsBMW Motorrad
On-board
documentation
consisting of
Rider's Manual
and Maintenance
InstructionsBMW Motorrad
On-board
documentation
consisting of
Rider's Manual
and Maintenance
InstructionsBMW Motorrad
On-board
documentation
consisting of
Rider's Manual
and Maintenance
InstructionsBMW Motorrad
On-board
documentation
consisting of
Rider's Manual
and Maintenance
InstructionsBMW Motorrad
On-board
documentation
consisting of
Rider's Manual
and Maintenance
InstructionsBMW Motorrad
On-board
documentation
consisting of
Rider's Manual
and Maintenance
InstructionsBMW Motorrad
On-board
documentation
consisting of
Rider's Manual
and Maintenance
InstructionsBMW Motorrad
On-board
documentation
consisting of
Rider's Manual
and Maintenance
InstructionsBMW Motorrad
On-board
documentation
consisting of
Rider's Manual
and Maintenance
InstructionsBMW Motorrad
On-board
documentation
consisting of
Rider's Manual
and Maintenance
InstructionsBMW Motorrad
On-board
documentation
consisting of
Rider's Manual
and Maintenance
InstructionsBMW Motorrad
On-board
documentation
consisting of
Rider's Manual
and Maintenance
Instructions
10geBKg6.book Seite 95 Dienstag, 19. November 2002 1:11 13

d Warning:
This symbol stands for
precau-tions and measures
which are essential in order to
protect the rider or other
persons from possibly severe
or fatal injury.
e Attention:
Instructions and precautions
specifically intended to prevent
damage to the motorcycle.
Disregarding them may render
the warranty invalid.
L Note:
Specific instructions on how to
operate, control, adjust or look
after items of equipment on the
motorcycle.
Important notes
10geBKg6.book Seite 87 Dienstag, 19. November 2002 1:11 13

1
Introduction
i
Welcome to BMWWe congratulate you on your
choice of a motorcycle from
BMW and welcome you to the
community of BMW riders.
Familiarise yourself with your
new motorcycle, so that you
can ride it safely and confidently
in all traffic situations.
To make sure of this, please
read this Rider’s Manual care-
fully before starting to use your
new motorcycle. It contains
important information on how to
operate the controls and how to
make the best possible use of
all the motorcycle’s technical
features.
In addition, it contains useful
hints and information on the
correct equipment for machine
and rider, to ensure maximum
reliability and safety, and advice
on how to maintain the value of
your motorcycle.If you have any questions con-
cerning your motorcycle, your
authorised BMW motorcycle
dealer will gladly provide
advice and assistance.
We hope you enjoy reading this
Rider’s Manual and wish you
many a pleasant, safe journey
on your BMW motorcycle.
Best wishes,
BMW Motorrad
Welcome to BMW
10geBKg6.book Seite 1 Dienstag, 19. November 2002 1:11 13

i
2
Introduction
12
General information and
controls
General view, left side
R 1150 GS ............................ 4
General view, right side
R 1150 GS ............................ 5
General view, left side
R 1150 GS Adventure ........... 6
General view, right side
R 1150 GS Adventure ........... 7
Cockpit ................................. 8
Telltale and warning lights ..... 9
Ignition switch and steering
lock ................................ 10-11
Hazard warning lights .......... 12
Power socket ...................... 13
Left handlebar fitting ........... 14
Right handlebar fitting ......... 15
Dualseat R 1150 GS ..... 16-18
Seat
R 1150 GS Adventure .... 19-20
System case .................. 21-23
Aluminium case .............. 24-26
Adjusting the windscreen .... 27Safety check
Checklist ........................ 28-29
Engine oil ....................... 30-31
Fuel ................................ 32-33
Handlebar levers ............ 34-35
Brake system - general .. 36-37
Brake system - without
BMW Integral ABS ......... 38-40
Brake system - with
BMW Integral ABS ......... 41-44
Clutch ................................. 45

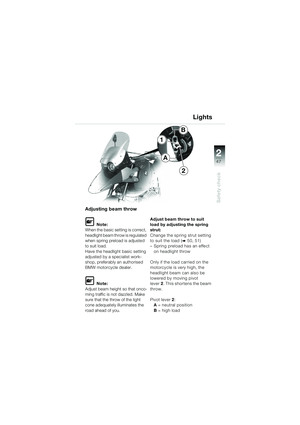

Lights ............................. 46-49
Suspension spring
preload .......................... 50-51
Shock absorber .................. 52
Wheels ........................... 53-55
Accessories and tyres......... 56
Accessories and loads ... 56-57
Contents
10geBKg6.book Seite 2 Dienstag, 19. November 2002 1:11 13

3
i
Introduction
34
Starting – Riding – Parking
Your first journey ........... 58-59
Important notes ............. 60-61
Side stand ..................... 62-63
Center stand ................. 64-65
Running in ..................... 66-67
Before you start ............. 68-69
Starting ......................... 70-71
Warning lights................ 72-73
Rider Information Display
(RID) .............................. 74-75
Riding, gear change ...... 76-77
Brake system - general . 78-79
Brake system -
with BMW Integral ABS . 80-87
BMW Integral ABS
Troubleshooting ............ 88-89Arrive safely!
Reliable operation ..........90-91
Service worldwide ............... 92
Protecting the environment . 93
BMW rider’s equipment ....... 94
BMW motorcycle
accessories ......................... 95
Training means extra safety. 96
Concluding thoughts ........... 97
Contents
10geBKg6.book Seite 3 Dienstag, 19. November 2002 1:11 13

11
4
General information and controls
391256784
1011
R 1150 GS1Suspension strut,
adjustment, front (
b50)
2 Oil level sight glass,
engine (
b31)
3 Engine oil filler (
b31)
4 Reservoir for clutch fluid
(
b45)
5 Power socket, 12 VOA
Provision for connecting
additional equipment – max.
load 5 A
OAOptional accessories
6Suspension strut,
adjustment, rear (
b51)
7 Lifting handle
8 Suspension strut, adjusting
shock absorber (
b52)
9 Dualseat lock (
b 16-18)
10 Primary spark plug, left
11 Secondary spark plug, left
( ) Figure in bracketsbpage number for
description
General view, left side
10ge01g6.fm Seite 4 Montag, 7. Juni 2004 10:11 10

111
5
General information and controls
1312
192016
1514
1817
12Stowage compartment for
toolkit (supplied)
13 Fuse box
14 Brake fluid reservoir, front
brake (
b39)
15 Fuel cap (
b32)
( ) Figure in bracketsbpage number for
description
16 Type plate/vehicle identifi-
cation number
17 Primary spark plug, right
18 Secondary spark plug, right
19 Brake fluid reservoir for rear
brake (
b40)
20 Helmet holder
General view, right side
10ge01g6.fm Seite 5 Montag, 7. Juni 2004 10:12 10

11
6
General information and controls
1235764
8910
R 1150 GS Adventure1 Headlight guardOA
not allowed on
public roads
2 Fog lamp with guard
OA
3Power socket
4 Hand protectors
OAOptional accessories
5Fuel tankOE capacity 30 l
(6.6 gal)
6 Case carrier
OA
7Mounting plate for
topcaseOA
8Primary spark plug, left
9 Secondary spark plug, left
10 Crash bar
OE
OEOptional extra
General view, left side
10ge01g6.fm Seite 6 Montag, 7. Juni 2004 10:13 10
