General information and controls
1

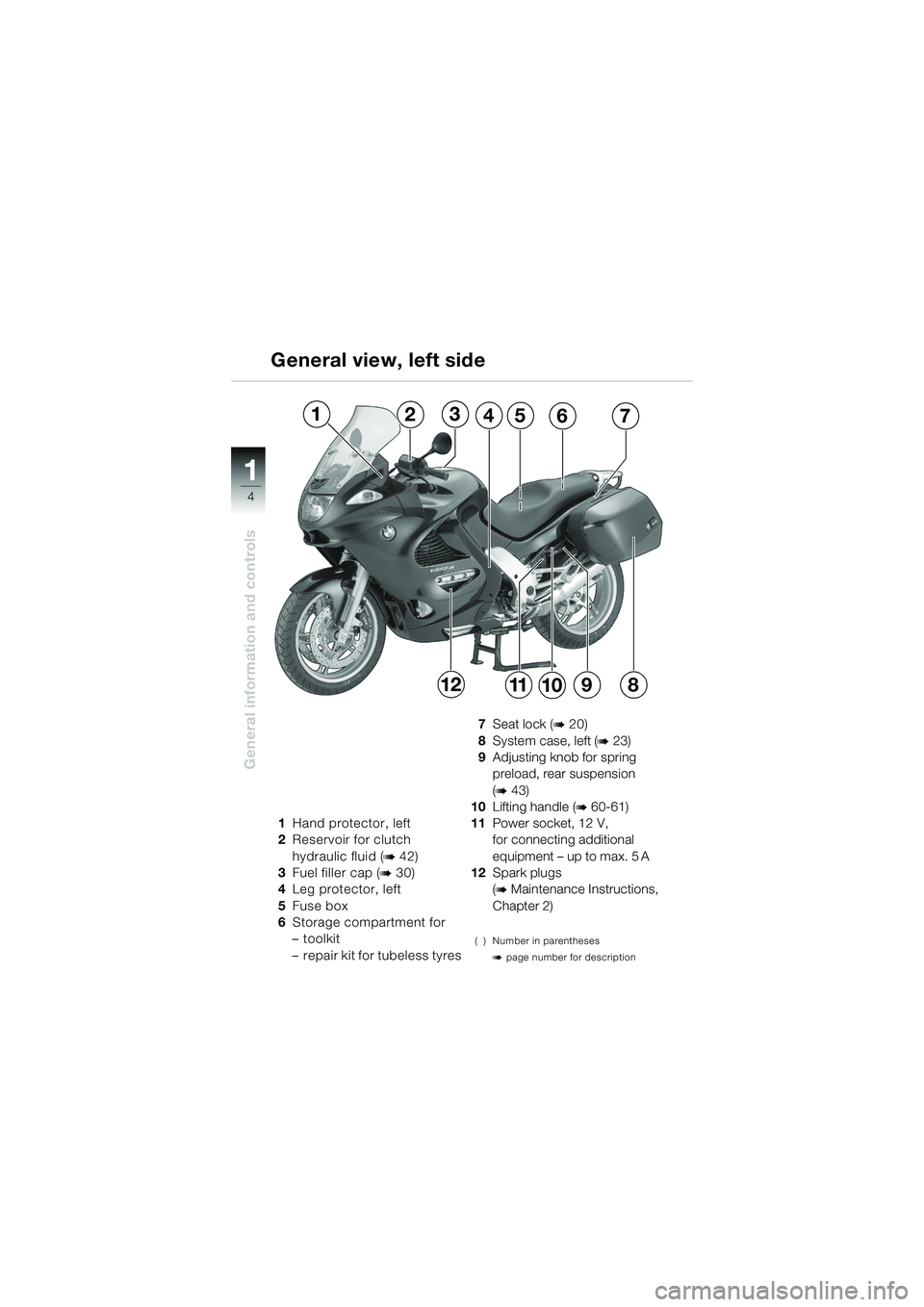

General view, left side
1Hand protector, left
2 Reservoir for clutch
hydraulic fluid (
b 42)
3 Fuel filler cap (
b 30)
4 Leg protector, left
5 Fuse box
6 Storage compartment for
– toolkit
– repair kit for tubeless tyres 7
Seat lock (
b 20)
8 System case, left (
b 23)
9 Adjusting knob for spring
preload, rear suspension
(
b 43)
10 Lifting handle (
b 60-61)
11 Power socket, 12 V,
for connecting additional
equipment – up to max. 5 A
12 Spark plugs
(
b Maintenance Instructions,
Chapter 2)
( ) Number in parentheses
b page number for description
1265437
12111098
