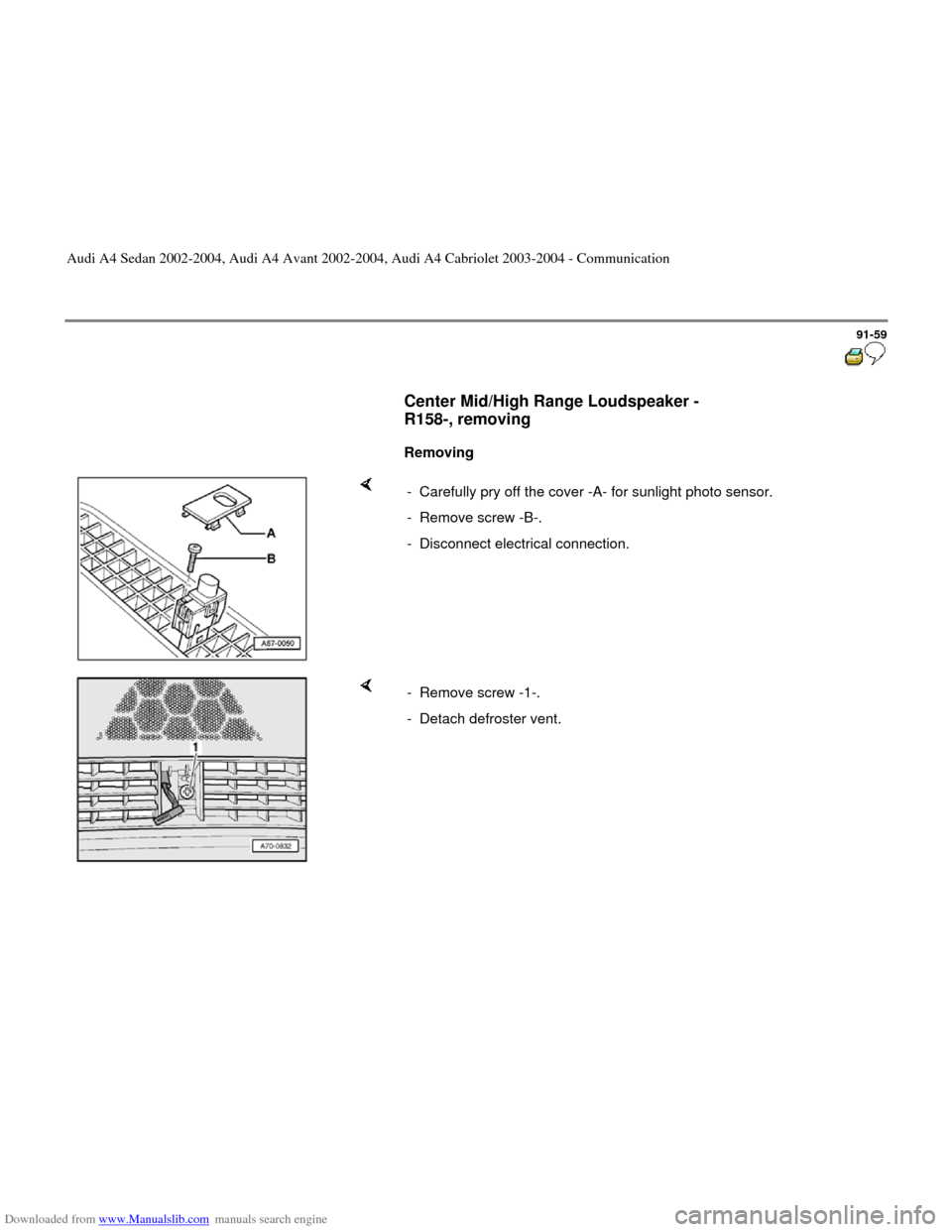

Center Mid/High Range Loudspeaker -
R158-, removing
Removing
- Carefully pry off the cover -A- for sunlight photo sensor.
- Remove screw -B-.
- Disconnect electrical connection.
- Remove screw -1-.
- Detach defroster vent.
Audi A4 Sedan 2002-2004, Audi A4 Avant 2002-2004, Audi A4 Cabriolet 2003-2004 - Communication
Downloaded from www.Manualslib.com manuals search engine 91-70

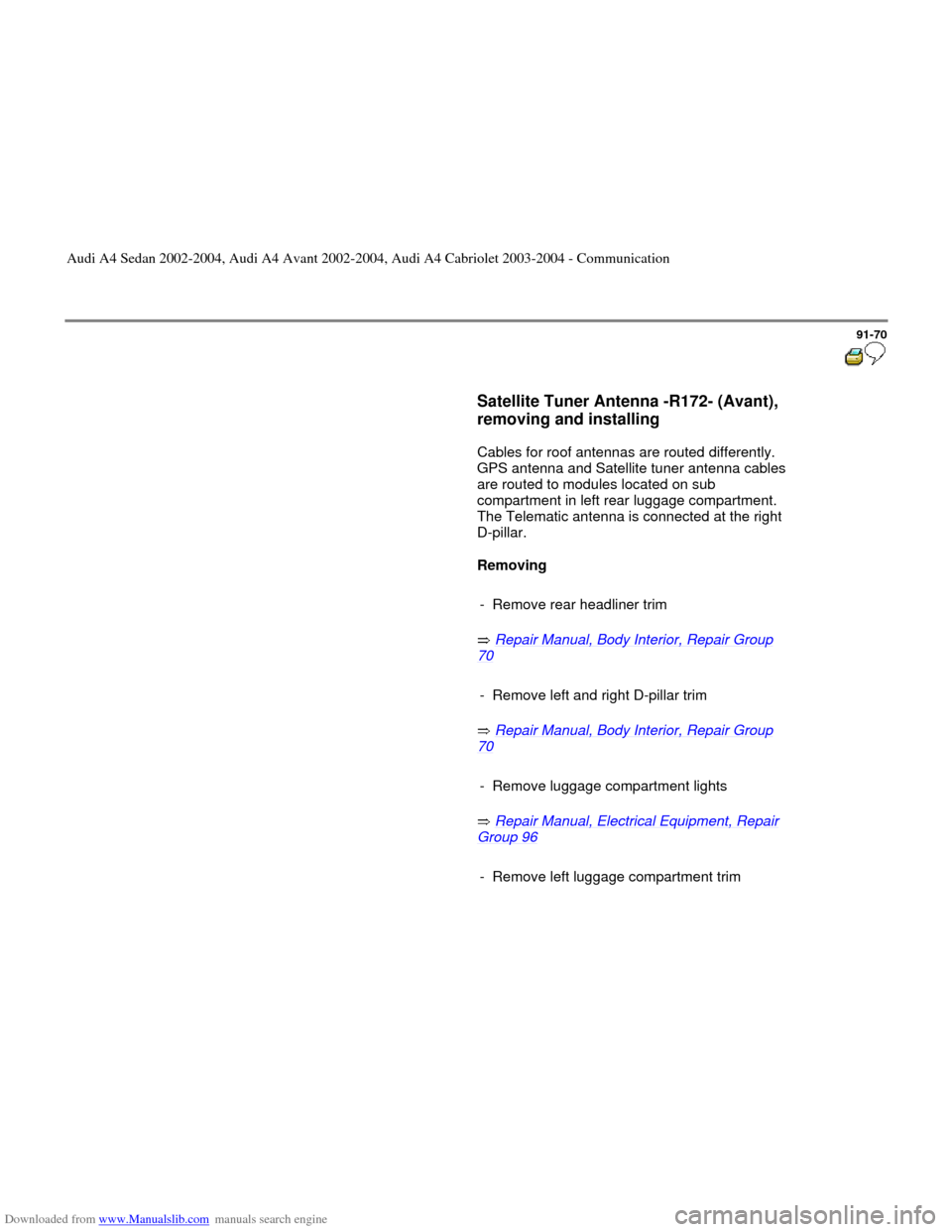

Satellite Tuner Antenna -R172- (Avant),
removing and installing
Cables for roof antennas are routed differently.
GPS antenna and Satellite tuner antenna cables
are routed to modules located on sub
compartment in left rear luggage compartment.
The Telematic antenna is connected at the right
D-pillar.
Removing
- Remove rear headliner trim
Repair Manual, Body Interior, Repair Group
70
- Remove left and right D-pillar trim
Repair Manual, Body Interior, Repair Group
70
- Remove luggage compartment lights
Repair Manual, Electrical Equipment, Repair
Group 96
- Remove left luggage compartment trimAudi A4 Sedan 2002-2004, Audi A4 Avant 2002-2004, Audi A4 Cabriolet 2003-2004 - Communication
