2002 AUDI A4 window

Downloaded from www.Manualslib.com manuals search engine 91-30


"Concert II" and "Symphony II" radio systems
with "BOSE sound system" (Avant), layout
1 -
Left Antenna Module
In left rear luggage compartment behind
side trim
2 -
Left rear window antenna
3 -
Rear window antenna
4 -
Right rear window antenna
5 -
BOSE power amplifier In right rear luggage compartment behind
side trim
6 -
Front Bass Speakers In lower front door trim
Audi A4 Sedan 2002-2004, Audi A4 Avant 2002-2004, Audi A4 Cabriolet 2003-2004 - Communication

Downloaded from www.Manualslib.com manuals search engine 91-36

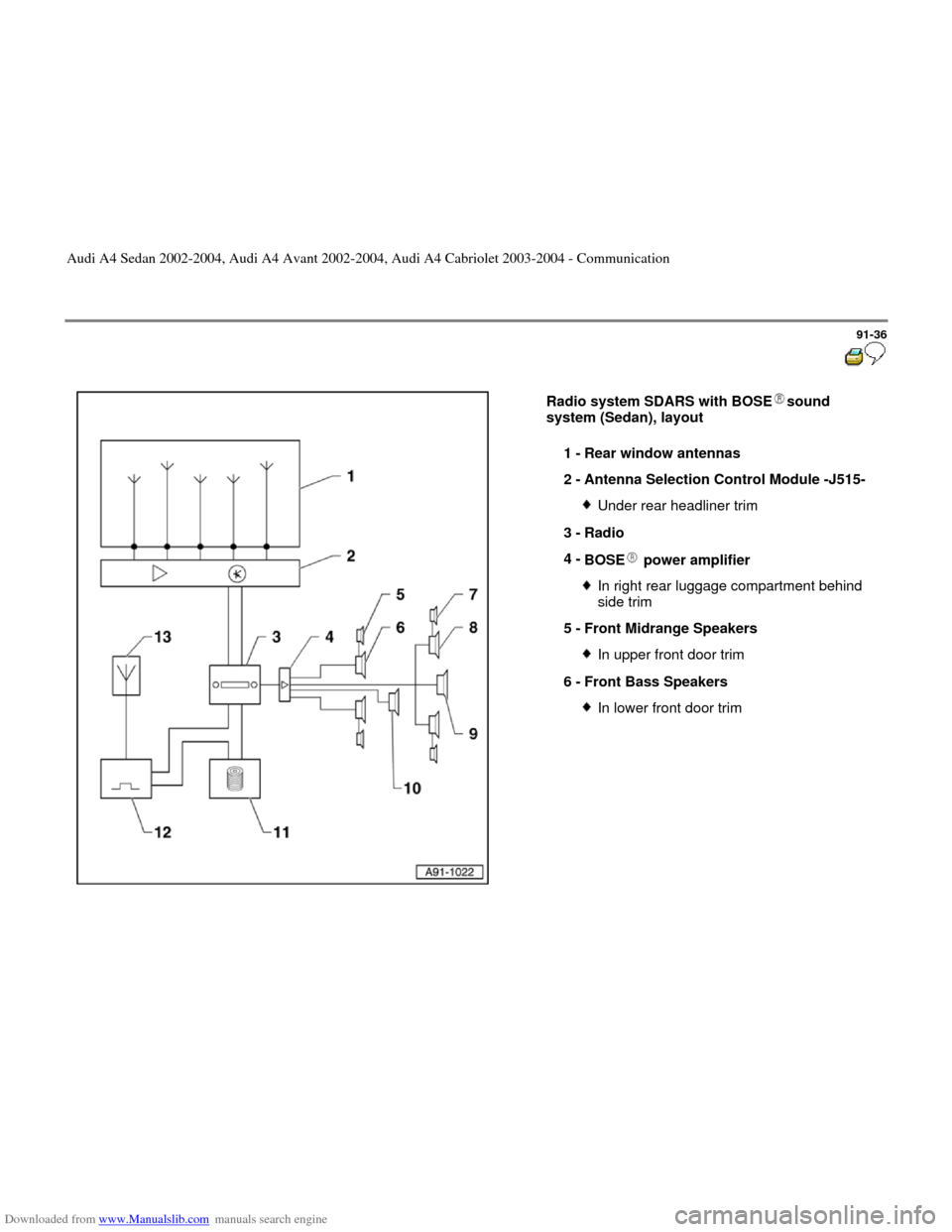

Radio system SDARS with BOSE sound
system (Sedan), layout
1 -
Rear window antennas
2 -
Antenna Selection Control Module -J515-
Under rear headliner trim
3 -
Radio
4 -
BOSE power amplifier In right rear luggage compartment behind
side trim
5 -
Front Midrange Speakers In upper front door trim
6 -
Front Bass Speakers In lower front door trim
Audi A4 Sedan 2002-2004, Audi A4 Avant 2002-2004, Audi A4 Cabriolet 2003-2004 - Communication

Downloaded from www.Manualslib.com manuals search engine 91-38

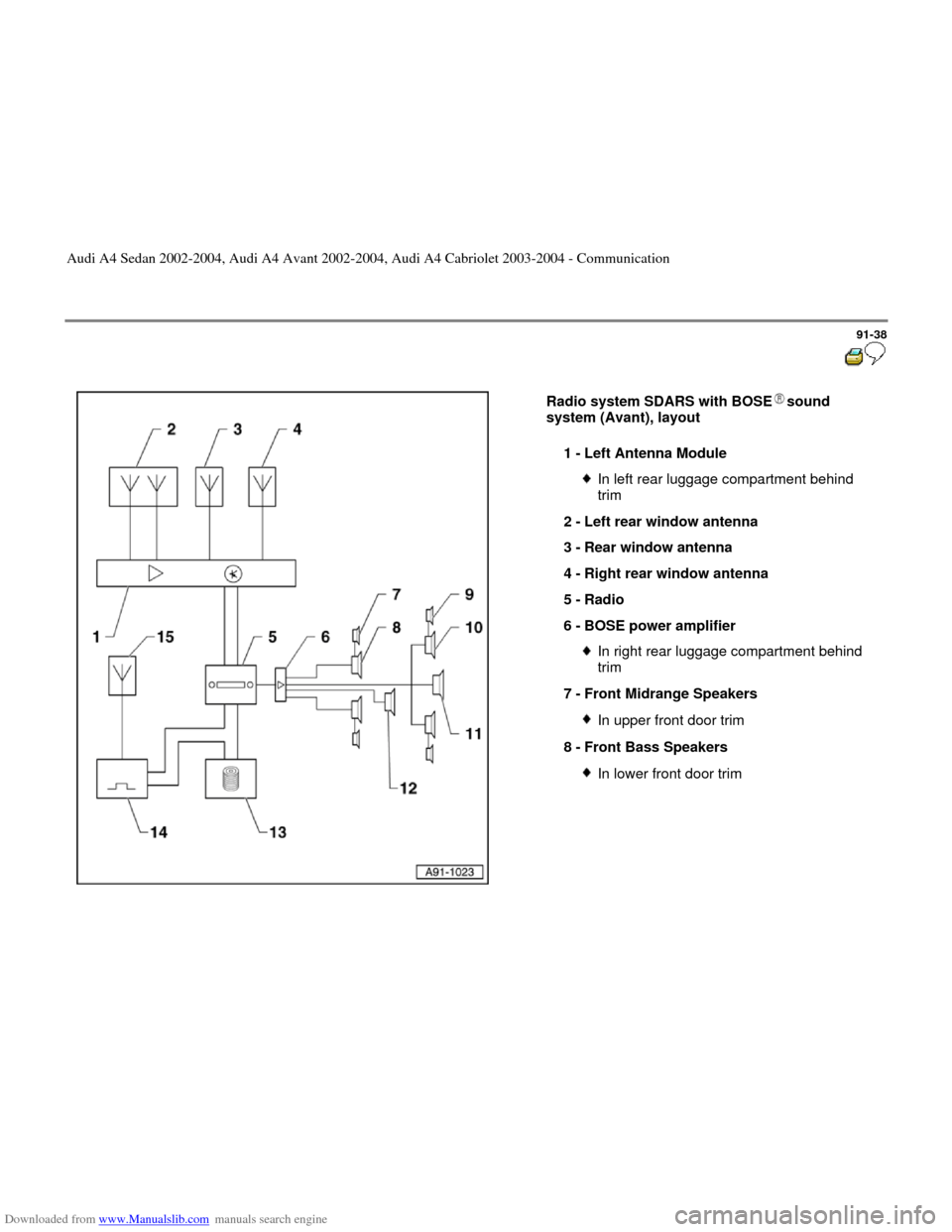

Radio system SDARS with BOSE sound
system (Avant), layout
1 -
Left Antenna Module
In left rear luggage compartment behind
trim
2 -
Left rear window antenna
3 -
Rear window antenna
4 -
Right rear window antenna
5 -
Radio
6 -
BOSE power amplifier In right rear luggage compartment behind
trim
7 -
Front Midrange Speakers In upper front door trim
8 -
Front Bass Speakers In lower front door trim
Audi A4 Sedan 2002-2004, Audi A4 Avant 2002-2004, Audi A4 Cabriolet 2003-2004 - Communication
