2002 Acura TL display

ÛÝ

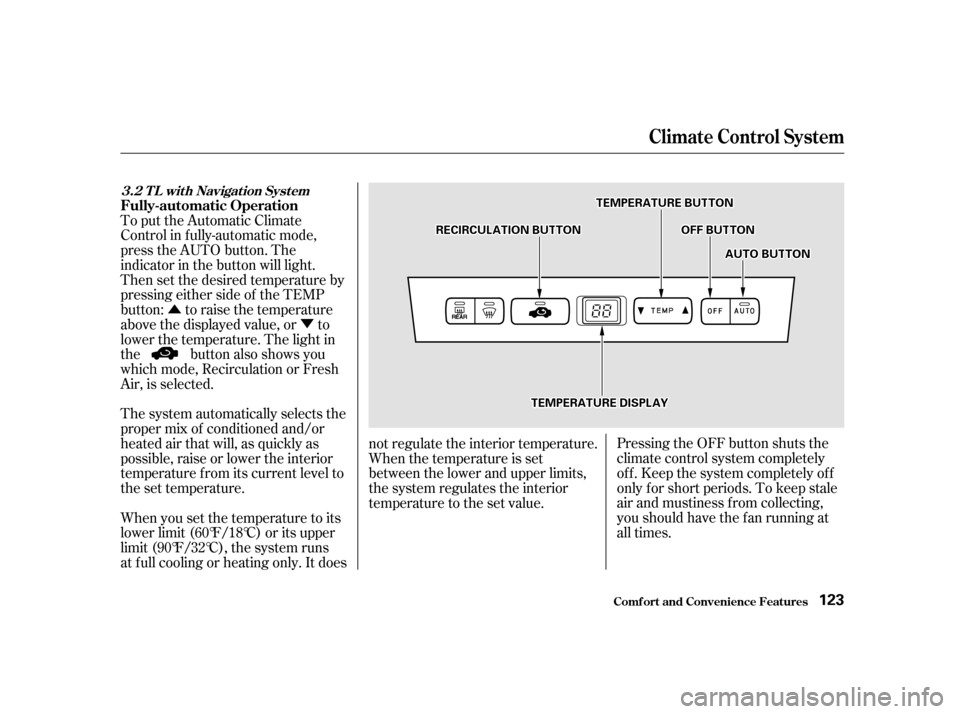

Pressing the OFF button shuts the
climate control system completely
of f . Keep the system completely of f
only f or short periods. To keep stale
air and mustiness f rom collecting,
you should have the f an running at
all times.
To put the Automatic Climate
Control in f ully-automatic mode,
press the AUTO button. The
indicator in the button will light.
Then set the desired temperature by
pressing either side of the TEMP
button: to raise the temperature
above the displayed value, or to
lower the temperature. The light in
the button also shows you
which mode, Recirculation or Fresh
Air, is selected.
The system automatically selects the
proper mix of conditioned and/or
heated air that will, as quickly as
possible, raise or lower the interior
temperature f rom its current level to
the set temperature.
When you set the temperature to its
lower limit (60°F/18°C) or its upper
limit (90°F/32°C), the system runs
at f ull cooling or heating only. It does
not regulate the interior temperature.
When the temperature is set
between the lower and upper limits,
the system regulates the interior
temperature to the set value.
Fully-automatic Operation
Comf ort and Convenience Feat ures
Climat e Cont rol Syst em
3.2 T L wit h Navigat ion Syst em
123
O OF
FFF B
BUUT TT
TO
ON N
T
T E
EM
M P
PE
ER
RA A T
TU
UR REE D
DI
ISSP PL
LAA Y
Y A
A
U
UT TO
O B
BUUT TT
TO
ON N
R
RE
EC
CI IRRC CUUL LAA T
TI
IOON N B
BUUT TT
TO
ON N T
T
E
EM
M P
PE
ER
RA A T
TU
UR REE B
BUUT TT
TO
ON N
00/12/25 14:13:41 31S0K630_126

You can manually select various
f unctions of the Climate Control
system when it is in FULL AUTO.
All other f eatures remain
automatically controlled. Some of
these functions appear in the
Navigation System display. Press the
A/C button next to the display to
show these f unctions. Making any
manual selection causes the
indicator in the AUTO button to go
out.
Pressing ‘‘ON’’ or ‘‘OFF’’ in the
display turns the air conditioning on
andoff.YouwillseeA/CONorA/C
OFF activated in the display. Semi-automatic Operation
A /C (A ir Condit ioning) On/Of f Icons
Climat e Cont rol Syst em
Comf ort and Convenience Feat ures124
A A/
/C
C O
ONN//O
OF FFF I
ICCO ON NSS
A
A/
/C
C B
BUUT TT
TO
ON N
R
RE EC
CI IRRC CUUL LAA T
TI
IOON N B
BUUT TT
TO
ON N T
TE
EM
M P
PE
ER
RA A T
TU
UR REE B
BUUT TT
TO
ON N
00/12/25 14:13:50 31S0K630_127

The ignition switch must be in
ACCESSORY (I) or ON (II) to
operate the audio system. Turn the
system on by pressing the PWR/
VOL knob or the AM or FM button.
Adjust the volume by turning the
knob.
The band and f requency that the
radio was last tuned to is displayed.
To change bands, press the AM or
FM button. On the FM band, ST will
be displayed if the station is broad-
castinginstereo.Stereo
reproduction on AM is not available.
Audio System
Comf ort and Convenience Feat ures
Operating the Radio
130
S SCCAA N
N B
BUUT TT
TO
ON N
P
PR
RE ES
SE ET
T B
BUUT TT
TO
ON NSS S
SE
EE
EK
K B
BUUT TT
TO
ON NSS
P
P
W
WR R//V
V O
OL L K
KNNO OBB
A
AM
M
B
BU UT TT
TO
ON N F
FM
M
B
BU UT TT
TO
ON N S
ST
TE
ER
RE EO
O
I
IN ND DI
ICCA A T
TO
OR R T
T
U
UN NEE K
KNNO OBB
00/12/25 14:14:42 31S0K630_133

µµ
µ
µ ÓÓ
µ´
To store a f requency:Select the desired band, AM or
FM. FM1 and FM2 let you store
two f requencies with each Preset
button.
Pick the Preset button you want
for that station. Press the button
and hold it until you hear a beep.
Repeat steps 1 to 3 to store a total
of six stations on AM and twelve
on FM.
Once a station’s f requency is stored,
simply press and release the proper
preset button to tune to it.
The SCAN f unction
samples all the stations with strong
signals on the selected band. To
activate it, press the SCAN button,
then release it. When the system is
in the SCAN mode, SCAN shows in
the display. The system will scan up
the band for a station with a strong
signal. When it f inds one, it will stop
and play that station for
approximately f ive seconds. If you do
nothing, the system will then scan
f or the next strong station and play
that f or f ive seconds. When it plays a
station that you want to continue
listening to, press the SCAN button
again.
You can store the
f requencies of your f avorite radio
stations in the six preset buttons.
Each button will store one f requency
on the AM band, and two
f requencies on the FM band. The preset f requencies will be lost if
your car’s battery goes dead, is
disconnected, or the radio f use is
removed.
You can use any of f our methods to
find radio stations on the selected
band: TUNE, SEEK, SCAN or the
Preset buttons.
Use the TUNE knob to
tune the radio to a desired f requency.
Turn the TUNE knob to the right to
tune to a higher f requency, or to the
lef t to tune to a lower f requency.
Turn the knob right or lef t until the
display reaches the desired
f requency.
The SEEK f unction
searches the band for a station with
a strong signal. To activate it, press
either SEEK button ( or ), then
release it. Depending on which
SEEK button you press, the system
scans upward or downward f rom the
current f requency. It stops when it
f inds a station with a strong signal. Use the TUNE or SEEK f unction
to tune the radio to a desired
station.
1.
2.
3.
4.
CONT INUED
Audio System
Comf ort and Convenience Feat ures
SCAN
Preset
TUNE
SEEK
131
00/12/25 14:14:56 31S0K630_134

µIf you are
traveling far from home and can no
longer receive the stations you
preset, you can use the Auto Select
feature to find stations in the local
area.
If you are in a remote area, Auto
Select may not f ind six strong AM
stations or twelve strong FM stations.
If this happens, you will see a ‘‘0’’
displayed when you press any preset
button that does not have a station
stored. To activate Auto Select, press the
A. SEL button. A. SEL will f lash in
the display, and the system will go
into scan mode f or several seconds.
It automatically scans both bands,
looking f or stations with strong
signals. It stores the f requencies of
six AM stations and twelve FM
stations in the preset buttons. You
can then use the preset buttons to
select those stations.
Audio System
Comf ort and Convenience Feat ures
AUTO SELECT
132
A A .
.S
SE EL
L B
BUUT TT
TO
ON N A
A
.
.S
SE EL
L I
INND DI
ICCA A T
TO
OR R
00/12/25 14:15:04 31S0K630_135

µµ
Bass, Treble, Balance, and Fader are
each adjustable. You select which of
these you want to adjust by pressing
the TUNE knob. The mode changes
fromBAStoTREtoFADtoBAL,
and then back to the selected audio
mode, each time you press the
TUNE knob.
Use these modes to
adjust the tone to your liking. Select
TRE or BAS by pressing the TUNE
knob. Adjust the desired mode by
turning the TUNE knob. The level
indicators on the display show you
the range.
These two
modes adjust the strength of the
sound coming f rom each speaker.
BAL adjusts the side-to-side strength,
while FAD adjusts the f ront-to-back
strength. Select BAL or FAD by pressing the
TUNE knob. Adjust the Balance or
Fader to your liking by turning the
TUNE knob. The level indicators on
the display show you the range.
The system will automatically return
the display to the selected audio
mode about f ive seconds af ter you
stop adjusting a mode with the
TUNE knob.
Adjusting the Sound
Treble/Bass
Balance/Fader
Audio System
Comf ort and Convenience Feat ures134
T T
U
UN NEE K
KNNO OBB
L
LE E V
V E
EL
L I
INND DI
ICCA A T
TO
OR RSS
00/12/25 14:15:21 31S0K630_137

CONT INUED
Your Acura’s radio can receive the
complete AM and FM bands.
Those bands cover these f requen-
cies:
AM band:
530 to 1,710 kilohertz
FM band:
87.7 to 107.9 megahertz
Radio stations on the AM band are
assigned f requencies at least ten
kilohertz apart (530, 540, 550).
Stations on the FM band are
assigned f requencies at least 0.2
megahertz apart (87.9, 88.1, 88.3).Stations must use these exact
f requencies. It is f airly common f or
stations to round-of f the f requency in
their advertising, so your radio could
display a f requency of 100.9 even
though the announcer may identif y
the station as ‘‘FM101.’’
How well your Acura’s radio receives
stations is dependent on many
f actors, such as the distance f rom
the station’s transmitter, nearby
large objects, and atmospheric
conditions.
A radio station’s signal gets weaker
as you get f arther away f rom its
transmitter. If you are listening to an
AM station, you will notice the sound
volume becoming weaker, and the
stationdriftinginandout.If youare
listening to an FM station, you will
see the stereo indicator f lickering of f
and on as the signal weakens.
Eventually, the stereo indicator willgo of f and the sound will f ade
completely as you get out of range of
the station’s signal.
Driving very near the transmitter of
a station that is broadcasting on a
f requency close to the f requency of
the station you are listening to can
also af f ect your radio’s reception.
You may temporarily hear both
stations,orhearonlythestationyou
are close to.
You can use the instrument panel
brightness control dial to adjust the il-
lumination of the audio system (see
page ). The audio system
illuminates when the parking lights
are on, even if the radio is turned of f .
71
A udio System L ighting
Radio Frequencies Radio Reception
Audio System
Comf ort and Convenience Feat ures135
00/12/25 14:15:35 31S0K630_138

Û
The ignition switch must be in
ACCESSORY (I) or ON (II).
Make sure the tape opening on the
cassette is facing to the right, then
insert the cassette most of the way
into the slot. The system will pull it
in the rest of the way, and begin to
play.
The tape direction indicator will light
to show you which side of the
cassette is playing. The indicates
thesideyouinsertedfacingupward
is now playing. If you want to play
the other side, press the PROG
button. If you turn the system of f while a
tape is playing, either with the PWR/
VOL knob or by turning of f the
ignition, the cassette will remain in
the drive. When you turn the system
back on, the tape will begin playing
where it lef t of f .
To switch to the radio or CD
changer while listening to a tape,
presstheAM,FMorCDbutton.To
change back to the cassette player,
press the TAPE button.
Dolby noise reduction turns on when
you insert a cassette. The indi-
cator will light in the display. If the
tape was not recorded with Dolby
noise reduction, turn it of f by
pressing the button.
When the system reaches the end of
the tape, it will automatically reverse
direction and play the other side. If
you want to remove the cassette
f rom the drive, press the EJECT
button. Noise reduction remains of f until you
turn it on by pressing the button
again.
You can remove the cassette with
the ignition switch in any position,
even if the audio system is turned of f .
Operating the Cassette Player
Audio System
Comf ort and Convenience Feat ures137
00/12/25 14:15:56 31S0K630_140
