Check the level in the windshield
washer reservoir at least monthly
during normal usage. In bad weather,
when you use the washers of ten,
check the level every time you stop
f or f uel. This reservoir supplies the
windshield and rear window washers.
The cooling system capacity is:
Start the engine and let it run f or
about 30 seconds. Then turn of f
the engine.
Fill the radiator with coolant up to
the base of the f iller neck.
Fill the reserve tank to the MAX
mark. Install the reserve tank cap.
Install the radiator cap, and
tighten it to the first stop.
Start the engine and let it run until
the radiator cooling f an comes on
at least twice. Then stop the
engine. Remove the radiator cap. Fill the
radiator with coolant up to the
base of the f iller neck.
Start the engine and hold it at
1,500 rpm until the radiator f an
comes on. Turn of f the engine.
Check the coolant level in the
radiator and add coolant if needed.
Install the radiator cap, and
tighten it fully.
If necessary, f ill the reserve tank
to the MAX mark. Install the
reserve tank cap.
9.
11. 10.
12.
13. 14.
15.
16. 17.
With automatic transmission:
Manual Transmission:
Maint enance
Cooling System, Windshield Washers
Windshield Washers
216
1.35 US gal (5.1, 1.12 Imp gal)
1.32 US gal (5.0
, 1.10 Imp gal)

The windshield washer reservoir is
located behind the driver’s side
headlight. Check the reservoir’s f luid
level by removing the cap and
looking at the level gauge attached
to the cap.
Fill the reservoir with a good-quality
windshield washer f luid. This
increases the cleaning capability and
prevents f reezing in cold weather.When you ref ill the reservoir, clean
the edges of the windshield wiper
blades with windshield washer f luid
on a clean cloth. This will help to
condition the blade edges.
Remove the dipstick (yellow loop)
f rom the transmission and wipe it
with a clean cloth. Park the car on level ground. Shut
of f the engine.
Check the f luid level with the engine
at normal operating temperature.
1.
2.
CONT INUED
Maint enance
Windshield Washers, T ransmission Fluid
Automatic Transmission
217
W WI
INND DS
SHH I
IEE L
LDD W
WA AS
SHH E
ER
R R
REES
SE ER
RV V O
OI IRR
L
LE E V
V E
EL
L G
GAAU
UG GEE D
D
I
IPP S
ST TI
ICCK K
Do not use engine antif reeze or a
vinegar/water solution in the
windshield washer reservoir.
Antif reeze can damage your car’s paint,
while a vinegar/water solution can
damage the windshield washer pump.
Use only commercially-available
windshield washer f luid.

A low power steering f luid level can
indicate a leak in the system. Check
the f luid level f requently and have
the system inspected as soon as
possible.
Always use Honda Power Steering
Fluid. If it is not available, you may
use another power steering f luid as
an emergency replacement.
However, continued use can cause
increased wear and poor steering in
cold weather. Have the power
steering system f lushed and ref illed
with Honda PSF as soon as possible.
Check the level when the engine is
cold. Look at the side of the
reservoir. The f luid should be
between the UPPER LEVEL and
LOWER LEVEL. If it is below the
LOWER LEVEL, add power steering
f luid to the UPPER LEVEL.
Power Steering
Maint enance221
L LO OW WE ER
R L
LEE V
V E
EL
L
U
UP
PP
PE
ER
R L
LEE V
V E
EL
L
T urning the steering wheel to f ull lef t
or right lock and holding it there can
damage the power steering pump.
Do not spill the power steering f luid
over the body, auto-tensioner, drive
belt and pulleys.
If spilled accidentally, wipe of f any
f luid completely.

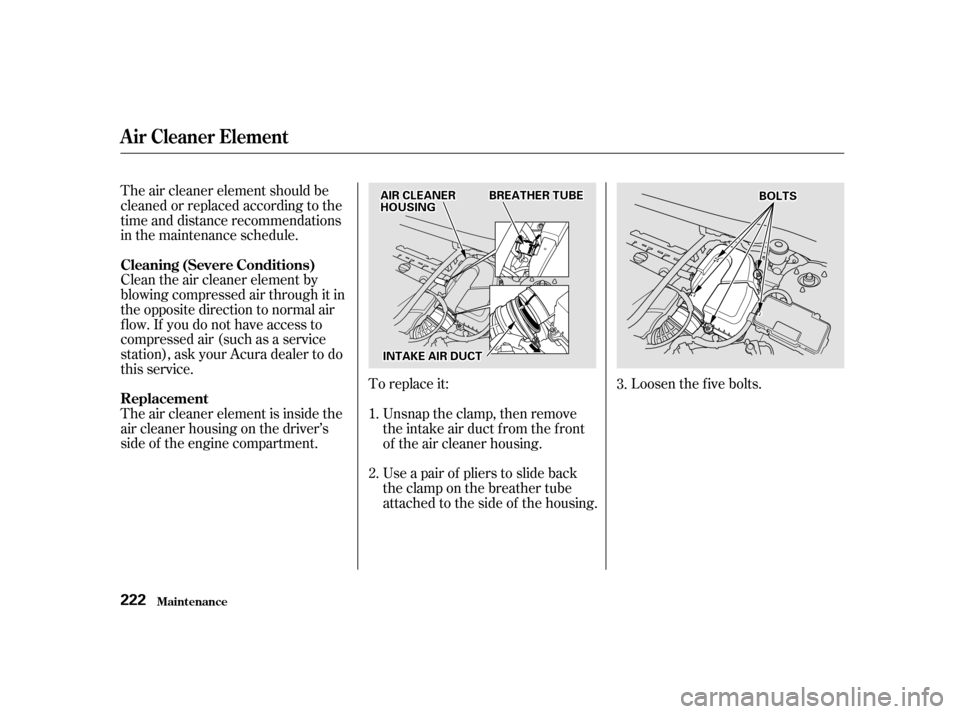

To replace it:Loosen the f ive bolts.
Clean the air cleaner element by
blowing compressed air through it in
the opposite direction to normal air
f low. If you do not have access to
compressed air (such as a service
station), ask your Acura dealer to do
this service.
The air cleaner element is inside the
air cleaner housing on the driver’s
side of the engine compartment. The air cleaner element should be
cleaned or replaced according to the
time and distance recommendations
in the maintenance schedule.
Unsnap the clamp, then remove
the intake air duct f rom the f ront
of the air cleaner housing.
Use a pair of pliers to slide back
the clamp on the breather tube
attached to the side of the housing.
1.
2. 3.
A ir Cleaner Element
Maint enance
Cleaning (Severe Conditions)
Replacement
222
B BO
OL LTT S
S
B
BR
REEA
A T
TH
H E
ER
R T
TU
UB BEE
I
IN NT TA
A K
KEE A
AI
IRR D
DU
UC CTT
A
A
I
IRR C
CLLEE A
A N
NE ER
R
H
H O
OU USSIINNG G

´
µ
´
µ
Check the condition of your car’s
battery monthly. You should check
the color of the test indicator window,
and f or corrosion on the terminals.
Plug Gap:
Plug Gap:
Insert the ignition coil into the
hole.
Connect the wire connector to the
ignition coil.
Push the ignition coil down all the
way. Install the bolt.
Repeat this procedure f or the
other three spark plugs.
Reinstall the coil cover, and
tighten the f our nuts.
9.
(RSX and Premium models)
10.
11. 12. DENSO: NGK:
NGK:
DENSO:
(Type-S) Battery
Specif ications:
Maint enance
Spark Plugs, Battery
226
0.04 in (1.1 mm)
0.04 in (1.1 mm) IZFR6K11
SKJ20DR-M11
IFR7G-11K
SK22PR-M110
0.1mm
0
0.1mm
Tighten the spark plugs caref ully. A
spark plug that is too loose can
overheat and damage the engine.
Overtightening can cause damage to
the threads in the cylinder head.

Periodically check the engine’s
radiator and air conditioning
condenser f or leaves, insects, and
dirt stuck to the f ront surf ace. These
block the air f low and reduce cooling
ef f iciency. Use a light spray f rom a
hose or a sof t brush to remove them.
Run the air conditioning at least once
a week during the cold weather
months. Run it f or at least ten
minutes while you are driving at a
steady speed with the engine at
normal operating temperature. This
circulates the lubricating oil con-
tained in the ref rigerant.If the air conditioning does not get as
cold as before, have your dealer
check the system. Recharge the
system with Ref rigerant HFC-134a
(R-134a). (See Specif ications on page
.)
Your car’s air conditioning is a sealed
system. Any major maintenance,
such as recharging, should be done
by a qualif ied mechanic. You can do
a couple of things to make sure the
air conditioning works ef f iciently.
290
CONT INUED
A ir Condit ioning Syst em
Maint enance231
A AI
IRR C
COON NDDI
ITT I
IOON NIINNG G C
COON NDDE
EN
NS SEER
R
The condenser and radiator f ins bend
easily. Only use a low-pressure spray
or sof t-bristle brush to clean them. Whenever you have the air conditioning
system serviced, make sure the service
f acility uses a ref rigerant recycling
system. This system captures the
ref rigerant f or reuse. Releasing
ref rigerant into the atmosphere can
damage the environment.

Block the rear wheels.
Fill the f uel tank.
Change the engine oil and f ilter
(see page ).
Wash and dry the exterior
completely.
Cleantheinterior.Makesurethe
carpeting, floor mats, etc. are
completely dry.
If you need to park your car f or an
extended period (more than one
month), there are several things you
should do to prepare it f or storage.
Proper preparation helps prevent
deterioration and makes it easier to
get your car back on the road. If
possible, store your car indoors.
If the car is to be stored for a
longer period, it should be
supported on jackstands so the
tires are of f the ground.
Leave one window open slightly (if
the car is being stored indoors).
Disconnect the battery.
Support the f ront and rear wiper
blade arms with a f olded towel or
ragsotheydonottouchthe
windshield.
To minimize sticking, apply a
silicone spray lubricant to all door
and hatch seals. Also, apply a body
wax to the painted surf aces that
mate with the door and hatch seals.If possible, run the engine f or a
while periodically (pref erably once
amonth).
If you store your car f or 12 months
or longer, have your Acura dealer
perf orm the inspections called f or in
the 24 months/30,000 miles (48,000
km) maintenance schedule (Normal
Conditions) as soon as you take it
out of storage (see page ). The
replacements called f or in the
maintenance schedule are not
needed unless the car has actually
reached that time or mileage. Coverthecarwitha‘‘breathable’’
cover, one made f rom a porous
material such as cotton.
Nonporous materials, such as
plastic sheeting, trap moisture,
which can damage the paint.
Leave the parking brake off. Put
the transmission in Reverse
(manual) or Park (automatic). 209
198
Maint enance
St oring Your Car
252

This section covers the more-
common problems that motorists
experience with their vehicles. It
gives you inf ormation about how to
safely evaluate the problem and what
to do to correct it. If the problem has
stranded you on the side of the road,
you may be able to get going again.
If not, you will also f ind instructions
on getting your car towed.......................
Compact Spare Tire .262
....................
Changing a Flat Tire .263
..........
If Your Engine Won’t Start . 268
Nothing Happens or the Starter Motor Operates ............................
Very Slowly .268
The Starter Operates ................................
Normally .269
................................
Jump Starting .270
............
If Your Engine Overheats . 272
.........
Low Oil Pressure Indicator . 274
..........
Charging System Indicator . 275
.......
Malf unction Indicator Lamp . 276
...............
Brake System Indicator . 278
..................
Closing the Moonroof . 279
..............................................
Fuses .280
..........
Checking and Replacing . 281
......................
Emergency Towing .285
