Install the radiator cap, and
tighten it fully.
If necessary, f ill the reserve tank
to the MAX mark. Install the
reserve tank cap.
Remove the radiator cap. Pour
coolant into the radiator up to the
base of the f iller neck and into the
reserve tank up to the MAX mark.
Start the engine and hold it at
1,500 rpm until the cooling f an
comes on. Turn of f the engine.
Check the coolant level in the
radiator and add coolant if needed. Install the engine cover. First
tighten the two bolts on the front
of the engine cover, then tighten
the three nuts on the engine cover.
Tightening torque:
Install the radiator cap, and
tighten it to the first stop.
Start the engine and let it run until
the radiator cooling f an comes on
at least twice. Then stop the
engine.
Fill the reserve tank to the MAX
mark. Install the reserve tank cap.
Check the level in the radiator,
add coolant if needed.
12. 11. 13.
14.
15.
16.
17. 18.
19.
Cooling Syst em
Maint enance236
R RE ES
SE ER
RV V E
E T
TA
A N
NK K
F
Fi
illll u
u p
p t
too h
he
erree F
FIILLL LEE R
R N
NEEC
CK K
7 lbf·ft (9.8 N·m , 1.0 kgf·m)
01/09/28 20:04:03 31SZ3660_239

Fill the reservoir with a good-quality
windshield washer f luid. This
increases the cleaning capability and
prevents f reezing in cold weather.
Check the level in the windshield
washer reservoir at least monthly
during normal usage. In bad weather,
when you use the washers of ten,
check the level every time you stop
for fuel.
The windshield washer reservoir is
located behind the driver’s side
headlight.
Check the reservoir’s f luid level by
removing the cap and looking at the
f loat. It should be up to the top of the
neck.Ifthefloatisatthebottomof
the neck, the reservoir is nearly
empty. When you ref ill the reservoir, cleanthe edges of the windshield wiper
blades with windshield washer fluid
on a clean cloth. This will help to
condition the blade edges.
Windshield Washers
Maint enance237
F FLLOOA AT
T
Do not use engine antif reeze or a
vinegar/water solution in the
windshield washer reservoir.
Antif reeze can damage your car’s paint,
while a vinegar/water solution can
damage the windshield washer pump.
Use only commercially-available
windshield washer f luid.
01/09/28 20:04:10 31SZ3660_240

Check the f luid level with the engine
at normal operating temperature.Remove the dipstick (yellow loop)
f rom the transmission and wipe it
with a clean cloth. Insert the dipstick into the
transmission. Make sure the notch
in the rubber cap f its in the
dipstick guide and that you push
the dipstick in all the way.
Remove the dipstick and check
the f luid level. It should be
between the upper and lower
marks.
Park the car on level ground. Shut
of f the engine. If the level is below the lower
mark, add f luid into the tube to
bring it to the upper mark. Always
use Honda ATF-Z1 (Automatic
Transmission Fluid). If it is not
available, you may use a
DEXRON
III automatic
transmission f luid as a temporary
replacement. However, continued
use can affect shift quality. Have
the transmission f lushed and
ref illed with Honda ATF-Z1 as
soon as it is convenient.
To thoroughly f lush the
transmission, the technician
should drain and ref ill it with
Honda ATF-Z1 (Automatic
Transmission Fluid), then drive
the vehicle a short distance. Do
this three times. Then drain and
ref ill the transmission a f inal time.
1.
2. 3.
4.5.
Automatic Transmission Fluid
Maint enance238
D D
I
IPP S
ST TI
ICCK K G
GUUIIDD E
E D
D
I
IPP S
ST TI
ICCK K
U
UPPP
PE
ER
R M
M A
AR
RKK
L
LO OW WE ER
R M
M A
AR
RKK
01/09/28 20:04:21 31SZ3660_241

The f luid level should be between
theMINandMAXmarksontheside
of the reservoir. If the level is at or
below the MIN mark, your brake
system needs attention. Have the
brake system inspected f or leaks or
worn brake pads.
Check the f luid level in the brake
f luid reservoir monthly.
The brake f luid should be replaced
according to the time recommenda-
tion in the maintenance schedule.
Always use Honda Heavy Duty
Brake Fluid DOT 3. If it is not
available, you should use only DOT 3
or DOT 4 f luid, f rom a sealed
container, as a temporary
replacement. However, the use of
any non-Honda brake fluid can cause
corrosion and decrease the lif e of the
system. Have the brake system
f lushed and ref illed with Honda
Heavy Duty Brake Fluid DOT 3 as
soon as possible.
Brake f luid marked DOT 5 is not
compatible with your car’s braking
system and can cause extensive
damage.
You should check the f luid level in
the power steering reservoir at least
once a year. Check the level when
the engine is cold. Look at the side
of the reservoir. The f luid should be
between the UPPER LEVEL and
LOWER LEVEL. If it is below the
LOWER LEVEL, add power steering
f luid to the UPPER LEVEL.
Brake System Power Steering
Brake Fluid
Maint enance
Brake Fluid, Power Steering
240
M M I
INN
M
M A
AX
X L
LO
OW WE ER
R
L
LE E V
V E
EL
L
U
UP
PP
PE
ER
R
L
LE E V
V E
EL
L
01/09/28 20:04:43 31SZ3660_243

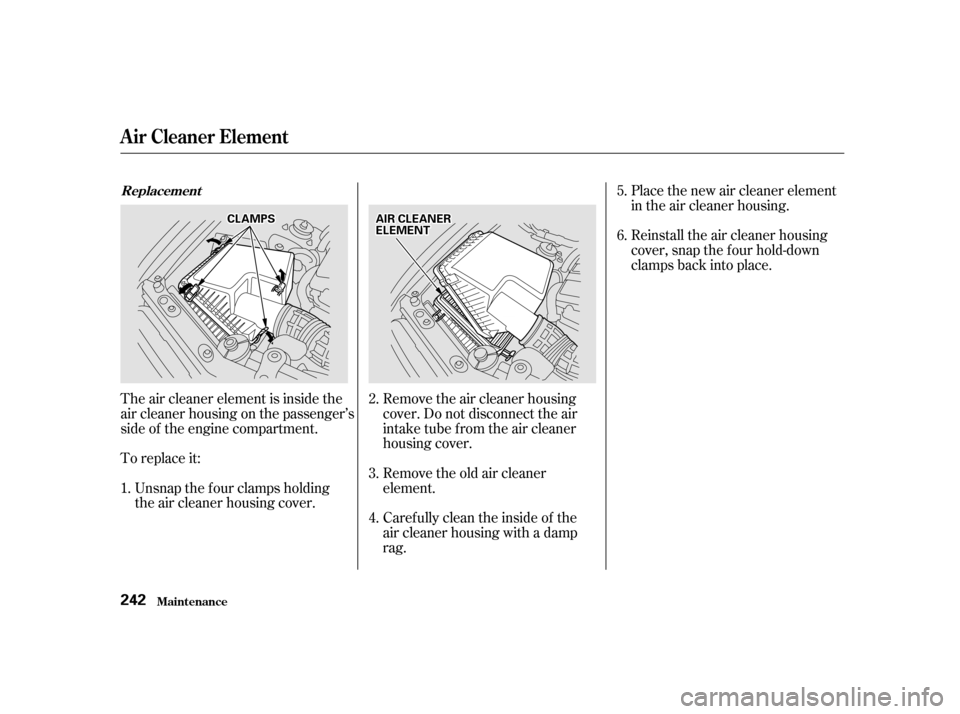

Place the new air cleaner element
in the air cleaner housing.
Reinstall the air cleaner housing
cover, snap the four hold-down
clamps back into place.
Remove the old air cleaner
element. Remove the air cleaner housing
cover. Do not disconnect the air
intake tube from the air cleaner
housing cover.
Unsnap the f our clamps holding
the air cleaner housing cover.
To replace it: The air cleaner element is inside the
air cleaner housing on the passenger’s
side of the engine compartment.
Caref ully clean the inside of the
air cleaner housing with a damp
rag.
1. 2.
3.
4.5.
6.
A ir Cleaner Element
Maint enance
Replacement
242
A A
I
IRR C
CLLEE A
A N
NE ER
R
E
E L
LEE M
M E
EN
NT T
C
CL
LAA M
M P
PS
S
01/09/28 20:05:05 31SZ3660_245

Clean up any dirt and oil that have
collected around the ignition coils. Remove the two bolts and the f our
nuts with a wrench and remove
the tower bar. Then remove the
A/C tube f rom the three clips.
Remove the two bolts and the
three nuts with a 7/16 inch (10
mm) wrench, then remove the
engine cover.
The spark plugs in your car are a
special platinum-tipped design f or
longer lif e. The spark plugs should
be replaced according to the time
and distance recommendations in
the maintenance schedule.
1. 2.3.
CONT INUED
Replacement
Spark Plugs
Maint enance243
B BOOL LTT S
S N
NU
UTTS
S
B
BO
OL LTT S
S
N
NU UTTS
S
N
NU
UTTS
S
01/09/28 20:05:17 31SZ3660_246

Install the ignition coil. Reinstall
the two hold-down bolts.
Repeat this procedure f or the
other f ive spark plugs.
Torque the spark plug. (If you do
not have a torque wrench, tighten
the spark plug two-thirds of a turn
af ter it contacts the cylinder head.)
Tightening torque: Put the A/C tube back in place.
Install the tower bar and tighten
the two bolts and the f our nuts.
Tightening torque:
Push the wire connector onto the
ignition coil. Make sure it locks in
place. Install the engine cover. First
tighten the two bolts on the front
of the engine cover, then tighten
the three nuts on the engine cover.
Tightening torque:
8. 9.
10.
11. 12.
13.
14.
CONT INUED
Spark Plugs
Maint enance245
13 lbf·ft (18 N·m , 1.8 kgf·m) 16 lbf·ft (22 N·m , 2.2 kgf·m)
7 lbf·ft (9.8 N·m , 1.0 kgf·m)
Tighten the spark plugs caref ully. A
spark plug that is too loose can
overheat and damage the engine.
Overtightening can cause damage to
the threads in the cylinder head.
01/09/28 20:05:37 31SZ3660_248

Make sure the climate control sys-
tem is off.
Start the engine and let it run until
it warms up (the radiator cooling
fan comes on at least twice), and
let it idle f or f ive more minutes.
If your car’s battery is disconnected
or goes dead, the engine’s computer
needs to ‘‘relearn’’ the idle control.
Af ter replacing or recharging the
battery:
Your driver’s power window (see
page ) and your audio system
will also disable itself when the bat-
tery is disconnected or goes dead.
Thenexttimeyouturnontheradio
you will see ‘‘Code’’ in the f requency
display. Use the Preset buttons to en-
ter the f ive-digit code (see page ).
1.
2. 104
156
Battery
Maint enance248
Charging the battery with the cables
connected can seriously damage your
car’s electronic controls. Detach the
battery cables bef ore connecting the
battery to a charger.
