When a child reaches the
recommended weight or height limit
for a forward-facing child seat, the
child should sit in the back seat and
wear a lap/shoulder belt.
If you are not wearing a seat
belt in a crash, you could be
thrown f orward into the
dashboard and crush the child.
During a crash, the
belt could press deep into the child
and cause very serious injuries. If youarewearingaseatbelt,the
child can be torn f rom your arms
during a crash. For example, if
your car crashes into a parked
vehicleat30mph(48km/h),a
30-lb (14 kg) child will become a
900-lb (410 kg) f orce, and you will
not be able to hold on. If a child is too short f or the shoulder
part of the belt to properly f it, we
recommend that the child use a
booster seat until the child is tall
enough to use the seat belt without a
booster.
The f ollowing pages give
instructions on how to check proper
seat belt f it, what kind of booster
seat to use if one is needed, and
important precautions f or a child
who must sit in the f ront seat.
CONT INUED
Protecting L arger ChildrenA ddit ional Precaut ions f or Small
Children Never hold a small child on yourlap.
Never put a seat belt over yourselfand a child.
Protecting Children
Driver and Passenger Saf ety35
Allowing a larger child to sit
improperly in the front seat can
result in injury or death if the
passenger’s front airbag inflates.
If a larger child must sit in front,
make sure the child moves the
seat as far back as possible
and wears the seat belt properly.

Your Supplemental Restraint System
(SRS) includes:An indicator light on the
instrument panel that alerts you to
a possible problem with the
system (see page ).
Two f ront airbags. The driver’s
airbag is stored in the center of
the steering wheel; the f ront
passenger’sairbagisstoredinthe
dashboard. Both are marked ‘‘SRS
AIRBAG.’’
Sensors that can detect a
moderate to severe frontal
collision. Automatic seat belt tensioners
(see page ). Emergency backup power in case
your car’s electrical system is
disconnected in a crash.
If you ever have a moderate to
severe f rontal collision, the sensors
will detect the vehicle’s rapid
deceleration. If the rate of
deceleration is high enough, the
control unit will instantly inf late the
f ront airbags.
A sophisticated electronic system
that continually monitors and
records inf ormation about the
sensors, the control unit, the
airbag activators, and driver and
passenger seat belt use when the
ignition is ON (II). 41
46
CONT INUED
SRS Components
How Your Front A irbags Work
Driver and Passenger Saf ety
Additional Inf ormation About Your Airbags
43

These labels are in the locations
shown. They warn you of potential
hazards that could cause serious
injury. Read these labels caref ully.
If a label comes of f or becomes hard
to read, contact your Acura dealer
f or a replacement.
U.S. models onlyU.S. models
Canadian models
Driver and Passenger Saf ety
Saf ety L abels
50
RADIATOR CAP
SUN VISOR
HOOD DASHBOARD

Î
Î
Î Thetwoleversonthesteering
column contain controls f or driving
f eatures you use most of ten. The lef t
lever controls the turn signals,
headlights, and high beams. The
right lever controls the windshield
washers and wipers.
The switch for the hazard warning
lights is on the dashboard to the
right of the steering column.
The tilt adjustment lever on the
underside of the steering column
allows you to tilt the steering wheel. The controls under the lef t air vent
are f or the moonroof , the cruise
control, and the VSA/TCS.To use the horn, press the pad
around the ‘‘A’’ logo.
:
Controls Near the Steering Wheel
Inst rument s and Cont rols64
I IN
NS STTR
RU UM M E
EN
NT T P
PA
A N
NE EL
L
B
BR RIIGGH HT
TN
NE ES
SS S T
T
I
ILLT T A
AD
DJ
JUUS STTM
M E
EN
NT TH
H
O
OR RNN
M
M
O
OOONNRROOO OFF
S
SW WI ITT C
CH H
T
T
R
RA A C
CTTI
IOON N
C
CO ON NTTR
RO OL L//V
V E
EH
H I
ICCL LEE
S
ST TA
A B
BIILLI ITT Y
Y A
AS
SSSIISST T
S
SY YSSTTE
EM
M O
ONN//O
OF FFF
S
SW WI ITT C
CH H H
H
E
EA
A D
DL
LIIGGH HT
TS
S/ /
T
T U
UR RNN S
SIIGGN NAAL
LSS W
WI
INND DS
SHH I
IEE L
LDD
W
WI IPP E
ER
RS S//W
WA AS
SHH E
ER
RS S R
RE
EA
A R
R W
WI INND DO
OW W
D
D E
EF
FOOG GGGEER
R
C
CR RUUI ISSE E
C
CO ON NTTR
RO OL L
H
HA
AZ
ZA
A R
RDD W
WA AR
RNNI INNG G
L
LI IGGH HT
TS
S

Signal a turn or lane change with this
lever. Push down on the lever to
signal a lef t turn, and up to signal a
right turn. If you push it up or down
all the way, the turn signal continues
to blink even when you release the
lever. It shuts off automatically as
you complete the turn.
With the headlight switch off, the
high beam headlights come on with
reduced brightness when you turn
the ignition switch to ON (II) and
release the parking brake. They
remain on until you turn the ignition
of f , even if you set the parking brake.
The headlights revert to normal
operation when you turn them on
with the switch.

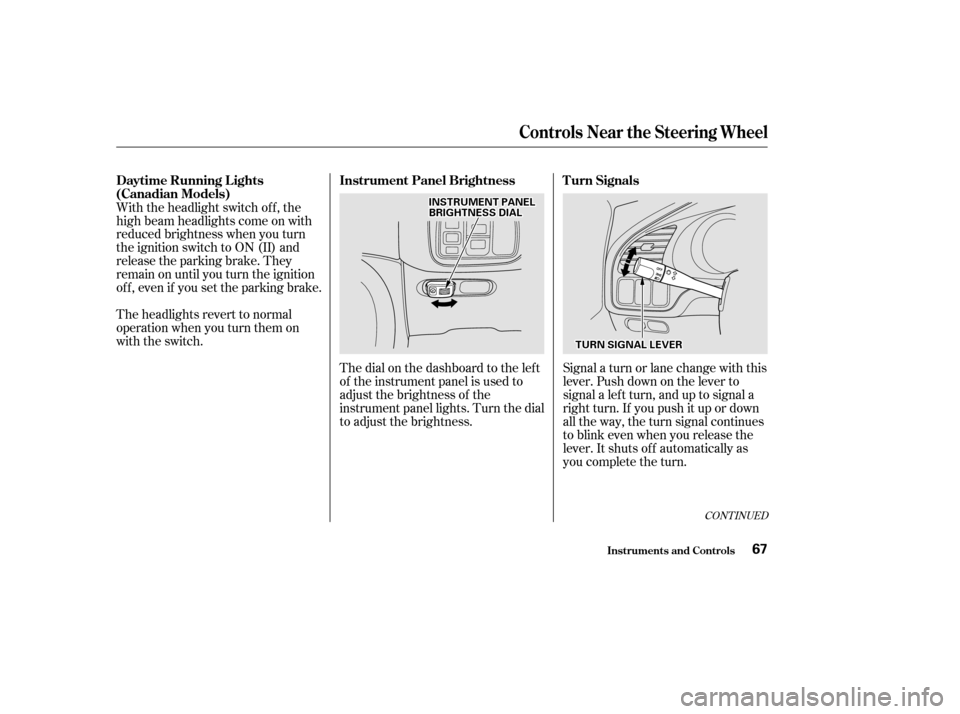

The dial on the dashboard to the lef t
of the instrument panel is used to
adjust the brightness of the
instrument panel lights. Turn the dial
to adjust the brightness.
CONT INUED
Turn Signals
Instrument Panel Brightness
Daytime Running L ights
(Canadian Models)
Controls Near the Steering Wheel
Inst rument s and Cont rols67
I IN NS STTR
RU UM M E
EN
NT T P
PA
A N
NE EL
L
B
BR RIIGGH HT
TN
NE ES
SS S D
DI
IAA L
L
T
TU
UR RNN S
SIIGGN NAAL
L L
LEE V
V E
ER
R

The moonroof has two positions: it
can be tilted up in the back f or
ventilation, or it can be slid back into
the roof . Use the switch under the
lef t dashboard vent to operate the
moonroof . The ignition switch must
be ON (II).To tilt up the back of the moonroof ,
press and hold the center button
( ). To close the moonroof ,
press and hold the top of the switch
( ). To open the moonroof ,
press and hold the bottom of the
switch ( ). Release the switch
when the moonroof gets to the
desired position. Make sure
everyone’s hands are away f rom the
moonroof bef ore opening or closing
it.
The moonroof has a key-of f delay.
You can still open and close the
moonroof f or up to ten minutes af ter
you turn of f the ignition. The key-of f
delay cancels as soon as you open
either door. You must then turn the
ignition ON (II) f or the moonroof to
operate.
Moonroof
Inst rument s and Cont rols101
M M
O
OOONNRROOO OFF S
SWWI ITT C
CH H
Opening or closing the
moonroof on someone’s hands
or fingers can cause serious
injury.
Make sure all hands and fingers
are clear of the moonroof
before opening or closing it. If you try to open the moonroof in
below-f reezing temperatures, or when
it is covered with snow or ice, you can
damage the moonroof panel or motor.

The storage tray is located above the
audio system. Push on the center of
the tray to get it to pop out. Then
remove it by pulling it straight out.You can put a writing pad, pen, and
small items in the inner box in the
storagetray.Liftthelidtousethe
tray.
To use a coat hook, push on the lid.
Close it with a f irm push.
Make sure the coat hook is closed
when you are not using it. This hook
is not designed f or large or heavy
items.
To reinstall the storage tray into the
dashboard, close the lid, then push
the storage tray in until it latches.
3.2 CL without Navigation System
St orage T ray, Coat Hook
Storage T ray
Coat Hook
Inst rument s and Cont rols107
S STTO
OR RAA G
GE E T
TR
RA A Y
Y L
LI
IDD

The automatic climate control
system in your Acura picks the
proper combination of air condi-
tioning, heating, and ventilation to
maintain the interior temperature
you select. The system also adjusts
the fan speed and air flow levels.
The direction of air f low f rom the
vents in the center and each side of
the dashboard is adjustable. Move
the tab in the center of each vent up-
and-down and side-to-side.The climate control system draws air
through the exterior vents at the
bottom of the windshield. Keep
these vents clear of leaves and other
debris.For the climate control system to
provide heating and cooling, the
engine must be running.
Thesideventscanbeopenedand
closed with the dials underneath
them.
Comf ort and Convenience Feat ures
Climat e Cont rol Syst em
114
O Op
pe
enn
C
Cl loo s
see
C
CE
EN
NT TE
ER
R V
VE
EN
NT T D
DR
RIIVV E
ER
R’ ’SS- -S
SI IDD E
E V
VE
EN
NT T
