2002.5 Peugeot 307 SW Dag technical data

22-07-2002
TECHNICAL DATA
160
3HNFUB 3HNFUE 3HRFNC/IF 3HRFNE
Manual Automatic Manual Automatic
(5 speed) (4 speed) (5 speed) (4 speed) PETROL ENGINES
ENGINES
1.6 litre 16V 2 litre 16V
Cubic capacity (cm 3
) 1 587 1 997
Bore x stroke (mm) 78,5 x 82 85 x 88 EU standard maximum power (kW) 80100
Maximum power at engine speed (rpm) 5 8006 000
EU standard maximum torque (Nm)147 190
Maximum torque at engine speed (rpm)4 0004 100
Fuel Unleaded Unleaded
Catalytic converter Yes Yes
OIL CAPACITIES (litres)
Engine (with cartridge replacement) 3 3 4,25 4,25
Gearbox-Final drive 2 - 1,9 -
MODELS: Model codes GEARBOX

22-07-2002
TECHNICAL DATA161
3HRHYB 3HRHSB
Manual Manual
(5 speed) (5 speed) DIESEL ENGINES
ENGINES 2 litre T
urbo HDI 90 bhp 2 litre Turbo HDI 110 bhp
Cubic capacity (cm 3
) 1 998 1 997
Bore x stroke (mm) 85 x 88 85 x 88 EU standard maximum
power (kW) 66 79
Maximum power at engine
speed (rpm) 4 000 4 000
EU standard maximum torque (Nm)205250
Maximum torque at engine speed (rpm)1 9001 750
Fuel Diesel Diesel
Catalytic converter Yes Yes
Particulate emission filter Non Yes
OIL CAPACITIES (litres)
Engine (with cartridge replacement) 4,5 4,5
Gearbox-Final drive 1,9 1,85
MODELS: Model codes GEARBOX

22-07-2002

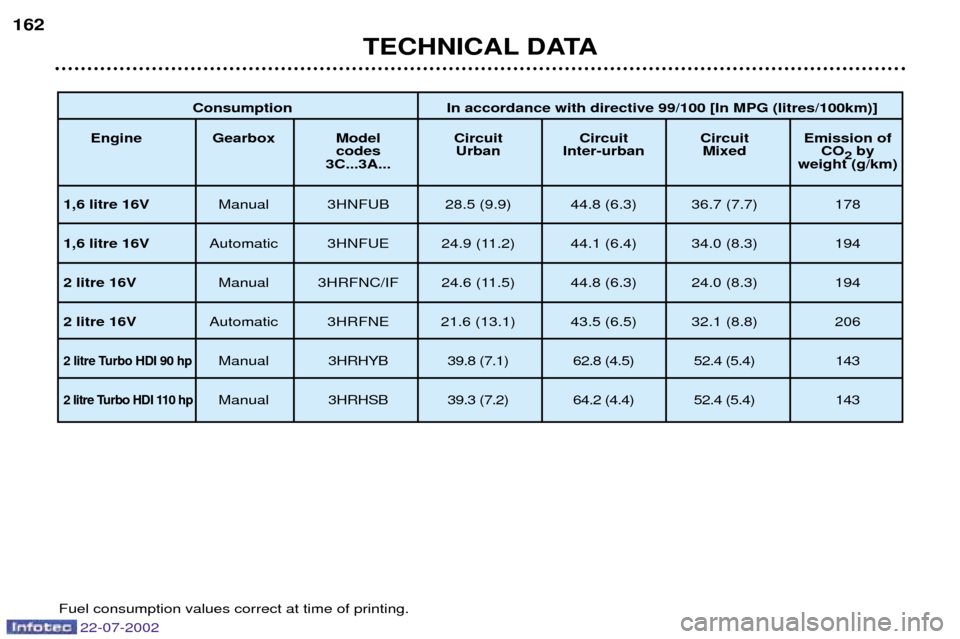

Consumption In accordance with directive 99/100 [In MPG (litres/100km)]
Engine Gearbox Model Circuit Circuit Circuit Emission of
codes Urban Inter-urban Mixed CO 2by
3C...3A... weight (g/km)
1,6 litre 16V Manual 3HNFUB 28.5 (9.9) 44.8 (6.3) 36.7 (7.7) 178
1,6 litre 16V Automatic 3HNFUE 24.9 (11.2) 44.1 (6.4) 34.0 (8.3) 194
2 litre 16V Manual 3HRFNC/IF 24.6 (11.5) 44.8 (6.3) 24.0 (8.3) 194
2 litre 16V Automatic 3HRFNE 21.6 (13.1) 43.5 (6.5) 32.1 (8.8) 206
2 litre Turbo HDI 90 hpManual3HRHYB 39.8 (7.1) 62.8 (4.5) 52.4 (5.4) 143
2 litre Turbo HDI 110 hpManual3HRHSB 39.3 (7.2) 64.2 (4.4) 52.4 (5.4) 143
TECHNICAL DATA
162
Fuel consumption values correct at time of printing.

22-07-2002

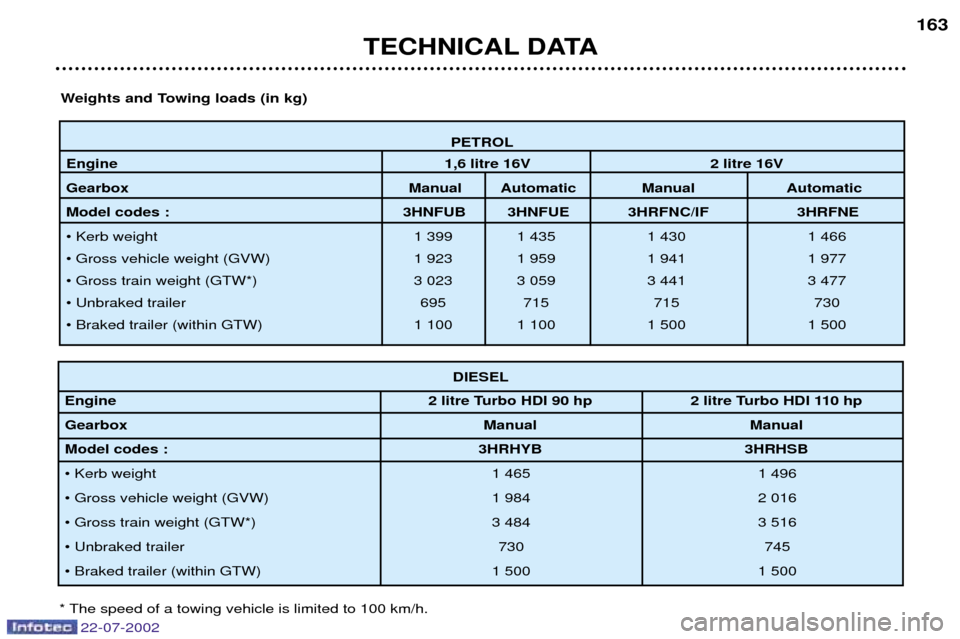

PETROL
Engine 1,6 litre 16V 2 litre 16V
Gearbox Manual Automatic Manual Automatic
Model codes : 3HNFUB 3HNFUE 3HRFNC/IF 3HRFNE ¥ Kerb weight 1 399 1 435 1 430 1 466
¥ Gross vehicle weight (GVW) 1 923 1 959 1 941 1 977
¥ Gross train weight (GTW*) 3 023 3 059 3 441 3 477
¥ Unbraked trailer 695 715 715 730
¥ Braked trailer (within GTW) 1 100 1 100 1 500 1 500
TECHNICAL DATA 163
Weights and Towing loads (in kg)
* The speed of a towing vehicle is limited to 100 km/h. DIESEL
Engine 2 litre Turbo HDI 90 hp 2 litre Turbo HDI 110 hp
Gearbox Manual Manual
Model codes : 3HRHYB 3HRHSB
¥ Kerb weight 1 465 1 496
¥ Gross vehicle weight (GVW) 1 984 2 016
¥ Gross train weight (GTW*) 3 484 3 516¥ Unbraked trailer 730 745
¥ Braked trailer (within GTW) 1 500 1 500

22-07-2002
TECHNICAL DATA
164
DIMENSIONS (in mm)

22-07-2002
TECHNICAL DATA165
THE IDENTIFICATION FEATURES OF YOUR 307 SW
A. Manufacturer's plate.
B. Serial number on the bodywork.
C. Serial number on the fascia.
D. Tyres and paint colour reference. The label Don the driver's door pillar, near the hinges, indicates:
Ð the wheel and tyre sizes,
Ð the brands of tyres approved by the manufacturer,
Ð the tyre pressures (the tyre pressure must be checked when the tyre is cold, at least once a month),
Ð the paint colour reference.
