8YOUR 206 AT A GLANCE
STEERING WHEEL CONTROLS Lights Front and rear lights(ring A)
Lights off Side lights Dipped/ main beam headlamps Automatic switching on of lights
Automatic switching on of lights
To activate or disarm the func- tion, place the key in the acces-sories position and the lightsstalk in position 0, then press the
end of the stalk for more thanfour seconds. Rear fog lamp
(ring B)
Rear fog lamp (rotation of the ring forwards)
Front fog lamps/Rear fog lamp(ring C)
Front fog lamps (1st rotation of the ringforwards).
Front fog lampsand rear fog lamp(2nd rotation of thering forwards). Windscreen wipers Front
2 Fast wipe
1 Normal wipe
I Intermittent wipe
or
AUTO Automatic wipe
0 Off
Single wipe
Windscreen wash: pull the stalk towards you. Rear
Off Intermittent
Windscreenwipe wash
Automatic wipe In the AUTOposition,
the wipers operate auto-
matically and adjust
their speed to theintensity of the rainfall.

24-02-2003
INSTRUMENTS AND CONTROLS
28
INSTRUMENT DIALS: PETROL - DIESEL MANUAL GEARBOX
1.
Seat belt not fastened warning light*
2. Passenger air bag disarmingwarning light*
3. Front and side air bags warninglight
4. Front fog lamps indicator light
5. Anti-lock braking system (ABS)warning light
6. Rear fog lamp indicator light
7. Diesel pre-heat warning light
8. Left hand direction indicator
9. Total distance recorder, serviceindicator and engine oil level indicator 10.
Right hand direction indicator
11 . Engine diagnostics warning light
12. Main beam headlamps indicatorlight
13. Handbrake, low brake fluid leveland electronic brake force distri-bution warning light
14. Dipped beam headlamps indica-tor light
15. Battery charge warning light
16. Engine oil pressure and tempera-ture warning light
17. Water in diesel filter warning light
18. Coolant temperature and low levelwarning light 19.
Engine oil temperature indicator
20. Total distance recorder button
21. Central (STOP) warning light
22. Speedometer
23. Coolant temperature indicator
24. Rev counter
25. Lighting rheostat button
26. Fuel level indicator
27. Low fuel level warning light
28. Dynamic stability control (ESP/ASR) warning light
* According to destination.

24-02-2003
INSTRUMENTS AND CONTROLS29
INSTRUMENT DIALS: PETROL AUTOMATIC GEARBOX
1.
Seat belt not fastened warning light*
2. Passenger air bag disarmingwarning light*
3. Front and side air bags warninglight
4. Front fog lamps indicator light
5. Anti-lock braking system (ABS)warning light
6. Rear fog lamp indicator light
7. Left hand direction indicator
8. Total distance recorder, serviceindicator and engine oil level indicator 9.
Right hand direction indicator
10. Engine diagnostics warning light
11 . Main beam headlamps indicator light
12. Handbrake, low brake fluid leveland electronic brake force distri-bution warning light
13. Dipped beam headlamps indica-tor light
14. Battery charge warning light
15. Engine oil pressure and tempera-ture warning light
16. Coolant temperature and lowlevel warning light
17. Operating programmes 18.
Gear indicator
19. Total distance recorder button
20. Central (STOP) warning light
21. Speedometer
22. Coolant temperature indicator
23. Rev counter
24. Lighting rheostat button
25. Fuel level indicator
26. Low fuel level warning light
27. Dynamic stability control (ESP/ASR) warning light
* According to destination.

24-02-2003
YOUR 206 IN DETAIL89
THE LIGHTS STALK Front and rear lights Selection is by turning ring
A.
Lights off Side lights Dipped/main beam headlamps
Automatic switchingon of lights Vehicles fitted with a rear foglamp (ring B)
Rear fog lamp
This only operates with the dipped/main beam headlamps.
Vehicles fitted with front fog lamps and a rear fog lamp (ring C) Front fog lamps (first rota-tion of the ring forwards) Front and rear foglamps (2nd rotation ofthe ring forwards)
Note: to switch off the rear fog lamp
and the front fog lamps, turn the ringbackwards twice in succession.
Direction indicators (flashers)
Left:downwards.
Right: upwards.
Dipped/Main beam change Pull the stalk towards you. Note:with the ignition off, when the
driver's door is opened, a buzzer sounds if you have left your lightson. Front fog lamps and rear fog lamp Rotate the ring forwards to switch on
and backwards to switch off. Thestatus is confirmed by the indicatorlight on the instrument panel.
In good or rainy weather, both day and night, thefront fog lamps and therear fog lamp are daz-
zling and are prohibited. Do not forget to switch them off when they are no longer needed.

24-02-2003
YOUR 206 IN DETAIL
90
AUTOMATIC SWITCHING ON OF LIGHTS Side lights and dipped beam head- lamps switch on automatically if thelight is poor and when the wind-
screen wipers operate continuously.
They switch off when the light becomes bright enough or the wind-
screen wipers are switched off. Note: In foggy weather or in snow
the brightness sensor can detect
sufficient light. As a result, the lights
will not come on automatically. This function is active when the
vehicle is supplied to the customer.
To disarm or activate the function:
Ð Start with the key in the acces-
sories position (1st notch),
Ð Press the end of the lights stalk for more than four seconds.
Note: after the ignition is switched
off and depending on the brightness, the lights remain on for about
45 seconds or until the vehicle islocked.
The brightness sensor, coupled
with the rain sensor, is locatedin the centre of the windscreen,
behind the interior mirror. It isused for automatic switching onof the lights. Operating check Activation Acivation of this function is accom- panied by an audible signal and themessage
"Automatic lighting
active'' on the multifunction display.
Disarming Disarming of the function is accom- panied by an audible signal. Note: the function is temporarily dis-
armed when the driver uses the manual lighting controls. If the brightness sensor does not
function correctly, the system acti-
vates the function (the lights come
on). The driver is alerted by an audi-ble signal, accompanied by the mes-sage "Automatic switching on of
lights faulty" on the multifunction
display.
Contact a PEUGEOT dealer to have the system checked.

24-02-2003
PRACTICAL INFORMATION
126
Front fog lamps H1 55 W Press under the access flap to release it. Open the flap.
Turn the cover to remove it.Disconnect the bulb.Press the two ends of the securing clip to release the bulb.
Third brake light 5 bulbs
W 5 W (saloon)

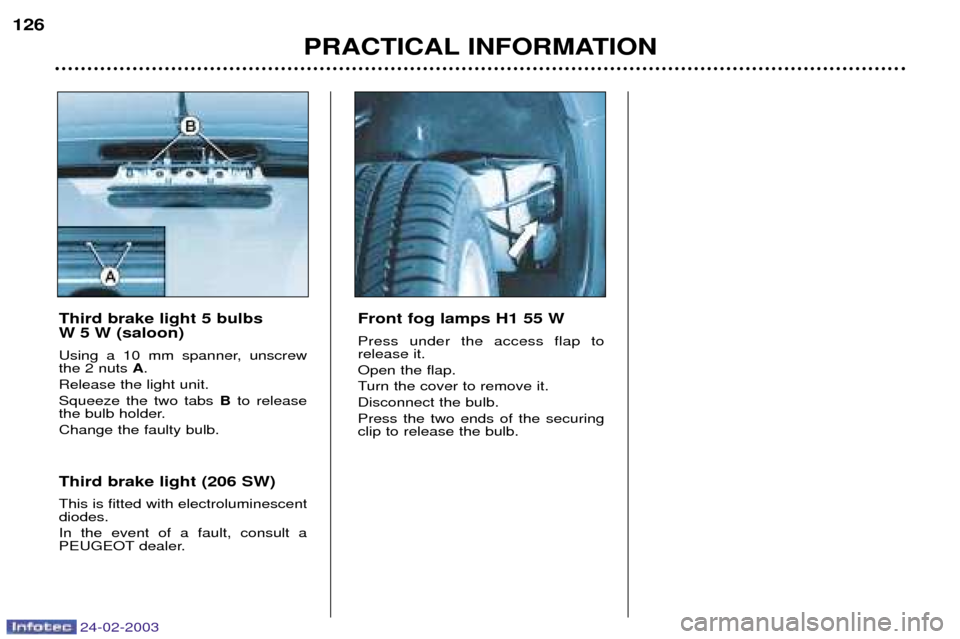

Using a 10 mm spanner, unscrew the 2 nuts A.
Release the light unit. Squeeze the two tabs Bto release
the bulb holder.Change the faulty bulb. Third brake light (206 SW) This is fitted with electroluminescent diodes. In the event of a fault, consult a
PEUGEOT dealer.

24-02-2003
PRACTICAL INFORMATION
126
Front fog lamps H1 55 W Press under the access flap to release it. Open the flap.
Turn the cover to remove it.Disconnect the bulb.Press the two ends of the securing clip to release the bulb.
Third brake light 5 bulbs
W 5 W (saloon)
Using a 10 mm spanner, unscrew the 2 nuts A.
Release the light unit. Squeeze the two tabs Bto release
the bulb holder.Change the faulty bulb. Third brake light (206 SW) This is fitted with electroluminescent diodes. In the event of a fault, consult a
PEUGEOT dealer.

24-02-2003
PRACTICAL INFORMATION127
Rear fog lamp P 21 W Unclip the lamp and release the
assembly.
Turn the pin connector a quarter turn and remove it. Change the bulb. Number plate lights W 5 W Insert a thin screwdriver into one of the outer holes of the transparent
cover. Push it outwards to unclip it.
Remove the transparent cover.Change the faulty bulb.
