PRACTICAL INFORMATION111
1.
Power steering reservoir
2. Windscreen and headlamp wash reservoir
3. Coolant reservoir 4.
Brake fluid reservoir
5. Battery
6. Air filter 7.
Dipstick
8. Engine oil filler cap
1.1 litre, 1.4 litre ENGINE

24-02-2003
PRACTICAL INFORMATION
112
1.
Power steering reservoir
2. Windscreen and headlamp wash reservoir
3. Coolant reservoir 4.
Brake fluid reservoir
5. Battery
6. Air filter 7.
Dipstick
8. Engine oil filler cap
1.6 litre 16V ENGINE

24-02-2003

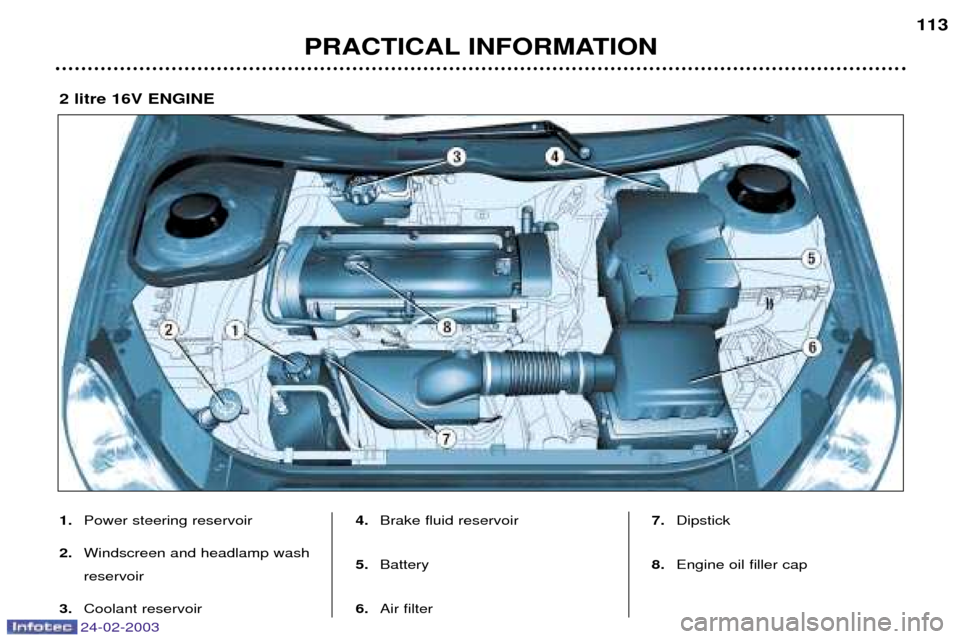

PRACTICAL INFORMATION113
1.
Power steering reservoir
2. Windscreen and headlamp wash reservoir
3. Coolant reservoir 4.
Brake fluid reservoir
5. Battery
6. Air filter 7.
Dipstick
8. Engine oil filler cap
2 litre 16V ENGINE

24-02-2003
PRACTICAL INFORMATION
114
1-
Power steering reservoir
2- Windscreen and headlamp wash reservoir
3- Coolant reservoir 4-
Brake fluid reservoir
5- Battery
6- Air filter 7-
Dipstick
8- Engine oil filler cap
9- Priming pump
1.4 litre turbo diesel HDI ENGINE

24-02-2003
PRACTICAL INFORMATION115
1.
Power steering reservoir
2. Windscreen and headlamp wash reservoir
3. Coolant reservoir 4.
Brake fluid reservoir
5. Battery
6. Air filter 7.
Dipstick
8. Engine oil filler cap
1.9 litre diesel ENGINE

24-02-2003
PRACTICAL INFORMATION
116
1.
Power steering reservoir
2. Windscreen and headlamp wash reservoir
3. Coolant reservoir 4.
Brake fluid reservoir
5. Battery
6. Air filter 7.
Dipstick
8. Engine oil filler cap
2 litre turbo diesel HDI ENGINE

24-02-2003
PRACTICAL INFORMATION
118
Power steering reservoir
Open the reservoir, with the engine
cold. The level should always beabove the MINI mark, close to theMAXI mark. Manual gearbox
This does not need an oil change.
Check the level according to themanufacturer's servicing schedule.
Windscreen and headlamp washreservoir
For best quality cleaning and for your
safety, we recommend that you useproducts approved by PEUGEOT(capacity 2.8 litres or 6.6 litres withheadlamp wash).
Air filter Regular replacement of the filter ele- ment is essential. If you drive in verydusty conditions, change it twice asoften.
Battery
At the start of winter, have your battery
checked by a PEUGEOT dealer Brake pads Brake pad wear depends on the style of driving, in particular for vehi-cles used in town, for short journeys.It may be necessary to check thethickness of the pads even betweenservices. Autoadaptive automatic gearbox
This does not need an oil change:have the level checked by a PEU-
GEOT dealer according to the manu-facturer's servicing schedule.
Only use products
approved by PEUGEOT.
To ensure best perform- ance from components
as important as the power steer-ing and the braking system, PEUGEOT selects and offersquite specific products.
RUNNING OUT OF FUEL (DIESEL) If you should run out of fuel, it is necessary to re-prime the circuit: 1.4 litre HDI engine
Ð fill the fuel tank with at least five litres of diesel,
Ð operate the manual re-priming pump, until fuel appears in the transparent pipe under the bonnet,
Ð operate the starter until the engine starts.

24-02-2003
PRACTICAL INFORMATION
118
Power steering reservoir
Open the reservoir, with the engine
cold. The level should always beabove the MINI mark, close to theMAXI mark. Manual gearbox
This does not need an oil change.
Check the level according to themanufacturer's servicing schedule.
Windscreen and headlamp washreservoir
For best quality cleaning and for your
safety, we recommend that you useproducts approved by PEUGEOT(capacity 2.8 litres or 6.6 litres withheadlamp wash).
Air filter Regular replacement of the filter ele- ment is essential. If you drive in verydusty conditions, change it twice asoften.
Battery
At the start of winter, have your battery
checked by a PEUGEOT dealer Brake pads Brake pad wear depends on the style of driving, in particular for vehi-cles used in town, for short journeys.It may be necessary to check thethickness of the pads even betweenservices. Autoadaptive automatic gearbox
This does not need an oil change:have the level checked by a PEU-
GEOT dealer according to the manu-facturer's servicing schedule.
Only use products
approved by PEUGEOT.
To ensure best perform- ance from components
as important as the power steer-ing and the braking system, PEUGEOT selects and offersquite specific products.
RUNNING OUT OF FUEL (DIESEL) If you should run out of fuel, it is necessary to re-prime the circuit: 1.4 litre HDI engine
Ð fill the fuel tank with at least five litres of diesel,
Ð operate the manual re-priming pump, until fuel appears in the transparent pipe under the bonnet,
Ð operate the starter until the engine starts.
