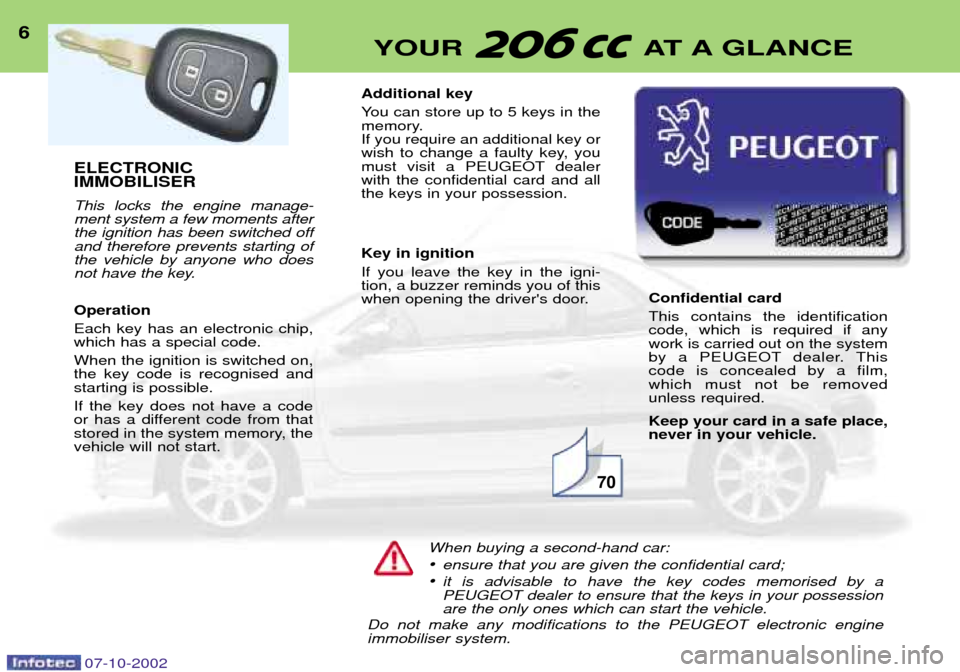

ELECTRONIC IMMOBILISER This locks the engine manage- ment system a few moments afterthe ignition has been switched offand therefore prevents starting ofthe vehicle by anyone who does
not have the key. Operation Each key has an electronic chip, which has a special code. When the ignition is switched on, the key code is recognised andstarting is possible. If the key does not have a code
or has a different code from that
stored in the system memory, thevehicle will not start.Additional key
You can store up to 5 keys in the
memory.If you require an additional key or
wish to change a faulty key, you
must visit a PEUGEOT dealerwith the confidential card and allthe keys in your possession. Key in ignition If you leave the key in the igni- tion, a buzzer reminds you of this
when opening the driver's door.
Confidential card This contains the identification code, which is required if anywork is carried out on the system
by a PEUGEOT dealer. Thiscode is concealed by a film,which must not be removedunless required. Keep your card in a safe place, never in your vehicle.
6
YOUR AT
A GLANCE
When buying a second-hand car: ¥ensure that you are given the confidential card;
¥ it is advisable to have the key codes memorised by a PEUGEOT dealer to ensure that the keys in your possessionare the only ones which can start the vehicle.
Do not make any modifications to the PEUGEOT electronic engineimmobiliser system.
07-10-2002
6
70

7
YOUR AT A GLANCE
STARTING The four positions of the key in the ignition:
STOP position:
the ignition is off.
1st notch, Accessories position:
the ignition is off but the acces-sories can be used. 2nd notch, Running position: the ignition is on. Starting position:
operates the starter. Steering lock Before starting, unlock the steer-
ing if necessary, by gently tur-ning the steering wheel at the
same time as you turn the key. It is advisable to press the clutch pedal while operating the starter
to make starting easier. Starting the engine
Do not press the accelerator.
Operate the starter, without
releasing the key, until the engineturns.
THE KEYS The keys operate independently the locks for the doors, the boot(opening), the fuel filler flap, thesteering lock, the glove box andthe passenger air bag disarmingswitch. Central locking
From the driverÕs door, the keys allow you to:
Ð simultaneously lock the doors
and the boot,
Ð simultaneously unlock just the doors.
You can only unlock the boot by using the lock. The remote control Pressing button A
allows you to lock the doors and boot. This is displayed by the continuous light-ing of the direction
indicators forapproximately twoseconds. Pressing button B
allows you to unlock the doors
only. This is indicated by the quick flashing of the direc-tion indicators for approxi-mately two seconds.
Never race a coldengine.
Never run the engine in anenclosed space. Do not make any modications to the steering lock.
07-10-200269

INSTRUMENTS AND CONTROLS
30
Instrument panel display After switching on the ignition, three functions are shown in succession:
Ð service indicator (see corresponding section),
Ð engine oil level indicator,Ð total distance recorder/total and trip distances.Note:
the total and trip distances are displayed for 30 seconds when the ignition
is switched off, on opening the driver's door, as well as on locking and unlocking the vehicle. Engine oil level When the ignition is switched on, the engine oil level is indicated for approximately 10 seconds, after the servicing information.
Maximum Check the level using the dipstick to confirm whether the level indicated is correct; a surplusof oil can cause damage to the engine.
Consult a PEUGEOT dealer without delay. Minimum Check the level with the dipstick and top it up. The level indicated is only correct if the vehiclehas been on stable, level ground, with theengine stopped, for 10 minutes. Oil level gauge fault The 6 segments flash to indicate a fault in the oil level gauge. There is a risk the engine will be damaged.
Consult a PEUGEOT dealer.
Engine oil temperature indicator light When the engine is running, it indi- cates the oil temperature:
Ð When the needle is in zone
(C), the
temperature is correct,
Ð When the needle is in zone (D), the
temperature is too high. To lower the oil temperature, reduce yourspeed.
07-10-2002

INSTRUMENTS AND CONTROLS
30
Instrument panel display After switching on the ignition, three functions are shown in succession:
Ð service indicator (see corresponding section),
Ð engine oil level indicator,Ð total distance recorder/total and trip distances.Note:
the total and trip distances are displayed for 30 seconds when the ignition
is switched off, on opening the driver's door, as well as on locking and unlocking the vehicle. Engine oil level When the ignition is switched on, the engine oil level is indicated for approximately 10 seconds, after the servicing information.
Maximum Check the level using the dipstick to confirm whether the level indicated is correct; a surplusof oil can cause damage to the engine.
Consult a PEUGEOT dealer without delay. Minimum Check the level with the dipstick and top it up. The level indicated is only correct if the vehiclehas been on stable, level ground, with theengine stopped, for 10 minutes. Oil level gauge fault The 6 segments flash to indicate a fault in the oil level gauge. There is a risk the engine will be damaged.
Consult a PEUGEOT dealer.
Engine oil temperature indicator light When the engine is running, it indi- cates the oil temperature:
Ð When the needle is in zone
(C), the
temperature is correct,
Ð When the needle is in zone (D), the
temperature is too high. To lower the oil temperature, reduce yourspeed.
07-10-2002

07-10-2002
YOUR 206 CC IN DETAIL69
Changing the battery of the remote control
Warning that the battery is flat is given by an audible signal accompanied bythe message
''Remote control bat-
tery low'' on the multifunction display.
To replace the battery, remove thescrew then unclip the casing using acoin at the ring (CR 2016/3 volt battery). If the remote control does not work after the battery has been changed,reprogramme the remote control.
THE KEYS The keys allow you to
independently
operate the locks on the doors, the tailgate (opening), the fuel filler cap,the steering lock, the glove box andthe passenger air bag disarming con-trol and to switch on the ignition. Central locking From the driver's door the keys allow you:
Ðto lock or unlock the doors and tail-
gate simultaneously,
Ð to unlock simultaneously just thedoors.
Unlocking the boot is possible only
by using the boot key. If one of the doors is open, the central locking does not work. The remote control This fulfils the same functions as the
key, at a distance. Locking Pressing button
Alocks the vehicle by
remote control. This is displayed by the continuouslighting of the direction indicators forapproximately two seconds. Unlocking Pressing button Bunlocks just the
doors. This is shown by the rapid flashing ofthe direction indicators. Notes: if the vehicle is locked and the
unlocking control is pressed inadver- tently without the doors being openedwithin 30 seconds, the vehicle will lock
again automatically.
Avoid pressing the buttons of your remote control out of range of your
vehicle. You risk causing it not to workand the remote control would have tobe reprogrammed. Locating your car
To locate your car in a car park, if you have locked it:
press button A, the courtesy light
comes on and the direction indica- tors flash for a few seconds.
Key in ignition
A buzzer sounds on opening the dri-
ver's door, if the key has been left inthe ignition.
Programming the remote control  Switch off the ignition.
 Switch the ignition on again.
 Press button A.
 Switch off the ignition and remove the remote control key from the
ignition lock. The remote control isnow working again.

07-10-2002
YOUR 206 CC IN DETAIL71
Opening the doors from outside
DOORS
Opening the doors from inside
LOCKING AND UNLOCKING THE BOOT Lock the boot using the key (turn the
key from Ato C) or the remote control.
Unlock it using the key (turn the key
from Ato B).
The lighting is controlled by open- ing the boot.
Locking from the inside
To lock, press button
A.
Locking one of the front doors locks the doors and the boot. Unlocking from the inside
To unlock, pull button Aor the handle.
''Door open'' alert
With the engine running an audible
signal and a message or diagram locating the problem on the multifunc-tion screen, warns you that a door isnot properly closed. Also, when the vehicle is moving ,
with the courtesy light button in the "lighting on opening a door" position,the courtesy light flashes.

07-10-2002
Fuse RatingFunctions
1 15 A Heated seat - Alarm
4 20 A Mulltifunction screen - Navigation control unit - Boot lighting - Audio system - Retractable roof control unit
5 15 A Automatic gearbox diagnostics
6 10 A Coolant level - Automatic gearbox - Audio system - Steering wheel angle sensor (ESP)
7 15 A Driving school accessories - Alarm fitted as an accessory - Rain detector
9 30 A Hydraulic pump
10 40 A Driving mirror demisting 11 15 A Windscreen wiper
12 30 A Front windows
14 10 A Engine module - Air bags - Steering wheel stalk
15 15 A Instrument panel - Multifunction screen - Navigation control unit - Air conditioning - Audio system
16 30 A Locking/unlocking of doors
20 10 A Right-hand brake light
21 15 A Left-hand brake light - 3rd brake light
22 30 A Front courtesy light - Glove box lighting - Lighter
S1 Shunt PARC shunt PRACTICAL INFORMATION
