2002.5 Peugeot 206 CC Dag display

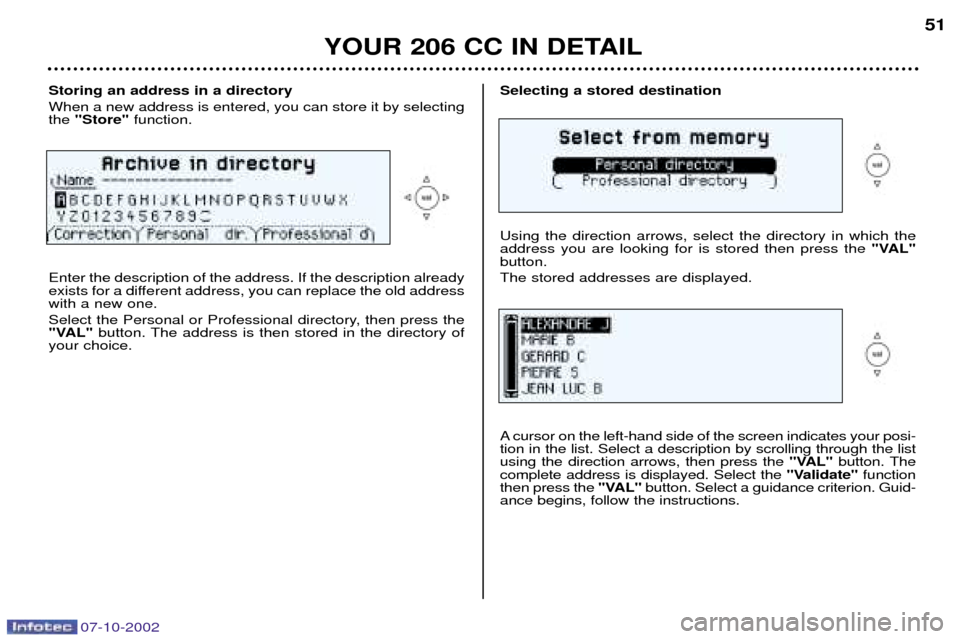

Selecting a stored destination Using the direction arrows, select the directory in which the address you are looking for is stored then press the "VAL"
button. The stored addresses are displayed.
A cursor on the left-hand side of the screen indicates your posi- tion in the list. Select a description by scrolling through the listusing the direction arrows, then press the "VAL"button. The
complete address is displayed. Select the "Validate"function
then press the "VAL" button. Select a guidance criterion. Guid-
ance begins, follow the instructions.Storing an address in a directory When a new address is entered, you can store it by selecting the "Store" function.
Enter the description of the address. If the description already
exists for a different address, you can replace the old addresswith a new one.
Select the Personal or Professional directory, then press the
"VAL" button. The address is then stored in the directory of
your choice.
07-10-2002
YOUR 206 CC IN DETAIL 51

Display configuration From the general menu, the "Configure display"menu gives
access to the following parameters:
Ð Adjustment of the display brightness.
Ð Adjustment of the date and time.
Ð Selection of the language of the display and voice infor- mation (English, German, Spanish, French, Italian).
Ð Adjustment of formats and units. This enables you to choose between Km/h or Mph and degrees Celsius or Fahrenheit and to modify the format for the hours (12 or 24hour mode).Navigation options From the main menu, the "Navigation options"menu gives
access to the following parameters:
Ð Management of the directories. It enables an address stored under a description to be renamed or deleted. To do this, select the directory and the description to be changed.
Ð Voice synthesis volume adjustment.
Ð Deletion of all data stored in the two directories.
07-10-2002
YOUR 206 CC IN DETAIL
52

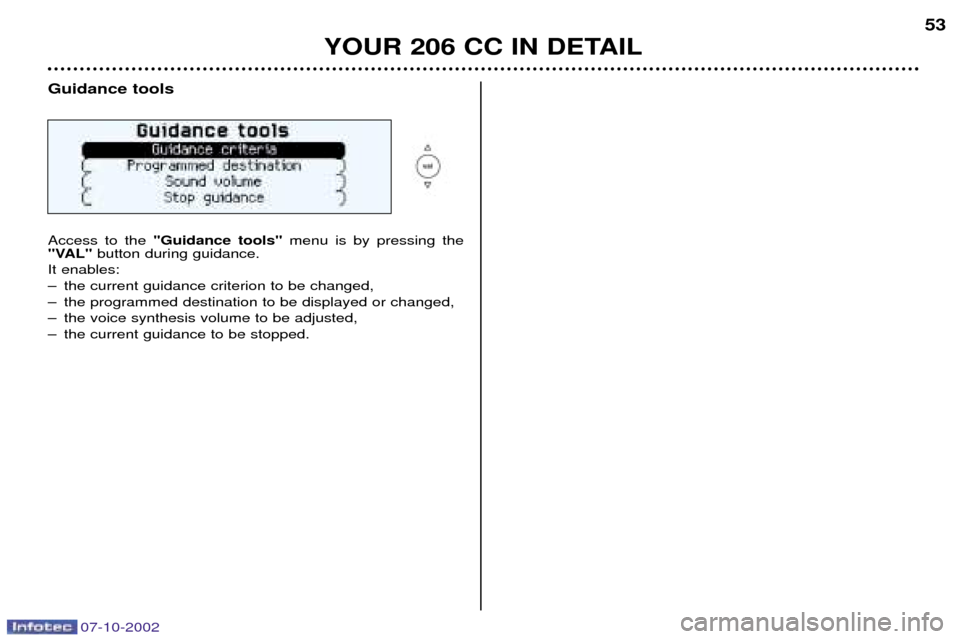

Guidance tools Access to the "Guidance tools" menu is by pressing the
"VAL" button during guidance.
It enables:
Ð the current guidance criterion to be changed,
Ð the programmed destination to be displayed or changed,
Ð the voice synthesis volume to be adjusted,
Ð the current guidance to be stopped.
07-10-2002
YOUR 206 CC IN DETAIL 53

07-10-2002
YOUR 206 CC IN DETAIL
60

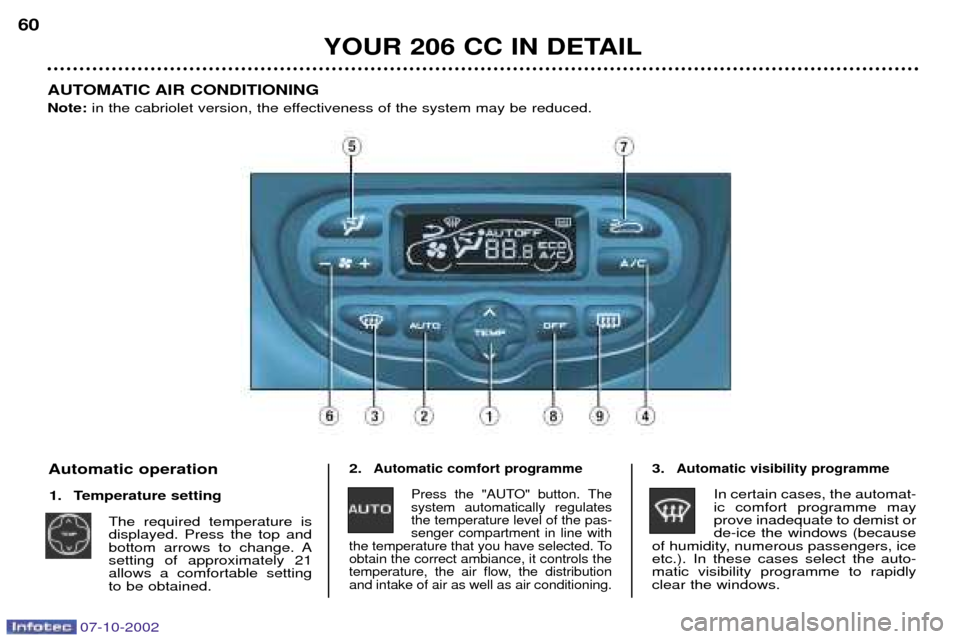

AUTOMATIC AIR CONDITIONING Note: in the cabriolet version, the effectiveness of the system may be reduced.
2.
Automatic comfort programmePress the "AUTO" button. The system automatically regulatesthe temperature level of the pas-senger compartment in line with
the temperature that you have selected. Toobtain the correct ambiance, it controls the
temperature, the air flow, the distributionand intake of air as well as air conditioning.3.Automatic visibility programme
In certain cases, the automat-ic comfort programme mayprove inadequate to demist orde-ice the windows (because
of humidity, numerous passengers, iceetc.). In these cases select the auto-matic visibility programme to rapidlyclear the windows.
Automatic operation
1. Temperature setting The required temperature is displayed. Press the top and
bottom arrows to change. Asetting of approximately 21allows a comfortable settingto be obtained.

07-10-2002
YOUR 206 CC IN DETAIL61
5.
Air distribution
Successive presses of this button allow the air flow to bedirected alternately to:
Ð the windscreen (demisting or de-icing),
Ð the windscreen and the footwells,
Ð the central and side vents and the footwells,
Ð the central and side vents.
7. Air intake Press this button to recycle
the interior air. Recirculation,
shown on the display, pre-vents the entry of unpleasant
odours and fumes from the outside.
Avoid prolonged recirculation of the
interior air. To do this, press again toreturn the system to automatic pro-cessing of the air intake.
4. Air conditioning
Press this button to stop the
air conditioning. The "ECO"symbol lights up. Press againto return to automatic opera-
tion of the air conditioning. The "A/C"symbol is displayed. 8. Switching the system off
The "OFF" button enablesthe entire system to be
switched off.
Temperature-related comfort is nolonger guaranteed. Pressing the "OFF", "AUTO" or "Visi-
bility" button again reactivates the
system with the values set before it
was switched off.
9. De-icing the rear window and the mirrors
Press this button to de-ice therear screen and the mirrors.The de-icing system switches
off automatically. It is possible
to stop the de-icing before it switches
off automatically by pressing the but-ton again. Note: this function is disarmed when
the roof is stored in the boot. Important precaution Operate the air conditioning system for 5 to 10 minutes, once or twice amonth, to keep it in perfect working
order. If the system does not produce cold
air, do not use it and contact your
PEUGEOT dealer.
Manual operation
If you wish you can make a different
choice from the one offered by the sys-
tem, by changing a setting. The otherfunctions will still be managed automat-
ically. Press the "AUTO" button to returnto completely automatic operation.
6. Air flowThe air flow may beincreased or reducedby pressing the buttons
+ or Ð respectively.
Note
The condensation created by the air condi- tioning causes a normal flow of water
under the vehicle when it stops. To preventcondensation on the inside of the vehicle in
cold or wet weather, you are advised toavoid using the "ECO" mode.

07-10-2002
YOUR 206 CC IN DETAIL69
Changing the battery of the remote control
Warning that the battery is flat is given by an audible signal accompanied bythe message
''Remote control bat-
tery low'' on the multifunction display.
To replace the battery, remove thescrew then unclip the casing using acoin at the ring (CR 2016/3 volt battery). If the remote control does not work after the battery has been changed,reprogramme the remote control.
THE KEYS The keys allow you to
independently
operate the locks on the doors, the tailgate (opening), the fuel filler cap,the steering lock, the glove box andthe passenger air bag disarming con-trol and to switch on the ignition. Central locking From the driver's door the keys allow you:
Ðto lock or unlock the doors and tail-
gate simultaneously,
Ð to unlock simultaneously just thedoors.
Unlocking the boot is possible only
by using the boot key. If one of the doors is open, the central locking does not work. The remote control This fulfils the same functions as the
key, at a distance. Locking Pressing button
Alocks the vehicle by
remote control. This is displayed by the continuouslighting of the direction indicators forapproximately two seconds. Unlocking Pressing button Bunlocks just the
doors. This is shown by the rapid flashing ofthe direction indicators. Notes: if the vehicle is locked and the
unlocking control is pressed inadver- tently without the doors being openedwithin 30 seconds, the vehicle will lock
again automatically.
Avoid pressing the buttons of your remote control out of range of your
vehicle. You risk causing it not to workand the remote control would have tobe reprogrammed. Locating your car
To locate your car in a car park, if you have locked it:
press button A, the courtesy light
comes on and the direction indica- tors flash for a few seconds.
Key in ignition
A buzzer sounds on opening the dri-
ver's door, if the key has been left inthe ignition.
Programming the remote control  Switch off the ignition.
 Switch the ignition on again.
 Press button A.
 Switch off the ignition and remove the remote control key from the
ignition lock. The remote control isnow working again.

07-10-2002
YOUR 206 CC IN DETAIL
70
Make a careful note of the
number on each key. Thekey number is coded on the
label attached to the key.
If the keys are lost, your PEUGEOT deal-er can rapidly supply you with new keys. The high frequency remote control is a high-performance system which has apowerful beam. Do not operate it while it is in your pocket as there is a possibility that itmay unlock your vehicle, without you
being aware of it. The remote control does not operate when the key is in the ignition, evenwhen the ignition is switched off,except for reprogramming. As a safety precaution (with children on board), remove the ignition key when youleave the vehicle, even for a short time. Do not repeatedly press the button of your remote control out of range of
your vehicle. You risk causing it not towork and the remote control wouldhave to be reprogrammed. When purchasing a second-hand vehi- cle:
Ð ensure that you are given the confi- dential card;
Ð have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the onlyones which can start the vehicle.
Do not make any modifications to theelectronic engine immobiliser system.
Confidential card The confidential card contains the identification code necessary for any
work carried out by a PEUGEOT dealer
on the system. This code is hidden bya film, which should be removed only if
necessary. Keep your card in a safe place, never inside the vehicle.ELECTRONIC ENGINE IMMOBILISER This locks the engine management system as soon as the ignition has
been switched off and therefore pre-vents starting of the vehicle by anyone
who does not have the key. The ignition key has an electronic chip which has a special code. When theignition is switched on, the code isrecognised and starting is possible. If the system does not function
correctly,
you are warned by an audi-
ble signal and a message on the mul-
tifunction display. In this case, the vehicle will not start.
Contact a PEUGEOT dealer as soon as possible.

07-10-2002
YOUR 206 CC IN DETAIL
70
Make a careful note of the
number on each key. Thekey number is coded on the
label attached to the key.
If the keys are lost, your PEUGEOT deal-er can rapidly supply you with new keys. The high frequency remote control is a high-performance system which has apowerful beam. Do not operate it while it is in your pocket as there is a possibility that itmay unlock your vehicle, without you
being aware of it. The remote control does not operate when the key is in the ignition, evenwhen the ignition is switched off,except for reprogramming. As a safety precaution (with children on board), remove the ignition key when youleave the vehicle, even for a short time. Do not repeatedly press the button of your remote control out of range of
your vehicle. You risk causing it not towork and the remote control wouldhave to be reprogrammed. When purchasing a second-hand vehi- cle:
Ð ensure that you are given the confi- dential card;
Ð have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the onlyones which can start the vehicle.
Do not make any modifications to theelectronic engine immobiliser system.
Confidential card The confidential card contains the identification code necessary for any
work carried out by a PEUGEOT dealer
on the system. This code is hidden bya film, which should be removed only if
necessary. Keep your card in a safe place, never inside the vehicle.ELECTRONIC ENGINE IMMOBILISER This locks the engine management system as soon as the ignition has
been switched off and therefore pre-vents starting of the vehicle by anyone
who does not have the key. The ignition key has an electronic chip which has a special code. When theignition is switched on, the code isrecognised and starting is possible. If the system does not function
correctly,
you are warned by an audi-
ble signal and a message on the mul-
tifunction display. In this case, the vehicle will not start.
Contact a PEUGEOT dealer as soon as possible.
