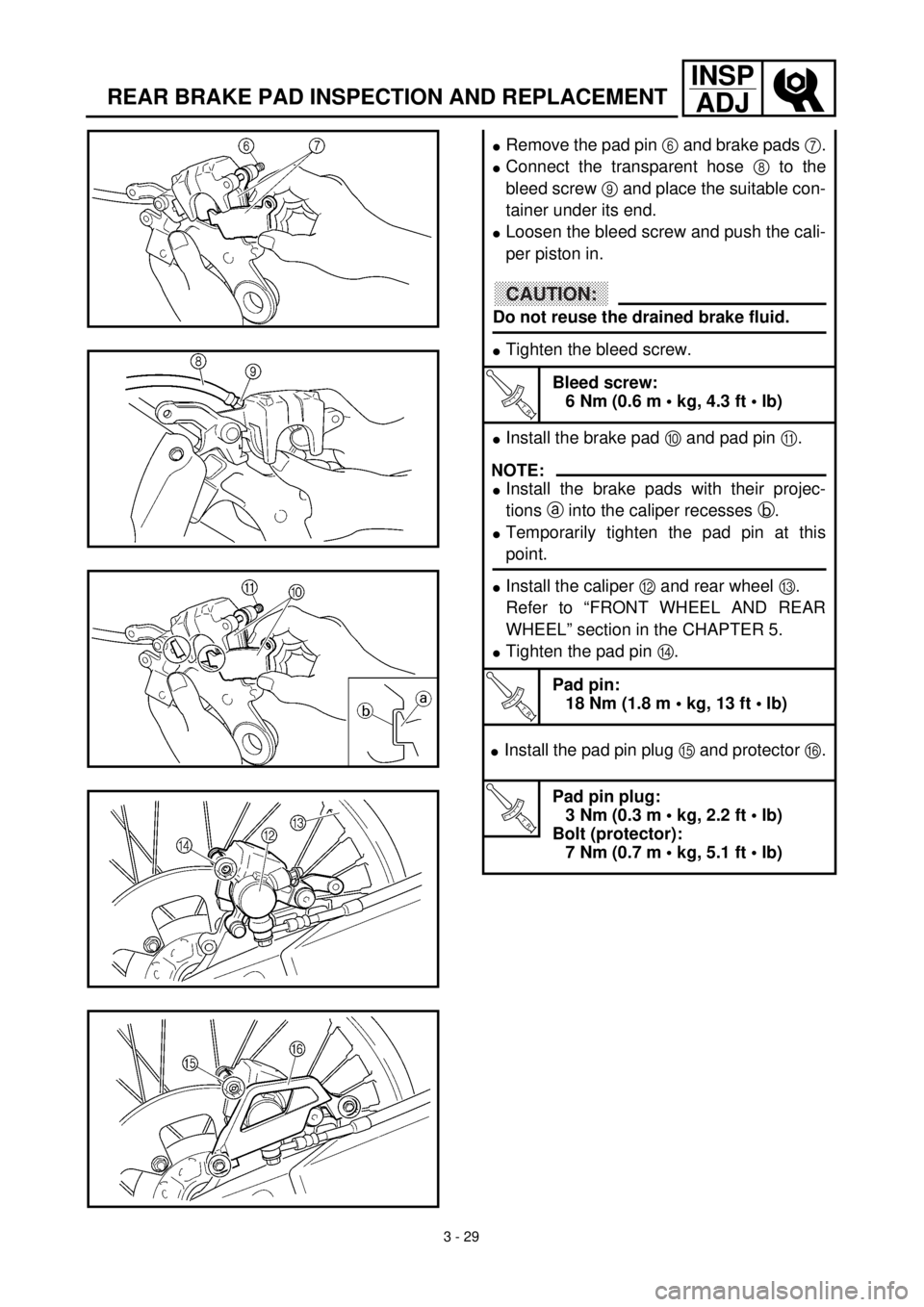

REAR BRAKE PAD INSPECTION AND REPLACEMENT
lRemove the pad pin 6 and brake pads 7.
lConnect the transparent hose 8 to the
bleed screw 9 and place the suitable con-
tainer under its end.
lLoosen the bleed screw and push the cali-
per piston in.
CAUTION:
Do not reuse the drained brake fluid.
lTighten the bleed screw.
T R..
Bleed screw:
6 Nm (0.6 m • kg, 4.3 ft • lb)
lInstall the brake pad 0 and pad pin A.
NOTE:
lInstall the brake pads with their projec-
tions a into the caliper recesses b.
lTemporarily tighten the pad pin at this
point.
lInstall the caliper B and rear wheel C.
Refer to “FRONT WHEEL AND REAR
WHEEL” section in the CHAPTER 5.
lTighten the pad pin D.
T R..
Pad pin:
18 Nm (1.8 m • kg, 13 ft • lb)
lInstall the pad pin plug E and protector F.
T R..
Pad pin plug:
3 Nm (0.3 m • kg, 2.2 ft • lb)
Bolt (protector):
7 Nm (0.7 m • kg, 5.1 ft • lb)
