PERIODIC MAINTENANCE AND MINOR REPAIR
Owner’s tool kit .......................................................6-1
Periodic maintenance and lubrication chart ............6-3
Removing and installing cowlings and panels ........6-6
Checking the spark plugs........................................6-9
Engine oil and oil filter cartridge ............................6-12
Chain drive oil .......................................................6-16
Coolant..................................................................6-17
Cleaning the air filter element ...............................6-19
Adjusting the carburetors ......................................6-21
Adjusting the engine idling speed .........................6-21
Adjusting the throttle cable free play .....................6-22
Adjusting the valve clearance ...............................6-22
Tires ......................................................................6-23
Cast wheels ..........................................................6-25
Front and rear brake levers...................................6-25
Checking the front and rear brake pads................6-26
Checking the brake fluid level ...............................6-27
Changing the brake fluid .......................................6-28
Checking and lubricating the throttle grip and
cable ...................................................................6-29
Lubricating the front and rear brake levers ...........6-29
Checking and lubricating the
centerstand and sidestand ..................................6-30
Checking the front fork ..........................................6-30Checking the steering ...........................................6-31
Checking the wheel bearings ................................6-32
Battery...................................................................6-32
Replacing the fuses ..............................................6-34
Replacing a headlight bulb....................................6-35
Troubleshooting ....................................................6-36
Troubleshooting charts .........................................6-37
6
5GJ-9-EV 5/26/01 11:04 AM Page 41

6-3
PERIODIC MAINTENANCE AND MINOR REPAIR
1
2
3
4
56
7
8
9
EAU03685
Periodic maintenance and lubrication chart
NOTE:
8The annual checks must be performed every year, except if a kilometer-based maintenance is performed instead.
8From 50,000 km, repeat the maintenance intervals starting from 10,000 km.
8Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and
technical skills.NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING (×1,000 km)
ANNUAL
CHECK
1 10203040
1
*Fuel line•Check fuel hoses and vacuum hose for cracks or damage.√√√√ √
2*Fuel filter•Check condition.√√
3 Spark plugs•Check condition.
•Clean and regap.√√
•Replace.√√
4*Valves•Check valve clearance.
•Adjust.Every 40,000 km
5 Air filter element•Clean.√√
•Replace.√√
6*V-belt case air filter
elements•Clean.√√
•Replace.√√
7*Front brake•Check operation, fluid level and vehicle for fluid leakage.
(See NOTE on page 6-5.)√√√√√ √
•Replace brake pads.Whenever worn to the limit
5GJ-9-EV 5/26/01 11:04 AM Page 44

EAU03816

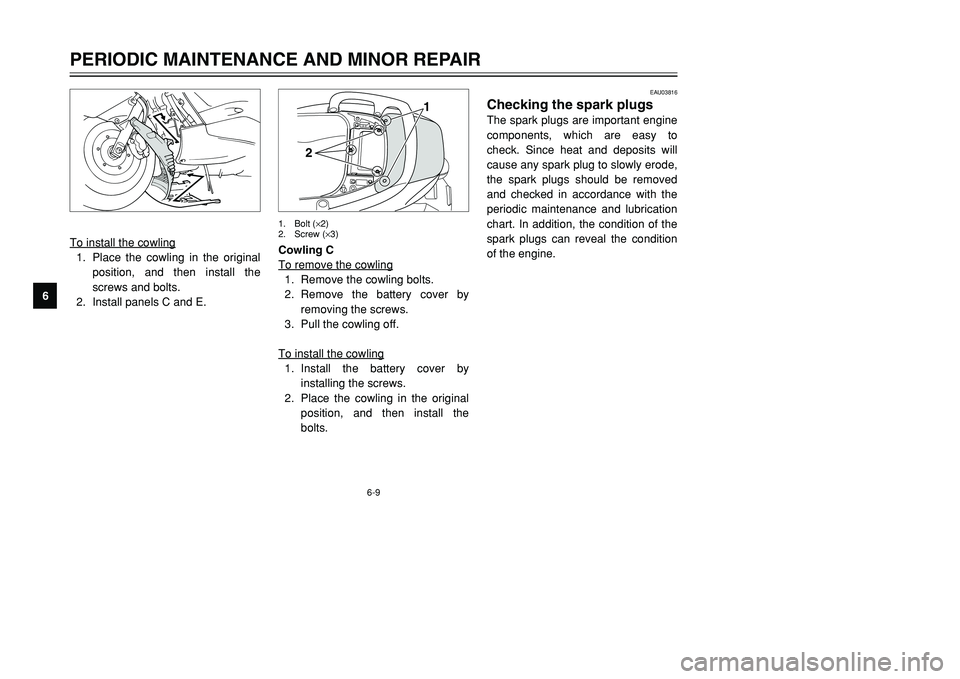

Checking the spark plugsThe spark plugs are important engine
components, which are easy to
check. Since heat and deposits will
cause any spark plug to slowly erode,
the spark plugs should be removed
and checked in accordance with the
periodic maintenance and lubrication
chart. In addition, the condition of the
spark plugs can reveal the condition
of the engine.
6-9
1
2
1. Bolt (×2)
2. Screw (×3)
To install the cowling1. Place the cowling in the original
position, and then install the
screws and bolts.
2. Install panels C and E.Cowling C
To remove the cowling
1. Remove the cowling bolts.
2. Remove the battery cover by
removing the screws.
3. Pull the cowling off.
To install the cowling1. Install the battery cover by
installing the screws.
2. Place the cowling in the original
position, and then install the
bolts.
PERIODIC MAINTENANCE AND MINOR REPAIR
1
2
3
4
56
7
8
95GJ-9-EV 5/26/01 11:04 AM Page 50

6-10
1
3. Remove the spark plug cap.1. Spark plug cap
PERIODIC MAINTENANCE AND MINOR REPAIR
1
2
3
4
56
7
8
9
1
To remove a spark plug
1. Remove cowling B. (See page
6-8 for cowling removal and
installation procedures.)
2. Remove the spark plug cover by
pulling it out as shown.1. Spark plug cover
1
4. Remove the spark plug as
shown with the spark plug
wrench included in the owner’s
tool kit.1. Spark plug wrench
5GJ-9-EV 5/26/01 11:04 AM Page 51

6-11
PERIODIC MAINTENANCE AND MINOR REPAIR
1
2
3
4
56
7
8
9To check the spark plugs
1. Check that the porcelain insula-
tor around the center electrode
on each spark plug is a medium-
to-light tan (the ideal color when
the scooter is ridden normally).
2. Check that all spark plugs
installed in the engine have the
same color.
NOTE:
If any spark plug shows a distinctly
different color, the engine could be
defective. Do not attempt to diagnose
such problems yourself. Instead,
have a Yamaha dealer check the
scooter.3. Check each spark plug for elec-
trode erosion and excessive car-
bon or other deposits, and
replace it if necessary.To install a spark plug
1. Measure the spark plug gap with
a wire thickness gauge and, if
necessary, adjust the gap to
specification.
2. Clean the surface of the spark
plug gasket and its mating sur-
face, and then wipe off any grime
from the spark plug threads.
3. Install the spark plug with the
spark plug wrench, and then
tighten it to the specified torque.
NOTE:
If a torque wrench is not available
when installing a spark plug, a good
estimate of the correct torque is
1/4–1/2 turn past finger tight.
However, the spark plug should be
tightened to the specified torque as
soon as possible.4. Install the spark plug cap.
Specified spark plug:
CR7E (NGK)
Spark plug gap:
0.7–0.8 mm
Tightening torque:
Spark plug:
12.5 Nm (1.25 m0kg)
a
a. Spark plug gap
5GJ-9-EV 5/26/01 11:04 AM Page 52

6-12
PERIODIC MAINTENANCE AND MINOR REPAIR
1
2
3
4
56
7
8
9
EAU03872
Engine oil and oil filter
cartridgeThe engine oil level should be
checked before each ride. In addition,
the oil must be changed and the oil
filter cartridge replaced at the inter-
vals specified in the periodic mainte-
nance and lubrication chart.
To check the engine oil level
1. Place the scooter on the center-
stand.
ECA00081
cCThe engine must be cold before
proceeding with the oil level
check, otherwise the check will
result in a false reading. NOTE:
Make sure that the scooter is posi-
tioned straight up when checking the
oil level. A slight tilt to the side can
result in a false reading.
32
1
4
1. Engine oil level check window
2. Maximum level
3. Minimum level
4. Engine oil drain bolt2. Start the engine, warm it up for
two minutes, and then turn it off.
3. Wait two minutes until the oil set-
tles, and then check the oil level
through the check window locat-
ed at the bottom-left side of the
crankcase.NOTE:
The engine oil should be between the
minimum and maximum level marks.4. If the engine oil is below the min-
imum level mark, add sufficient
oil of the recommended type to
raise it to the correct level.
1
1. Spark plug cover5. Place the spark plug cover in the
original position as shown, and
then install the cowling.
5GJ-9-EV 5/26/01 11:04 AM Page 53

6-21
PERIODIC MAINTENANCE AND MINOR REPAIR
1
2
3
4
56
7
8
9
EAU00630
Adjusting the carburetorsThe carburetors are important parts
of the engine and require very
sophisticated adjustment. Therefore,
most carburetor adjustments should
be left to a Yamaha dealer, who has
the necessary professional knowl-
edge and experience. The adjust-
ment described in the following sec-
tion, however, may be serviced by
the owner as part of routine mainte-
nance.
EC000095
cCThe carburetors have been set and
extensively tested at the Yamaha
factory. Changing these settings
without sufficient technical knowl-
edge may result in poor perfor-
mance of or damage to the engine.
EAU03821
Adjusting the engine idling
speedThe engine idling speed must be
checked and, if necessary, adjusted
as follows at the intervals specified in
the periodic maintenance and lubrica-
tion chart.NOTE:
A diagnostic tachometer is needed to
make this adjustment.1. Remove panel B. (See page 6-7
for panel removal and installation
procedures.)
2. Attach the tachometer to the
spark plug lead.
3. Start the engine and warm it up
for several minutes at
1,000–2,000 r/min while occa-
sionally revving it to 4,000–5,000
r/min.
NOTE:
The engine is warm when it quickly
responds to the throttle.4. Check the engine idling speed
and, if necessary, adjust it to
specification by turning the throt-
tle stop screw. To increase the
engine idling speed, turn the
screw in direction a. To
decrease the engine idling
speed, turn the screw in direction
b.
1a
b
1. Throttle stop screw
Engine idling speed:
1,150–1,200 r/min
5GJ-9-EV 5/26/01 11:04 AM Page 62

6-33
PERIODIC MAINTENANCE AND MINOR REPAIR
1
2
3
4
56
7
8
9
EW000116
w8Electrolyte is poisonous and
dangerous since it contains
sulfuric acid, which causes
severe burns. Avoid any con-
tact with skin, eyes or clothing
and always shield your eyes
when working near batteries.
In case of contact, administer
the following FIRST AID.
8EXTERNAL: Flush with
plenty of water.
8INTERNAL: Drink large
quantities of water or milk
and immediately call a
physician.
8EYES: Flush with water for
15 minutes and seek
prompt medical attention.
8Batteries produce explosive
hydrogen gas. Therefore, keep
sparks, flames, cigarettes,
etc., away from the battery and
provide sufficient ventilation
when charging it in an en-
closed space.8KEEP THIS AND ALL BATTER-
IES OUT OF THE REACH OF
CHILDREN.
To store the battery
1. If the scooter will not be used for
more than one month, remove the
battery, fully charge it, and then
place it in a cool, dry place.
2. If the battery will be stored for
more than two months, check it at
least once a month and fully
charge it if necessary.
3. Fully charge the battery before
installation.
EC000102
cC8Always keep the battery
charged. Storing a discharged
battery can cause permanent
battery damage.
8To charge a sealed-type (MF)
battery, a special (constant-
voltage) battery charger is
required. Using a conventional
battery charger will damage
the battery. If you do not have
access to a sealed-type (MF)
battery charger, have a
Yamaha dealer charge your
battery.
5GJ-9-EV 5/26/01 11:04 AM Page 74
