These are maintenance and inspection items which are considered to be the owner's responsibility.
They can be done by the owner or they can have them done at a service shop.
These items include those which should be checked on a daily basis, those which, in most cases, do not
require (special) tools and those which are considered to be reasonable for the owner to do.
Items and procedures for general maintenance are as follows.
1. GENERAL NOTES

Maintenance items may vary from country to country. Check the owner's manual supplement in which
the maintenance schedule is shown.

Every service item in the periodic maintenance schedule must be performed.

Periodic maintenance service must be performed according to whichever interval in the periodic main-
tenance schedule occurs first, the odometer reading (miles) or the time interval (months).

Maintenance service after the last period should be performed at the same interval as before unless
otherwise noted.

Failure to do even one item can cause the engine to run poorly and increase exhaust emissions.
2. LIGHTS
(a) Check that the headlights, stop lights, taillights, turn signal lights, and other lights are all working.
(b) Check the headlight aim.
3. WARNING LIGHTS AND BUZZERS
Check that all warning lights and buzzers function properly.
4. HORN
Check that it is working.
5. WINDSHIELD GLASS
Check for scratches, pits or abrasions.
6. WINDSHIELD WIPER AND WASHER
(a) Check operation of the wipers and washer.
(b) Check that the wipers do not streak.
7. WINDSHIELD DEFROSTER
Check that air comes out from the defroster outlet when operating the heater or air conditioner.
8. REAR VIEW MIRROR
Check that it is mounted securely.
9. SUN VISORS
Check that they move freely and are mounted securely.
10. STEERING WHEEL
Check that it has the specified free play. Be alert for changes in steering condition, such as hard steering,
excessive free play or strange noises.
11. SEATS
(a) Check that the seat adjusters operate smoothly.
(b) Check that all latches lock securely in any position.
(c) Check that the head restraints move up and down smoothly and that the locks hold securely in any
latch position.
(d) For fold±down seat backs, check that the latches lock securely.
12. SEAT BELTS
(a) Check that the seat belt system such as the buckles, retractors and anchors operate properly and
smoothly.
(b) Check that the belt webbing is not cut, frayed, worn or damaged.

H24378
H24395
H24324
H24325
H24326
± BODYFRONT SEAT (Power Adjuster Type)
BO±115
3668 Author: Date:
2005 SEQUOIA (RM1146U)
(c) Remove the hog rings from the seat cushion cover.
(d) Unlatch the seat cushion cover hooks, then remove the
seat cushion cover and seat cushion pad.
12. REMOVE SEAT CUSHION COVER
Remove the hog rings and seat cushion cover from the seat
cushion pad.
13. w/ Seat heater:
REMOVE SEAT CUSHION HEATER ASSEMBLY
Cut off the tack pins which fasten the seat heater, and then re-
move the seat cushion heater assembly from the seat cushion
cover.
14. REMOVE LUMBAR SUPPORT ADJUSTER
(a) Disconnect the connector.
(b) Disengage the seatback spring edge from the seat frame
assembly.
NOTICE:
Be careful when releasing the seatback spring edge, be-
cause there is a possibility that the spring may break due
to tension by the lumbar support.
(c) Remove the 2 screws and lumbar support adjuster.
(d) Remove the bushing from the lumbar support adjuster.
15. REMOVE RH AND LH RECLINING ADJUSTER INSIDE
COVERS
(a) Remove the screw and RH reclining adjuster inside cover.
(b) Disconnect the wire harness clamp.
(c) Perform the same procedure on the other side.

H24324
H24394
Listing Pocket
Seat WireSeat Heater
Tack Pin
Seat Cushion Cover
A: Install the tack pins under the wire.A
Seat Heater Strap
Tack pins should not be beyond the seat.Front
Name Stamp a±a:
Tack Pin
Seat Heater
b±b:
Tack PinSeat Heater
Seat Cushion Cover
Tack Pin
ab
ab
a
a bb
bb
bb
bbbb b
b bb
H24395
BO±118
± BODYFRONT SEAT (Power Adjuster Type)
3671 Author: Date:
2005 SEQUOIA (RM1146U)
(c) Engage the seatback spring edge with the seat frame as-
sembly.
6. w/ Seat heater:
INSTALL SEAT CUSHION HEATER ASSEMBLY
(a) Set the seat cushion heater assembly with the name
stamp side facing the seat cushion cover.
(b) Install the seat cushion heater assembly with the 10 tack
pins.
NOTICE:
Do not substitute other metal parts for tack pins.
7. INSTALL SEAT CUSHION COVER
Install the seat cushion cover to the seat cushion pad with the
hog rings.
HINT:
When installing the hog rings, take as much care as possible to
prevent wrinkles.
8. INSTALL SEAT CUSHION COVER AND PAD
(a) Install the seat cushion cover with seat cushion pad, and
latch the seat cushion cover hooks.

H24319
H24335
H24336
H24395
H24342
BO±128
± BODYFRONT SEAT (Manual Adjuster Type)
3681 Author: Date:
2005 SEQUOIA (RM1146U)
9. REMOVE SEATBACK COVER
(a) Turn up the seatback cover and remove the hog rings.
(b) Remove the 2 headrest supports.
(c) Remove the seatback cover from the seatback pad.
10. REMOVE SEAT CUSHION COVER AND PAD
(a) Remove the clip.
(b) Perform the same procedure on the other side.
(c) Remove the hog rings from the seat cushion cover.
(d) Unlatch the seat cushion cover hooks, then remove the
seat cushion cover with seat cushion pad.
11. REMOVE SEAT CUSHION COVER
Remove the hog rings and seat cushion cover from the seat
cushion pad.
12. REMOVE RH AND LH UPPER RECLINING ADJUSTER
INSIDE COVERS
(a) Remove the screw and LH upper reclining adjuster inside
cover.
(b) Perform the same procedure on the other side.

05_SEQUOIA_U (L/O 0408)
74
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
Ta b
Buckle

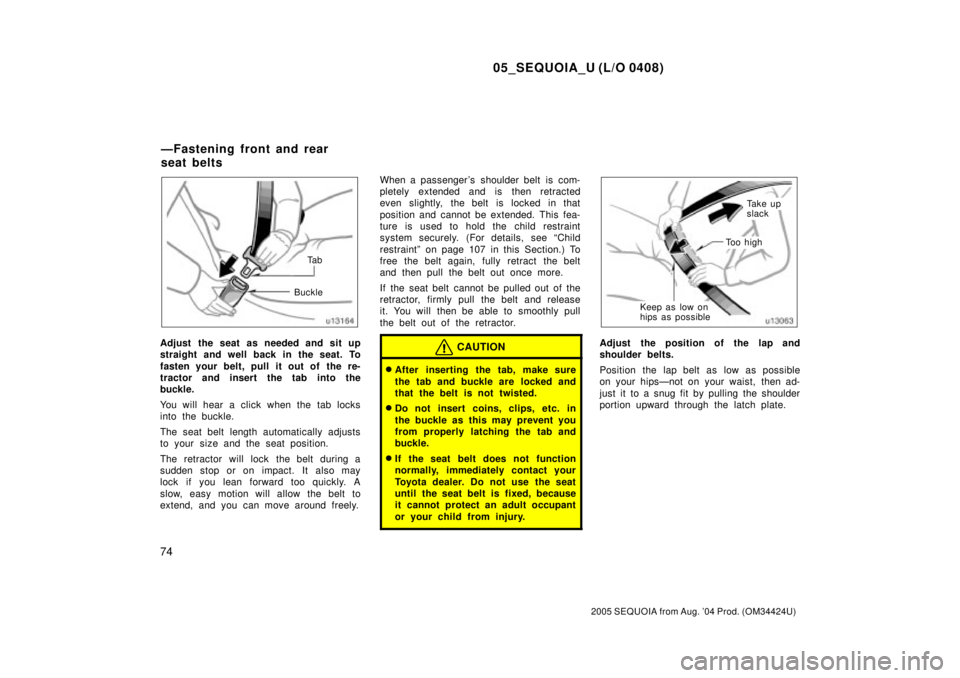

Adjust the seat as needed and sit up
straight and well back in the seat. To
fasten your belt, pull it out of the re-
tractor and insert the tab into the
buckle.
You will hear a click when the tab locks
into the buckle.
The seat belt length automatically adjusts
to your size and the seat position.
The retractor will lock the belt during a
sudden stop or on impact. It also may
lock if you lean forward too quickly. A
slow, easy motion will allow the belt to
extend, and you can move around freely.When a passenger 's shoulder belt is com-
pletely extended and is then retracted
even slightly, the belt is locked in that
position and cannot be extended. This fea-
ture is used to hold the child restraint
system securely. (For details, see ªChild
restraintº on page 107 in this Section.) To
free the belt again, fully retract the belt
and then pull the belt out once more.
If the seat belt cannot be pulled out of the
retractor, firmly pull the belt and release
it. You will then be able to smoothly pull
the belt out of the retractor.CAUTION

After inserting the tab, make sure
the tab and buckle are locked and
that the belt is not twisted.

Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.

If the seat belt does not function
normally, immediately contact your
Toyota dealer. Do not use the seat
until the seat belt is fixed, because
it cannot protect an adult occupant
or your child from injury.
To o h i g h
Keep as low on
hips as possible
Ta k e u p
slack
Adjust the position of the lap and
shoulder belts.
Position the lap belt as low as possible
on your hipsÐnot on your waist, then ad-
just it to a snug fit by pulling the shoulder
portion upward through the latch plate.
ÐFastening front and rear
seat belts

05_SEQUOIA_U (L/O 0408)
83
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
To connect the extender to the seat
belt, insert the tab into the seat belt
buckle so that the ªPRESSº signs on
the buckle release buttons of the ex-
tender and the seat belt are both facing
outward as shown.
You will hear a click when the tab locks
into the buckle.
When releasing the seat belt, press on
the buckle release button on the extender,
not on the seat belt. This helps prevent
damage to the vehicle interior and extend-
er itself.As far as the seat belt extender on the
front passenger side is concerned, do not
fail to disconnect the extender from the
seat belt after the above operation in or-
der to activate the front passenger airbag
correctly when getting into the vehicle
next time.
When not in use, remove the extender
and store in the vehicle for future use.
CAUTION

After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt and the seat belt extend-
er are not twisted.

Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.

If the seat belt does not function
normally, immediately contact your
Toyota dealer. Do not use the seat
until the seat belt is fixed, because
it cannot protect an adult occupant
or your child from injury.
The driver and front passenger seat
belt pretensioners are designed to be
activated in response to a severe fron-
tal impact.
When the sensor detects a severe frontal
impact, the front seat belts are quickly
drawn back by the retractors so that the
belts snugly restrain the occupants.
ÐSeat belt pretensioners

05_SEQUOIA_U (L/O 0408)
111
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)

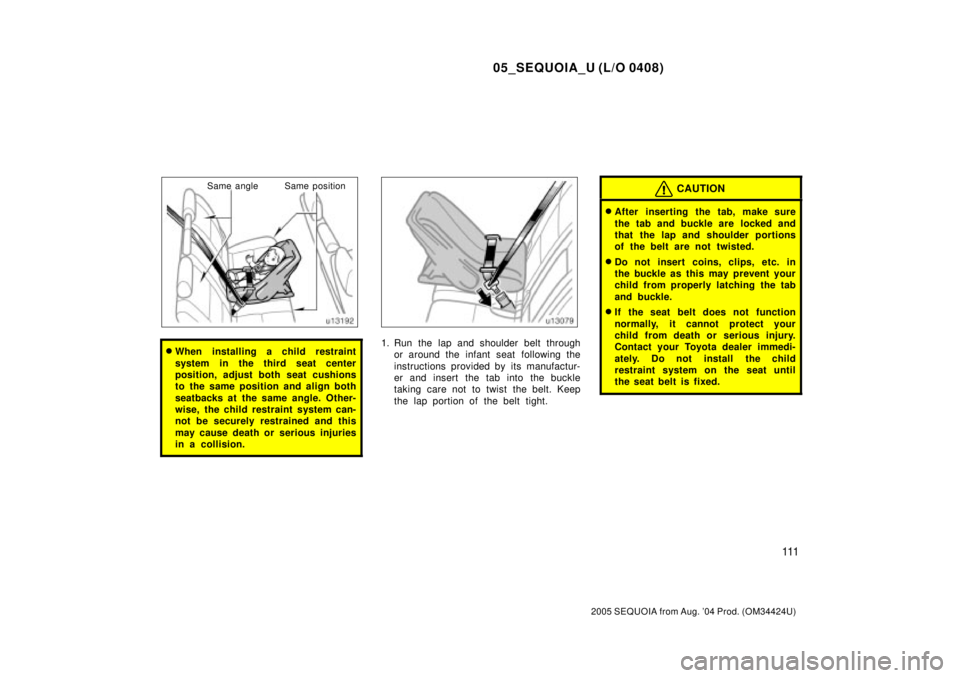

Same angle Same position

When installing a child restraint
system in the third seat center
position, adjust both seat cushions
to the same position and align both
seatbacks at the same angle. Other-
wise, the child restraint system can-
not be securely restrained and this
may cause death or serious injuries
in a collision.1. Run the lap and shoulder belt through
or around the infant seat following the
instructions provided by its manufactur-
er and insert the tab into the buckle
taking care not to twist the belt. Keep
the lap portion of the belt tight.
CAUTION

After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.

Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.

If the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact your Toyota dealer immedi-
ately. Do not install the child
restraint system on the seat until
the seat belt is fixed.

05_SEQUOIA_U (L/O 0408)
11 7
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
CAUTION

After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.

Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.

If the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact your Toyota dealer immedi-
ately. Do not install the child
restraint system on the seat until
the seat belt is fixed.
2. Fully extend the shoulder belt to put it
in the lock mode. When the belt is
then retracted slightly, it cannot be ex-
tended.
To hold the convertible seat securely,
make sure the belt is in the lock mode
before letting the belt retract.3. While pressing the convertible seat
firmly against the seat cushion and
seatback, let the shoulder belt retract
as far as it will go to hold the convert-
ible seat securely.
